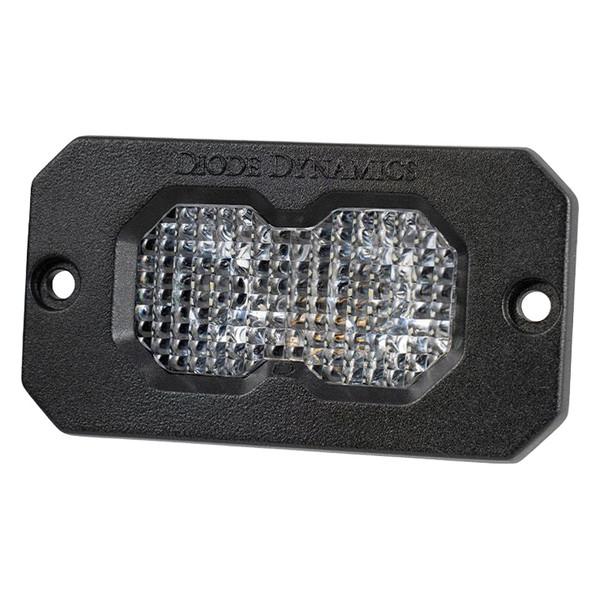

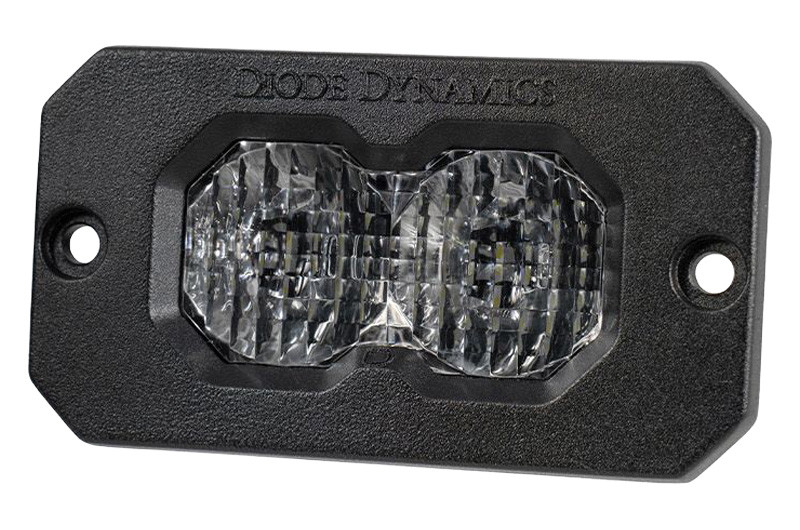

Diode Dynamics® DD8120S - C2 Sport Standard Series Flush Mount 2" 7.7W Flood Beam LED Light, With Red Backlight

Name: Diode Dynamics® DD8120S - C2 Sport Standard Series Flush Mount 2" 7.7W Flood Beam LED Light, With Red Backlight
Brand: Diode Dynamics
SKU: mpn5251453580
Price: 109.95 USD
Availability: InStock

0 reviews|Item # mpn5251453580

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$109.95

In Stock (1) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Size	2"
Watts (per kit)	7.7W
Beam pattern	flood beam
Bulb type	LED
Series	C2 Sport Standard Series
Mount type	flush mount
Color/finish	black
Light Color	white
Backlight color	red
Voltage	9-16V
Amperage	0.6A
Raw lumens	871; Effective lumens: 1130
Color temperature	6000K
Lux @10M	4
Candelas	373 CD

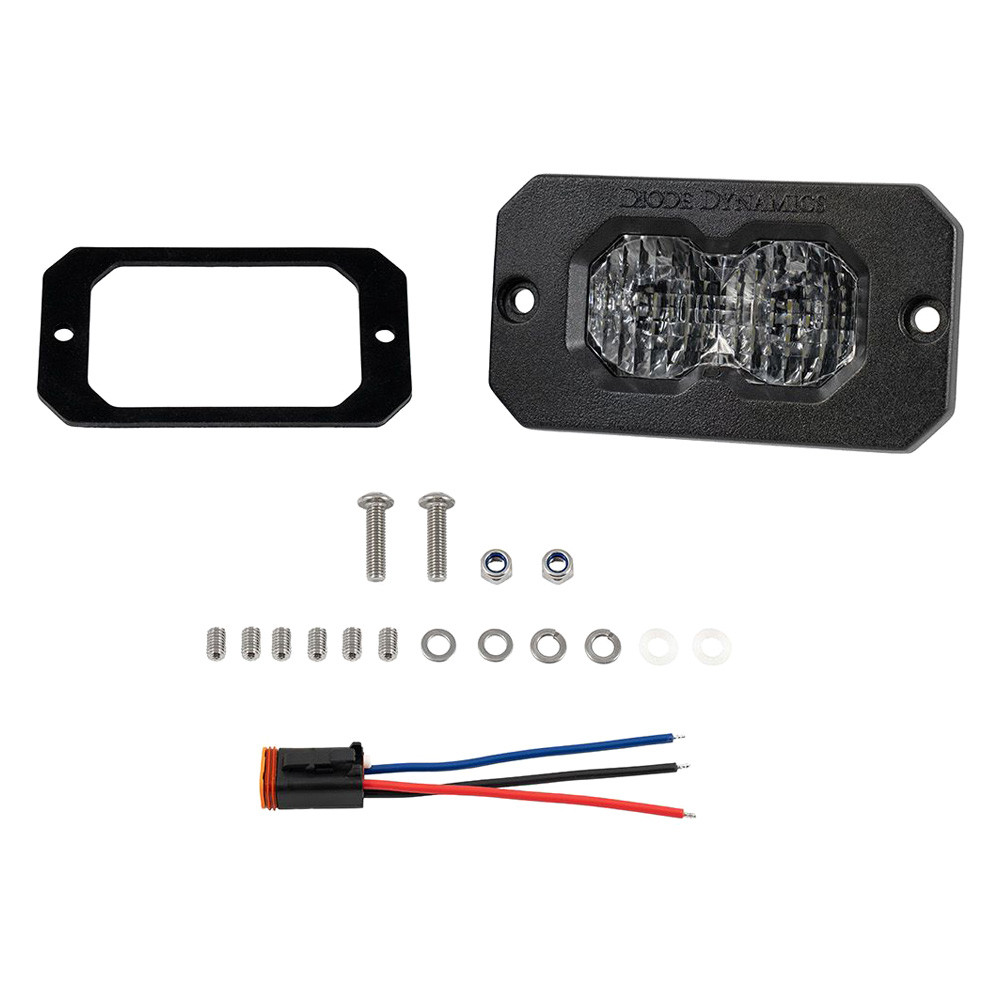

Includes

(1) C2 Series Sport 2" LED Pod
(1) Deutsch-style wire pigtail
(1) Mounting bracket
Mounting hardware

Features

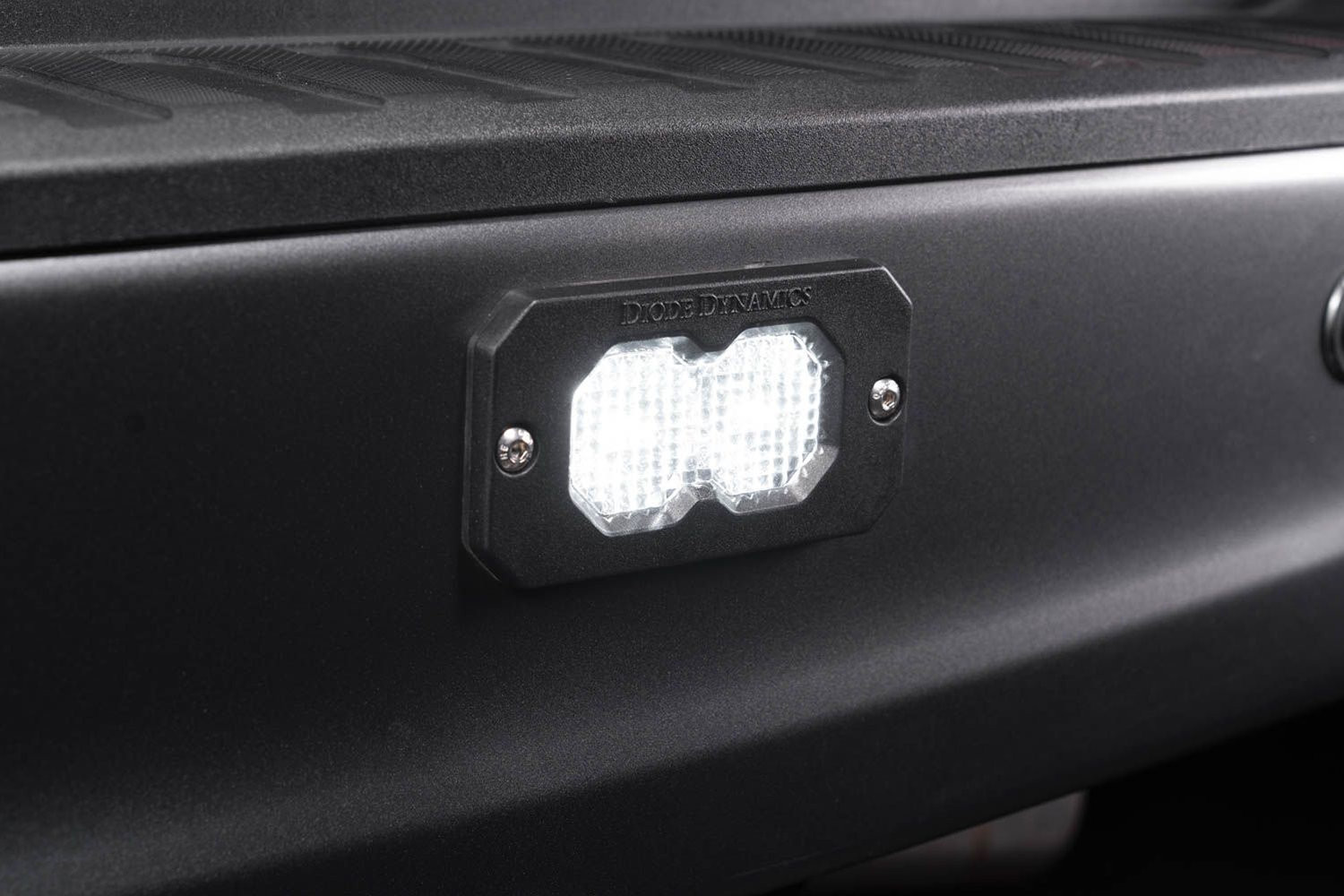

Allows for flush installation on bumpers and truck beds
Modern TIR optics for the highest intensity on the market
Durable powdercoated aluminum construction
Integrated Deutsch-style connector
Pin-fin heat sink design
Designed, torture tested and assembled in USA
Designed to deliver trouble-free, consistent performance
Right for your vehicle and lifestyle
Made from high-quality materials for ultimate durability
Manufactured to meet or exceed strict quality requirements

Product Details

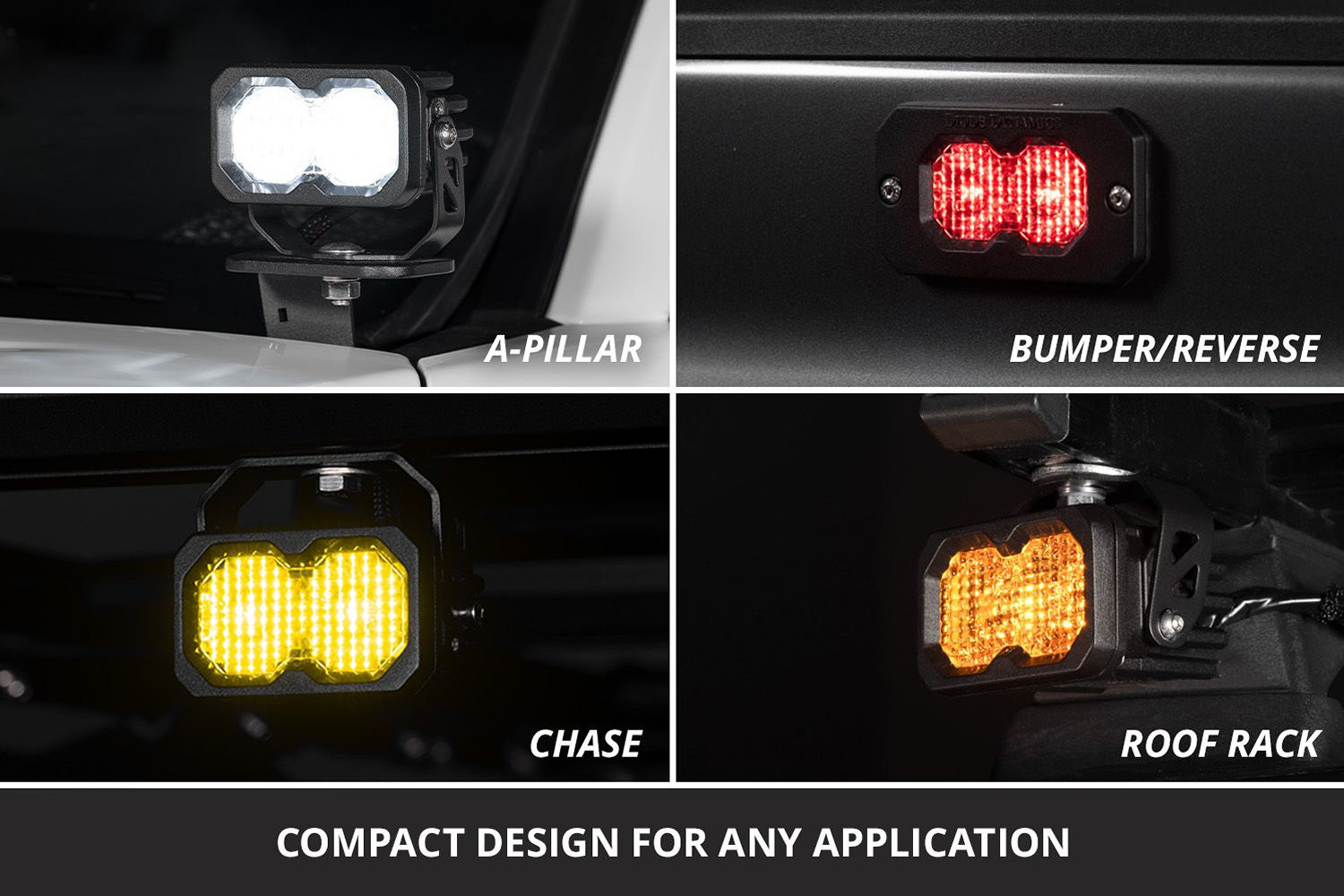

Universal C2 Sport Standard Series Flush Mount 2" 7.7W Flood Beam LED Light, With Red Backlight (DD8120S) by Diode Dynamics®. 1 Piece. White light. 9-16V. 0.6A. Raw lumens: 871; Effective lumens: 1130. 6000K. Add LED pods to your bumper, truck bed, or anywhere else you can think of with Stage Series 2" Flush Mount Pod Kit! Featuring higher output intensity than any other 2” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included flush mount bezel, the Stage Series 2" Flush Mount Kit is extremely versatile and once installed has a clean, factory-style appearance.

Installation

Diode Dynamics® - C2 Sport Standard Series Flush Mount 2" 7.7W Flood Beam LED Light, With Red Backlight, Installation Guide

Diode Dynamics® - C2 Sport Standard Series Flush Mount 2" 7.7W Flood Beam LED Light, With Red Backlight, Installation Guide Diode Dynamics® - C2 Sport Standard Series Flush Mount 2" 7.7W Flood Beam LED Light, With Red Backlight, Guide Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD8120S

UPC:

195995143334

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
