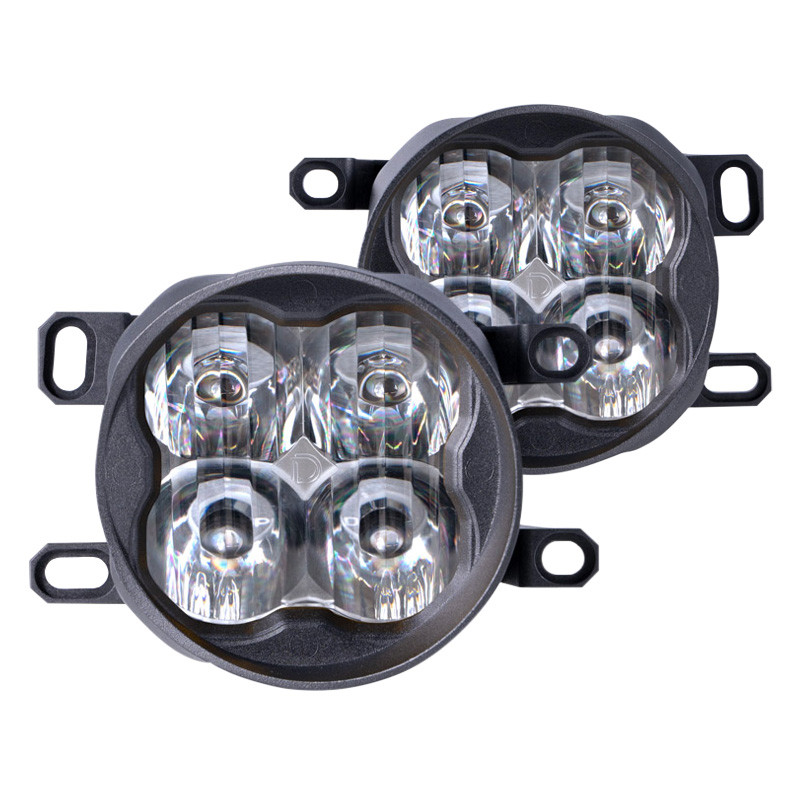

Diode Dynamics® DD7201 - Fog Light Location Mounted Stage Pro Series Type CGX 3" 2x36W Round Fog Beam Yellow LED Light Kit, with Amber Backlight

0 reviews|Item # mpn4864338976

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Authorized Dealer

$499.95

In Stock (1) - Ships within 24 hrs

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Lexus

Toyota

Specifications

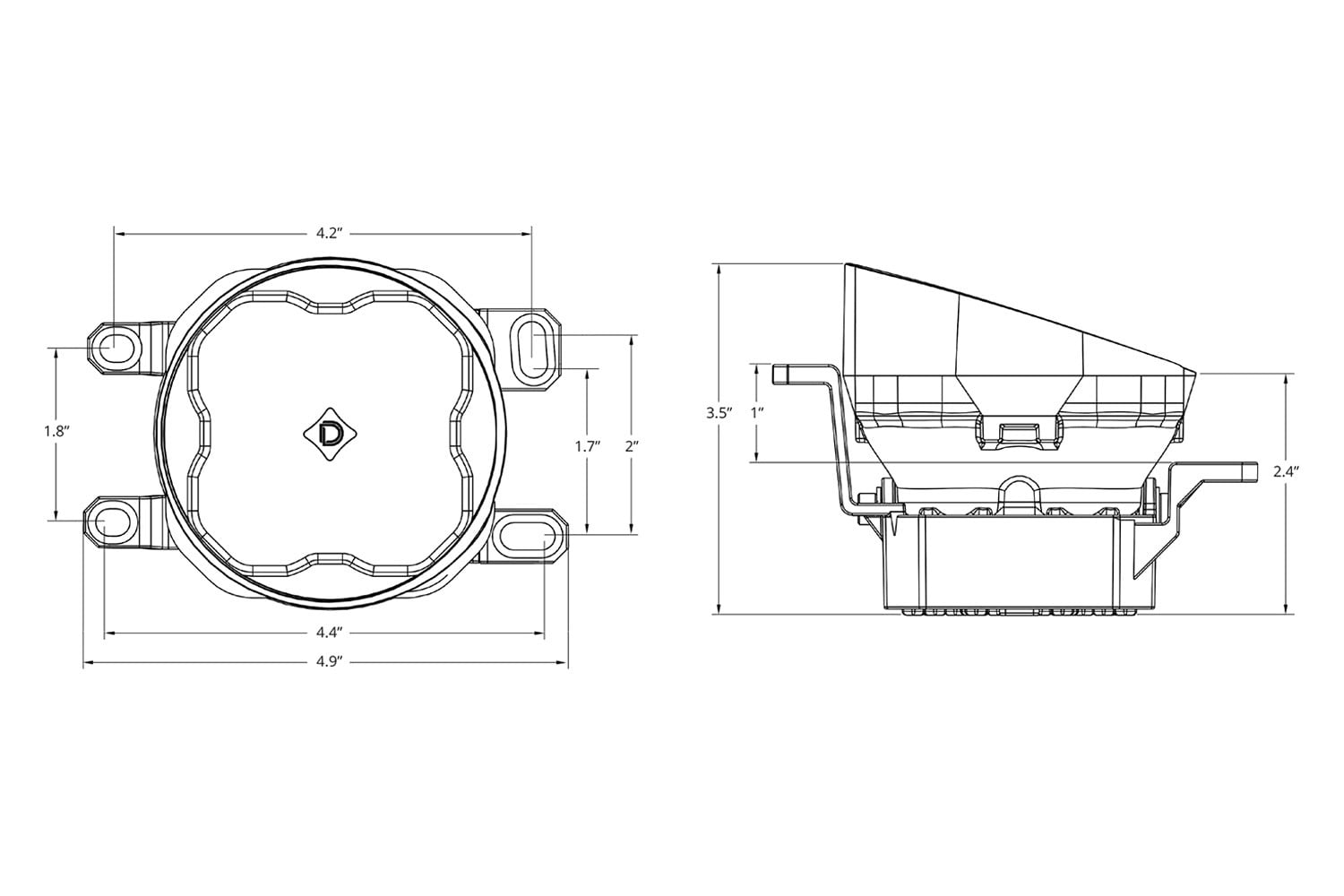

Size	3"
Watts (per kit)	2x36W

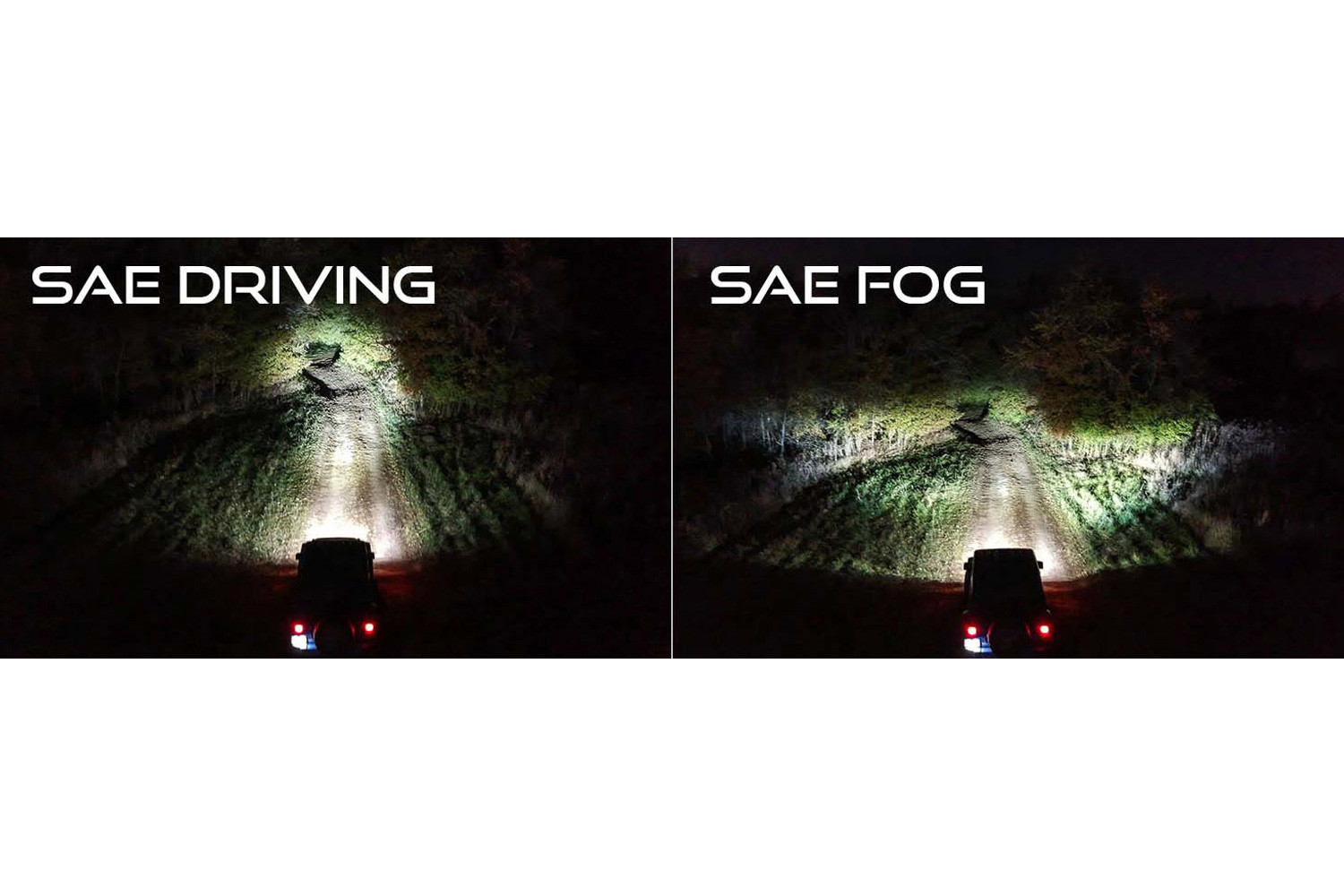

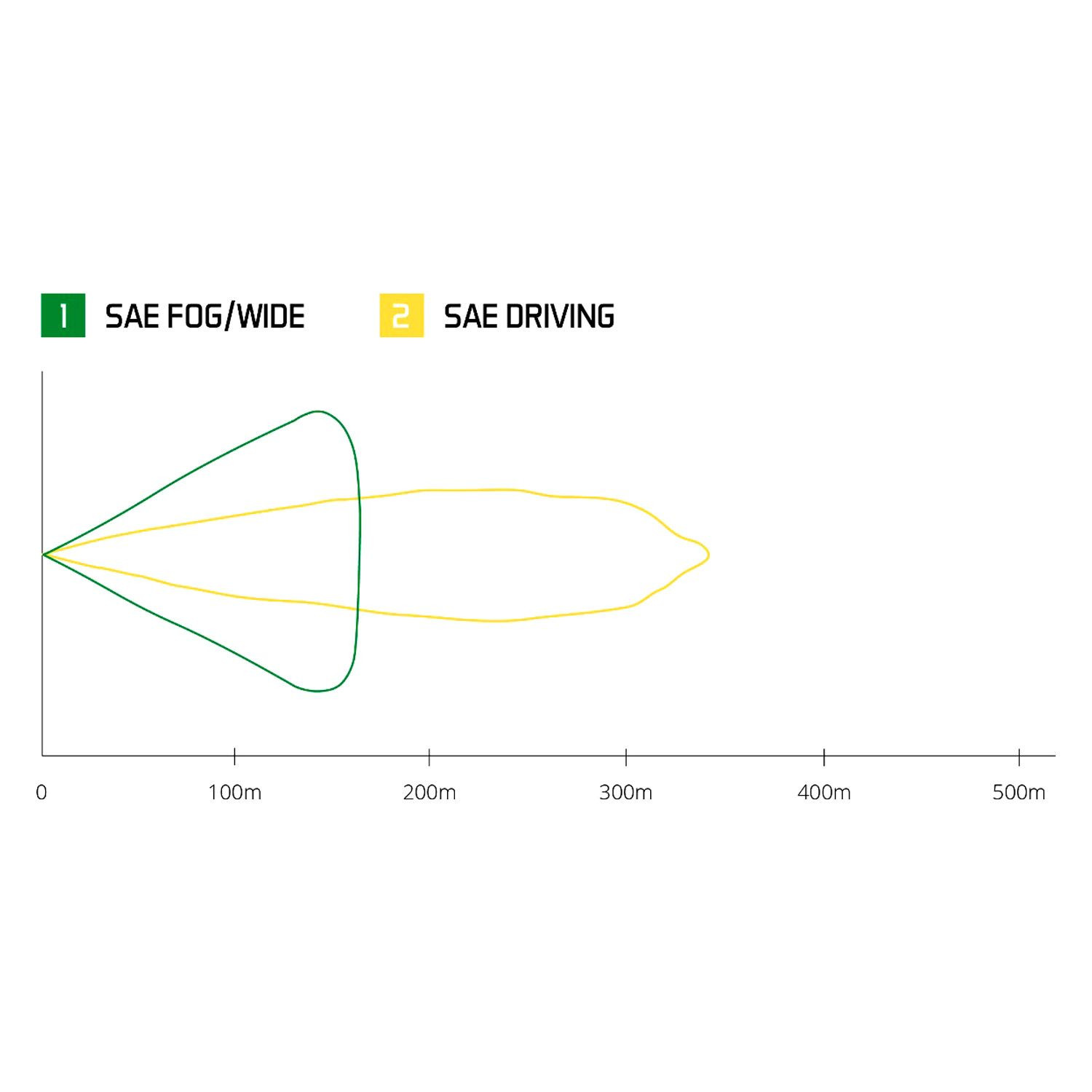

Beam pattern	fog beam
Bulb type	LED
Series	Stage Pro Series
Location	fog light location
Color/finish	black
Light Color	yellow
Shape	round
Voltage	9-16V
Amperage	2.7A
Raw lumens	5220; Measured lumens: 2700
Color temperature	3000K

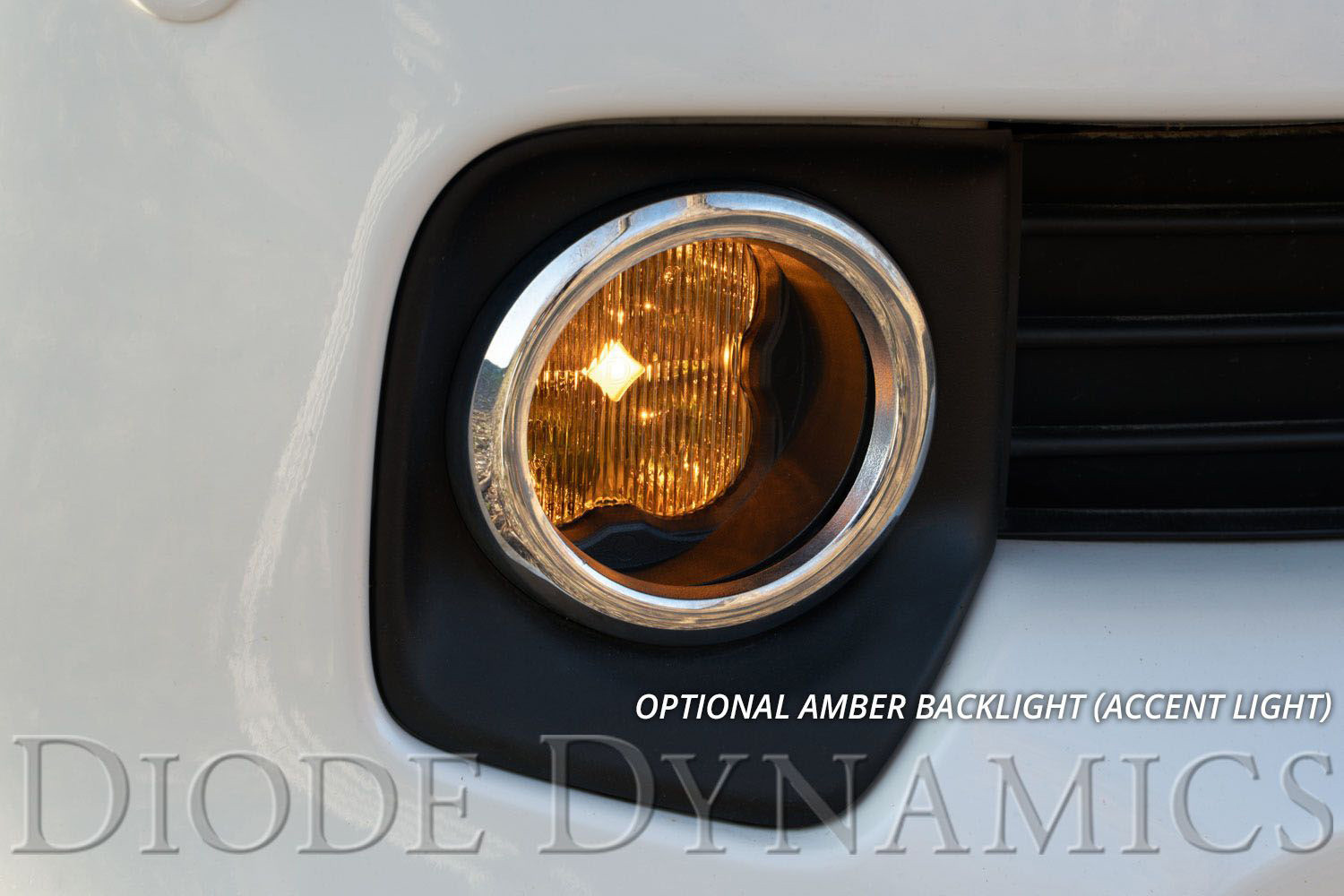

Type	With Amber Backlight
Lux @10M	109

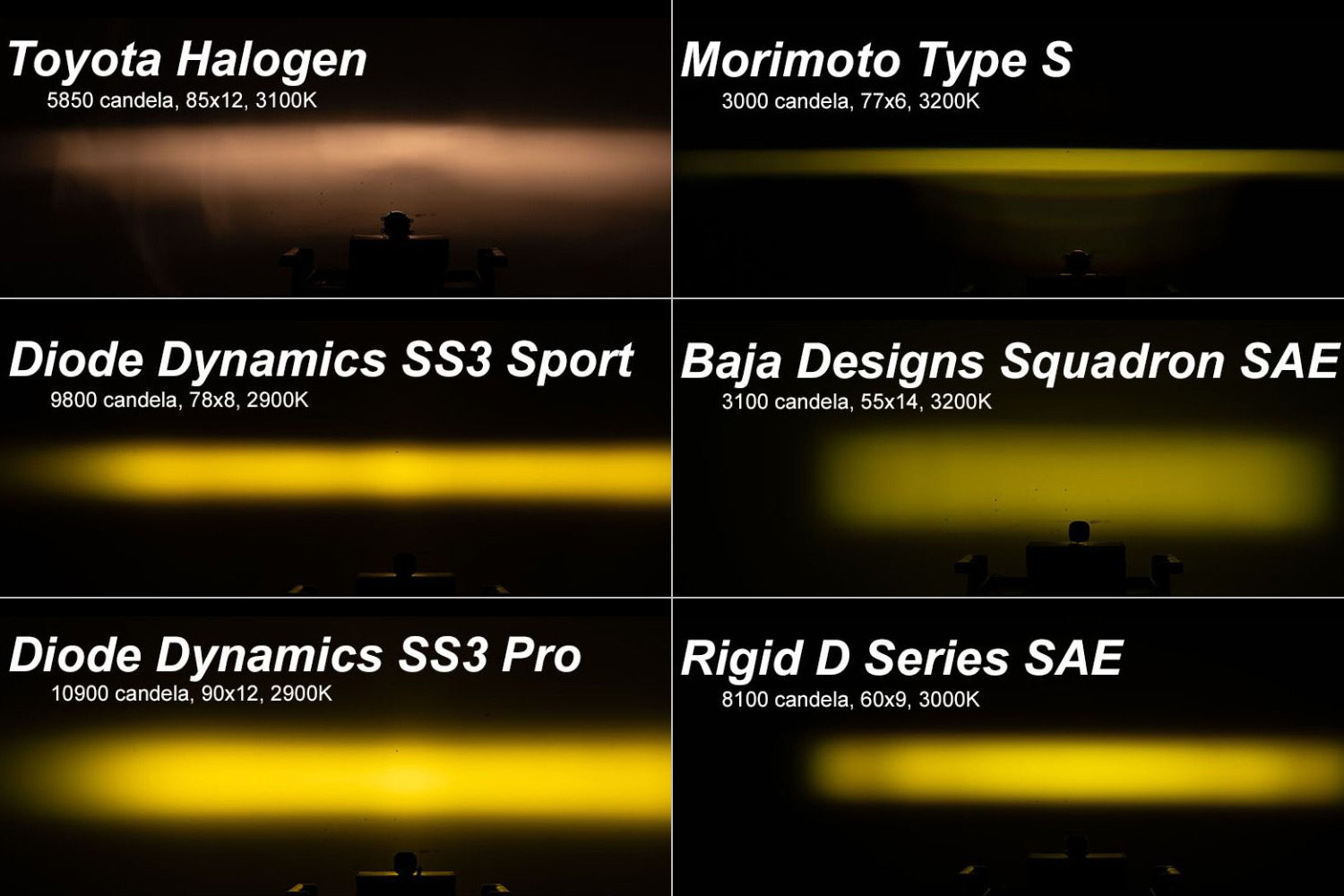

Candelas	10900 CD

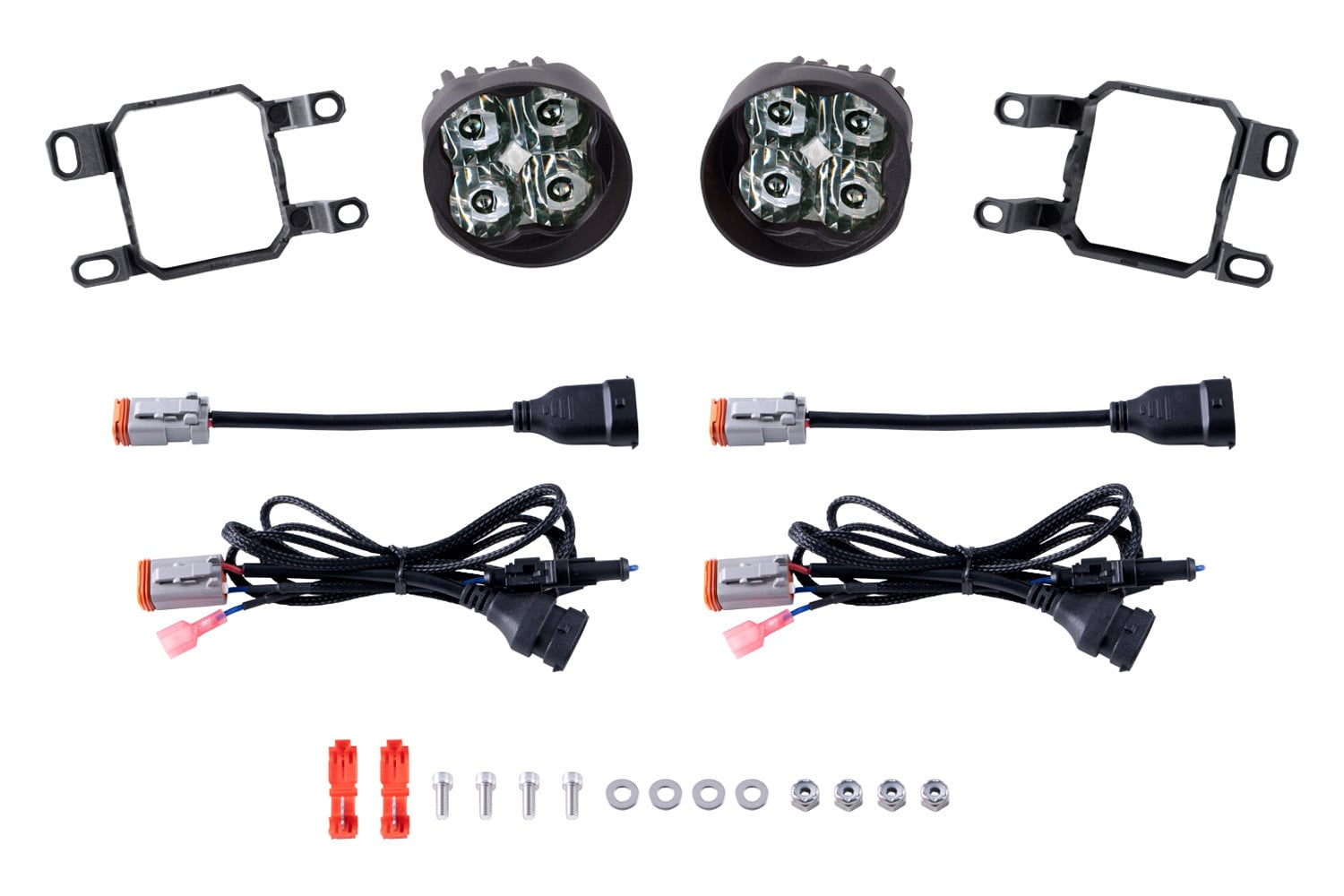

Includes

(2) Pro SS3 yellow angled pods

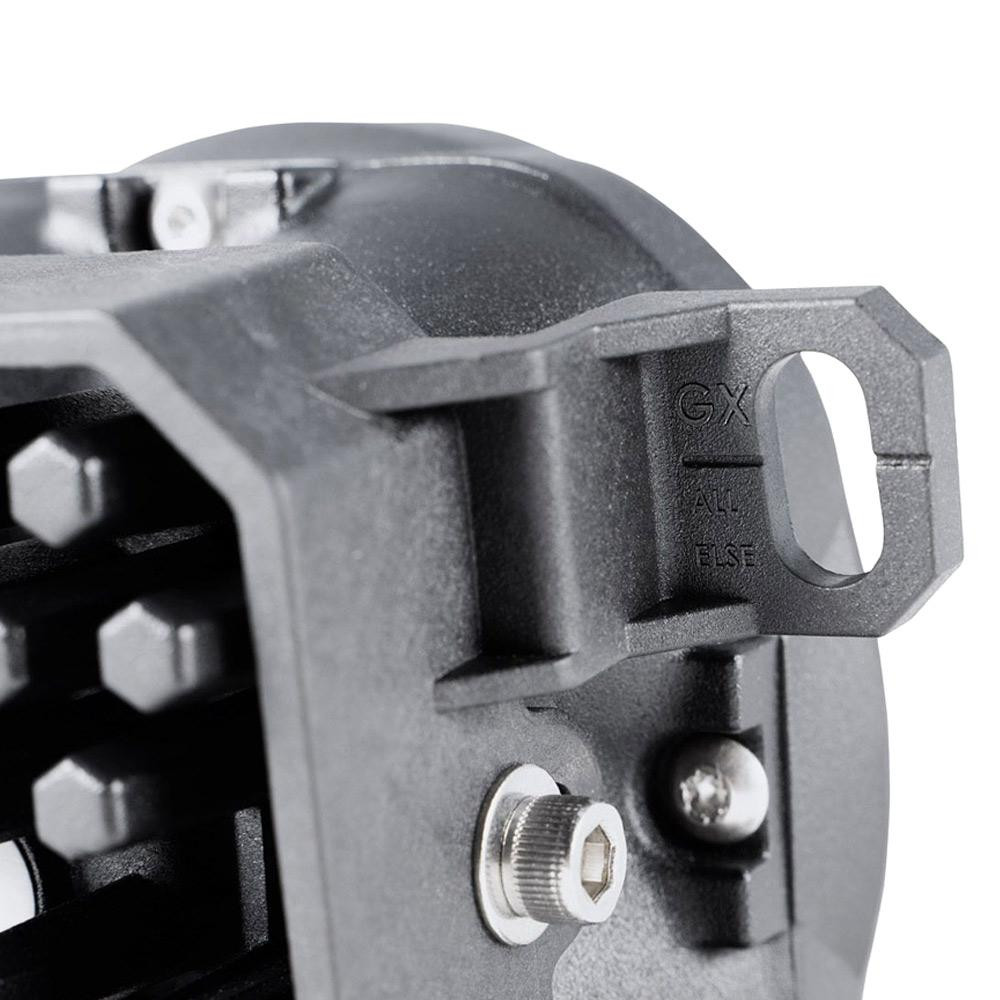

(2) Type CGX brackets
(2) H11 2-pin DT adapters
(1) H11 4-pin DT backlight tap wire kit
Mounting hardware
Mounting guide

Features

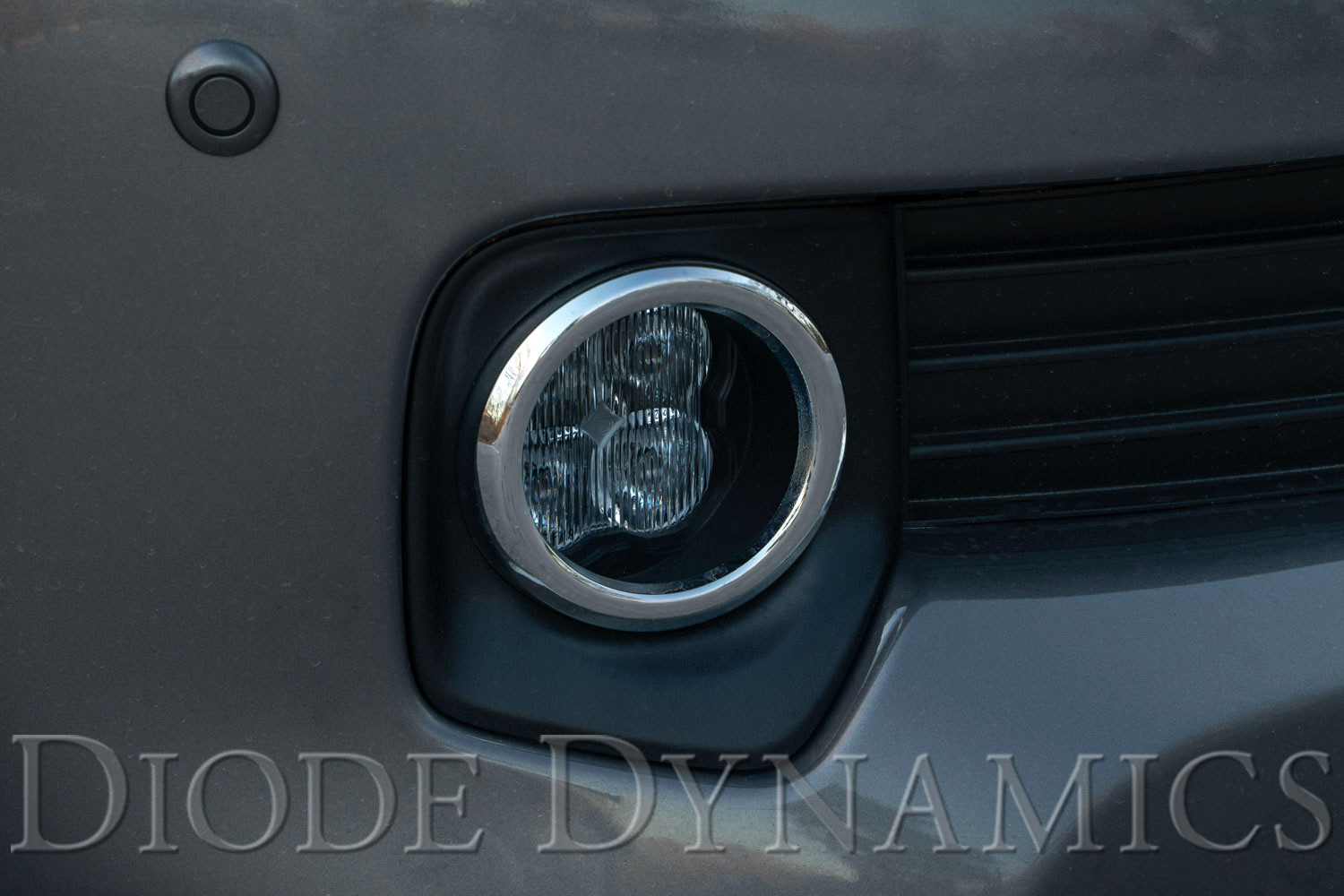

Direct replacement for your vehicle fog lamps
SAE-compliant road-legal output
Includes angled bezel, for factory-style appearance
Plug and play, no modification needed
Advanced TIR optics provide high efficiency and focus
Durable powdercoated aluminum die-cast
Engineered and Assembled in USA

Product Details

Fog Light Location Mounted Stage Pro Series Type CGX 3" 2x36W Round Fog Beam Yellow LED Light Kit, with Amber Backlight (DD7201) by Diode Dynamics®. 1 Pair. 9-16V. 2.7A. Raw lumens: 5220; Measured lumens: 2700. 3000K. Upgrade the fog lights on your vehicle with SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3" light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package.

Installation

Diode Dynamics® - Fog Light Location Stage Pro Series Type CGX 3" 2x36W Round Fog Beam Yellow LED Light Kit, with Amber Backlight, Installation Instructions

Diode Dynamics® - Fog Light Location Stage Pro Series Type CGX 3" 2x36W Round Fog Beam Yellow LED Light Kit, with Amber Backlight, Installation Instructions Diode Dynamics® - Fog Light Location Stage Pro Series Type CGX 3" 2x36W Round Fog Beam Yellow LED Light Kit, with Amber Backlight, Installation Instructions Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7201

UPC:

195995127242

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
