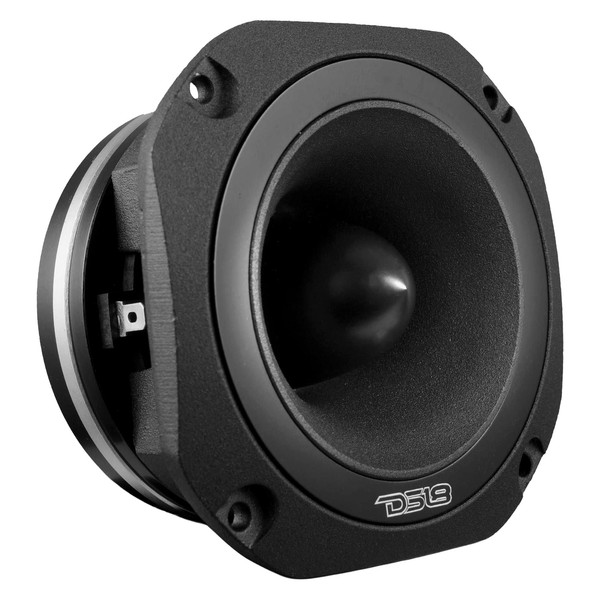

Name: DS18® PRO-TW750CN-8/BK - 4" Super Bullet Tweeter
Brand: DS18
SKU: mpn5242749265
Price: 119.95 USD
Availability: InStock

Vehicle Fitment

This part is universal

Specifications

SKU	PRO-TW750CN-8/BK
Nominal Diameter	4" / 101mm
Nominal Impedance	8 ohms
AES Power Handling	160W
Program Power Handling	220W
Peak Power Handling	440W
Sensitivity (1w/1m)	110dB
Frequency Response	900Hz-20KHz
Recommended Hi Pass Crossover	3KHz
Sold In Pair or Single	Single
Filter (Bass Blocker)	3.3uf / 100V
Body Material	Aluminum
Body Color / Finish	Black / Aluminum
Faceplate Color / Finish	Black / Aluminum
Bullet Material	CNC Aluminum
Voice Coil Diameter	1.5" / 38mm
Voice Coil Former Material	KSV
Winding Material	CCAW
Diaphragm Material	Titanium
Magnet Material	Neodymium
Magnet Size	3.54"x0.19" / 90x5mm
Magnet Weight	5.82 Oz
Overall Diameter	4" / 103mm
Overall Depth	2.28" / 58mm
Front Mount Baffle Cutout	3.5" / 90mm
Mounting Depth	1.8" / 46mm

Features

4" Super Bullet Tweeter
RMS Power: 220 Watts(440 Watts Peak)
Impedance: 8 Ohm ~ 110dB
Neodymium Magnet
BLACK
Easily Repaired With

Product Details

Universal 4" Super Bullet Tweeter (PRO-TW750CN-8/BK) by DS18®. 4" Super Bullet Tweeter with 1.5" Titanium Voice Coil Neodymium Magnet 220 Watts 8-Ohm. DS18 PRO-TW750CN-8 . 4" Super Bullet Tweeter with 1.5" Titanium Voice Coil & Neodymium Magnet . DS18’s PRO-TW750CN-8 delivers blistering clarity and volume with a compact footprint that fits almost anywhere. Crank It Up . With 440W peak power, 110dB sensitivity, and a frequency response from 900Hz to 20kHz, the PRO-TW750CN-8 cuts through any mix. Built for High Power . Featuring a 1.5" titanium voice coil and neodymium magnet, this tweeter combines precision and strength for high-output performance without the bulk. The included 3.3uF bass blocker ensures low frequencies don’t interfere. Engineered for Efficiency . Its CNC aluminum bullet design directs sound forward for better projection and built-in cooling. And with a shallow 1.8" mounting depth, it’s perfect for doors, pillars, dashes, or custom pods. Get the clarity your system deserves — upgrade with DS18 today!

DS18® - Manual DS18® - Product Catalog Made In USA DS18 Authorized Dealer

Brand:

DS18

Part Number:

PRO-TW750CN-8/BK

UPC:

810097266148

Alternate MPN:

PROTW750CN8BK

Warranty

1-Year Limited Warranty

DS18 warrants this product to be free from defects in material and workmanship under normal use and conditions for a period of one year from the date of purchase. This warranty covers any defects in materials and workmanship and warranty only applies to the original purchaser and is not transferable. DS18 will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, DS18 will replace the product in question. If it is deemed necessary DS18 will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available.

This warranty does not cover the cost for removal and reinstallation of any kind. This warranty is void and inapplicable DS18 deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered, causing thermal coil failure and/or mechanical failure, damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, and freight damage. DS18 is not responsible for any damages to a consumer's vehicle or person from a product failure. The warranty is void if DS18 deems the product was installed or used improperly. DS18 shall not be responsible for any incidental or consequential damages.

Refurbished units have a 90-day warranty.
