DS18® DBPM100.MX - Digital Bass Processor

0 reviews|Item # mpn5242749619
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$155.95
In Stock (1185) - Ships in 2 to 3 days
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU
DBPM100.MX
Operating Voltage
8-17V
Power Consumption
0.24A
Recommended Fuse Rating
1A
Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer / Clip
Ground Isolation Switch
Yes (GND/ISO/200-Ohm)
Hi-Level Speaker Input
No
Auto Turn-on Function
No
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Red/Green/White (Mexico Theme)
Frequency Response
10Hz-20kHz
S/N Ratio
120dB
THD
0.0022%
Input Sensitivity (Low-Level)
10V
Input Sensitivity (Hi-Level)
N/A
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
100ohms
Balanced Input Noise Rejection
>60dB
Stereo Separation
>80dB
Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (35/50/80Hz)
Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~3
Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
Yes
Overall Length
4.72" / 120mm
Overall Width
4.4" / 113mm
Overall Height
1" / 26mm

Features

  • Digital Bass Restoration Processor W/ Mexico Design
  • 2 Channel Preamp Input / Output
  • Subsonic Filter / Output Voltage / Ground Iso
  • Bass / Power / Clip LED
  • Remote Level Control w/ Clip LED
  • Compact Design

Product Details

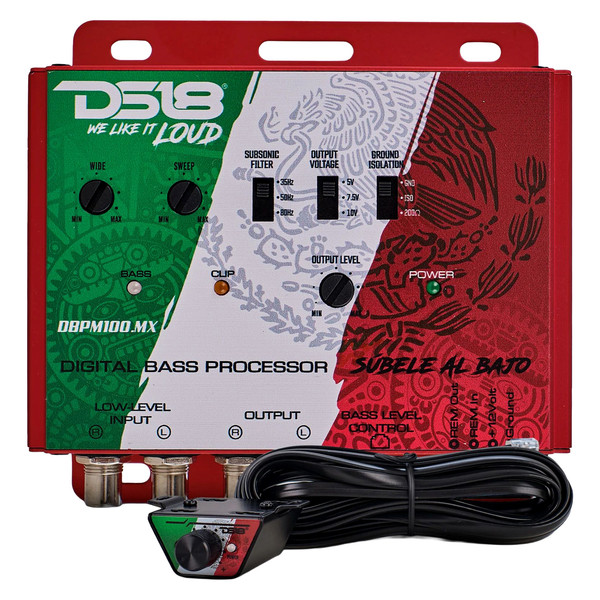

Universal Digital Bass Processor (DBPM100.MX) by DS18®. Digital Bass Processor - Mexico Design. DS18 DBPM100.MX . Get LOUD for la cultura with DS18’s DBPM100.MX! This sleek, compact bass processor packs a punch. Fully adjustable, it fine-tunes low frequencies from the original source with authority, giving you control like never before. The dual-knob dash remote lets you effortlessly command your bass, while the subsonic filter (adjustable at 35Hz, 50Hz, and 80Hz) ensures clean, distortion-free sound. Built for durability, the DBPM100.MX features a corrosion-resistant PCB and LED indicators for power, bass enhancement, and clipping. With an 8-17V operating range and ultra-low power consumption, it’s efficient, reliable, and easy to install in any setup. Crank up the bass and vive la vida en voz alta with DS18’s DBPM100.MX!

Brand:
Part Number:
DBPM100.MX
UPC:
810097265042
Alternate MPN:
DBPM100MX
