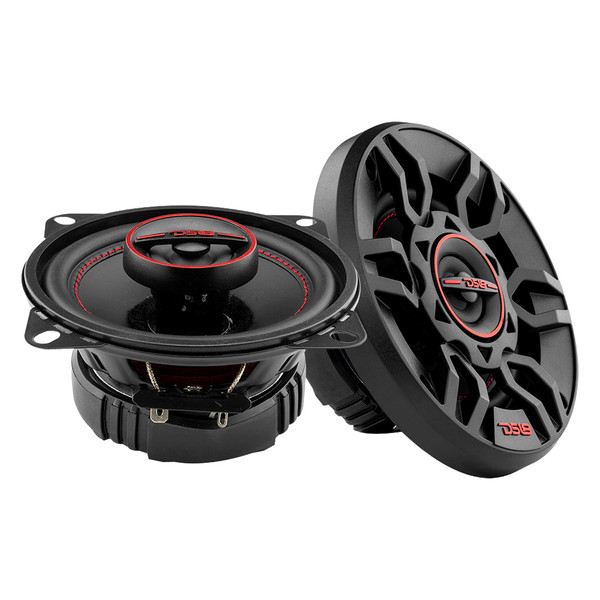

DS18® G4XI - GEN-X Coaxial Speakers

0 reviews|Item # mpn5242749268
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$45.95
In Stock (1230) - Ships in 2 to 3 days
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU
G4XI
Nominal Diameter
4" / 101mm
Nominal Impedance
4 Ohms
RMS Power Handling
40W
Maximum Power Handling
120W
Sensitivity (1w/1m)
84dB
Frequency Response
80Hz-20KHz
Recommended HI Pass Crossover
90Hz
Number of ways
2
Pair or single
Pair
Grill Included
Yes
Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
5.3Oz / 150g
Equivalent Volume Vas
1.59L / 0.018ft3
Excursion (one way) Xmax
2.2mm
Free Air Resonance Fs
105Hz
Mechanical Factor Qms
3.2
Electrical Factor Qes
1.27
Total Factor Qts
1.03
Moving Mass Mms
6.5g
Compliance Cms
238mm/N
Bl Factor Bl
3.2
Voice Coil Inductance Le
151uH
Cone Area Sd
55.4cm2
DC Resistance Re
3.7 Ohms
Mechanical Mass Mmd
5.5g
Nominal Diameter_1
1" / 25.5mm
Voice Coil Diameter_1
0.5" / 13.25mm
Voice Coil Former Material_1
ASV
Winding Material_1
EISVM
Diaphragm Material
Mylar
Magnet Material_1
Neodymium
Magnet Weight_1
1.8g
Overall Diameter
4" / 103.5mm
Overall Depth
2.4" / 60.8mm
Overall Diameter with Grill
5.28" / 134mm
Overall Depth with Grill
2.46" / 62.6mm
Front Mount Baffle Cutout
3.6" / 92mm
Mounting Depth
1.7" / 43.5mm
Motor Diameter
3" / 76mm
Tweeter Protrusion
0.68" / 17.3mm
Gross Single Unit Weight
0.45 KG
Single Unit Box Dimensions W x L x H
155 x 80 x 355mm
Quantity of Units in Master Carton
10 PRS/CTN
Gross Master Carton Weight
12.5 KG
Master Carton Dimensions W x L x H
431 x 330 x 330mm

Features

  • 4" 2-Way Coaxial
  • MAX Power: 120 Watts
  • RMS Power: 40 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB

Product Details

Universal GEN-X Coaxial Speakers (G4XI) by DS18®. GEN-X 4" 2-Way Coaxial Speakers 40 Watts Rms 4-Ohm. DS18 G4XI . 2-Way Coaxial Speakers 120 Watts 4-Ohm . The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers. The G4Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers. The G4Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G4Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers. The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 80Hz. These speakers get loud extremely easily with a MAX Power Handling of 120W and RMS Power Handling of 40W. Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G4Xi will deliver. Order yours today and take the first step towards audio perfection on the road.

Brand:
Part Number:
G4XI
UPC:
663593063953
