DS18® ZXI-3542 - GEN-X Coaxial Speakers

0 reviews|Item # mpn5242749521
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$71.95
In Stock (432) - Ships in 2 to 3 days
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU
ZXI-3542
Nominal Diameter
3.5" / 89mm
Nominal Impedance
4 Ohm
RMS Power Handling
40W
MAX Power Handling
120W
Sensitivity (1w/1m)
87dB
Frequency Response
80Hz-20kHz
Recommended HI Pass Crossover
120Hz
Number of Ways
2-Way
Sold in Pair or Single
Pair
Grill Included
No
Voice Coil Diameter
0.8" / 20.4mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Barium Ferrite
Magnet Weight
172g
Equivalent Volume Vas
2.4L / 0.0849ft3
Excursion (one way) Xmax
1.2mm
Free Air Resonance Fs
106Hz
Mechanical Factor Qms
4.39
Electrical Factor Qes
1.034
Total Factor Qts
0.836
Mechanical Mass Mms
3.8g
Mechanical Compliance Cms
1.225mm/N
BL Factor BL
3.4
Voice Coil Inductance Le
105.5uH
Cone Area Sd
38cm2
DC Resistance Re
3.7 ohm
Mechanical Mass w/o air Mmd
2.6g
Nominal Diameter_1
1" / 25.4mm
Voice Coil Diameter_1
0.52" / 13mm
Voice Coil Former Material_1
KSV
Winding Material_1
CCAW
Diaphragm Material
PEI
Magnet Material_1
Neodymium
Magnet Weight_1
1.8g

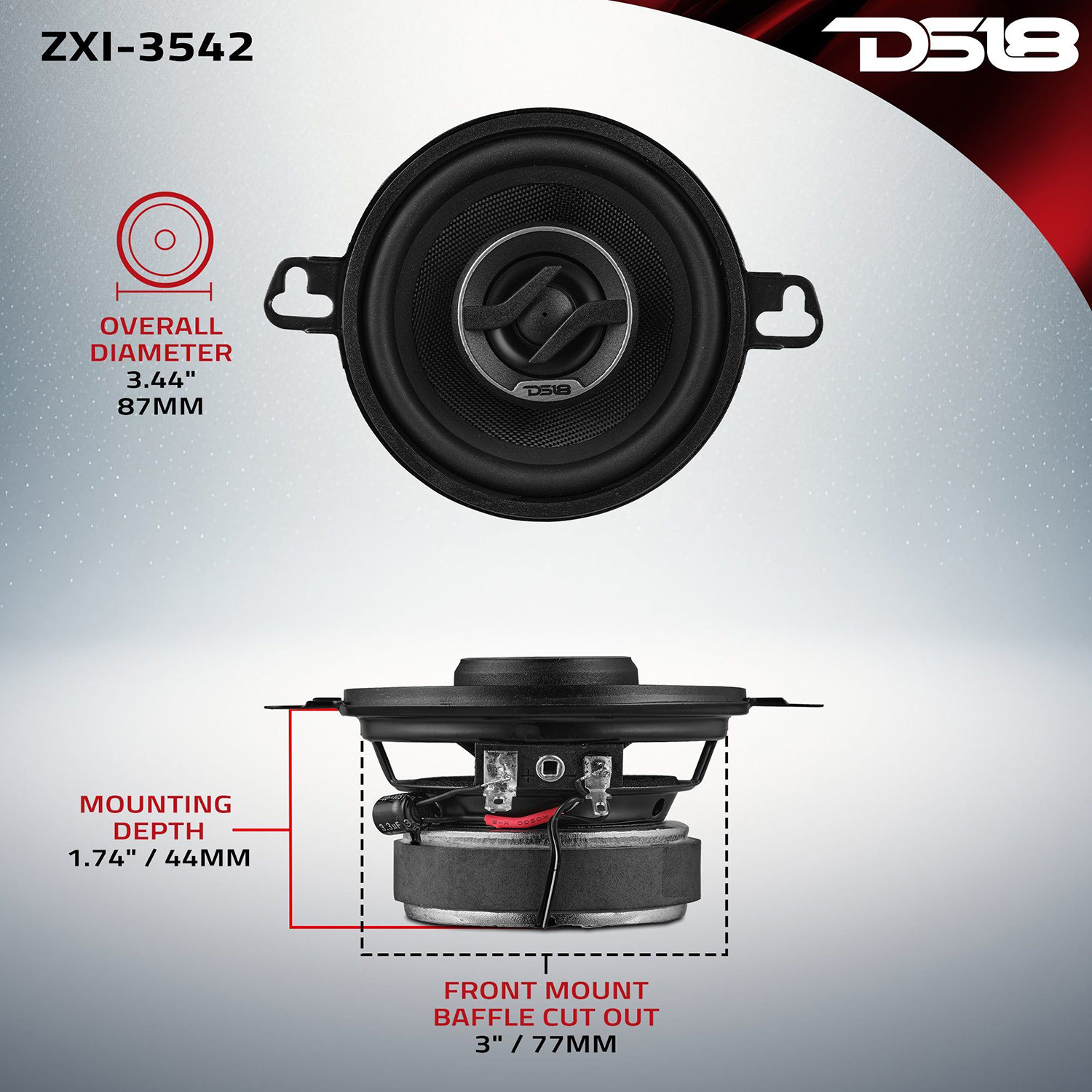

Overall Diameter (Without Grill)
3.44" / 87.3mm
Overall Depth (Without Grill)
2.21" / 56.2mm
Front Mount Baffle Cutout
3" / 77mm
Mounting Depth
1.74" / 44.3mm
Motor Diameter
2.56" / 65mm
Gross Single Unit Weight
0.387KG
Single Unit Box Dimensions W x L x H
240*120*70mm
Quantity of Units in Master Carton
20
Master Carton Dimensions W x L x H
500*365*260mm

Features

  • 3.5" 2-Way Coaxial
  • MAX Power: 120 Watts
  • RMS Power: 40 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 87dB

Product Details

Universal GEN-X Coaxial Speakers (ZXI-3542) by DS18®. 3.5" 2-Way Full-Range Coaxial Speaker 4 Ohm. DS18 ZXI-3542 . 3.5" 2-Way Full-Range Coaxial Speaker . Upgrade your car’s audio with DS18’s ZXI-3542, a powerful 2-ohm 3.5-inch coaxial speaker designed for crystal-clear sound and effortless installation. This compact yet high-performance speaker delivers rich, balanced audio that will transform any custom setup. Built for superior sound quality, the glass fiber woofer cone produces clear, natural mids, while the 1" neodymium tweeter ensures crisp, high-frequency details. With 40W RMS and 120W Max power handling, the ZXI-3542 delivers distortion-free, dynamic audio, making your music sound fuller and more vibrant. Designed for seamless fitment, this speaker easily replaces most OEM factory-installed speakers, eliminating the hassle of complex modifications. The barium ferrite magnet enhances bass response, while the rubber surround and steel basket add durability and vibration control, ensuring long-lasting performance even in demanding conditions. Perfect for car audio enthusiasts looking for a quick, high-quality upgrade, the DS18 ZXI-3542 combines cutting-edge design with powerful acoustics. Elevate your in-car listening experience with a speaker that delivers both clarity and durability—because your music deserves the best. Upgrade today and feel the #DS18Difference.

Brand:
Part Number:
ZXI-3542
UPC:
810097266230
Alternate MPN:
ZXI3542
