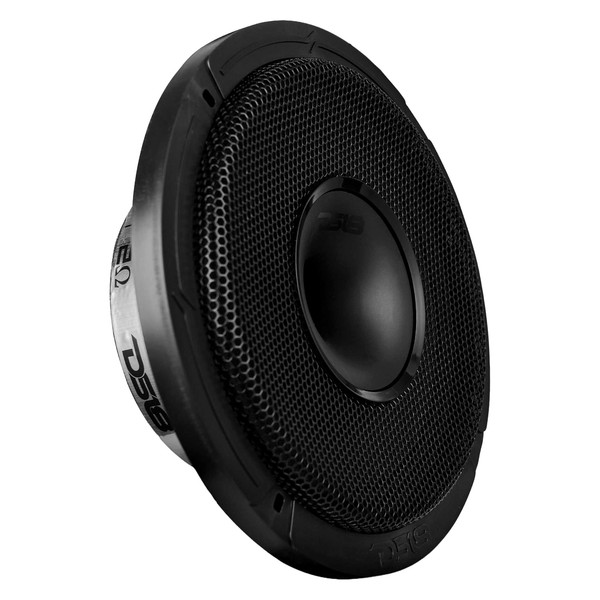

Name: DS18® PRO-HY8.2MSL - PRO Hybrid Slim Loudspeaker
Brand: DS18
SKU: mpn5242749325
Price: 94.95 USD
Availability: InStock
Rating: 3 (2 reviews)

Vehicle Fitment

This part is universal

Specifications

SKU	PRO-HY8.2MSL
Nominal Diameter	8" / 203.2mm
Nominal Impedance	2 Ohms
RMS Power Handling	200W
MAX Power Handling	400W
Sensitivity (1w/1m)	98dB
Frequency Response	100Hz - 20Khz
Recommended HI Pass Crossover	120Hz
Number of Ways	2 ways
Pair or Single	Single
Grill Included	Yes
Voice Coil Diameter	2" / 50.8mm
Voice Coil Former Material	KSV
Winding Material	CCAW
Cone Material	Paper
Surround Material	Cloth
Basket Material	Steel
Basket Color/Finish	Black
Magnet Material	Ferrite
Magnet Weight	29.5 Oz
Equivalent Volume Vas	9.58L / 0.33ft3
Excursion (one way) Xmax	2mm
Free Air Resonance Fs	106Hz
Mechanical Factor Qms	8.083
Electrical Factor Qes	0.729
Total Factor Qts	0.669
Mechanical Mass Mms	13.886g
Mechanical Compliance Cms	0.147 mm/N
BL Factor BL	4.74
Voice Coil Inductance Le	48.9mH
Cone Area Sd	216.424 Cm2
DC Resistance Re	1.8 ohm
Mechanical Mass w/o air Mmd	12.088g
Voice Coil Diameter_1	1" / 25.4mm
Voice Coil Former Material_1	Kapton
Winding Material_1	CCAW
Diaphragm Material	Titanium
Magnet Material_1	Neodymium
Horn Diameter	3" / 76.2mm
Overall Diameter (Without Grill)	8.2" / 209mm
Overall Diameter (With Grill)	8.6" / 219mm
Overall Depth (Without Grill)	3.4" / 86mm
Overall Depth (With Grill)	4" / 104mm
Front Mount Baffle Cutout	7.16" / 182mm
Mounting Depth	3.15" / 80mm
Motor Diameter	5.27" / 134mm

Features

8" Shallow Hybrid Coaxial Mid-Range w/Driver
RMS Power: 200 Watts(400 Watts Peak)
Impedance: 2 Ohm ~ 97dB
Ferrite & Neodymium Magnets
With Grill
Easily Repaired With The PRO-HY/VC

Product Details

Universal PRO Hybrid Slim Loudspeaker (PRO-HY8.2MSL) by DS18®. PRO 8" Hybrid Slim Loudspeaker with a 1" Compression Driver Horn 200 Watts Rms 2-Ohm. With a 1" Compression Driver Horn 200 Watts Rms 2-Ohm. DS18 PRO-HY8.2MSL. 8" Hybrid Slim Loudspeaker with 1" Compression Driver Horn . DS18’s PRO-HY8.2MSL is made for tight builds that need BIG sound. With a hybrid design that pushes full-range clarity in a slim profile, this 2-ohm loudspeaker is the perfect solution for motorcycles, UTVs, Slingshots, Jeeps, and other powersports vehicles. Hybrid Power . This compact beast combines a 8" midrange woofer with a built-in 1" compression driver horn—giving you the full range of frequencies in one clean unit. It hits 200W RMS / 400W MAX, with 98dB sensitivity and a wide 100Hz–20KHz response, delivering loud, accurate audio where it matters most. Built to Ride . The PRO-HY8.2MSL features a paper cone, cloth surround, and a black steel basket backed by a 29.5oz ferrite magnet. The compression driver brings the heat with a titanium diaphragm, Kapton voice coil, and neodymium magnet. Fits Tight . At just 3.15" mounting depth and a slim 8.6" total diameter, the PRO-HY8.2MSL mounts just about anywhere your setup needs some punch. Offering a clean fit and getting louder than anything else in its class.

DS18® - Manual DS18® - Product Catalog Made In USA DS18 Authorized Dealer

Brand:

DS18

Part Number:

PRO-HY8.2MSL

UPC:

810097266315

Alternate MPN:

PROHY82MSL

Warranty

1-Year Limited Warranty

DS18 warrants this product to be free from defects in material and workmanship under normal use and conditions for a period of one year from the date of purchase. This warranty covers any defects in materials and workmanship and warranty only applies to the original purchaser and is not transferable. DS18 will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, DS18 will replace the product in question. If it is deemed necessary DS18 will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available.

This warranty does not cover the cost for removal and reinstallation of any kind. This warranty is void and inapplicable DS18 deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered, causing thermal coil failure and/or mechanical failure, damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, and freight damage. DS18 is not responsible for any damages to a consumer's vehicle or person from a product failure. The warranty is void if DS18 deems the product was installed or used improperly. DS18 shall not be responsible for any incidental or consequential damages.

Refurbished units have a 90-day warranty.

Reviews

(2)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-2 of 2 Reviews

Sort by

5 of 5

Great Speakers

Great speakers, they sound amazing. Originally bought to replace the front speakers in my truck, both blown, the rear speakers still work and sound great. They are factory. But now I'm thinking about replacing them with DS18s as well because they sound so good. Don't fret when you get them delivered, they don't come with a plug. Simply cutting the plug off of the wiring in the truck, stripping the wire and wrapping around the piece of metal on the speaker where you'd think the plug would be does the trick. I would recommend these to anyone, and would be my first choice if I ever get another vehicle. And not to mention the price. I was amazed at how little they cost me, the factory speakers cost more than these! I'm rocking the bumper sticker they came with!

DS18® - Pro GM Series 6-1/2" 580W 8 Ohm Midrange Speaker with Bullet Diffuser

Posted by Braley (Shelbyville, MI) / July 25, 20222000 Chevy Silverado 2500

1 of 5

Sad

It can't handle power sad 500 watts cerwin vaga abt to pop it.

DS18® - Pro Series 8" 500W 4 Ohm Midrange Speaker with Bullet Diffuser

Posted by Anthony J (Eureka, CA) / July 18, 2021
