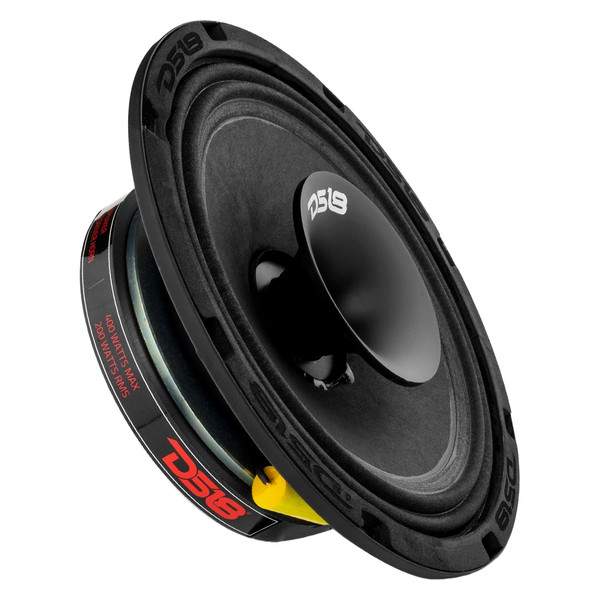

DS18® PRO-HY8.4MSL - PRO Shallow Coaxial Hybrid Mid-Range Loudspeaker

2 reviews|Item # mpn5242749308
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$94.95
In Stock (1342) - Ships in 2 to 3 days
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU
PRO-HY8.4MSL
Nominal Diameter
8" / 203.2mm
Nominal Impedance
4 Ohm
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
94dB
Frequency Response
100Hz - 20Khz
Recommended HI Pass Crossover
120Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
29.5 Oz
Displacement Volume
Equivalent Volume Vas
7.42L / 0.262ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
108Hz
Mechanical Factor Qms
6.418
Electrical Factor Qes
0.759
Total Factor Qts
0.704
Mechanical Mass Mms
18.575g
Mechanical Compliance Cms
111.62 mm/N
BL Factor BL
7.206
Voice Coil Inductance Le
19.20mH
Cone Area Sd
216.424 Cm2
DC Resistance Re
3.2 ohm
Mechanical Mass w/o air Mmd
16.744g
Voice Coil Diameter_1
1" / 25.4mm
Voice Coil Former Material_1
Kapton
Winding Material_1
CCAW
Diaphragm Material
Titanium
Magnet Material_1
Neodymium
Horn Diameter
3" / 76.2mm
Overall Diameter
8.62" / 219mm
Overall Depth
4" / 102.5mm
Front Mount Baffle Cutout
7.12" / 181mm
Mounting Depth
3.11" / 79mm
Motor Diameter
5.27" / 134mm
Gross Single Unit Weight
5.75
Single Unit Box Dimensions L x W x H (Inches)
9 x 9 x 4.75
Quantity of Units in Master Carton
8
Gross Master Carton Weight
49
Master Carton Dimensions L x W x H (Inches)
18.5 x 18.5 x 10.25

Features

  • 8" Shallow Hybrid Coaxial Mid-Range w/Driver
  • RMS Power: 200 Watts(400 Watts Peak)
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnets
  • With Grill
  • Easily Repaired With The PRO-HY/VC

Product Details

Universal PRO Shallow Coaxial Hybrid Mid-Range Loudspeaker (PRO-HY8.4MSL) by DS18®. PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 4-Ohm. DS18 PRO-HY8.4MSL . 8" Hybrid Slim Loudspeaker With 1" Compression Driver Horn . Get LOUD in tight spaces with DS18’s PRO-HY8.4MSL—the slim-mount hybrid speaker made for motorcycles, ATVs, Slingshots, and more. Hybrid Power in a Compact Package . The PRO-HY8.4MSL combines a powerful 8" midrange woofer with a 1" titanium compression driver horn, packing serious output into a slim 3.15" mounting depth. This speaker cuts through wind noise or engine rumble LOUD and clear with 200W RMS / 400W MAX power handling and a bold 98dB sensitivity across 100Hz-20KHz. High-End Components, No Compromise . Crafted with a paper cone, cloth surround, and a 2" KSV voice coil, this loudspeaker delivers smooth midrange and vocal response. The steel basket and 29.5oz ferrite magnet give it structure and strength, while the titanium diaphragm and neodymium motor in the horn ensure razor-sharp highs that carry far and stay crisp. This 4-ohm setup gives you more flexibility when building or expanding multi-speaker systems. Designed for Real Riders . This speaker is for real riders who want clean sound in performance machines. If your vehicle has room for 8’s, the PRO-HY8.4MSL belongs in it.

Brand:
Part Number:
PRO-HY8.4MSL
UPC:
810097260016
Alternate MPN:
PROHY84MSL

Reviews

(2)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-2 of 2 Reviews
5 of 5
Great Speakers
Great speakers, they sound amazing. Originally bought to replace the front speakers in my truck, both blown, the rear speakers still work and sound great. They are factory. But now I'm thinking about replacing them with DS18s as well because they sound so good. Don't fret when you get them delivered, they don't come with a plug. Simply cutting the plug off of the wiring in the truck, stripping the wire and wrapping around the piece of metal on the speaker where you'd think the plug would be does the trick. I would recommend these to anyone, and would be my first choice if I ever get another vehicle. And not to mention the price. I was amazed at how little they cost me, the factory speakers cost more than these! I'm rocking the bumper sticker they came with!
DS18® - Pro GM Series 6-1/2" 580W 8 Ohm Midrange Speaker with Bullet Diffuser
Posted by Braley (Shelbyville, MI) / July 25, 20222000 Chevy Silverado 2500
1 of 5
Sad
It can't handle power sad 500 watts cerwin vaga abt to pop it.
DS18® - Pro Series 8" 500W 4 Ohm Midrange Speaker with Bullet Diffuser
Posted by Anthony J (Eureka, CA) / July 18, 2021
