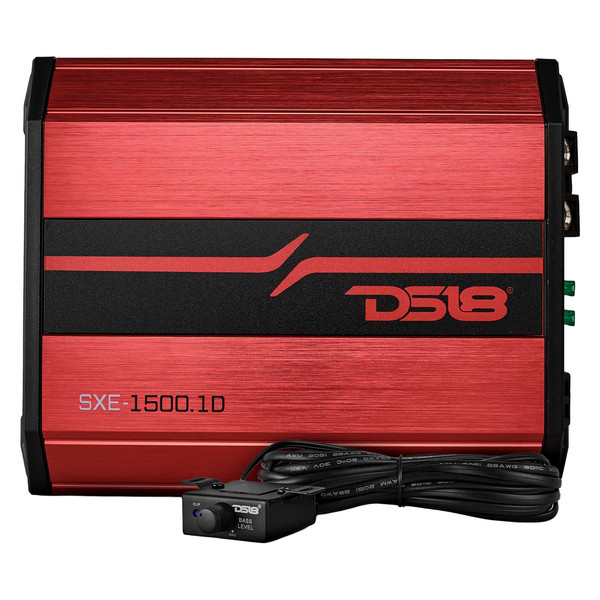

DS18® SXE-1500.1D/RD - SXE Class D Monoblock Car Amplifier

0 reviews|Item # mpn5242749249
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$203.95
In Stock (232) - Ships in 2 to 3 days
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU
SXE-1500.1D
Total Watts (Peak)
1500W
RMS Power @ 4 ohm
200W
RMS Power @ 2 ohm
350W
RMS Power @ 1 ohm
500W
Frequency Response
10Hz-250Hz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
80%
Damping Factor
140
Input Impedance
20k-Ohm
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.05%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-55Hz
Phase Selector
0-180°
Amplifier Class
Digital (D)
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
2 x 30A (60A)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (70°)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Body Color / Finish
Red / Black Brushed Aluminum
Overall Length
7.68" / 195mm
Overall Width
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
6.18" / 157mm
Gross Single Unit Weight
1.4KG
Compact Size to easy Installation for Any Applications
Yes
Stable/Reliable Two or Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes

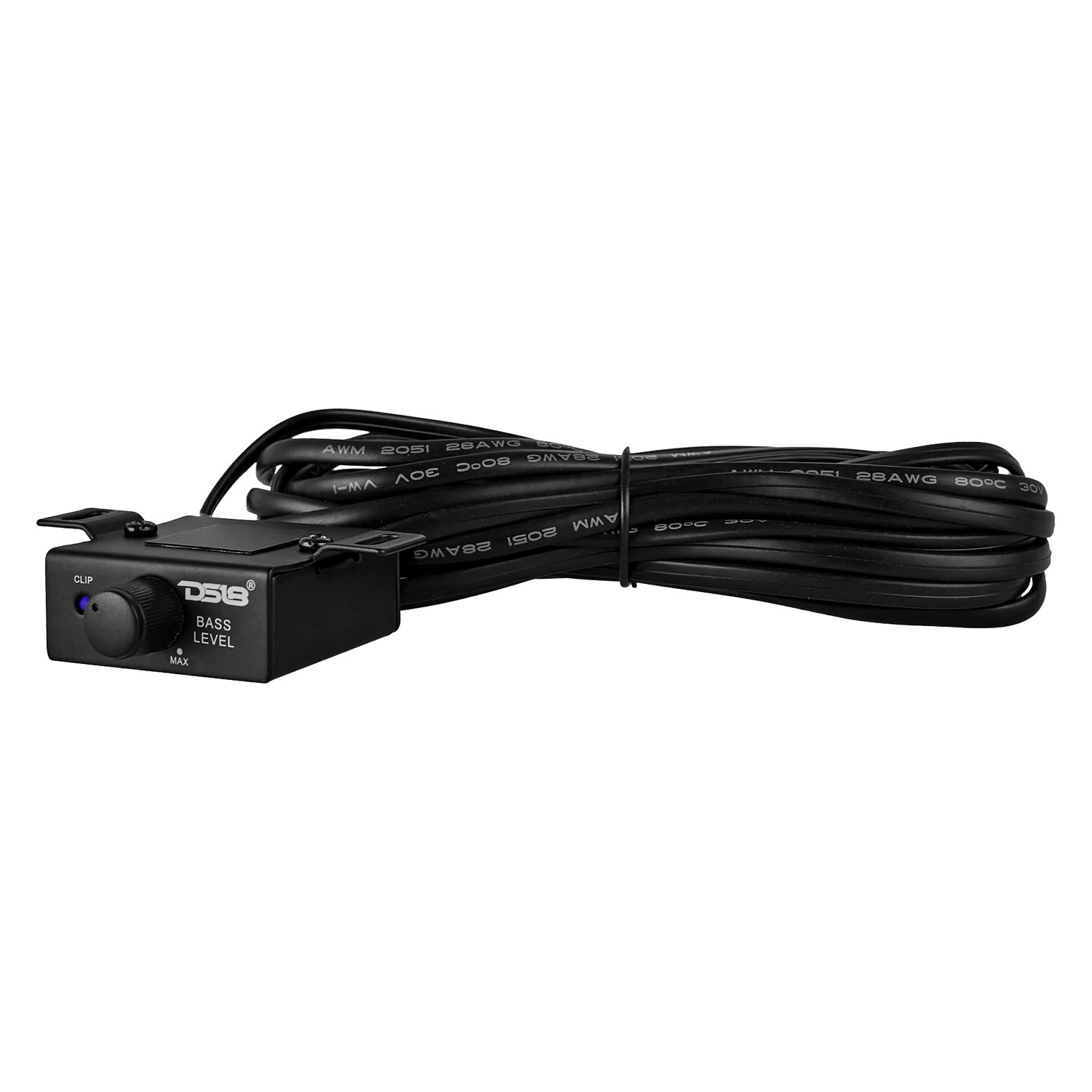

Remote Level Control with Clip Indicator
Yes

Features

  • Subwoofer Monoblock Amplifier
  • 1 Channel
  • Class D
  • 1 ~ 4 Ohm Stable
  • 1 x 500 Watts @ 1 Ohm
  • Compact Design

Product Details

Universal SXE Class D Monoblock Car Amplifier (SXE-1500.1D/RD) by DS18®. SXE Class D Monoblock Car Amplifier 1 x 500 Watts RMS @ 1 Ohm 1500 Watts. DS18 SXE-1500.1D . The SXE-1500.1D is the perfect companion for rich, powerful bass! This 1500W Monoblock amplifier is engineered to get LOUD! With RMS power ratings of 200W at 4 ohms, 350W at 2 ohms, and 500W at 1 ohm, it delivers exceptional performance for any subwoofer setup. Designed in a compact size for easy installation, the SXE-1500.1D fits perfectly into all setups without sacrificing space. Its Class D digital design ensures high-efficiency amplification for clear, crisp sound at all volumes. The amplifier's robust 1 ohm stability guarantees reliable performance even under demanding conditions. Key features include a fully adjustable lowpass filter, subsonic filter, and bass boost from 0 to 18dB/octave: allowing precise control over your audio output. The built-in clipping LED indicator and multiple layers of electronic protection (including thermal, overload, short circuit, impedance, voltage, and clipping) ensure your amplifier operates safely and effectively. With a frequency response ranging from 10Hz to 250Hz and a signal-to-noise ratio of 90dB, this car audio amplifier delivers a dynamic audio experience. The remote level control with clip indicator offers convenient operation and customization from within your vehicle, making it easy to dial in your perfect sound. Boost your bass and enjoy perfect audio with the SXE-1500.1D!

Brand:
Part Number:
SXE-1500.1D/RD
UPC:
810097265240
Alternate MPN:
SXE15001DRD
