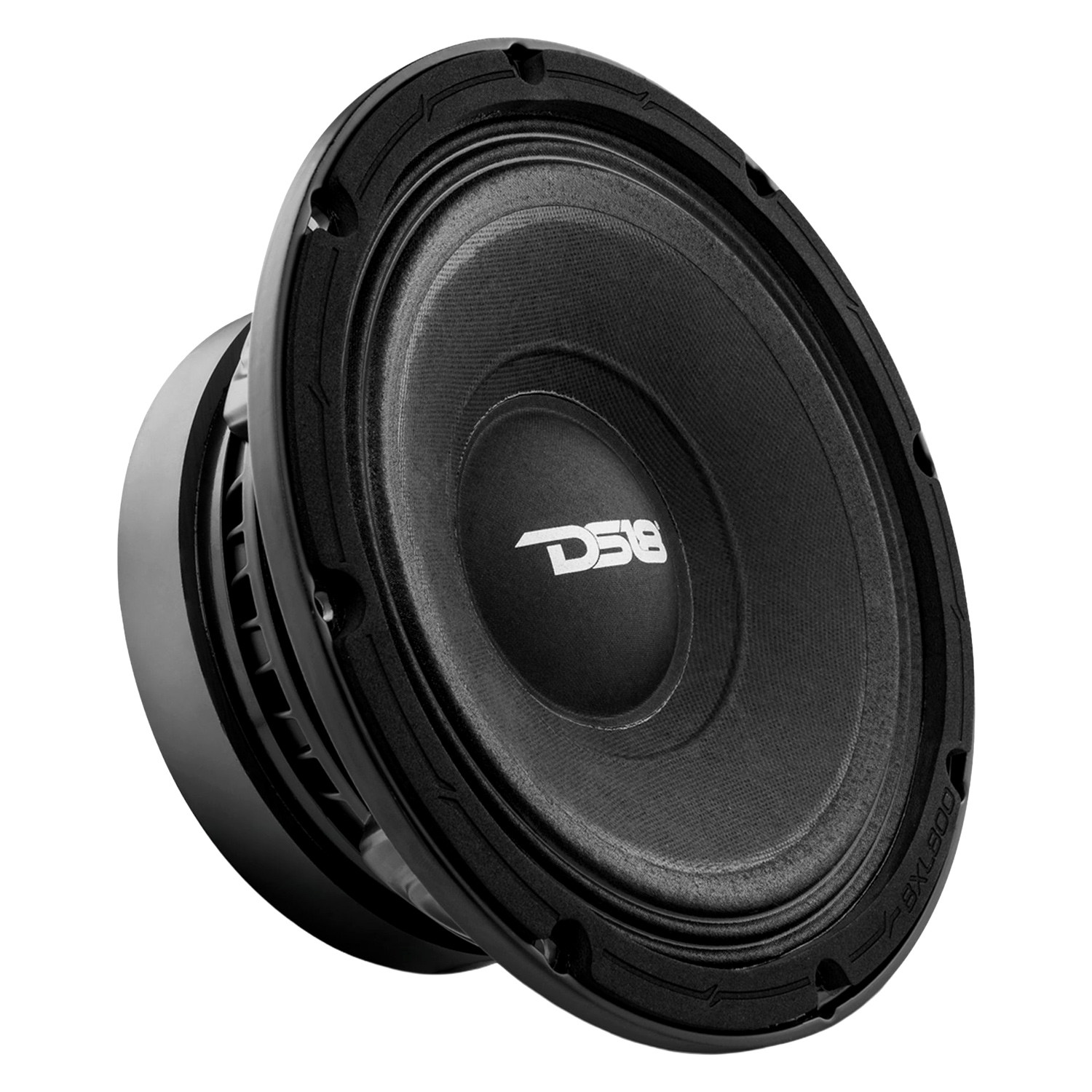

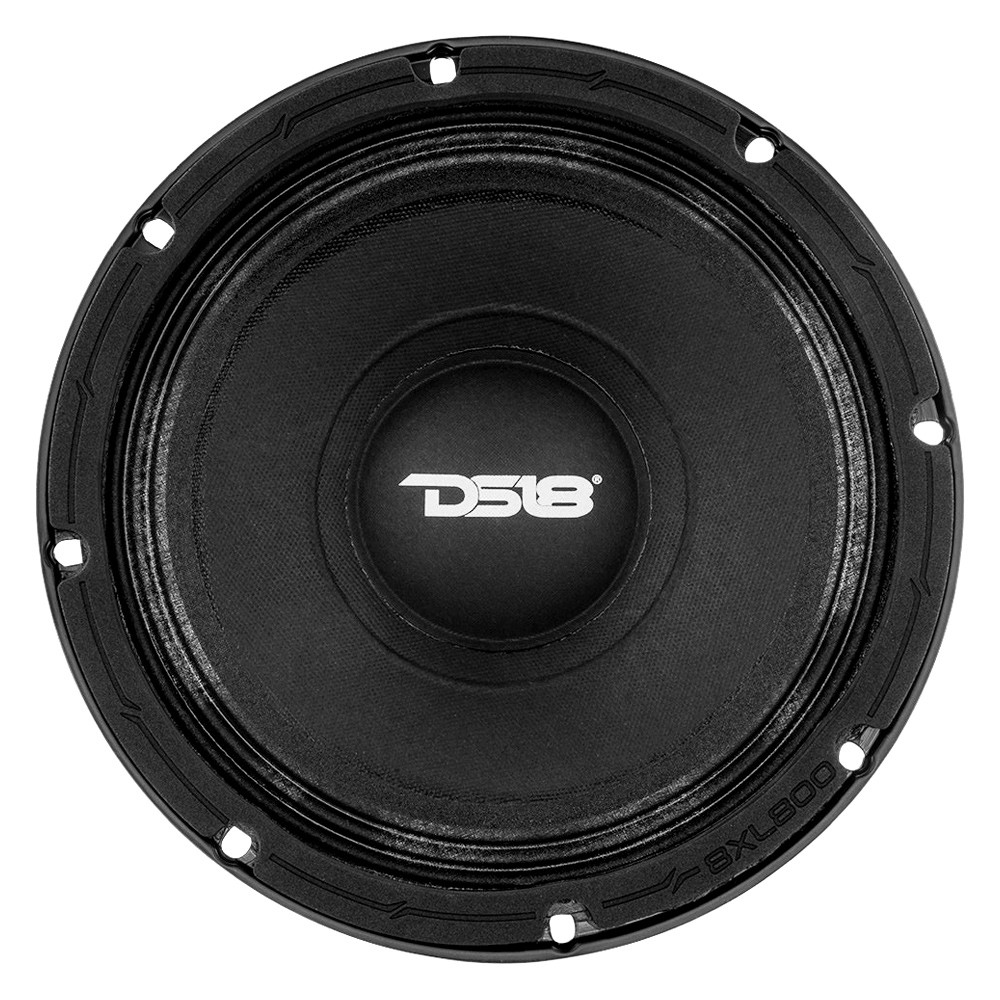

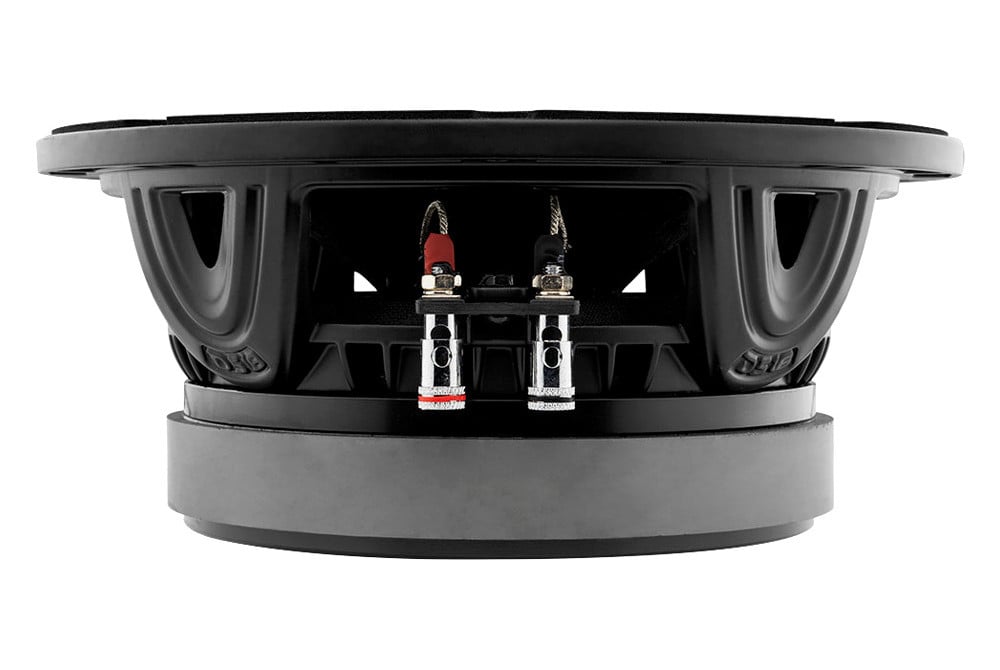

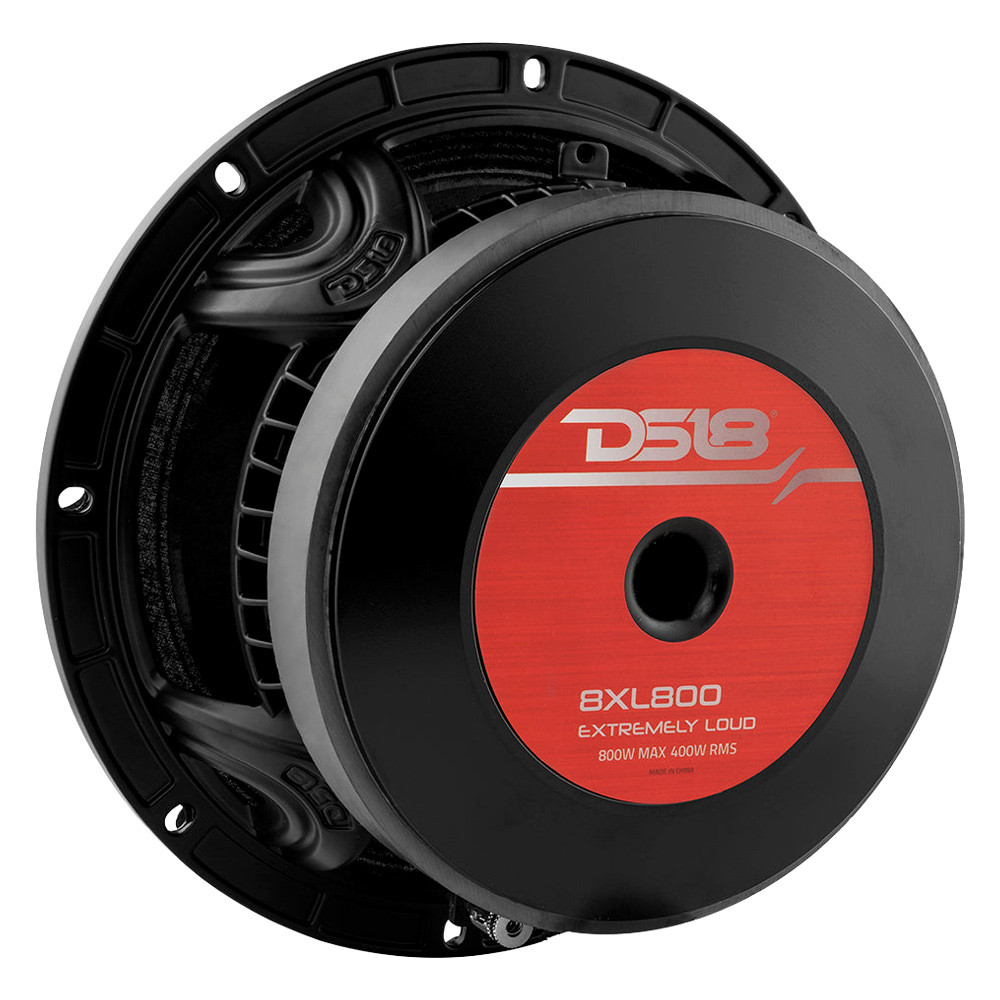

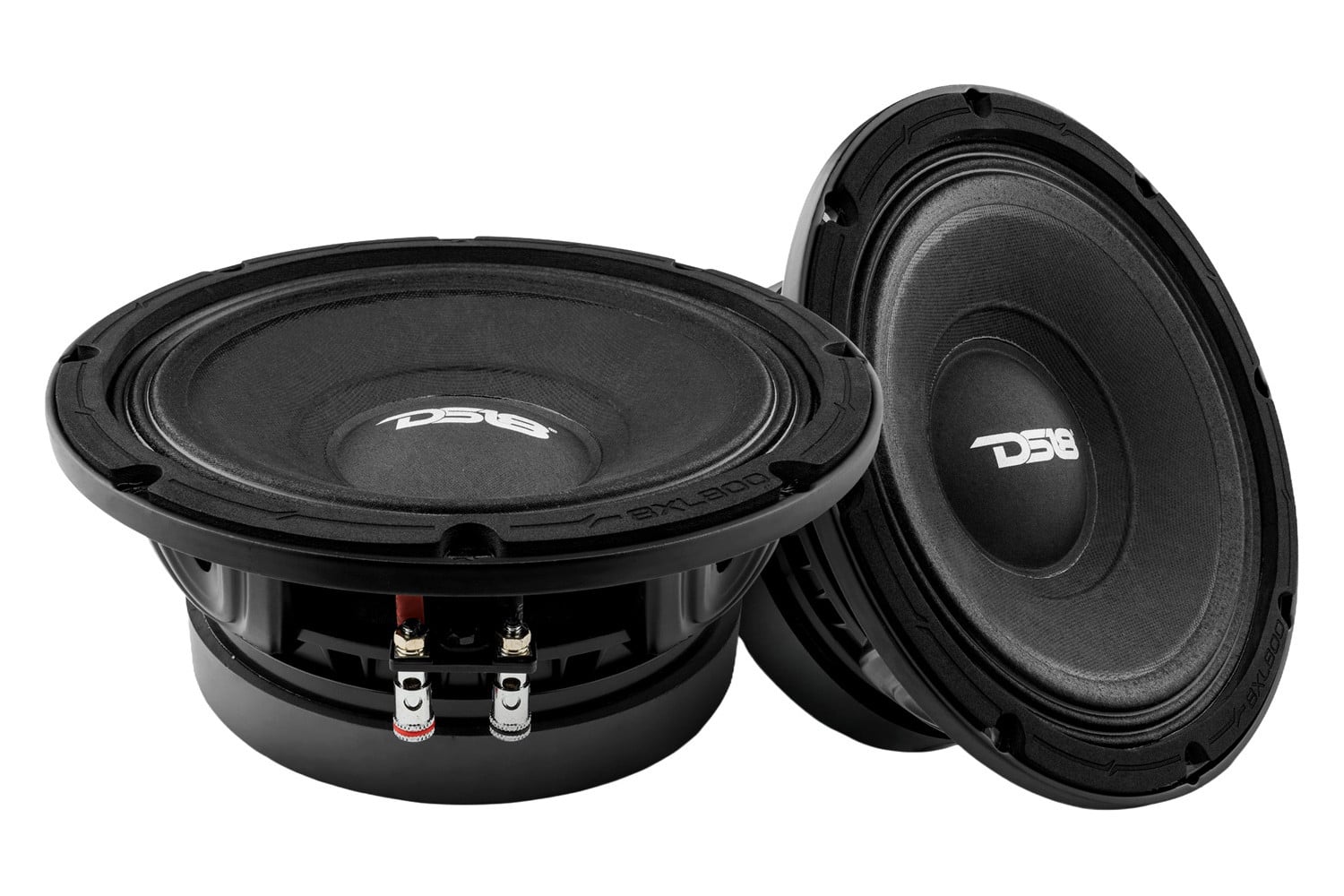

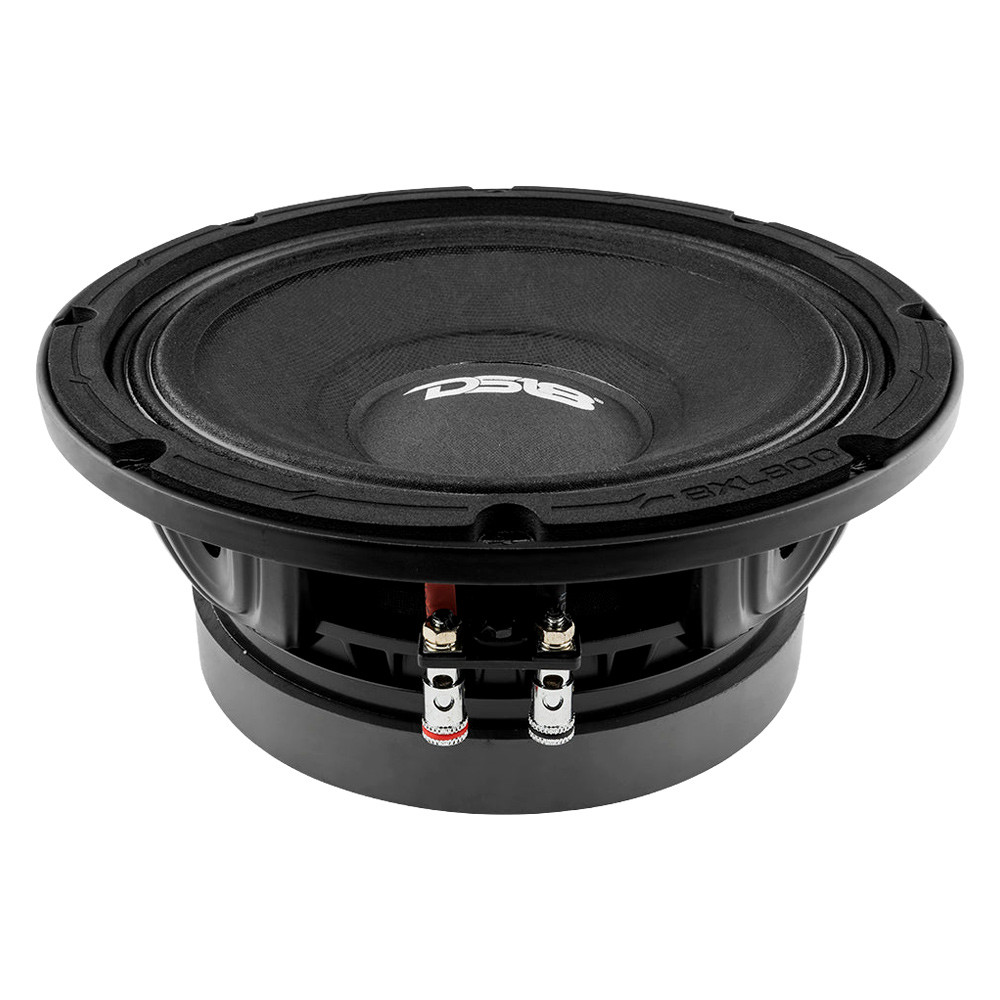

Name: DS18® 8XL800-8 - XL Mid-Range Loudspeaker
Brand: DS18
SKU: mpn5242749558
Price: 155.95 USD
Availability: InStock
Rating: 3 (2 reviews)

Vehicle Fitment

This part is universal

Specifications

SKU	8XL800-8
Nominal Diameter	8" / 203mm
Nominal Impedance	8 Ohm
RMS Power Handling	400 watts
MAX Power Handling	800 watts
Sensitivity (1w/1m)	99dB
Frequency Response	60Hz-8KHz
Recommended HI Pass Crossover	90Hz
Sold in Pair or Single	Single
Grill Included	No
Voice Coil Diameter	2" / 50.8mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Non-pressed Paper
Dust Cap Material	Paper
Bullet Material	N/A
Bullet Color/Finish	N/A
Surround Material	Cloth
Basket Material	Aluminum
Basket Color/Finish	Satin Black
Magnet Material	Ferrite
Magnet Weight	56 Oz
Displacement Volume	0.85L / 0.03ft3
Equivalent Volume	14.8L / 0.52ft3
Excursion (one way)	2.3mm
Free Air Resonance	90Hz
Mechanical Factor	5.62
Electrical Factor	0.39
Total Factor	0.36
Mechanical Mass	15.2g
Mechanical Compliance	0.23mm/N
BL Factor	10.7
Voice Coil Inductance	0.05mH
Cone Area	211.24cm²
DC Resistance	5.5 ohm
Mechanical Mass w/o air	17.5
Overall Diameter	8.2" / 210mm
Overall Depth	3.8" / 96.4mm
Front Mount Baffle Cutout	7.2" / 183mm
Mounting Depth	3.34" / 84.5mm
Motor Diameter	6.14" / 156mm

Features

8" Mid-Range
MAX Power: 800 Watts
RMS Power: 400 Watts
Impedance: 8-Ohm
Ferrite Magnet
99dB

Product Details

Universal XL Mid-Range Loudspeaker (8XL800-8) by DS18®. XL 8" Mid-Range Loudspeaker 400 Watts Rms 8-Ohm. 8XL800-8. PRO XL 8" Mid-Range Loudspeaker 400 Watts Rms . DS18’s 8XL800-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music. DS18’s 8XL800-8 stands head and shoulders above the mid-range competition. This 8-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup. With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 99 dB guarantees crystal-clear sound reproduction, even in large venues. Crafted with precision, DS18’s 8XL800-8 features a 2" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 56 ounces ensures powerful and accurate bass responses that will leave you amazed. Elevate your audio game with the DS18 8XL800-8!

DS18® - Manual DS18® - Product Catalog Made In USA DS18 Authorized Dealer

Brand:

DS18

Part Number:

8XL800-8

UPC:

810097263123

Alternate MPN:

8XL8008

Warranty

1-Year Limited Warranty

DS18 warrants this product to be free from defects in material and workmanship under normal use and conditions for a period of one year from the date of purchase. This warranty covers any defects in materials and workmanship and warranty only applies to the original purchaser and is not transferable. DS18 will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, DS18 will replace the product in question. If it is deemed necessary DS18 will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available.

This warranty does not cover the cost for removal and reinstallation of any kind. This warranty is void and inapplicable DS18 deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered, causing thermal coil failure and/or mechanical failure, damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, and freight damage. DS18 is not responsible for any damages to a consumer's vehicle or person from a product failure. The warranty is void if DS18 deems the product was installed or used improperly. DS18 shall not be responsible for any incidental or consequential damages.

Refurbished units have a 90-day warranty.
