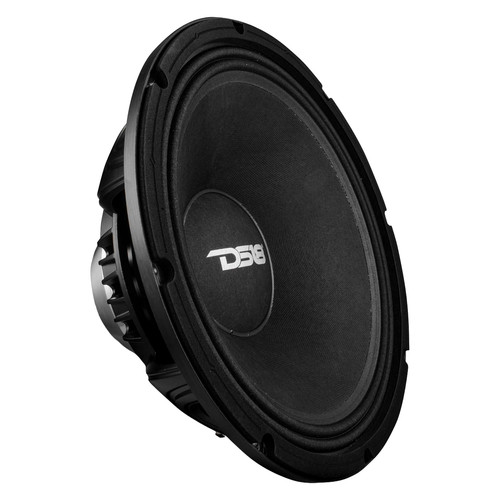

DS18® 12XL1000N-8 - XL Mid-Range Loudspeaker with Neodymium Magnet

2 reviews|Item # mpn5242749366
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$359.95
In Stock (158) - Ships in 2 to 3 days
See similar products
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU
12XL1000N-8
Nominal Diameter
12" / 305mm
Nominal Impedance
8 ohms
RMS Power Handling
500 watts
MAX Power Handling
1000 watts
Sensitivity (1w/1m)
100dB
Frequency Response
80Hz-5KHz
Recommended High-Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No
Interleaved Sandwich Voice coil (ISV)
No
Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Push 12ga
Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Bullet Material
N/A
Bullet Color/Finish
N/A
Surround Material
Cloth
Spider Diameter
5" / 127mm
Leads Type
Direct to Cone
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Neodymium
Magnet Weight
11 Oz
Displacement Volume
0.07L / 0.00247ft3
Equivalent Volume Vas
75.12L / 2.65ft3
Excursion (one way) Xmax
7mm
Free Air Resonance Fs
60Hz
Mechanical Factor Qms
5.8
Electrical Factor Qes
0.35
Total Factor Qts
0.33
Mechanical Mass Mms
44.6g
Mechanical Compliance Cms
0.19mm/N
BL Factor BL
18.7
Voice Coil Inductance Le
0.25mH
Cone Area Sd
526.85cm2
DC Resistance Re
5.6 ohm
Mechanical Mass w/o air Mmd
37g
Overall Diameter
12.3" / 312mm
Overall Depth
5.8" / 148mm
Front Mount Baffle Cutout
10.9" / 278mm
Mounting Depth
5.3" / 135mm
Motor Diameter
5.16" / 131mm

Features

  • 12" Mid-Range
  • MAX Power: 1000 Watts
  • RMS Power: 500 Watts
  • Impedance: 8-Ohm
  • Neodymium Magnet
  • 100dB

Product Details

Universal XL Mid-Range Loudspeaker with Neodymium Magnet (12XL1000N-8) by DS18®. XL 12" Mid-Range Loudspeaker 8-Ohm with Neodymium Magnet 500 Watts RMS. DS18 12XL1000N-8. 12" Mid-Range Loudspeaker With Neodymium Magnet . DS18’s 12XL1000N-8 is made for serious audio systems, delivering professional-grade clarity and volume without compromise. This 12" 8-ohm mid-range loudspeaker is a monster in any setup! . LOUD and Clear . Rated at 500W RMS and 1000W MAX, the 12XL1000N-8 delivers thunderous midrange that punches through any mix. With a 100dB sensitivity, it hits harder with less power, keeping your system efficient and LOUD. Its wide 80Hz–5KHz frequency range captures every note with surgical accuracy. Neodymium Core . At the heart is a lightweight neodymium magnet, delivering high flux density in a compact form factor. The Kapton voice coil resists heat and stress under pressure, while the non-pressed paper cone balances stiffness and responsiveness for crystal-clear output, even at high volume. Performance You Can Feel . From the demodulating rings for thermal efficiency, to the satin black aluminum basket that keeps everything in place—this driver was built to handle the kind of sound real audiophiles dream about. You want pro-level output? Get it with DS18’s 12XL1000N-8!

DS18® - ManualDS18® - Product CatalogMade In USADS18 Authorized Dealer
Brand:
DS18
Part Number:
12XL1000N-8
UPC:
810097266049
Alternate MPN:
12XL1000N8
