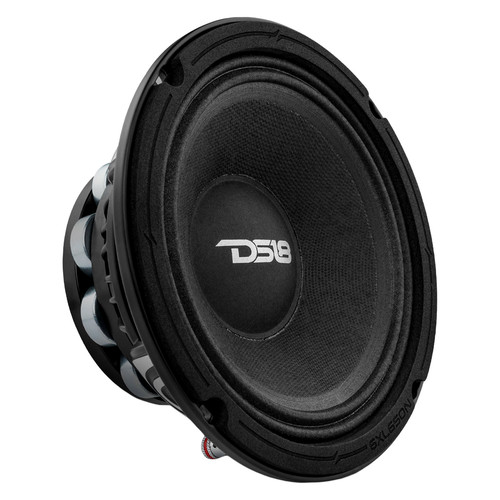

DS18® 6XL650N-4 - XL Mid-Range Loudspeaker with Neodymium Magnet

Name: DS18® 6XL650N-4 - XL Mid-Range Loudspeaker with Neodymium Magnet
Brand: DS18
SKU: mpn5242749258
Price: 203.95 USD
Availability: InStock
Rating: 3 (2 reviews)

2 reviews|Item # mpn5242749258

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$203.95

In Stock (3) - Ships in 2 to 3 days

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU	6XL650N-4
Nominal Diameter	6.5" / 165mm
Nominal Impedance	4 Ohms
RMS Power Handling	325Watts
MAX Power Handling	650 Watts
Sensitivity (1w/1m)	98.5dB
Frequency Response	60Hz-12.5KHz
Recommended Hi Pass Crossover	100Hz
Sold as Pair or Single	Single
Voice Coil Diameter	2" / 50.8 mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Non-pressed Paper
Dust Cap Material	Paper
Surround Material	Cloth
Basket Material	Aluminum
Basket Color Finish	Satin Black
Magnet Material	Neodymium
Magnet Weight	11.4 Oz
Displacement Volume	0.34L / 0.012ft3
Vas	5.86L / 0.206ft3
Xmax	3.7 mm
Fs	100Hz
Qms	4.385
Qes	0.256
Qts	0.242
Mms	11.278
Cms	0.214 mm/N
BL	9.449
Le	0.1744 mH
Sd	136.85 cm²
Re	3.2 ohm
Mmd	11.278 g
Overall Diameter	6.7" / 170mm
Overall Depth	3.19" / 81mm
Front Mount Baffle Cutout	5.9" / 150mm
Mounting Depth	2.83" / 72mm
Motor Diameter	4.13" / 105 mm

Features

6.5" Mid-Range
MAX Power: 650 Watts
RMS Power: 325 Watts
Impedance: 4-Ohm
Neodymium Magnet
98.5dB

Product Details

Universal XL Mid-Range Loudspeaker with Neodymium Magnet (6XL650N-4) by DS18®. XL 6.5" Neodymium Rings Mid-Range Loudspeaker 325 Watts 4-Ohm. DS18 6XL650N-4 . 6.5" Mid-Range Loudspeaker With Neodymium Rings . The 6XL650N-4 was built for performing — pushing 325W RMS and 650W MAX with zero compromise on clarity or control in any venue. Precision Meets Power . With a sensitivity of 98.5dB, this speaker delivers raw volume and crystal-clear detail that's noticeably smooth in any system. Powered by Neodymium . Its built around an 11.4 oz neodymium ring magnet: offering sharper highs, tighter mids, and faster response — all while reducing weight in your setup. Engineered for Performance . The custom aluminum basket offers top-tier stability, less flex, and less distortion: even at max volume. Its vented design keeps everything cool, so you can run LOUD without overheating. Easy, Clean Install . Spring-loaded, polished terminals give you maximum conductivity with minimum hassle. Just press, connect, and get LOUD! . Upgrade to the 6XL650N-4 and get show-ready performance!

DS18® - Manual DS18® - Product Catalog Made In USA DS18 Authorized Dealer

Brand:

DS18

Part Number:

6XL650N-4

UPC:

663593066039

Alternate MPN:

6XL650N4

Warranty

1-Year Limited Warranty

DS18 warrants this product to be free from defects in material and workmanship under normal use and conditions for a period of one year from the date of purchase. This warranty covers any defects in materials and workmanship and warranty only applies to the original purchaser and is not transferable. DS18 will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, DS18 will replace the product in question. If it is deemed necessary DS18 will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available.

This warranty does not cover the cost for removal and reinstallation of any kind. This warranty is void and inapplicable DS18 deems that the product was abused or misused; including but not limited to Speaker product that has been improperly-powered, causing thermal coil failure and/or mechanical failure, damage caused by accident, mishandling, improper installation, negligence, normal wear and tear, excessive water or heat damage, and freight damage. DS18 is not responsible for any damages to a consumer's vehicle or person from a product failure. The warranty is void if DS18 deems the product was installed or used improperly. DS18 shall not be responsible for any incidental or consequential damages.

Refurbished units have a 90-day warranty.

Reviews

(2)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-2 of 2 Reviews

Sort by

5 of 5

Great Speakers

Great speakers, they sound amazing. Originally bought to replace the front speakers in my truck, both blown, the rear speakers still work and sound great. They are factory. But now I'm thinking about replacing them with DS18s as well because they sound so good. Don't fret when you get them delivered, they don't come with a plug. Simply cutting the plug off of the wiring in the truck, stripping the wire and wrapping around the piece of metal on the speaker where you'd think the plug would be does the trick. I would recommend these to anyone, and would be my first choice if I ever get another vehicle. And not to mention the price. I was amazed at how little they cost me, the factory speakers cost more than these! I'm rocking the bumper sticker they came with!

DS18® - Pro GM Series 6-1/2" 580W 8 Ohm Midrange Speaker with Bullet Diffuser

Posted by Braley (Shelbyville, MI) / July 25, 20222000 Chevy Silverado 2500

1 of 5

Sad

It can't handle power sad 500 watts cerwin vaga abt to pop it.

DS18® - Pro Series 8" 500W 4 Ohm Midrange Speaker with Bullet Diffuser

Posted by Anthony J (Eureka, CA) / July 18, 2021
