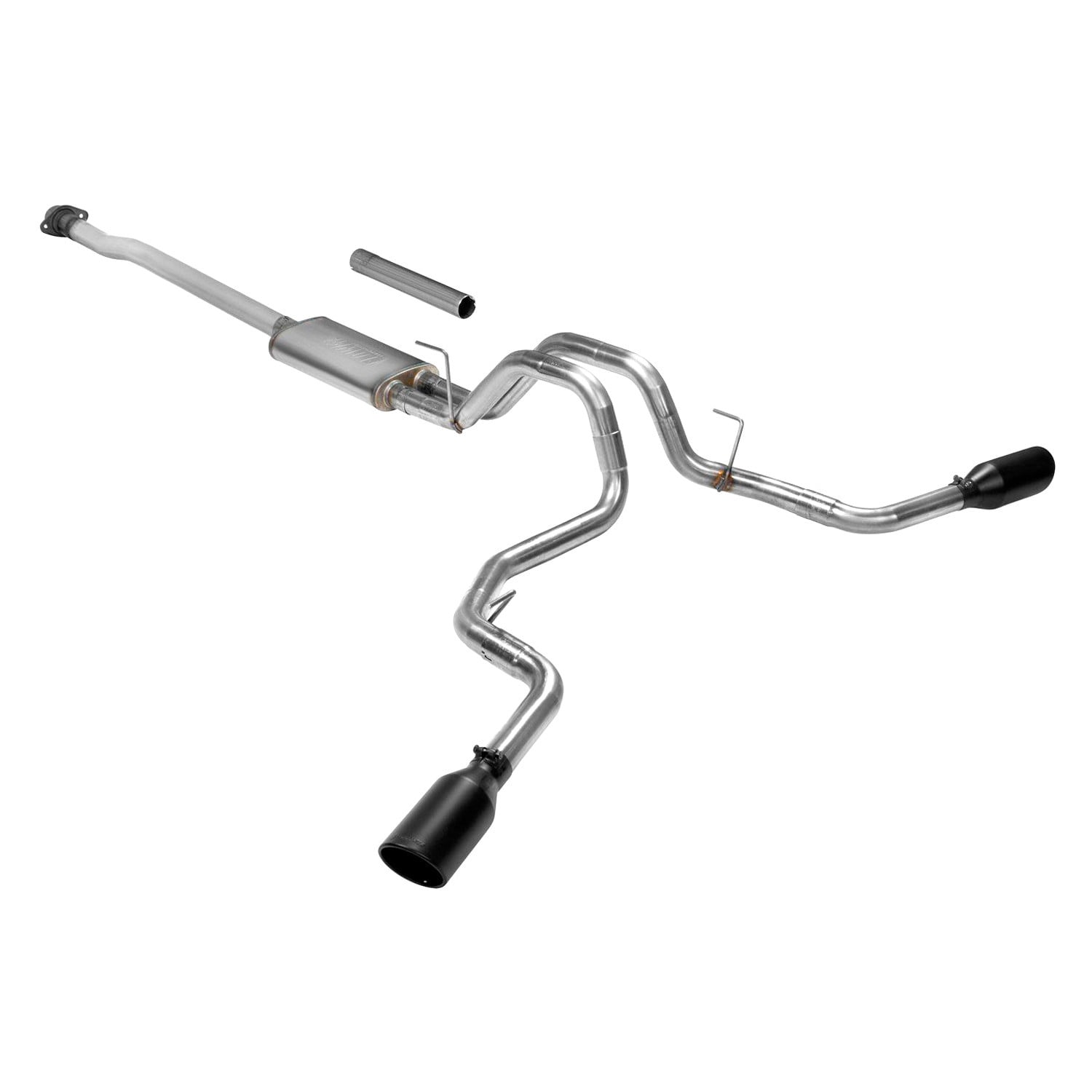

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System, Ford F-150 Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System, Ford F-150 Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System, Ford F-150 Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System, Ford F-150 Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System, Ford F-150

Flowmaster® 717871 - FlowFX™ 409 SS Cat-Back Exhaust System with Split Side Exit

Name: Flowmaster® 717871 - FlowFX™ 409 SS Cat-Back Exhaust System with Split Side Exit
Brand: Flowmaster
SKU: mpn4618072815
Price: 1022.15 USD
Availability: InStock
Rating: 4.3 (13 reviews)

13 reviews|Item # mpn4618072815

Vehicle Specific

Notes:

The system comes with FlowFX™ Series muffler
Uses Factory Hangers
Remember to check your local or state laws regarding vehicle noise restrictions and Emission Standards

Authorized Dealer

$1,022.15

$1,075.95Save $53.80 (5%)

In Stock (21) - Ships in 24 to 48 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Ford

Specifications

Exhaust System Type	Cat-Back
Exhaust Tubing Material	409 SS
Exit Location	Split Side
Main Tubing Diameter	2.5"
Exhaust System Sound	Aggressive / Loud
Muffler Inlet Diameter	3"
Muffler Outlet Diameter	2.5"
Muffler Series	FlowFX™
Muffler Quantity	1
Muffler Body Length	18"
Muffler Overall Length	24"
Muffler Body Material	409 SS
Muffler Body Finish	Natural Brushed
Muffler Body Shape	Oval
Muffler Configuration	Centered - Dual Outlet
Muffler Type	Absorption
Tip Quantity	2
Tip Finish	Black Ceramic
Tip Material	304 SS
Tip Type	Single Wall
Tip Outlet Diameter	4.5"
Tip Length	11"
Tip Shape	Round
Tip Cut Type	Angle-Cut
Hardware Included	Yes
Catalytic Converter(s) Included	No
Exhaust Type	Single in/Dual out
Exit Location	Split side
Intermediate Pipe Diameter (in.)	3.00 in.
Muffler Configuration	Single inlet/Dual outlet
Muffler Finish	Natural
Muffler Included	Yes
Muffler Material	409 stainless steel
Muffler Quantity	One
Muffler Style	Perforated tube with packing
Quantity	Sold as a kit.
Remanufactured	No
System Finish	Natural
System Material	409 stainless steel
System Style	Cat-back
Tailpipe Diameter (in.)	2.50 in.
Tip Color	Black
Tip Cut	Slant
Tip Edge Style	Rolled edge
Tip Included	Yes
Tip Material	304 stainless steel
Tip Outlet Size (in.)	4.50

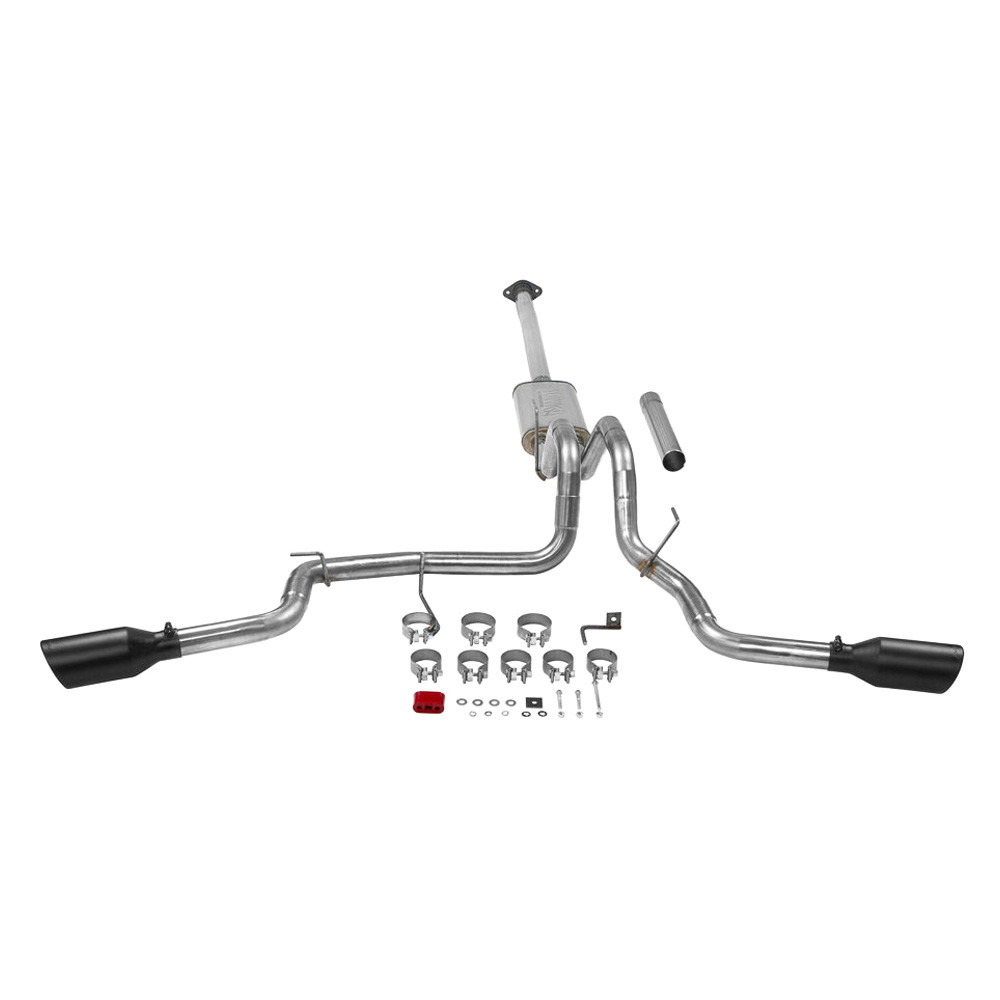

Includes

26737M Inlet Pipe Assembly x1
26277M Extension Pipe x1
72288-Z Muffler x1
86327M Right Tailpipe x1
86323M Left Overaxle Pipe x1
86324M Left Rear Tailpipe x1
86552M Side Exit Pipe x2
ST507B Tips x2
PK800 Hardware Pack:
490HA Front Clamp Hanger Assembly x1
226HA Left Frame Hanger x1
HA226 Back Up Plate x1
MC250BS 2½” Band Clamp x5
MC300BS 3” Band Clamp x2
HW502 7/16” Hanger Keepers x2
HA168 Rubber Hanger x1
HW234 3/8” x 3-1/2” Tap Bolt x1
HW211 3/8” X 2” Bolt x2
HW303 3/8” Flat Washer x4
HW309 3/8” Lock Washer x3
HW103 3/8” Nut x3

Features

High Quality Performance Sound
Increases Horse Power and Torque
Dyno-Tuned for Maximum Performance
Mandrel Bent 16 Gauge Stainless Steel Tubing and Stainless Steel Muffler Assembly
Perfect Fitment
Stainless Steel Construction
Scavenger X-Pipe Cross-over
Made in the USA

Product Details

FlowFX™ 409 SS Cat-Back Exhaust System with Split Side Exit by Flowmaster®. Exhaust System Type: Cat-Back. Exhaust Tubing Material: 409 SS. Main Tubing Diameter: 2.5". Exhaust System Sound: Aggressive / Loud. Introducing Flowmaster's new line of FlowFX exhaust systems. This system is perfect for the person looking for Moderate-Aggressive exterior and interior sound level with all of the performance benefits that you would expect from Flowmaster.

Installation

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System Installation Instructions

New features include, bright 409S stainless steel tubing, a pair of Flowmaster's new FlowFX straight-through mufflers with a large core for maximum performance and a deep, aggressive sound. The system uses a Scavenger X-Pipe cross-over and mandrel-bent tubing for maximum performance and then is finished off with stainless steel tips that exit within the rear bumper valance. Manufactured in the USA and is covered by Flowmaster's Lifetime Limited Warranty. Designed for an easy installation, this system includes all necessary parts, hardware and detailed instructions.

All Flowmaster exhaust systems give the same improvement of performance. All Flowmaster exhaust systems produce a beautiful deep performance tone. Choosing between the five different exhaust systems is not a technical decision – it is all up to your personal taste. It’s A Sound Decision™. The racing origin is evident in every Flowmaster exhaust system. All the five series of systems are tuned for maximum performance. They differ in technology and tuning, and thus in tone and character, giving you a performance engine sound to your personal liking.

Flowmaster exhaust systems employ two unique technologies, the patented Delta Flow and the Laminar Flow. They give different characters of sound and can be tuned to achieve the desired exhaust note. Flowmaster Exhaust System Technology is so versatile and gives such a high degree of control that it is used both by racers, who want maximum power, and by the U.S. Air Force in Stealth applications, where maximum silence and minimum heat emissions are prime considerations.

Be it for a domestic or import truck, SUV, off-road warrior, daily driver, muscle car, euro-spec cruiser or sport compact vehicle, Flowmaster technicians personally hand select the right muffler, tubing size, resonator, and tip to make the process easy for you. Best of all, Flowmaster stainless steel exhaust systems are covered by a Limited Lifetime Warranty; ensuring that your exhaust will last as long as you own your vehicle. If you choose aluminized steel products, Flowmaster backs them up with a 3-year warranty.

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System Installation Instructions Flowmaster® - Exhaust Types Flowmaster® - Guide Flowmaster® - Types of Mufflers Flowmaster® - Exhaust Systems Comparison Flowmaster® - Warranty Flowmaster® - Catalogs Made In USA Flowmaster Authorized Dealer Video FAQ About us

Brand:

Flowmaster

Part Number:

717871

UPC:

700042038947

Warranty

Lifetime Limited Warranty applies to Flowmaster stainless steel mufflers, stainless steel exhaust systems, stainless steel pipes, air intake kits and oiled type filters (except cleaning kits) and other stainless steel exhaust accessories (except exhaust tips).

Three (3) Year Limited Warranty applies to Flowmaster aluminized steel mufflers, aluminized steel exhaust systems, aluminized steel pipes, exhaust tips and other non-race exhaust accessories.

Two (2) Year Limited Warranty applies to Delta Force Dry air intake filter elements.

One (1) Year Limited Warranty applies to Elite Series exhaust headers and electronic components such as Delta Boost modules. Flowmaster, Inc. (“Flowmaster”) extends the following limited warranty to the original purchaser of its mufflers, exhaust systems, pipes, exhaust tips, headers and other non-race accessories (hereafter “products”), excluding catalytic converters sold under the Flowmaster® brand.

This catalytic converter is warranted to be free from defects in materials and workmanship subject to the exclusion and conditions set forth below and subject to the durational limits in this paragraph.

EPA Catalytic Converter Warranty: The stainless steel body and the nipples alone are warranted for 5 years or 50,000 miles, whichever comes first. At the conclusion of the 5 year/50,000 mile or 25,000 mile period, whichever is applicable, all liability under this limited warranty shall terminate.

CARB Catalytic Converter Warranty: This catalytic converter has been designed and manufactured and is warranted to meet California Air Resources Board emission requirements for 50,000 miles. The stainless steel body and the nipples alone are warranted for 5 years or 50,000 miles, whichever comes first. At the conclusion of the 5 year/50,000 miles on stainless steel body and nipples or 50,000 miles on catalyst substrate, whichever is applicable, all liability under this limited warranty shall terminate.

Flowmaster warrants the products mentioned above against defects in materials and workmanship for the period set forth below, when they are owned by the original purchaser and remain installed on the vehicle on which they were originally installed. This warranty is void if the product was not installed properly on the vehicle, was installed on a vehicle for which it was not designed, or was removed from the vehicle on which it was originally installed and reinstalled on another vehicle. This warranty shall not apply to normal wear, cosmetic issues such as coatings and material discoloration, any product that was installed on a racing vehicle, installed improperly or contrary to Flowmaster instructions, altered, misused, repaired, damaged from an accident, collision, undercarriage road impact or debris, or willful or negligent act.

The warranty set forth herein for Flowmaster® stainless steel mufflers, stainless steel exhaust systems, stainless steel pipes and other stainless steel exhaust accessories (except exhaust tips) extends for a period of the life of the original vehicle the product was installed on. The warranty set forth herein for Flowmaster aluminized steel mufflers, aluminized steel exhaust systems, aluminized steel pipes, all exhaust tips and non-race exhaust accessories and commercial applications of aluminized steel products or stainless steel products extends for a period of three (3) years from the date of original purchase and the original vehicle it was installed on. The warranty set forth herein for Flowmaster exhaust headers extends for a period of one (1) year from the date of original purchase and the original vehicle it was installed on. Header warranty does not cover damages caused by exhaust insulating wrap, and is void if the product was installed on a new or rebuilt engine during the initial break-in period.

Flowmaster’s liability is expressly limited to the replacement of the product or refund of the purchase price as described herein. In no event shall Flowmaster be liable for any direct, indirect, special, incidental or consequential losses and/or damages, including but not limited to interruption of business or loss of business or loss of profit or damage to related components resulting from the use of or inability to use the product, or any breach of warranty or any defect in the product, even if Flowmaster shall have been advised of the possibility of such potential losses or damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which may vary from state to state.

The warranties set forth herein are exclusive and unless otherwise required by applicable law no other warranties are made by Flowmaster® or are authorized to be made with respect to the product.

Reviews

(13)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-10 of 13 Reviews

Sort by

5 of 5

Sounds Great

Install was not too bad. If you're not saving your factory setup then take a Sawzall to it for removal, makes it much easier. Gives the 5.0 a great rumble but not obnoxious. Sounds awesome on acceleration but fairly quiet at idle.

Flowmaster® 717887 - FlowFX™ 409 SS Cat-Back Exhaust System with Single Side Exit

Posted by Raymond (Lake Charles, LA) / May 08, 20212018 Ford F-150

4 of 5

Worth it

At the beginning it was hard to remove the oem exauhst but i got it out into 2 secciones took me quite a bit to figure it out but i did install was easy the sound is good deep tone with the turbo still sounding good not too loud but just wright for the teuck you can really hear its loudness when you floor it its loud enough pipes do fade out but honestly who cares its just the inside what do you expect ive been using it for about 5 months and i love it overall great choice

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System with Dual Side Exit

Posted by Kurt / November 08, 20242024 Chevy Colorado

5 of 5

Perfect Exhaust for my 2024 Ford Bronco Sport!

Love the deep sound from the exhaust now! Tons better than stock, better gas mileage, and better acceleration too. Had it professionally installed, and it was done in about 20 minutes! Definitely recommend Flowmaster Products for ease of installation and high quality!

Flowmaster® - FlowFX™ 409 SS Axle-Back Exhaust System with Split Rear Exit

Posted by Mike (Lyndhurst, NJ) / October 06, 20242024 Ford Bronco Sport

4 of 5

Flowfx Exhaust

It’s a great exhaust for the price. Install was as easy as can be. It is a bit louder than most aftermarket exhausts but won’t wake the neighbors up in the morning. The only thing that I found that it lacks in is the tip will start to fade and the powder coat will start to flake and the tip turns into chrome instead of black. Other than that it is a great exhaust for the price.

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System with Single Side Exit

Posted by Customer / December 19, 20222016 Toyota Tacoma

3 of 5

Does Its Job, For a Bit

Thought it was going to be an easy install, didn't turn out to be, clamps won't clamp down hard enough to keep pipes together fell out after one drive on the highway

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System with Single Rear Exit

Posted by Blake (Wichita, KS) / August 23, 20222003 Jeep Grand Cherokee

4 of 5

Good Bolt On Kit

This is a good bolt on kit. Just installed on my 5.7 ram yesterday. Seems to be good quality. But whoever rates the sound level gave it loud aggressive. I would rate it moderate/medium. I deffintly like the black tips, better than the chrome!

Flowmaster® 717860 - FlowFX™ 409 SS Cat-Back Exhaust System with Split Rear Exit

Posted by Jason (Winfield, MO) / August 29, 20212017 Ram 1500

5 of 5

Great Exhaust

Got it put on with some minor tweaks. Sounds great it gives it a throaty sound but if you are not standing on gas it produces very little drone.so highway driving is not effecting your ears. I felt the pick up in power. Love it!

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System with Single Side Exit

Posted by Serge (Mahwah, NJ) / July 30, 20212019 Ford Ranger

4 of 5

Great Kit

Great kit, sounds great, easy installation. Only con is factory rubber exhaust hangers are too big for new exhaust. Had to replace rubber hangers with smaller size.

Flowmaster® 717929 - FlowFX™ 409 SS Cat-Back Exhaust System with Dual Side Exit

Posted by Customer / June 15, 20212013 Chevy Silverado 1500

4 of 5

Flowmaster

I love it, it's great. I little louder than expected but a good loud, not too aggressive.

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System with Single Side Exit

Posted by Customer / June 06, 20212011 Toyota FJ Cruiser

3 of 5

Beware

I just installed this on my 2015 Silverado 1500 5.3L. V8 It sounds good and seems well made, HOWEVER, when my truck drops to V4 it sounds absolutely terrible. That can be fixed with a tuner but it's another $400 I have to spend in order to correct the issue.

Flowmaster® - FlowFX™ 409 SS Cat-Back Exhaust System with Dual Side Exit

Posted by Customer / May 12, 20212015 Chevy Silverado
