Vehicle Fitment

Ford

Specifications

Rear Lift Height	0"-1.0"
Adjustable Valving	Yes
Body Diameter (in.)	2.500
Boot Included	No
Bushing Color	Black
Bushing Material	Spherical bearing/PTFE
Gas Charged	Yes
Internal Design	Monotube
Lifted Amount Range (in.)	2.50 in.
Quantity	Sold as a pair.
Remanufactured	No
Ride Height	Lifted
Shock Absorber Adjustment Type	Adjustable
Shock Absorber Compressed Height	19.99"
Shock Absorber Extended Height	32.25"
Shock Absorber Stroke Length	12.26"
Shock Absorber O.D.	3.0"
Shock Absorber Lower Mount Type	Eyelet
Shock Absorber Upper Mount Type	OEM
Material	Aluminum

Features

3.2” shock bodies can withstand internal pressures over 3,000 psi
Position- and velocity-sensitive damping maximize control through any terrain

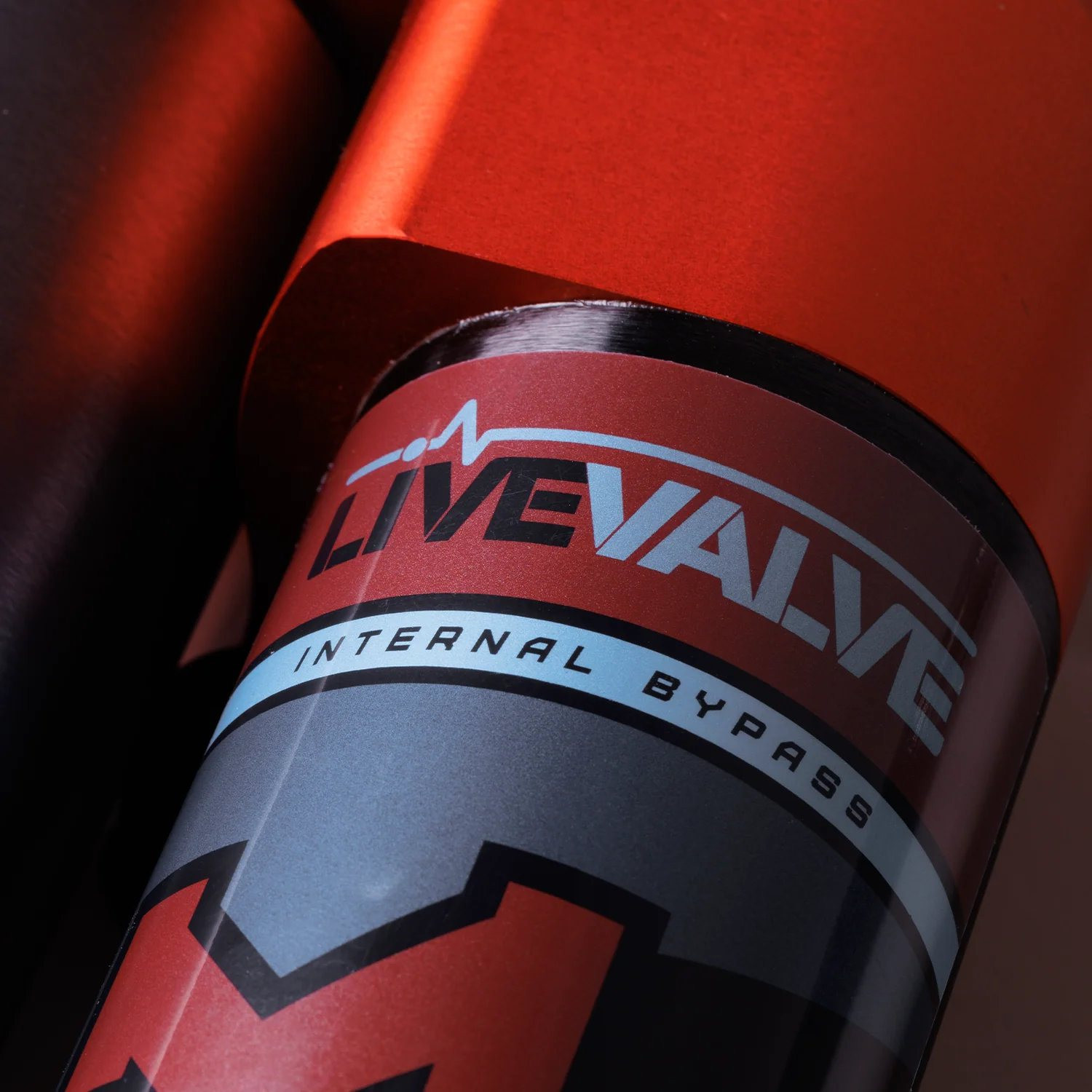

Patented, Internal Bypass is specifically tuned to accommodate a lifted ride height
Coil-overs utilize 1” hard chromed steel shafts and an optimized spring rate
Recirculating dual hoses, rear ECS2 coolers, and front finned reservoirs increase shock cooling
Redesigned shock mounting improves clearance under extreme suspension travel

Product Details

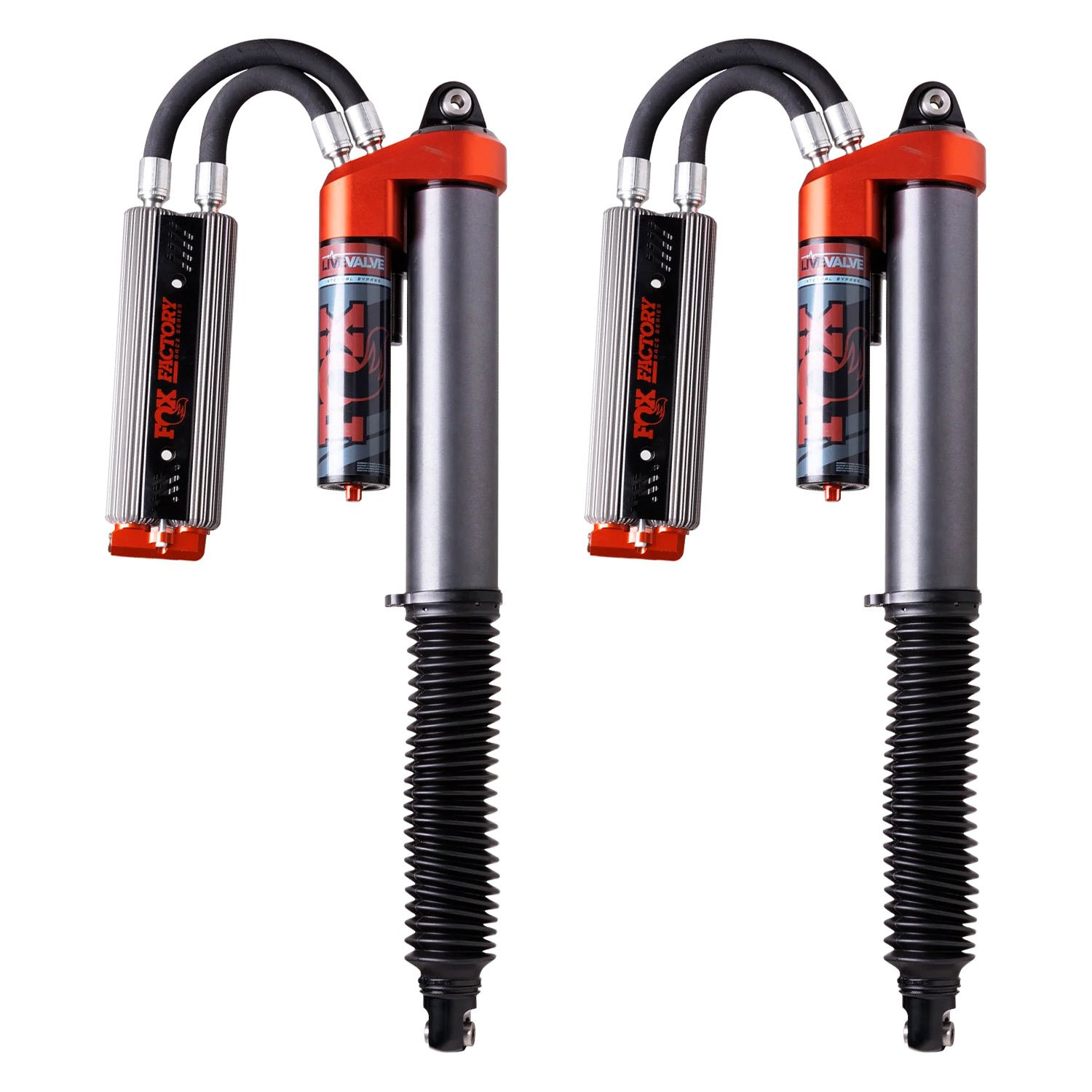

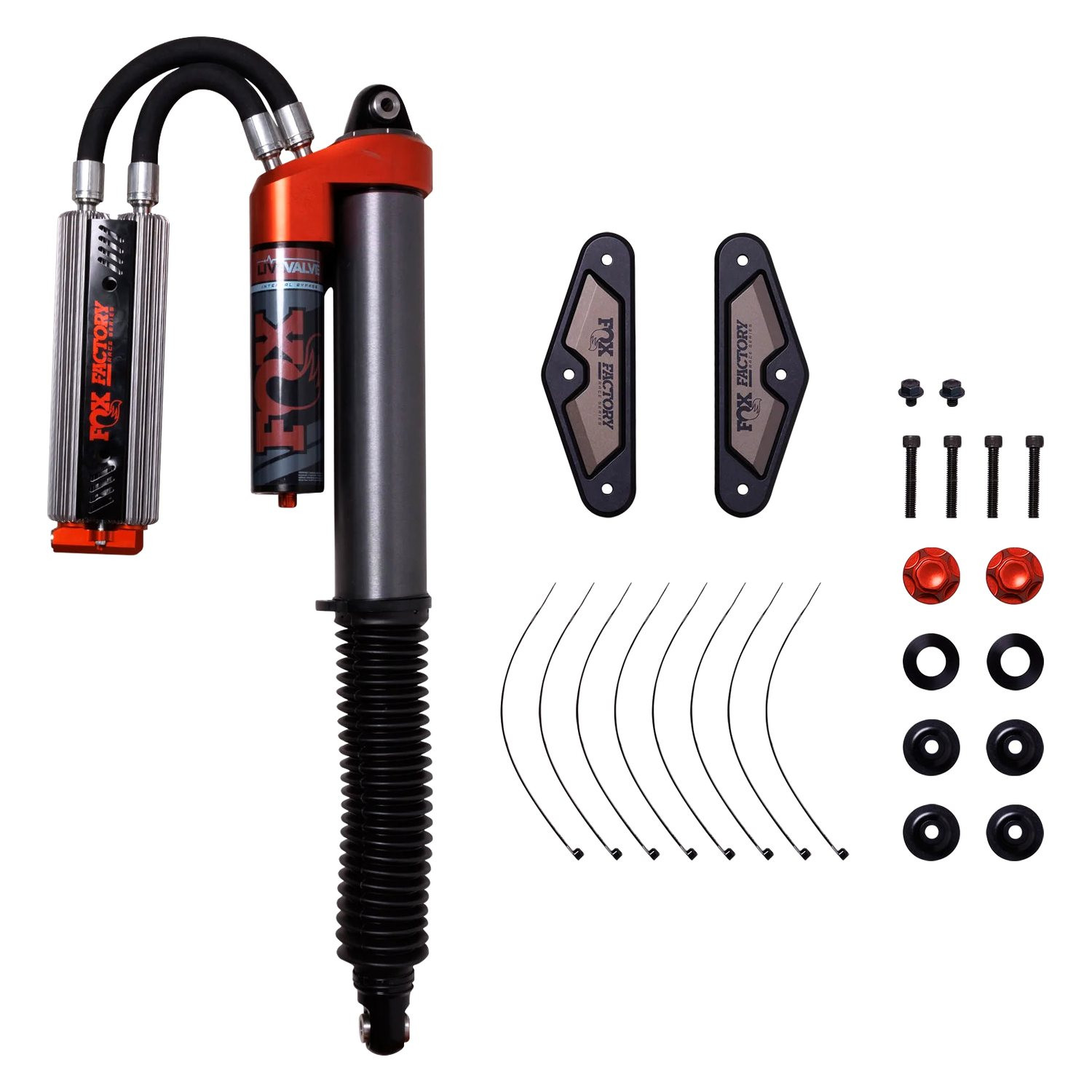

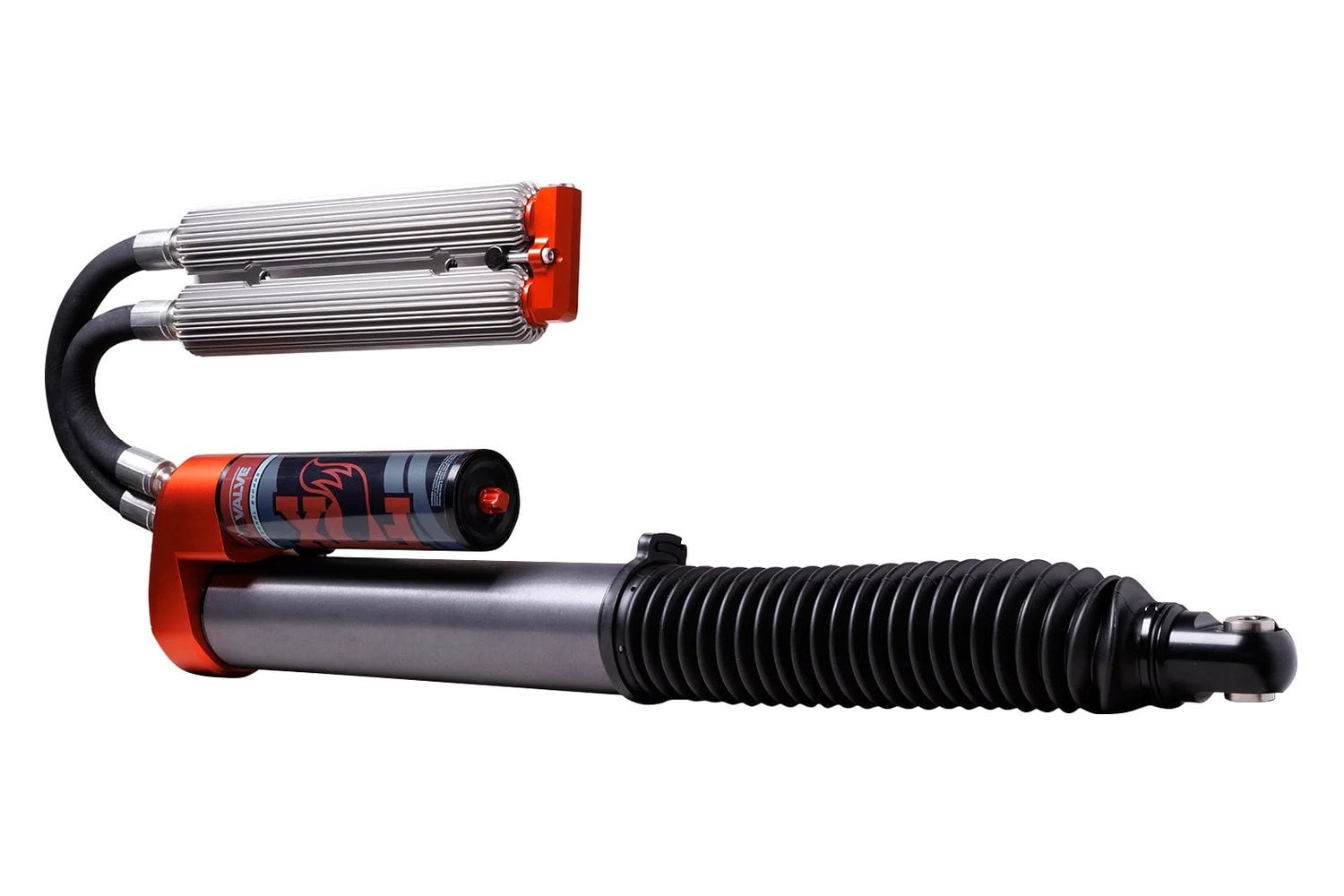

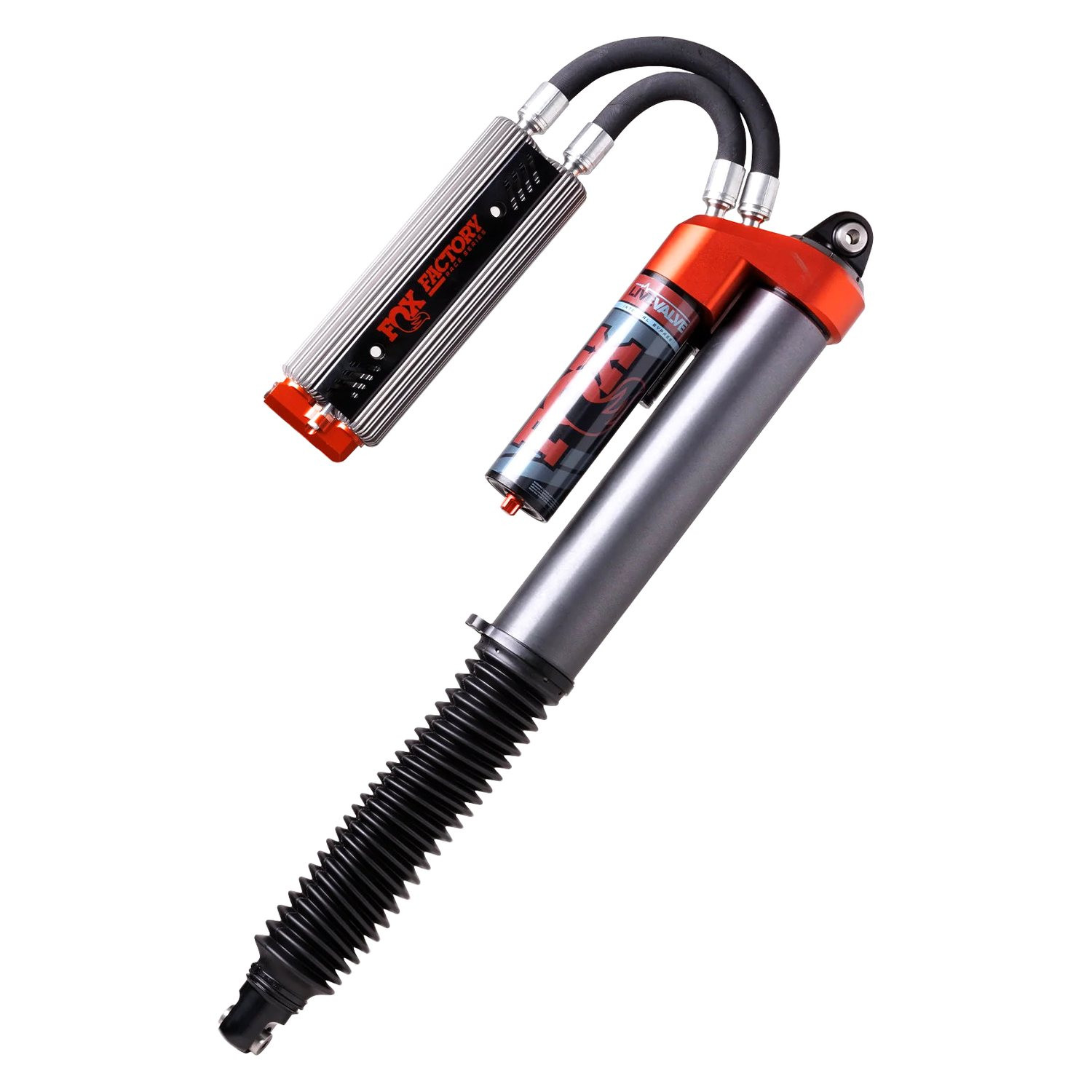

3.2 Factory Race Series Rear Coilovers with 0"-1" Rear Lift Height by Fox®. Live Valve monitors terrain and your driver inputs 400 times a second, adapting your truck's suspension for the perfect tune, in every moment. By controlling damping at all four corners of the vehicle in all driving situations and environments, you’ll always have the best-feeling suspension whether on pavement, gravel road, rock crawling and everything in between.

Installation

Fox® - Installation Instruction

Fox® - Installation Instruction Fox® - Manual Fox® - Catalog Fox® - Guide Made In USA Fox Authorized Dealer Additional Information Warranty About us

Brand:

Fox

Part Number:

883-06-183

UPC:

692878900300

Alternate MPN:

88306183

Warranty

FOX LIMITED WARRANTY

LIMITED ONE (1) YEAR WARRANTY ON SUSPENSION PRODUCTS

Subject to the limitations, terms and conditions hereof, Fox warrants, to the original retail owner (consumer) of each new Fox suspension product, that the Fox suspension product, when new, is free from defects in materials and workmanship. This limited warranty expires one (1) year from the date of the original Fox suspension product retail purchase from an authorized Fox dealer or from a Fox authorized Original Equipment Manufacturer where Fox suspension is included as original equipment on a purchased vehicle.

TERMS OF WARRANTY

This limited warranty is conditioned on the Fox suspension product being operated under normal conditions and properly maintained as specified by Fox. This limited warranty is only applicable to Fox suspension purchased new from an authorized Fox source and is made only to the original retail owner (consumer) of the new Fox suspension product and is not transferable to subsequent owners.

Should it be determined, by Fox in its sole and final discretion, that a Fox suspension product is covered by this limited warranty, it will be repaired or replaced, by a comparable model, at Fox’s sole option, which will be conclusive and binding. THIS IS THE EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY. ANY AND ALL OTHER REMEDIES AND DAMAGES THAT MAY OTHERWISE BE APPLICABLE UNDER THIS LIMITED WARRANTY ARE EXCLUDED, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR PUNITIVE DAMAGES.

This limited warranty does not apply to normal wear and tear, malfunctions or failures that result from abuse, neglect, improper assembly, alteration or modification, improper or unauthorized repair or maintenance, crash, accident or collision, or other abnormal, excessive or improper use.

This limited warranty gives the consumer specific legal rights. The consumer may also have other legal rights under the applicable national laws which are not affected by this limited warranty. If it is determined by a court of competent jurisdiction that a certain provision of this limited warranty does not apply, such determination shall not affect any other provision of this limited warranty and all other provisions shall remain in effect.

THIS IS THE ONLY WARRANTY MADE BY FOX ON ITS SUSPENSION PRODUCTS AND COMPONENTS, AND THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION HEREIN. ANY WARRANTIES THAT MAY OTHERWISE BE IMPLIED BY LAW INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED.

This limited warranty shall be governed exclusively by the laws of the State of California.
