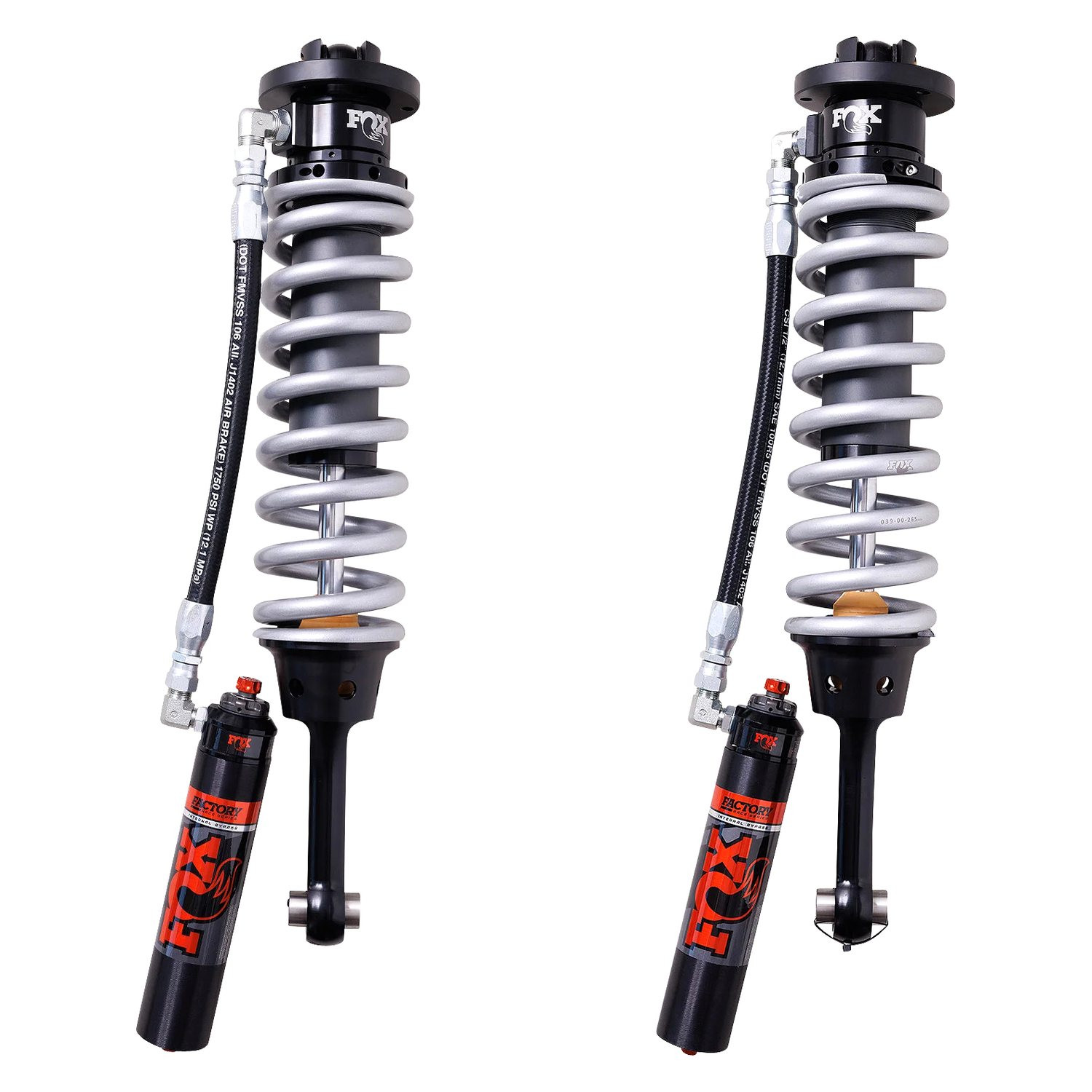

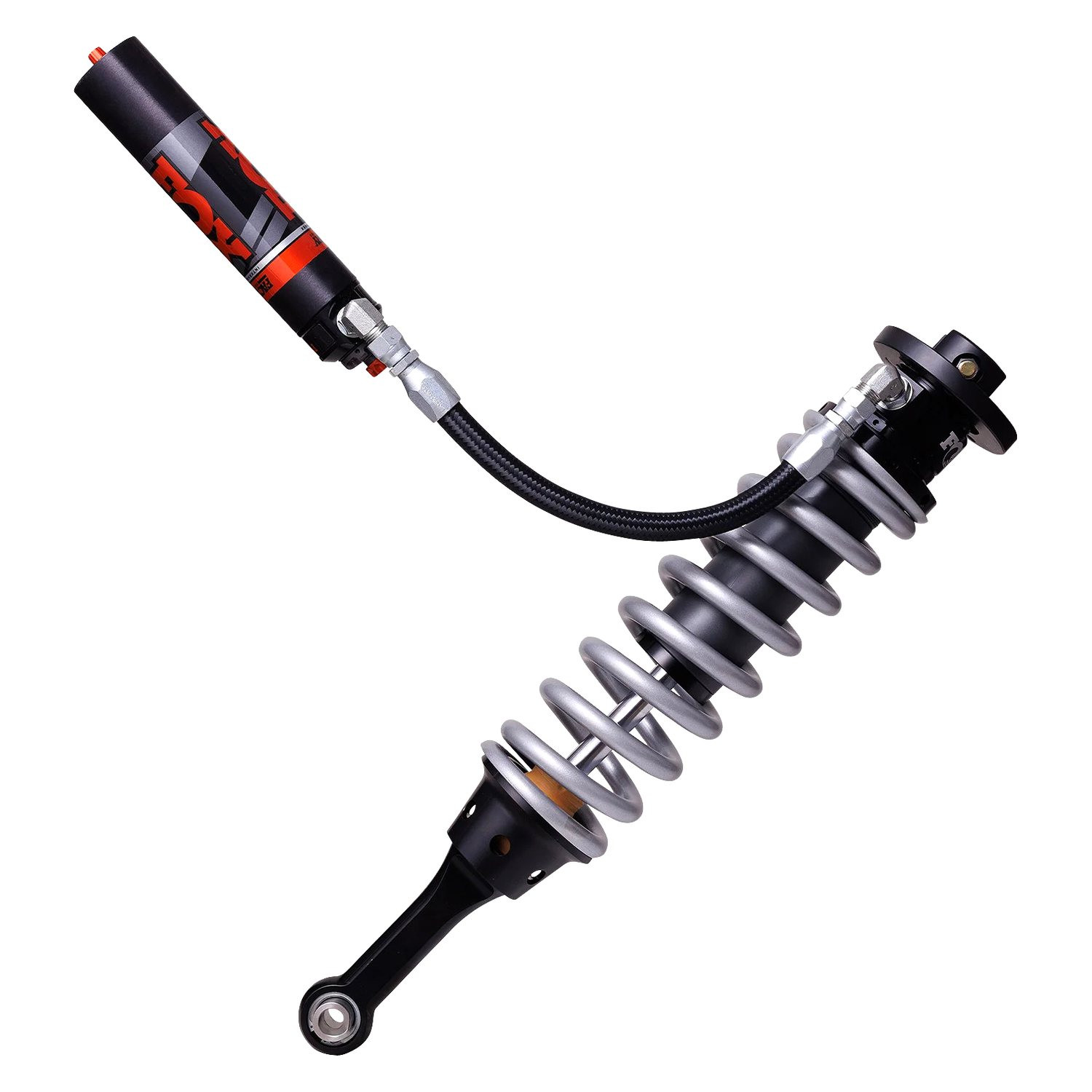

Fox® 883-06-233 - 2" 3.0 Factory Race Series Front Internal Bypass Coilovers

5 reviews|Item # mpn5272007020
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $3,639.95
    In Stock (2)
    See similar products
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Ford

    Specifications

    Front Lift Height
    2.0"
    Adjustable Mounting Bracket Included
    No
    Adjustable Valving
    Yes
    Body Diameter (in.)
    2.500
    Bushing Color
    Natural
    Bushing Material
    Spherical bearing
    Coilover Kit Position
    Front
    Coilover Springs Included
    Yes
    Crossmember Included
    No
    Gas Charged
    Yes

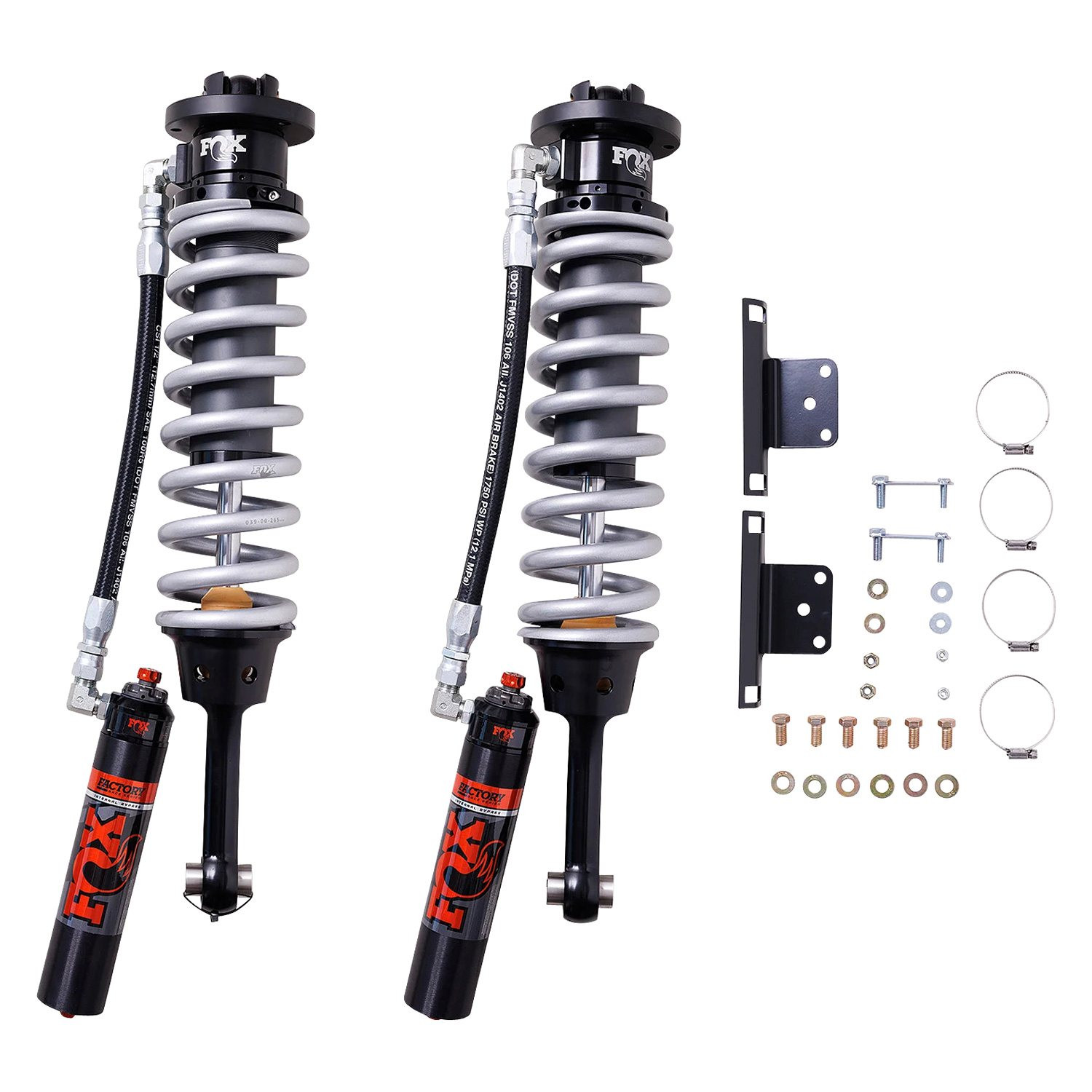

    Hardware Included
    Yes
    Internal Design
    Monotube
    Quantity
    Sold as a pair.
    Shocks Included
    Yes
    Spring Finish
    Gray/Silver
    Suspension Height Adjustment
    0.0-2.0 in. raised
    Welding Required
    No
    Shock Absorber Compressed Height
    20.44"
    Shock Absorber Extended Height
    27.97"
    Shock Absorber Stroke Length
    7.53"
    Shock Absorber O.D.
    3.0"
    Shock Absorber Reservoir
    With Remote Reservoir
    Shock Absorber Lower Mount Type
    Eyelet
    Shock Absorber Upper Mount Type
    TM
    Material
    Steel

    Features

    • High-quality construction for durability and better heat control
    • Smooth, consistent damping for improved handling
    • Rebuildable design on many models for long-term value
    • Premium seals and oil to reduce fade in tough conditions
    • Tuned for comfort and stability on and off the road
    • Corrosion-resistant finish for long-lasting performance
    • JM92 Advanced Suspension Fluid for improved performance at variable temperatures
    • PTFE-lined, heat-treated, alloy steel spherical bearing

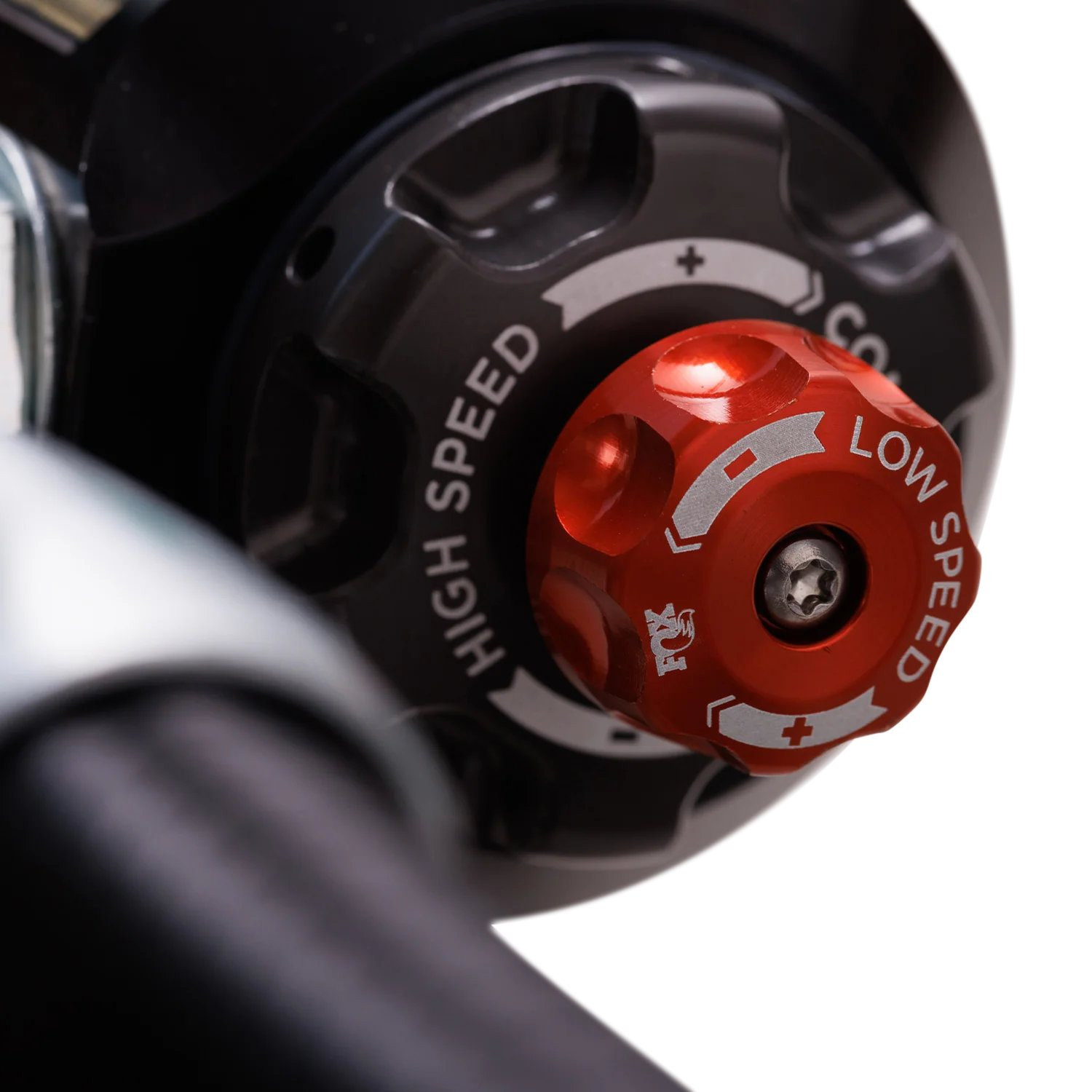

    • DSC - Dual Speed Compression adjuster type

    Product Details

    3.0 Factory Race Series Front Internal Bypass Coilovers with 2" Front Lift Height by Fox®. Quantity: 2 per Pack. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

    Installation

    Fox® - Installation Instruction
    Fox® - Installation InstructionFox® - ManualFox® - CatalogFox® - GuideMade In USAFox Authorized DealerAdditional InformationWarrantyAbout us
    Brand:
    Fox
    Part Number:
    883-06-233
    UPC:
    692878900591
    Alternate MPN:
    88306233
