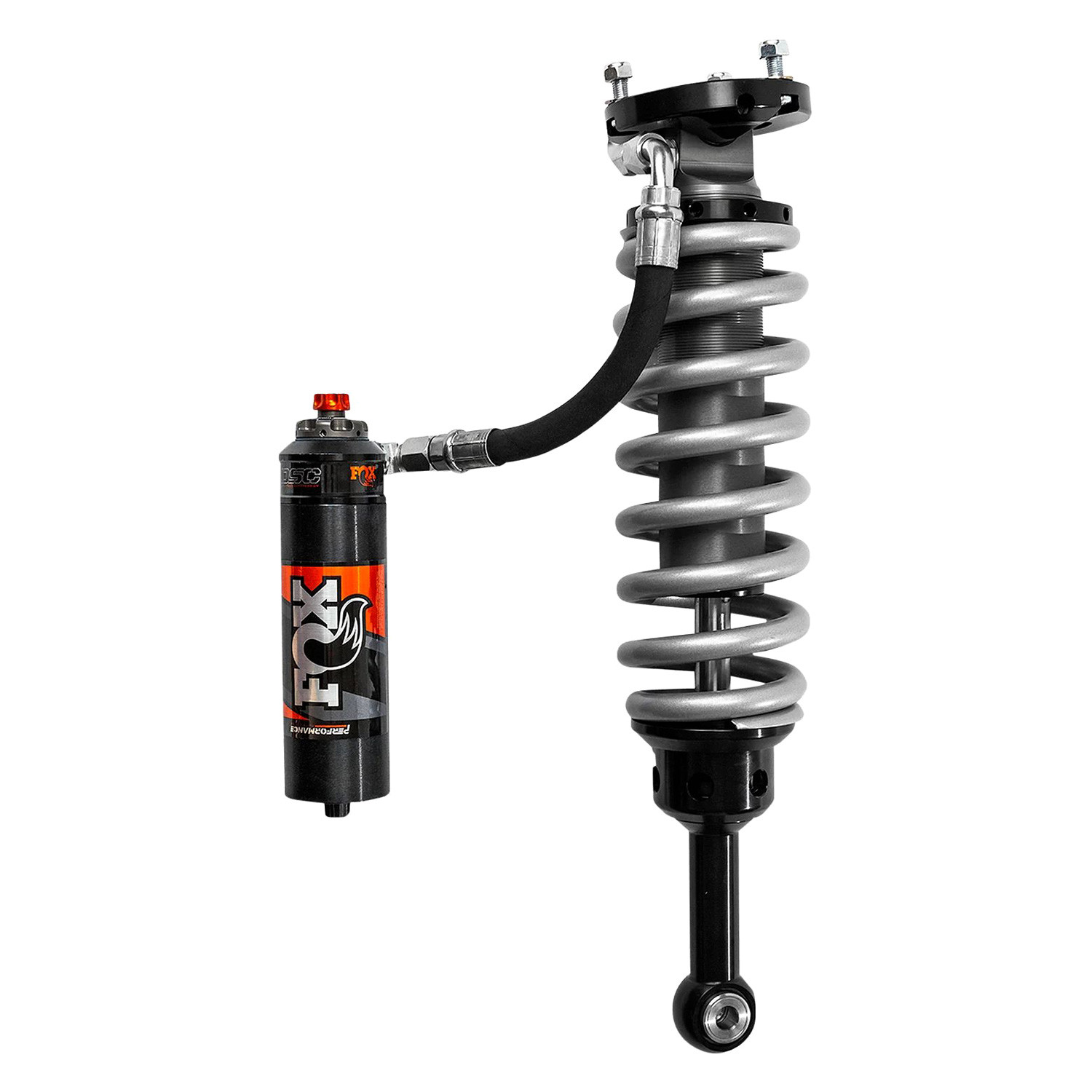

Name: Fox® 883-06-178 - 1"-2" 2.5 Elite Series Front Coilovers
Brand: Fox
SKU: mpn4946805988
Price: 2415.95 USD
Availability: InStock
Rating: 4.6 (5 reviews)

Vehicle Fitment

Toyota

Specifications

Front Lift Height	1.0"-2.0"
Coil Spring Finish	Powder Coated Silver
Adjustable Mounting Bracket Included	No
Adjustable Valving	Yes
Body Diameter (in.)	2.500
Bushing Color	Black
Bushing Material	Spherical bearing/PTFE
Coilover Kit Position	Front
Coilover Springs Included	Yes
Crossmember Included	No
Gas Charged	Yes
Hardware Included	Yes
Internal Design	Monotube
Quantity	Sold as a pair.
Shocks Included	Yes
Spring Finish	Gray/Silver
Suspension Height Adjustment	2.0-3.0 in. raised
Welding Required	No
Shock Absorber Internal Design	Monotube
Shock Absorber Type	Gas Charged
Shock Absorber Compressed Height	16.64"
Shock Absorber Extended Height	21.87"
Shock Absorber Stroke Length	5.23"
Shock Absorber Reservoir	With External Reservoir
Shock Absorber Reservoir Type	Dual Speed Compression (DSC) Valve
Shock Absorber Lower Mount Type	Eyelet
Shock Absorber Upper Mount Type	Stock
Finish	Black
Material	Aluminum
Shock Absorber Body Diameter	2.5"

Features

2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Hard-anodized for a durable finish
2.5" Smooth bore and honed seamless alloy reservoir
Application specific, adjustable 3.0 Eibach® racing springs
7/8" hard chrome plated steel shafts
6061-T6 hard-anodized, high flow aluminum piston
Application specific valving to maximize performance
Redundant sealing pack system main seal, wiper seal, scraper seal
PTFE-lined, heat-treated, alloy steel spherical bearing
Ride height preload ring for adjustment
DSC - Dual Speed Compression Adjuster Type

Product Details

2.5 Elite Series Front Coilovers with 1"-2" Front Lift Height by Fox®. Before any of Fox shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. Fox push the boundaries to give you that same precise control and race-proven performance you can feel. The bolt-on Performance Elite Series Coil-over shocks provide improved damping in any terrain. Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Performance Elite Series Coil-over shocks deliver.

Installation

Fox® - Installation Instruction

Fox® - Installation Instruction Fox® - Manual Fox® - Catalog Fox® - Guide Made In USA Fox Authorized Dealer Additional Information Warranty About us

Brand:

Fox

Part Number:

883-06-178

UPC:

711745592445

Alternate MPN:

88306178

Warranty

FOX LIMITED WARRANTY

LIMITED ONE (1) YEAR WARRANTY ON SUSPENSION PRODUCTS

Subject to the limitations, terms and conditions hereof, Fox warrants, to the original retail owner (consumer) of each new Fox suspension product, that the Fox suspension product, when new, is free from defects in materials and workmanship. This limited warranty expires one (1) year from the date of the original Fox suspension product retail purchase from an authorized Fox dealer or from a Fox authorized Original Equipment Manufacturer where Fox suspension is included as original equipment on a purchased vehicle.

TERMS OF WARRANTY

This limited warranty is conditioned on the Fox suspension product being operated under normal conditions and properly maintained as specified by Fox. This limited warranty is only applicable to Fox suspension purchased new from an authorized Fox source and is made only to the original retail owner (consumer) of the new Fox suspension product and is not transferable to subsequent owners.

Should it be determined, by Fox in its sole and final discretion, that a Fox suspension product is covered by this limited warranty, it will be repaired or replaced, by a comparable model, at Fox’s sole option, which will be conclusive and binding. THIS IS THE EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY. ANY AND ALL OTHER REMEDIES AND DAMAGES THAT MAY OTHERWISE BE APPLICABLE UNDER THIS LIMITED WARRANTY ARE EXCLUDED, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR PUNITIVE DAMAGES.

This limited warranty does not apply to normal wear and tear, malfunctions or failures that result from abuse, neglect, improper assembly, alteration or modification, improper or unauthorized repair or maintenance, crash, accident or collision, or other abnormal, excessive or improper use.

This limited warranty gives the consumer specific legal rights. The consumer may also have other legal rights under the applicable national laws which are not affected by this limited warranty. If it is determined by a court of competent jurisdiction that a certain provision of this limited warranty does not apply, such determination shall not affect any other provision of this limited warranty and all other provisions shall remain in effect.

THIS IS THE ONLY WARRANTY MADE BY FOX ON ITS SUSPENSION PRODUCTS AND COMPONENTS, AND THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION HEREIN. ANY WARRANTIES THAT MAY OTHERWISE BE IMPLIED BY LAW INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED.

This limited warranty shall be governed exclusively by the laws of the State of California.

Reviews

(5)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-5 of 5 Reviews

Sort by

5 of 5

Fox Quality as Expected

Fox makes some of the best suspension out there, seriously, just do yourself a favor and get these if you're lifting your truck. Ride is night and day compared to cheap lift kit shocks. Haven't done much hardcore off-roading yet, but for highway driving and rough backroads, these are miles better than anything else I've tried.

Fox® - 6" 2.5 Factory Series Front Coilovers

Posted by J.K. (Tulsa, OK) / February 04, 20252022 Ram 3500

4 of 5

Okay

I take my Sierra off-road quite a bit and these coilovers handle bumps and dips with ease, the truck feels more stable. The ride is firmer but not unbearable. Had a shop do the install and they said it was a smooth process.

Fox® - 0"-2" 2.0 Performance Series Front IFP Coilover

Posted by Julian (Seattle, WA) / November 26, 20242018 GMC Sierra 1500

4 of 5

Awesome Product.

First time buying with this company, but purchase was smooth. Coilovers shipped fast. Pretty seamless purchase. Only complaint is coilovers arrived with large gouge on one reservoir. Which is probably the fault of UPS but non the less a scratch on your $2,000 coilovers out of the box hurts.

Fox® 883-06-121 - 0"-2" 2.5 Factory Series Front Coilovers

Posted by Jack (Edmonton, KY) / April 07, 20222012 Chevy Silverado 1500

5 of 5

Good

Good shocks at decent price. This kit works as expected, i really like my ride now! Do not missed out and install them on your Tundra. Exactly what i need, thank you!

Fox® 880-02-367 - 0"-2" 2.5 Factory Series Front Lift Coilovers

Posted by Sonny (Cary, NC) / February 09, 20172016 Toyota Tundra

5 of 5

Fox 2.0 2016 F150

Bought these to level my truck and gain some off-road performance. So far the ride is smooth on pavement I haven't been off-road yet so I can't speak on there off-road capabilities. I had these installed at a Ford dealer it took around 3 hrs. The cost was around 300.00 with a wheel alignment. The service guy misquoted me lower than what it should of been and honored the price he told me. The other dealership was asking 500.00 without the wheel alignment.

Fox® - 0"-2" 2.0 Performance Series Front Lift IFP Coilover

Posted by Tim (Pingree Grove, IL) / November 19, 20162014 Ford F-150
