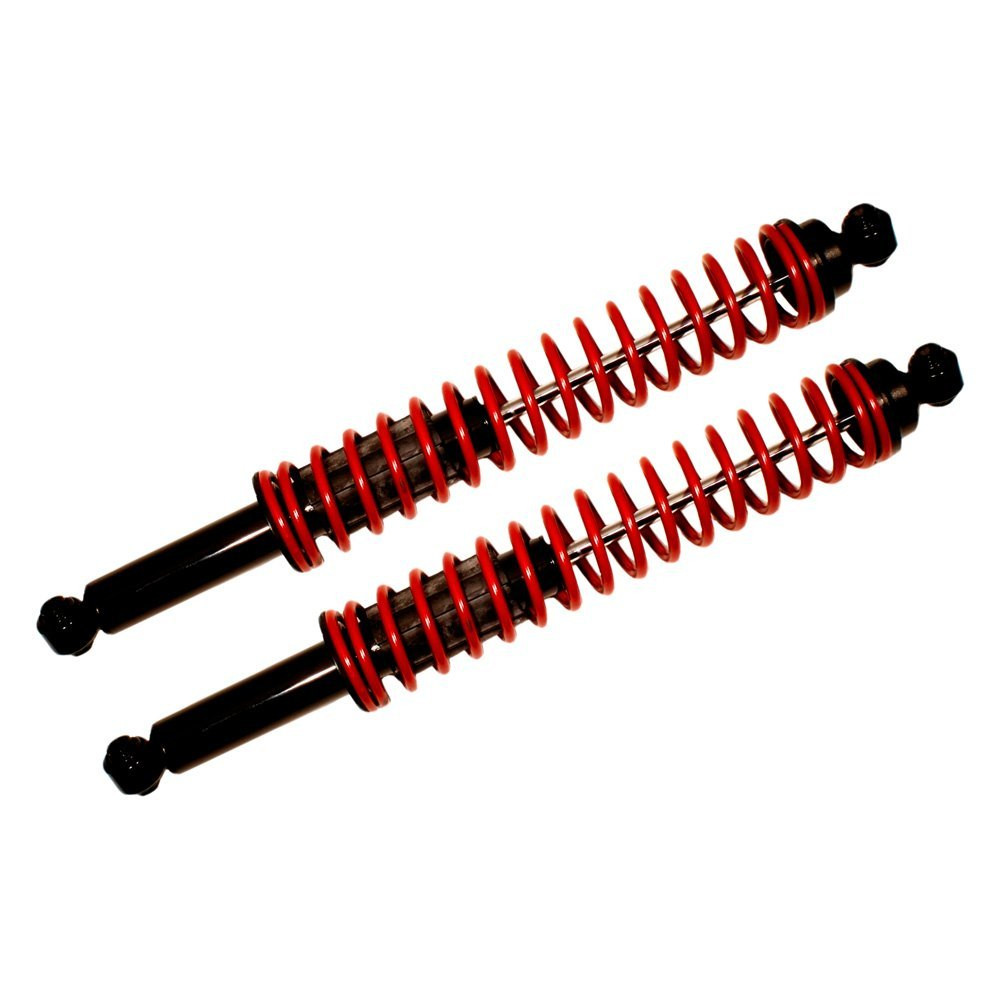

Name: Gabriel® 43181 - Load Carrier™ Rear Variable-Rate Coilovers
Brand: Gabriel
SKU: mpn735714537
Price: 102.62 USD
Availability: InStock
Rating: 4.8 (46 reviews)

Vehicle Fitment

Chevy

Dodge

GMC

Specifications

Adjustment Type	Variable-Rate
Compressed Length	14.88" (378 mm)
Extended Length	24.24" (615.70 mm)
Stroke Length	9.36" (237.75 mm)
Lower Mounting	ES34
Upper Mounting	ES34
Adjustable Valving	No
Boot Included	No
Quantity	Sold as a pair.
Remanufactured	No
Ride Height	Stock

Includes

(2) Shock Absorbers

Features

Twin-Tube internal design
A super-finished chromed piston rod to inhibit corrosion, ensure proper seal lubrication, and provide a more consistent wear surface
A leak-proof piston seal which helps extend product life
D.O.M. (Drawn-Over-Mandrel) Tubing reduces internal wear for longer product life

Product Details

Load Carrier™ Rear Variable-Rate Coilovers by Gabriel®. Quantity: 2 per Pack. The Spring Assist (Load Carrier™) by Gabriel® is the perfect combination of shock and spring technology to help reduce the loss of ride height in ongoing loaded conditions. The constant-rate front coil springs can help improve stability and restore or maintain ride height, while the variable-rate rear coil springs provide 500 lbs. per pair of load capacity. These Spring Assists do not increase vehicle payload.

Gabriel® - How to Prime Shock or Strut Guide Gabriel® - Warranty Gabriel® - Important!Gabriel® - Specifications Gabriel® - Technology Information Gabriel® - Catalogs Gabriel Authorized Dealer Product lines FAQ About us

Brand:

Gabriel

Part Number:

43181

UPC:

043645687151

OE Numbers:

88946589, 89038654, 15935605, 25948611, 15935621

Warranty

Gabriel provides the following warranties for covered products to the original purchaser against defects in materials and workmanship when used under normal operating conditions for the applicable time periods described below. This Limited Product Warranty is not transferable to subsequent purchasers or owners of the product.

Limited Lifetime Warranty
Gabriel warrants each new Ultra® Cartridge, Ultra® Spring Seat, Ultra® Strut, ReadyMount® Strut, Ultra® LT Shock Absorber, Ultra® Shock Absorber, and MaxControl® Monotube Shock Absorbers to the original purchaser against defects in materials and workmanship when used under normal operating conditions on a private vehicle for as long as such purchaser owns the vehicle on which it was originally installed. Shocks used with suspension lift kits are specifically excluded from this warranty.

60-Month/60,000-Mile Warranty
Gabriel warrants each new Proguard® Shock Absorber to the original purchaser against defects in materials and workmanship when used under normal operating conditions on a private vehicle for 60 months or 60,000 miles from the date of purchase, whichever comes first.

36-Month/36,000-Mile Warranty
Gabriel warrants each new Guardian™ and Classic® Shock Absorber to the original purchaser against defects in materials and workmanship when used under normal operating conditions on a private vehicle for 36 months or 36,000 miles from the date of purchase, whichever comes first. Shocks used with suspension lift kits are specifically excluded from this warranty.

12-Month Warranty
Gabriel warrants each new Suspension Mount & Cushion to the original purchaser against defects in materials and workmanship when used under normal operating conditions on a private vehicle for 12 months from the date of purchase.

24-Month/24,000-Mile Warranty
Gabriel warrants each new Steering Damper, Steering Stabilizer & Bracket, Front & Rear Spring Assist, and HiJacker® shock absorber to the original purchaser against defects in materials and workmanship when used under normal operating conditions on a private vehicle for 24 months or 24,000 miles from the date of purchase, whichever comes first. Shocks used with suspension lift kits are specifically excluded from this warranty.

For Gabriel® HiJackers®: This warranty is valid only for Gabriel HiJackers® installed in accordance with the installation instructions packaged with each Gabriel HiJackers® product. Gabriel HiJackers® systems should not be utilized on any vehicle having modifications that would not provide normal operating clearances (including but not limited to clearance between tire and fender or frame) when the Gabriel HiJackers® are completely deflated. Gabriel is not liable for any damage resulting from the use of Gabriel HiJackers® at the fully extended position is specifically excluded from this warranty.

FOR COMMERCIAL VEHICLES

24-Month/200,000-Mile Warranty
Gabriel warrants each new GasSLX® Shock Absorber to the original purchaser against defects in materials and workmanship when used under normal operating conditions for 24 months from the date of purchase or for 200,000 miles whichever occurs first.

12-Month/100,000-Mile Warranty
Gabriel warrants each new FleetLine® Shock Absorber to the original purchaser against defects in materials and workmanship when used under normal operating conditions for 12 months from the date of purchase or 100,000 miles whichever comes first.

24-Month/24,000-Mile Warranty
Gabriel warrants each new LTV Commercial Series Shock Absorber to the original purchaser against defects in materials and workmanship when used under normal operating conditions for 24 months or 24,000 miles from the date of purchase.

WHAT THIS LIMITED PRODUCT WARRANTY DOES NOT COVER
In addition to any other specific product exclusions described in this Limited Product Warranty, Gabriel shall not be liable for and the provisions of this Limited Product Warranty shall not apply to any Gabriel product which has been:

installed on a vehicle for which it was not cataloged
installed on any private vehicle registered or utilized for commercial, racing and / or competitive purposes
installed on any commercial vehicle registered or utilized for racing and / or competitive purposes
used for any purpose for which it was not designed or intended or used outside normal operating conditions
altered, modified or subjected to misuse, negligence, or accident or damage
exposed to excess moisture or fire
improperly installed, repaired, or maintained
