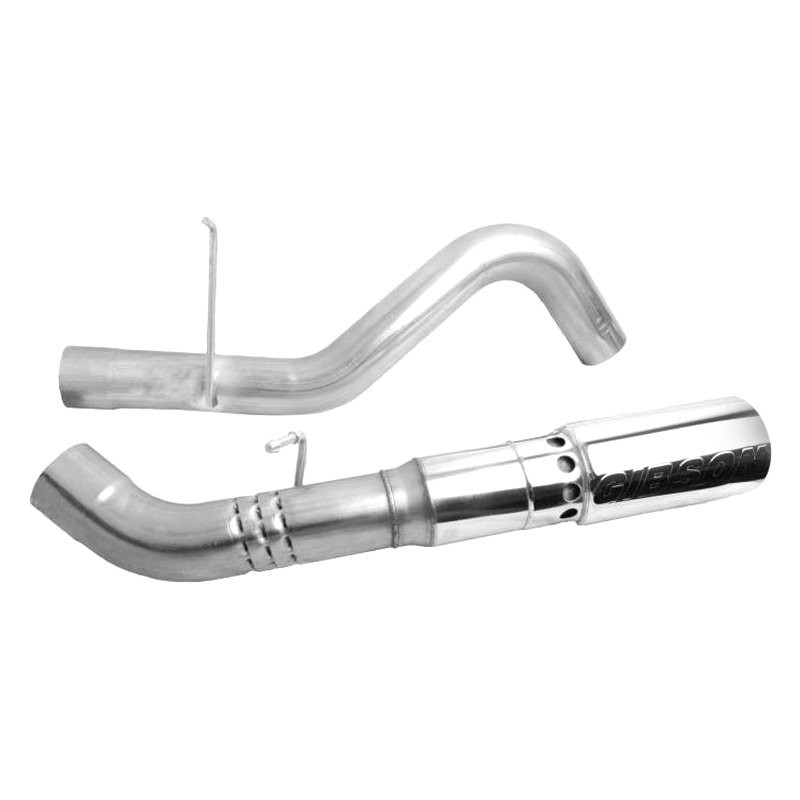

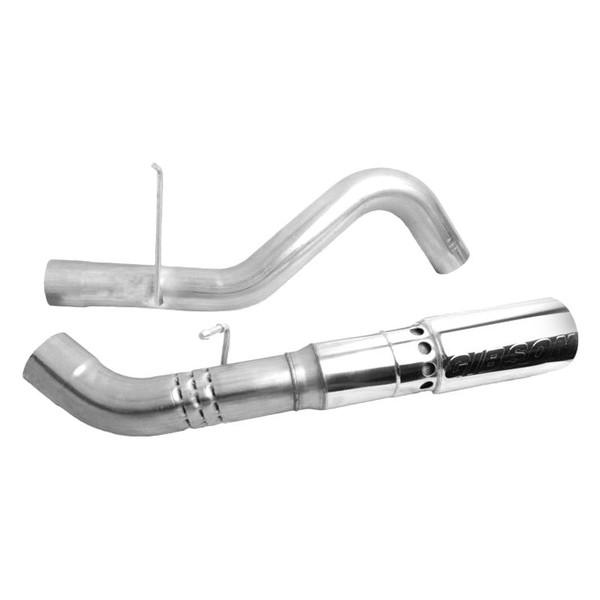

Gibson® 616610 - Swept Side™ Stainless Steel DPF-Back Exhaust System with Single Side Exit

There are many performance exhaust system manufacturers that make extravagant power claims, with a lot of talk about increased flow with huge exhaust tubing. But their systems usually make the most power at 5000-6000 rpm, an rpm range seldom used on the street, even by performance vehicles. And those sewer pipe sized tubes actually reduce torque at lower rpm, where you need it the most.

The Gibson Swept Side Cat-Back Exhaust System is designed and built to make horsepower and torque for real world driving conditions. Dyno results show that this system makes maximum horsepower and torque at 1800-3000 rpm, where you can feel it during every day driving and where you need it when doing things like towing a trailer. And along with that increased power and improved performance you get better fuel economy and a nice deep, aggressive exhaust tone.

Gibson designed this exhaust system at their fully equipped research and development center, using engine and chassis dynos, flow benches and audio testing equipment. To make useable real world power, Gibson equips this system with a Suspended Flow Technology (SFT) design muffler and mandrel bent tubing. The all-welded construction SFT design muffler is baffled and chambered for better volume efficiency with unrestricted flow. It's so efficient it has only 5% exhaust flow restriction, as opposed to the 34% or more restriction in a typical stock muffler, and the 10-20% restriction that exists with some aftermarket mufflers. And the increased flow and great sound is achieved without using any muffler packing, so there's no packing to blow out. Your exhaust flow and sound will remain consistent throughout the life of the muffler.

The other key to less restriction and improved flow is mandrel bent tubing. First Gibson selects the optimal tubing diameter for the best engine efficiency, not the most exhaust flow, then they use CNC mandrel tube benders to make every tubing bend. Mandrel bending ensures smooth bends and makes sure the pipe maintains its size and shape throughout the entire length. Tubes that aren't mandrel bent can lose a percentage of their diameter in sharp bends, creating restriction. CNC mandrel bending provides consistent bending so every system flows as designed.

Finally, all Gibson exhaust system components are joined with a “slip fit”, where an exhaust system component fits into the larger opening of the next downstream component. This method reduces the turbulence that is common with ‘ball-and-socket” or “flange-and-gasket” joints, which can cause power-robbing backpressure.

The Gibson Swept Side Cat-Back Exhaust System is available in your choice of stainless steel or aluminized steel. Each comes with a highly polished T304 stainless steel clampless exhaust tip. The system comes with everything required for installation, including zinc plated factory style hangers and clamps, and detailed instructions. Aluminized systems are warranted against defects in materials and workmanship, but not rust through, for as long as the original purchaser owns the vehicle on which the system is installed. Stainless steel systems are warranted against defects in materials and workmanship, including rust through, for as long as the original purchaser owns the vehicle on which the system is installed.

Gibson exhaust systems are manufactured in the USA.
