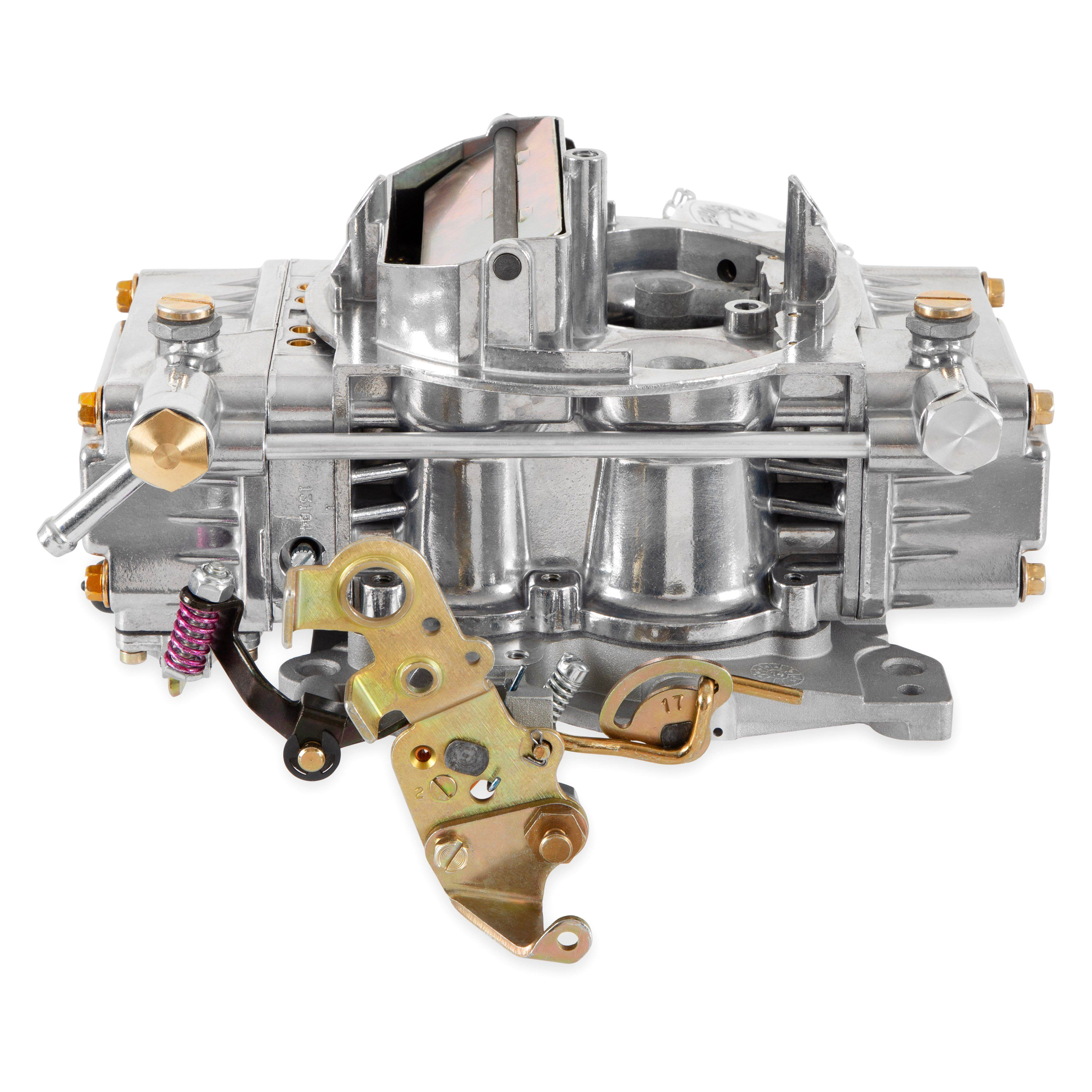

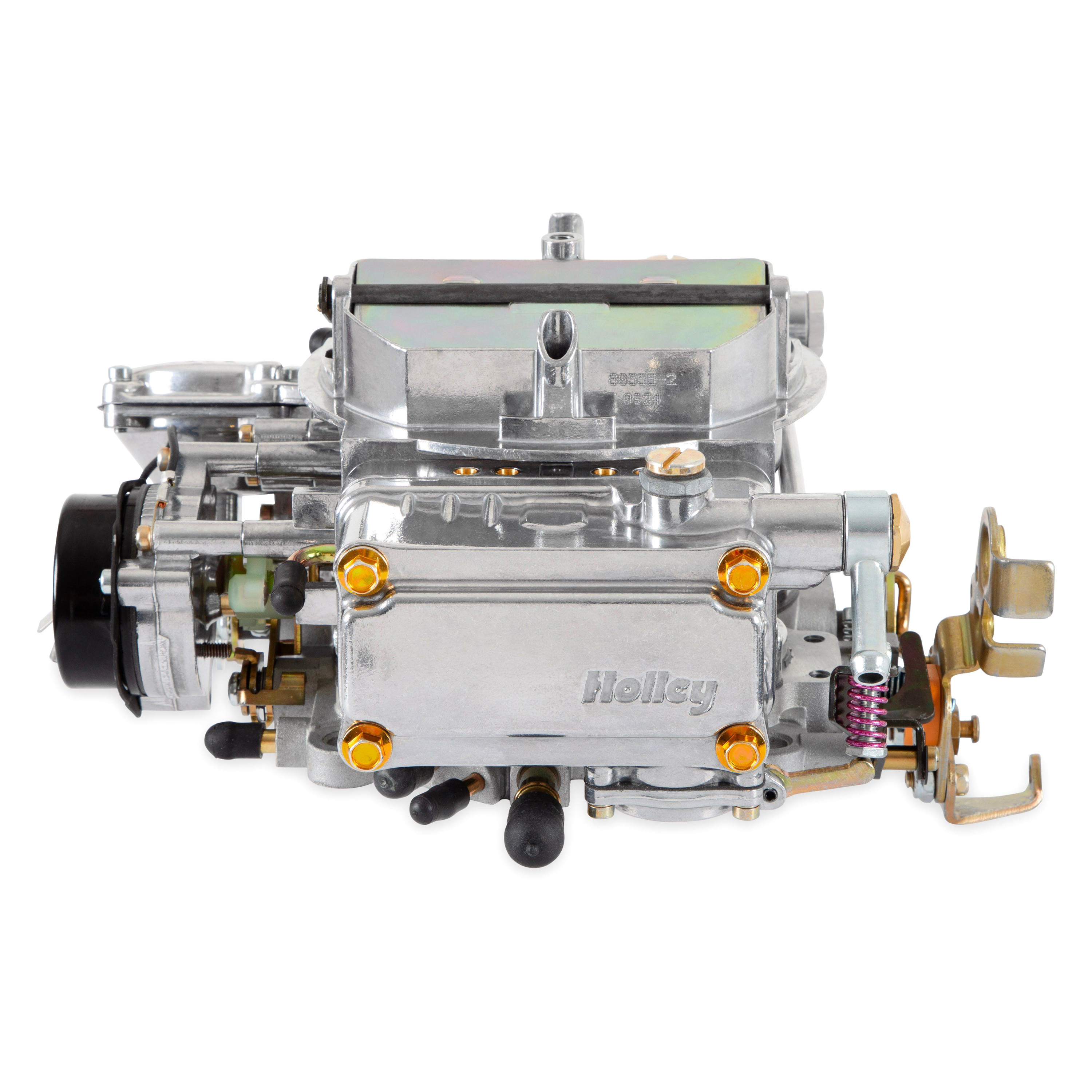

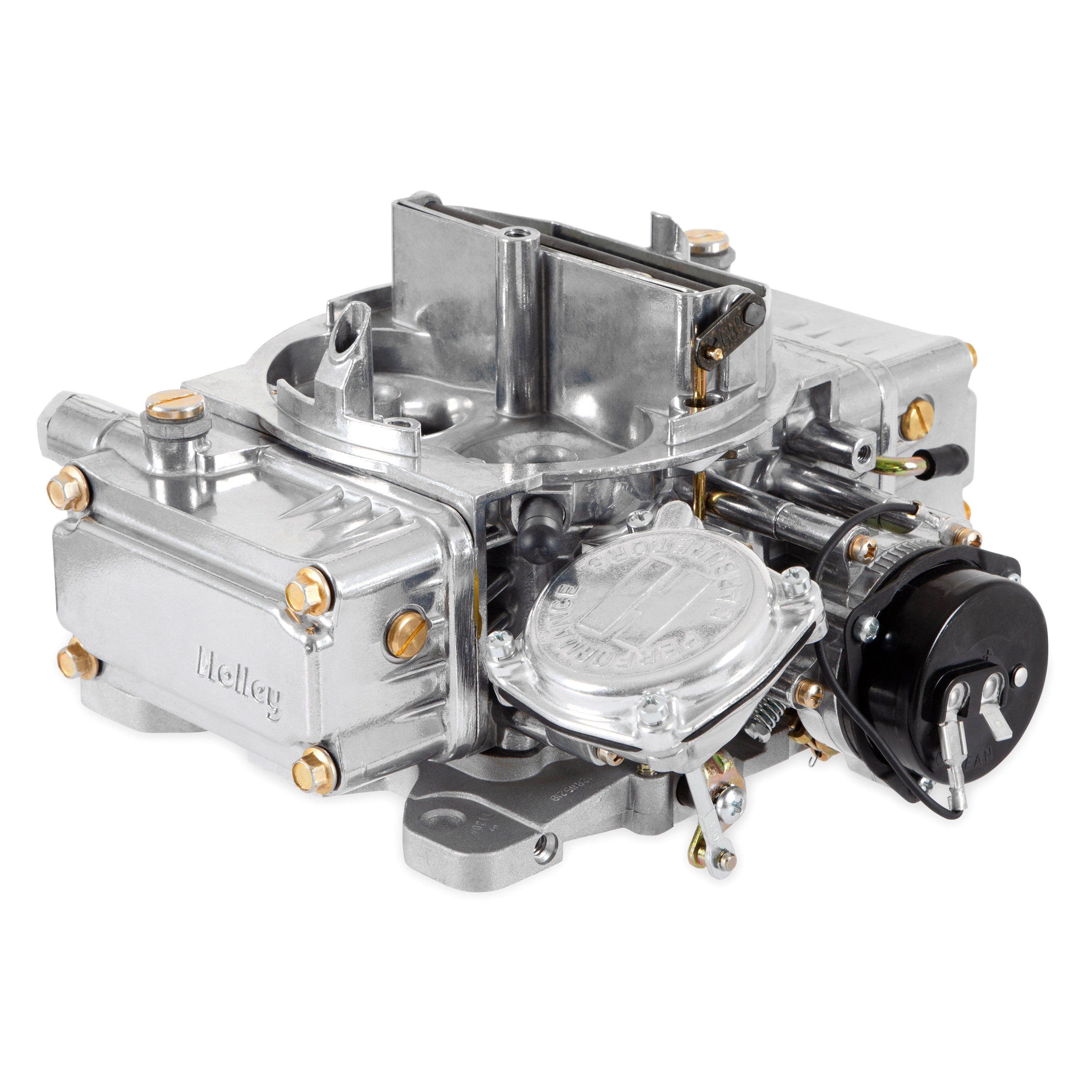

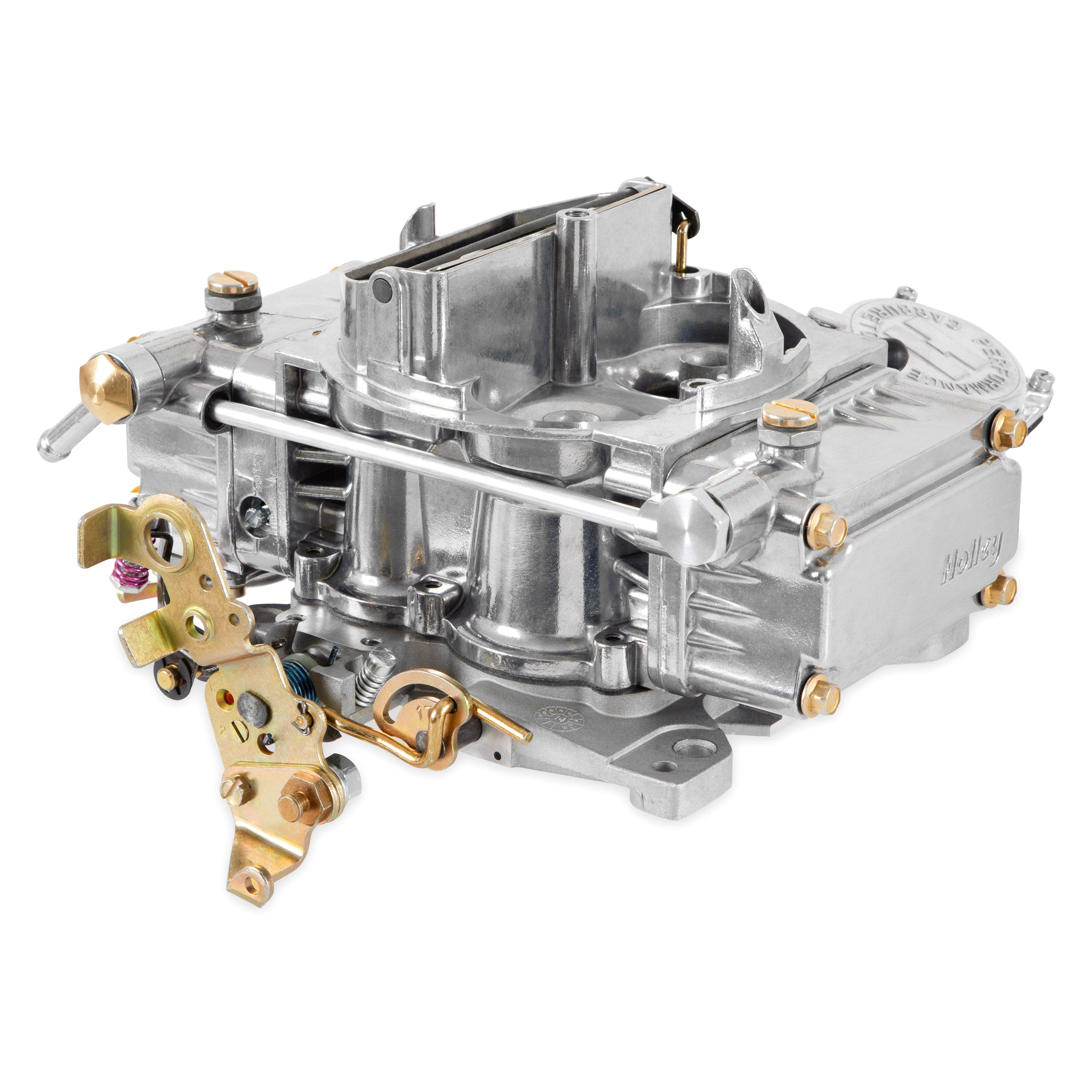

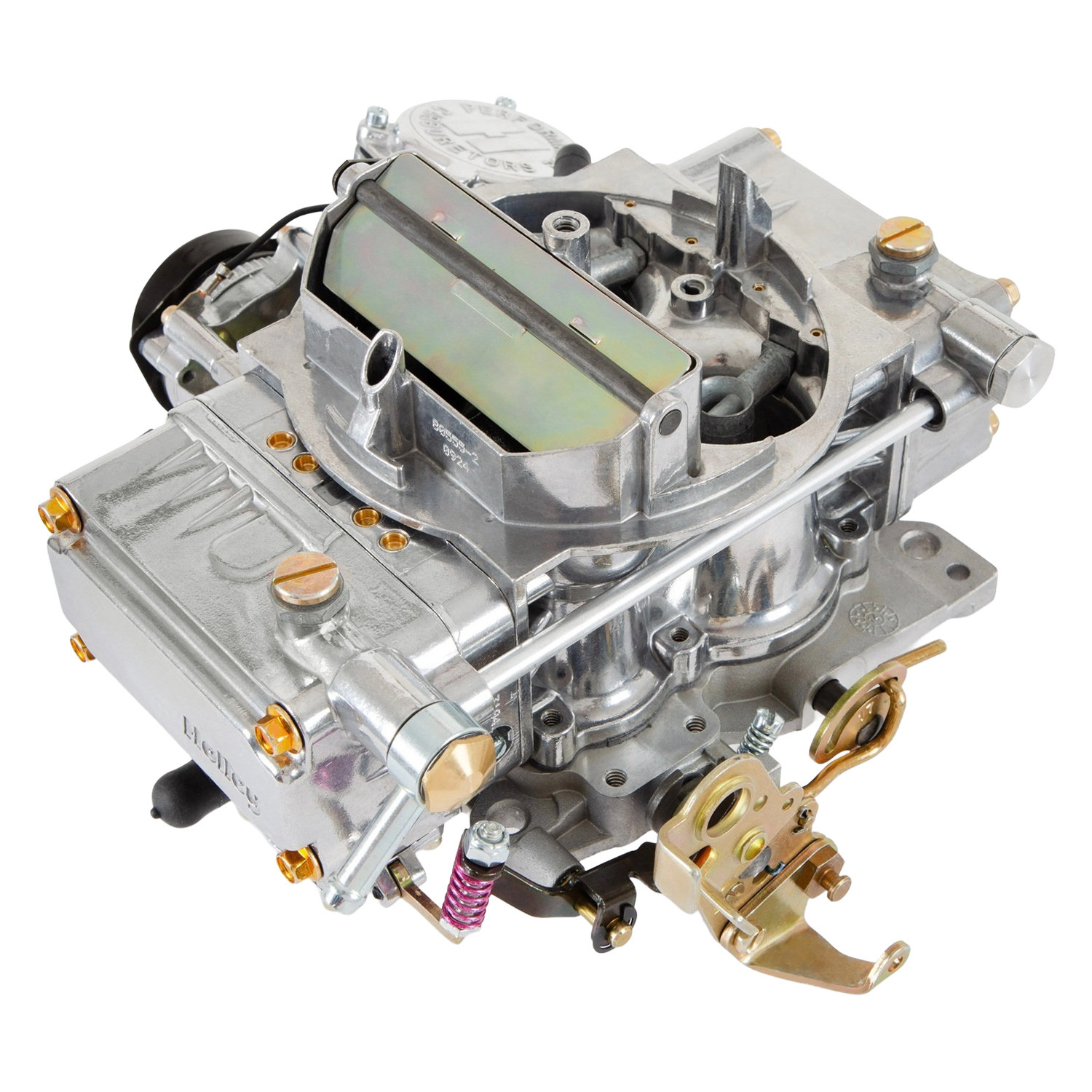

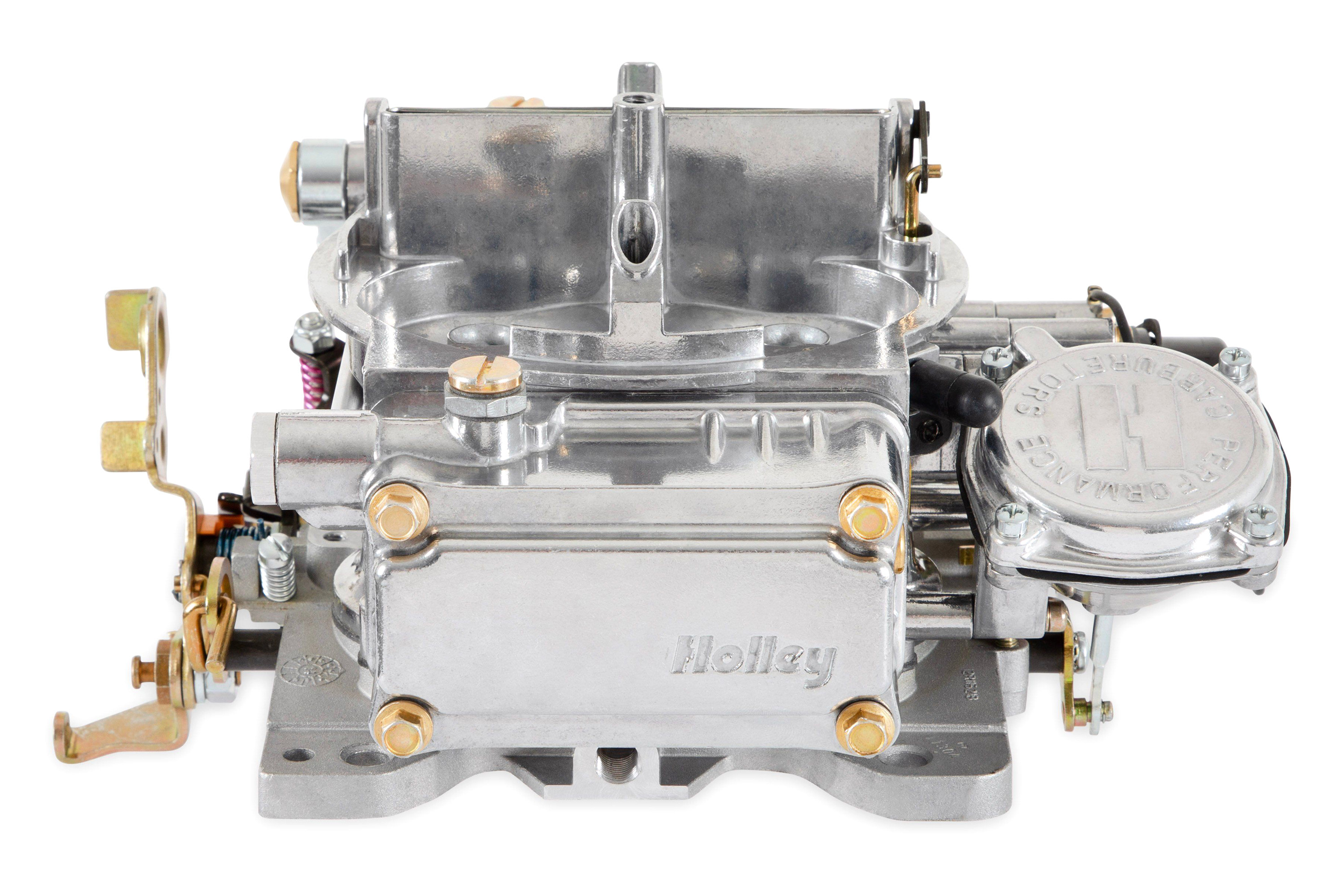

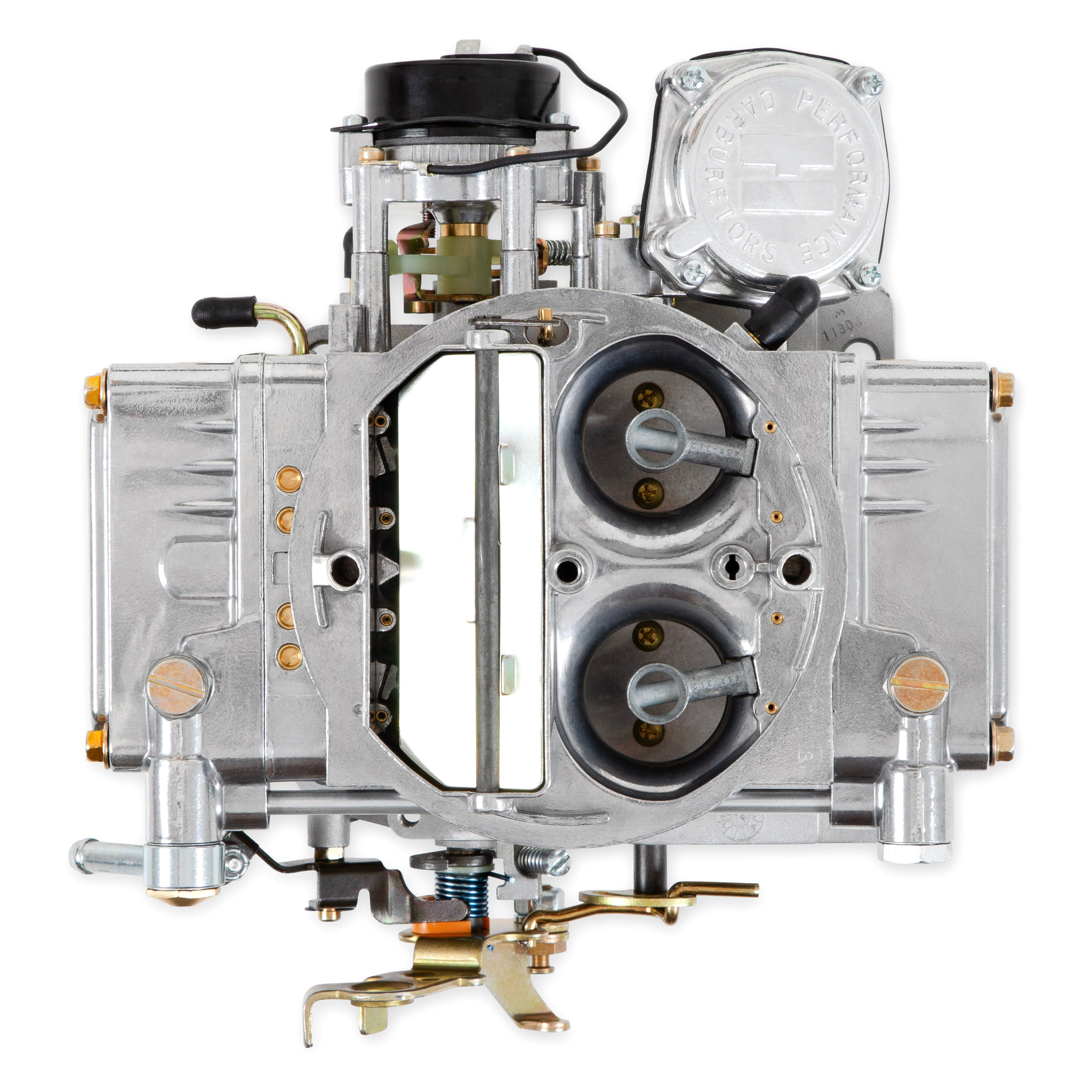

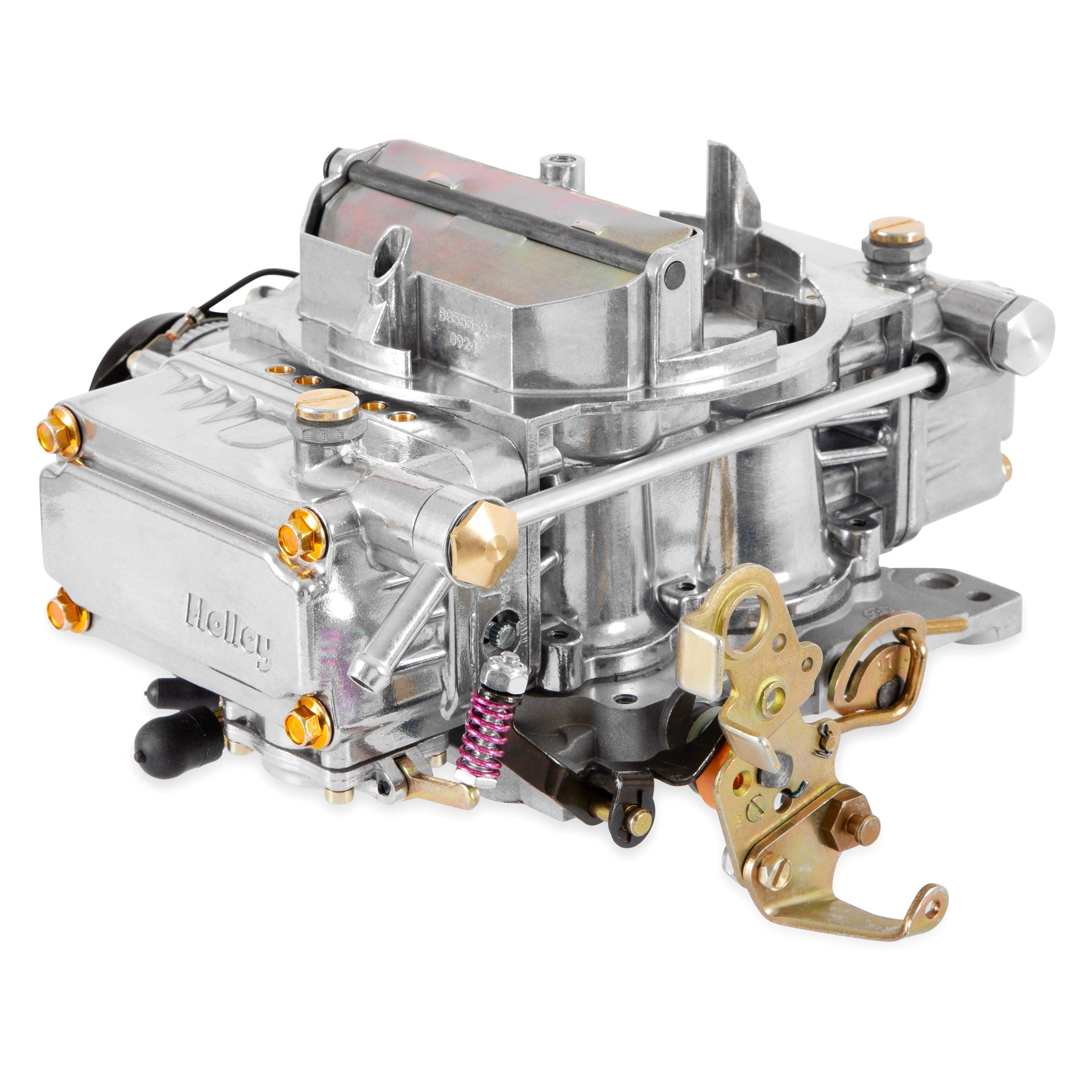

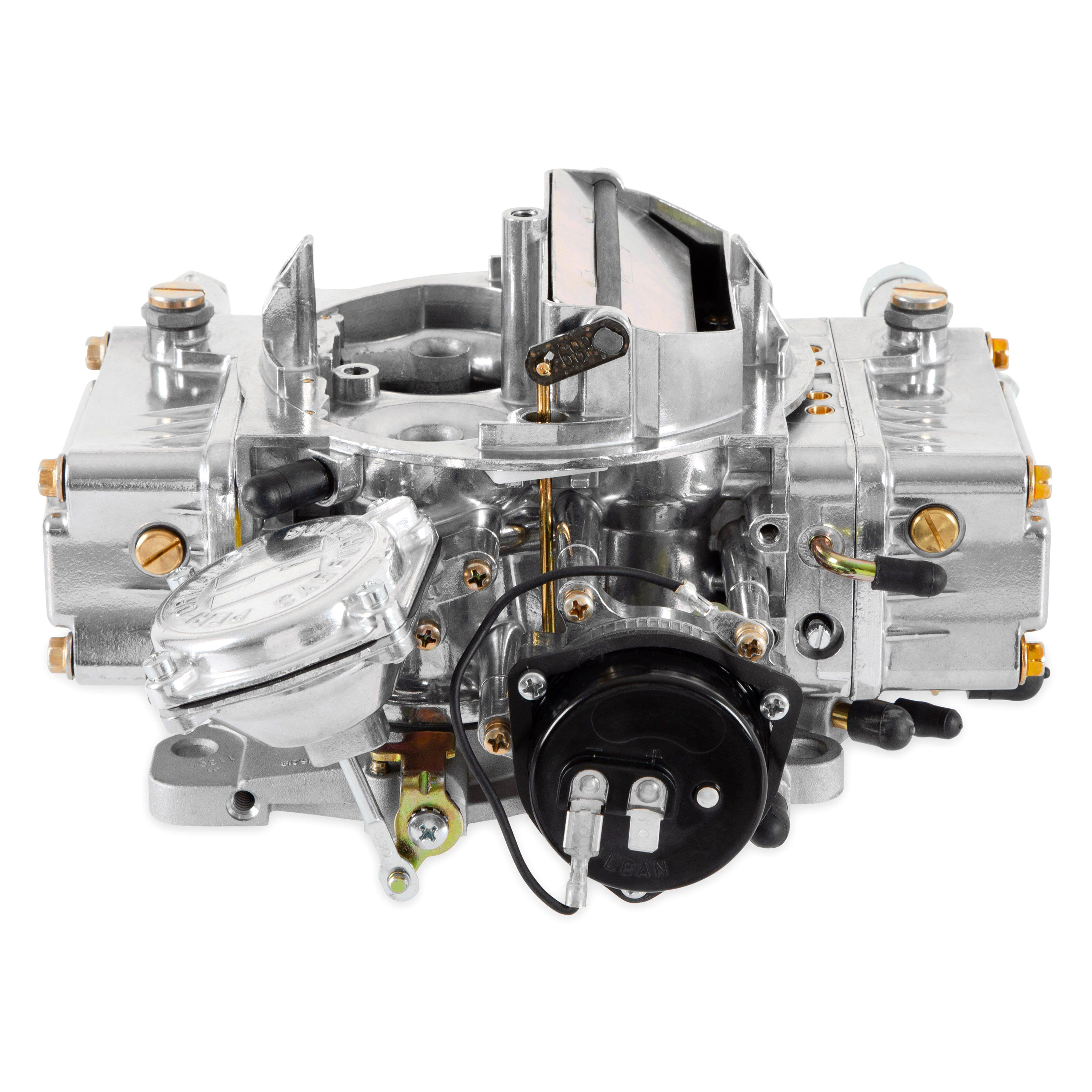

Holley® 0-80555S - 4175 Aluminum Spread-Bore Carburetor

Name: Holley® 0-80555S - 4175 Aluminum Spread-Bore Carburetor
Brand: Holley
SKU: mpn5242087331
Price: 904.35 USD
Availability: InStock
Rating: 5 (2 reviews)

2 reviews|Item # mpn5242087331

Vehicle Specific

Notes:

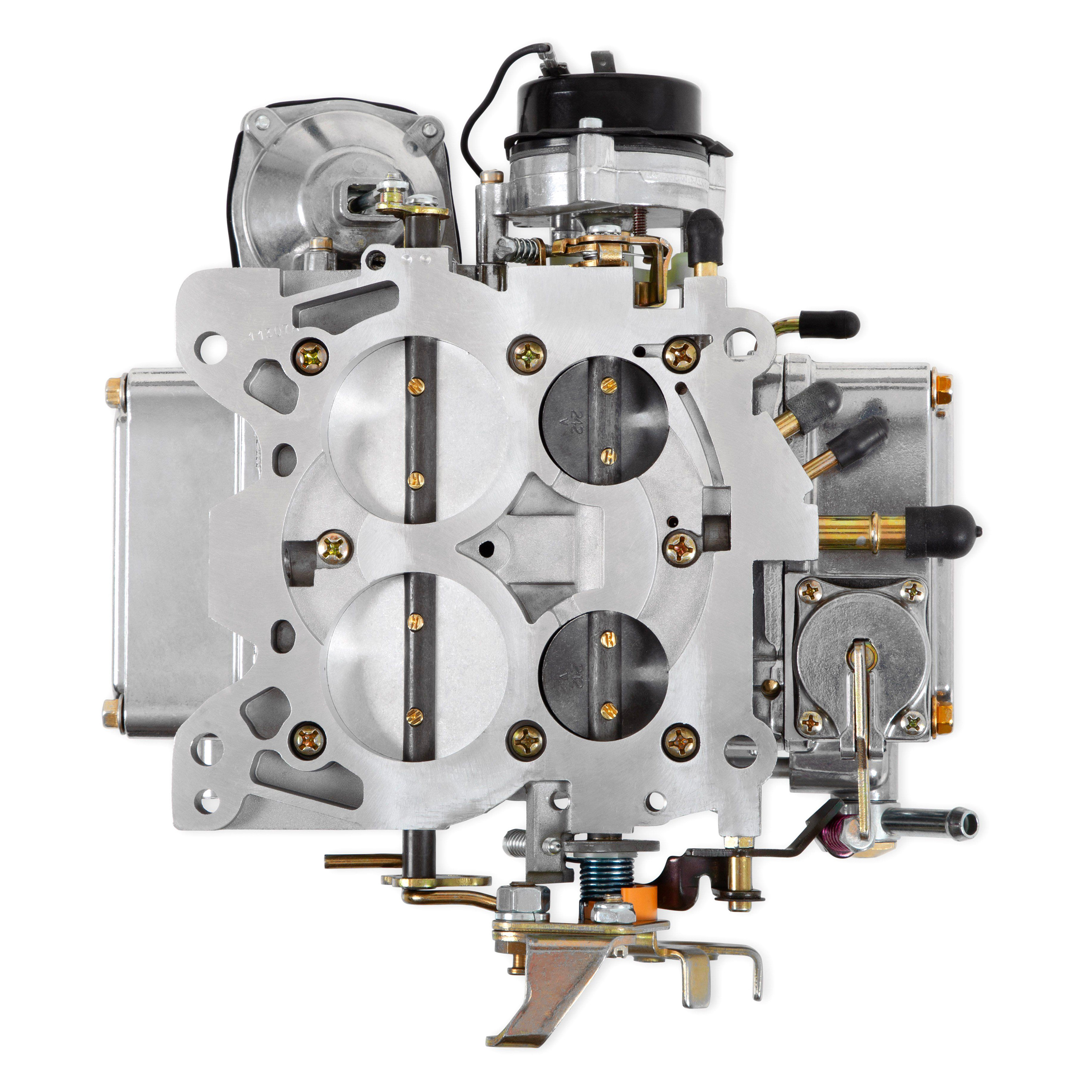

This model of carburetor has the spread-bore flange bolt pattern only, 4.250" wide X 5.62 long. It replaces GM Rochester Q-jet carburetors.

Authorized Dealer

$904.35

In Stock (95) - Ships in 24 to 48 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Chevy

Dodge

Ford

GMC

International

Jeep

Specifications

Air Cleaner Flange Diameter	5-1/8"
Air Cleaner Stud Size	1/4-20 UNC
Barrel Quantity	4
Barrels	4
Billet Color	None
Body Color	Polished
Body Finish	Polished
Body Material	Aluminum
Booster Design	Straight
Booster	Straight
CFM	650
Carburetor Material	Zinc
Carburetor Use	Street
Choke Type	Electric
Circuit	2
Condition	New
Cubic Feet Per Minute Rating	650
Emission Code	2
Finish	Polished
Flange Type	Spread Bore
Fuel Inlet	Single
Fuel	Gasoline
Gasket Or Seal Included	Yes
Grade Type	Performance
Linkage Attached	Yes
Marine Approved	No
Marine Use	No
Material	Aluminum
Model	4175
Mounting Hole Quantity	4
Primary Inner Air Bleed Sizes Included	63
Primary Jet Size	62
Primary Outer Air Bleed Sizes Included	97
Primary Power Valve (Hg)	6.5
Primary Power Valve	6.5
Primary Pump Nozzle Size	40
Primary Throttle Bore	1.375 IN
Secondaries	Vacuum
Secondary Barrel Type	Vacuum
Secondary Inner Air Bleed Sizes Included	63
Secondary Jet Size	81
Secondary Outer Air Bleed Sizes Included	85
Secondary Power Valve	None
Secondary Throttle Bore	2.000 IN
Secondary Type	Vacuum
Spacer Included	No
Street Legal	Yes
Supercharged Application	No
Warranty	Manufacturer's Limited 90 Day Warranty

Features

Top-grade fuel system upgrade that will take your driving to the next level
Designed to help you maximize your vehicle’s fuel system efficiency
Will help you get unbridled power and a huge jump in performance
Made from premium materials to ensure superior quality and durability
Manufactured to be tough as nails to withstand high-heat and high-pressure conditions
Engineered to provide consistent, reliable operation and long-lasting service

Product Details

4175 Aluminum Spread-Bore Carburetor (0-80555S) by Holley®. Do you like the tunability of Holley's modular carbs, but need to simply replace a Q-jet? The spread bore bolt pattern of the 0-80555S lets you do just that. It has vacuum secondaries and electric choke, so it is useable on a wide variety of vehicles. Don't trust your performance to just anyone, Holley is the only modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the 60's. ***The 0-80555S is a Model 4175 designed to fit GM spread bore passenger car and light truck applications. It is not compatible with Ford or Chrysler Spread bore applications. The 0-80555S is not recommended for any RV applications. The 0-80555S is not designed to pass any emission laws. The 0-80555S is to be used only for Uncontrolled (Non-Emmisions Controlled) Vehicles or competition/off road vehicles. A carburetor spacer could be required to clear certain components on stock applications such as the Mr. Gasket 3406. Holley Performance Products has been the undisputed leader in fuel systems for over 100 years. Holley's products include carburetors, fuel pumps, fuel injection, intake manifolds, and much more. From start to finish, Holley has the parts to make your dream a reality.

Holley® - Warranty Holley® - Catalog Made In USA Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

0-80555S

UPC:

090127425114

Alternate MPN:

080555S

Warranty

Holley warrants its products to be free from defects in materials or workmanship for a period of 90 days. The warranty period begins on the date the product is delivered.

Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.

Holley limits the warranty on Metallic Ceramic Coatings to be free from defects in material and workmanship for a period of 90 days from the date of purchase. This limited coating warranty does not apply to any products which have been subjected to adverse conditions, such as high heat encountered during engine break-in or if used during any racing activity.

Holley Performance Products warrants its new marine products to be free from defects in material and workmanship for a period of 90 days from date of purchase. For the safety and protection of persons and property, all United States Coast Guard and other marine product safety installation and use requirements and recommendations must be carefully studied and applied. The above recommendations include, but are not limited to the recommendation that the installation, adjustment, and repair of Holley carburetors or other marine products must be performed only by a trained mechanic having adequate marine fuel system experience, and in strict compliance with the applicable Holley installation, maintenance, and other instructions. Failure to follow such requirements and recommendations will void this Holley Marine Limited Warranty, and Holley disclaims any responsibility and/or liability for accidents resulting from such failure.

Holley® Performance Products warrants its Holley® Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Street Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Holley® Performance Products warrants its Holley® Marine Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Marine Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Reviews

(2)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-2 of 2 Reviews

Sort by

5 of 5

Great Carburetor For The Price.

The carburetor works great.

Holley® 0-83770 - Street Avenger 4BBL Carburetor

Posted by Patrick (Chandler, OK) / September 03, 20171984 Chevy P-Series

5 of 5

Excellent

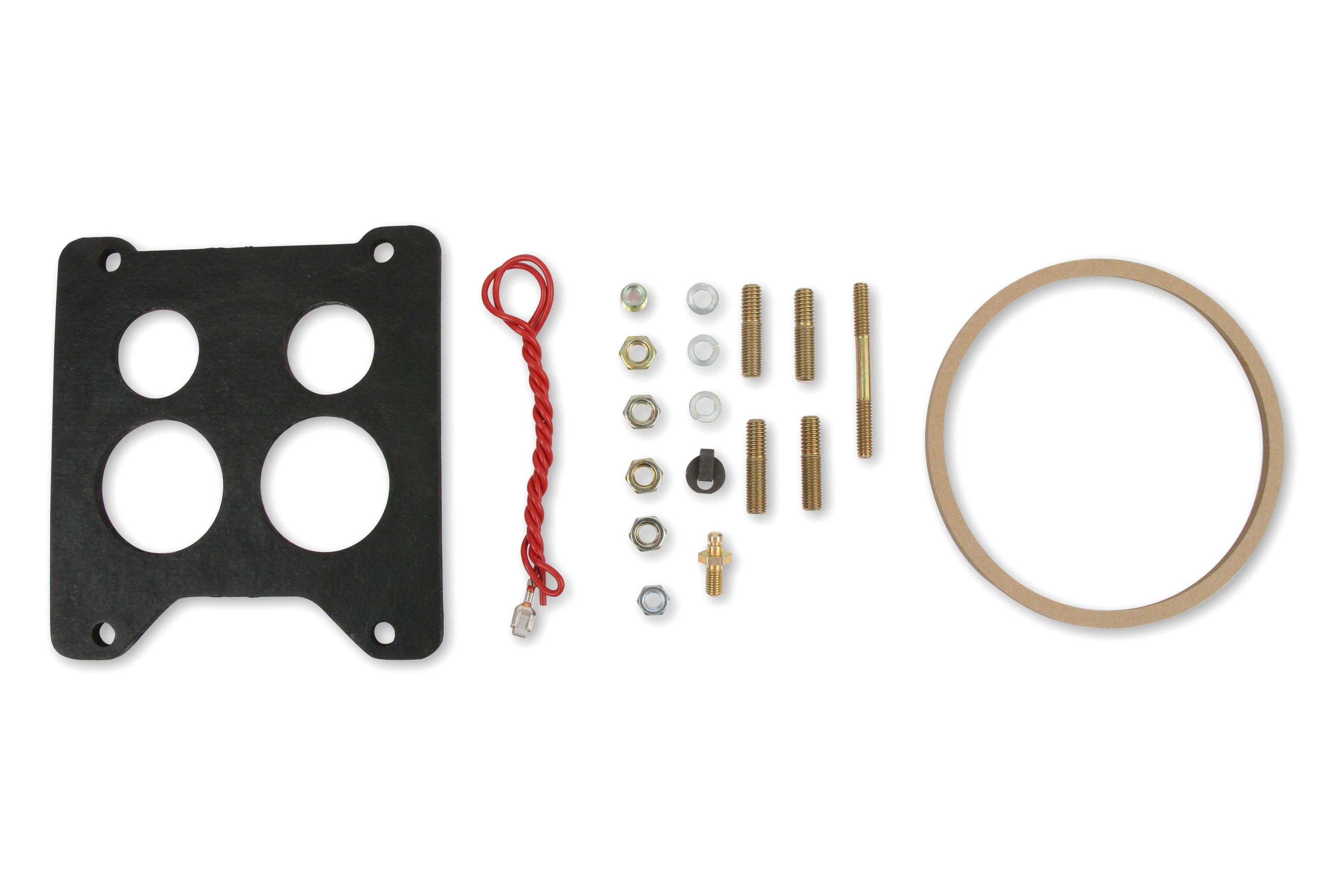

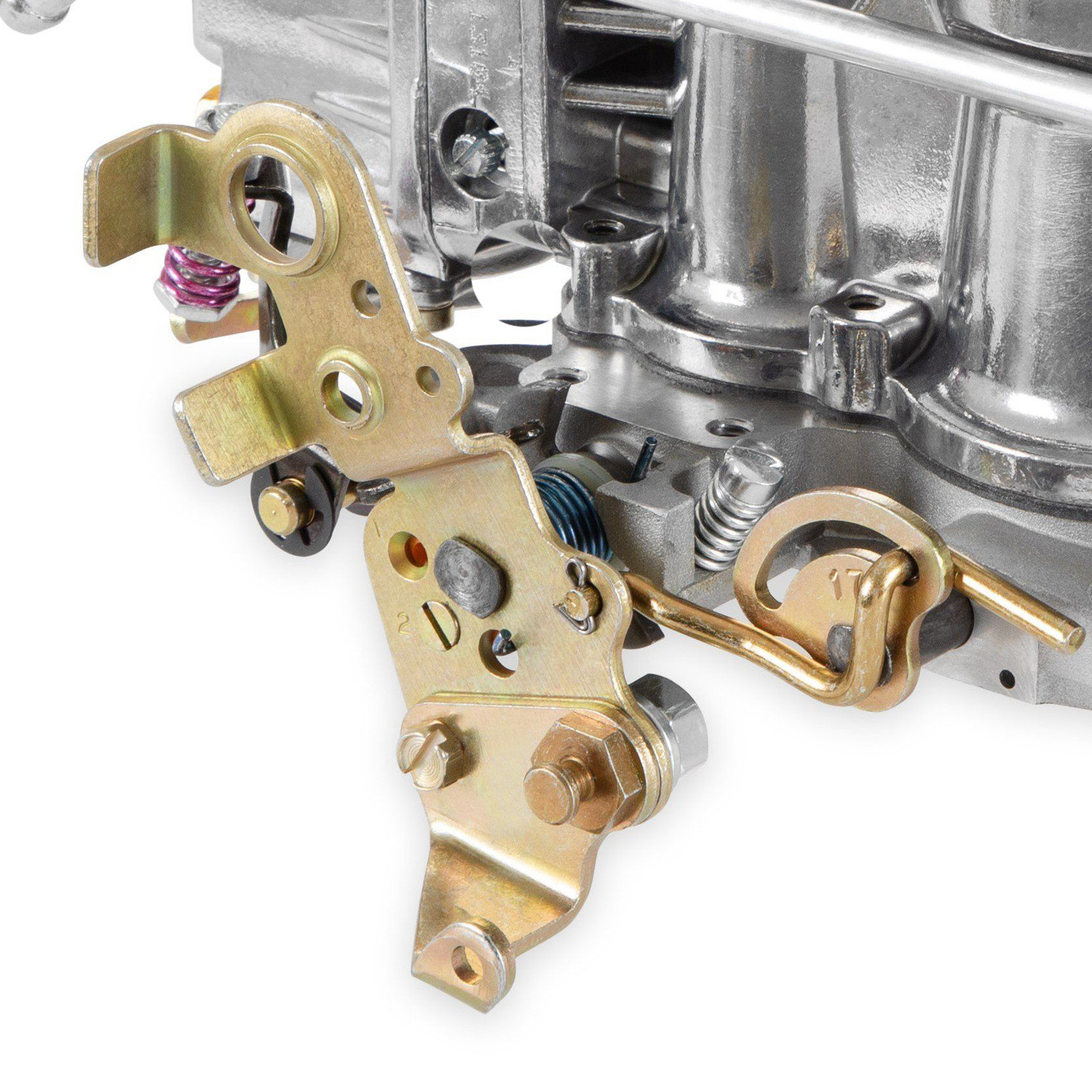

Excellent product. All I needed to do was adjust the idle just like the instructions said. It has the automatic kick down bracket built right in to the assembly. It came with mounting studs and several other linkage parts including a new gasket and breather gasket.

Posted by Maria Susana (Springfield, OH) / April 25, 20151967 Buick Skylark
