Holley® 12-324 - Fuel Pump Module System with Fuel Sending Unit

Name: Holley® 12-324 - Fuel Pump Module System with Fuel Sending Unit
Brand: Holley
SKU: mpn5233444584
Price: 587.95 USD
Availability: InStock
Rating: 4 (1 reviews)

1 review|Item # mpn5233444584

Vehicle Specific

Authorized Dealer

$587.95

In Stock (7) - Ships in 24 to 48 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Dodge

Specifications

AMP DRAW	22A

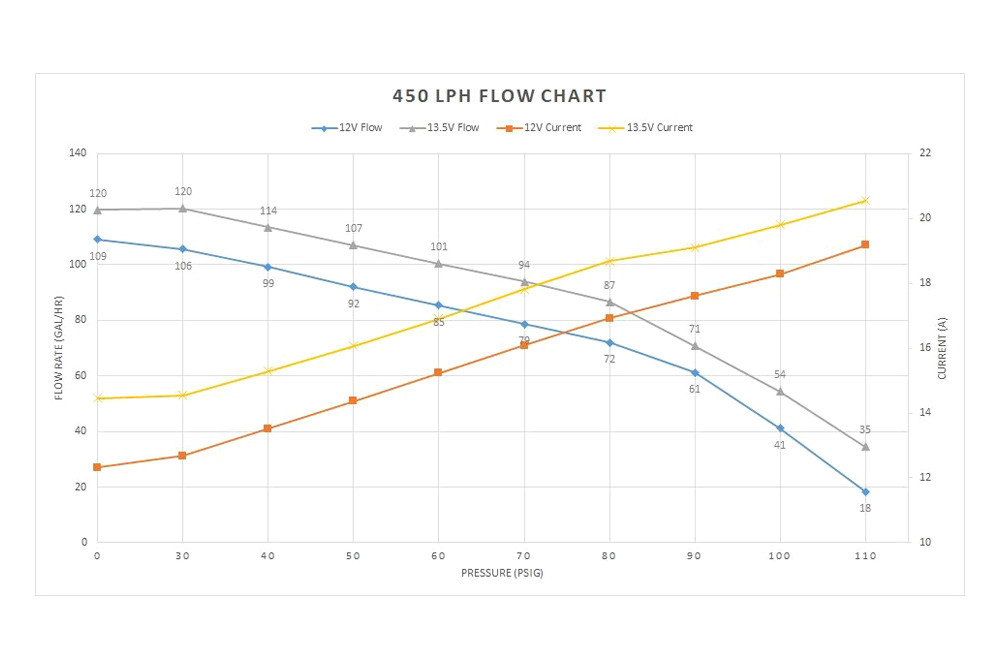

Average Flow Rating	450 LPH
Connector Color	Gray
Connector Quantity	1
Emission Code	5
Forced Induction HP - 60PSI	750
Free Flow GPH	139
Free Flow LPH	450
Fuel Filter Included	Yes
Fuel Sending Unit Included	Yes
Fuel Sending Unit Ohms	220-20 Ohms
Fuel System	EFI
Fuel Type	E85, Gasoline
Gasket Or Seal Included	Yes
Gasket Or Seal Material	Rubber
GPH - 60PSI	100
Height	Adjustable
Housing Material	Aluminum
In Tank or External	In Tank
Inlet Quantity	One
Inlet Type	8 AN ORB
Internal Or External Strainer	External
Lock Ring Included	No
Material	Billet Aluminum and Steel
Naturally Aspirated HP - 60PSI	1000
Outlet Quantity	1
Outlet Size	8 AN
Outlet Type	8 AN ORB
Pump Body Color	Silver
Pump Type	Electric
Regulator Included	No
Resistance Ohms Empty	220 Ohms
Resistance Ohms Full	20 Ohms
Returnless	Yes
Voltage	12 VDC
Wire Harness Included	Yes
Wire Quantity	4
Fuel Type	Gasoline/E85

Features

High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks
Billet Aluminum Flange, Clamp & Fuel Level Sender
Black Anodized Finish
Adjustable for Tank Depth
Provisions for EVAP (Evaporative Emission Control System) – See the Installation Notes
Inlets & Outlet Ports: -8 AN O-Ring Boss
New Fuel Level Sender Included
Optional Fill Vent Built Into Billet Aluminum Top – See the Installation Notes
Includes Hydramat® - 3” x 15”
Fits in Stock Factory Fuel Tanks
Ideal for Use In Gen III Hemi Engine Swaps

Product Details

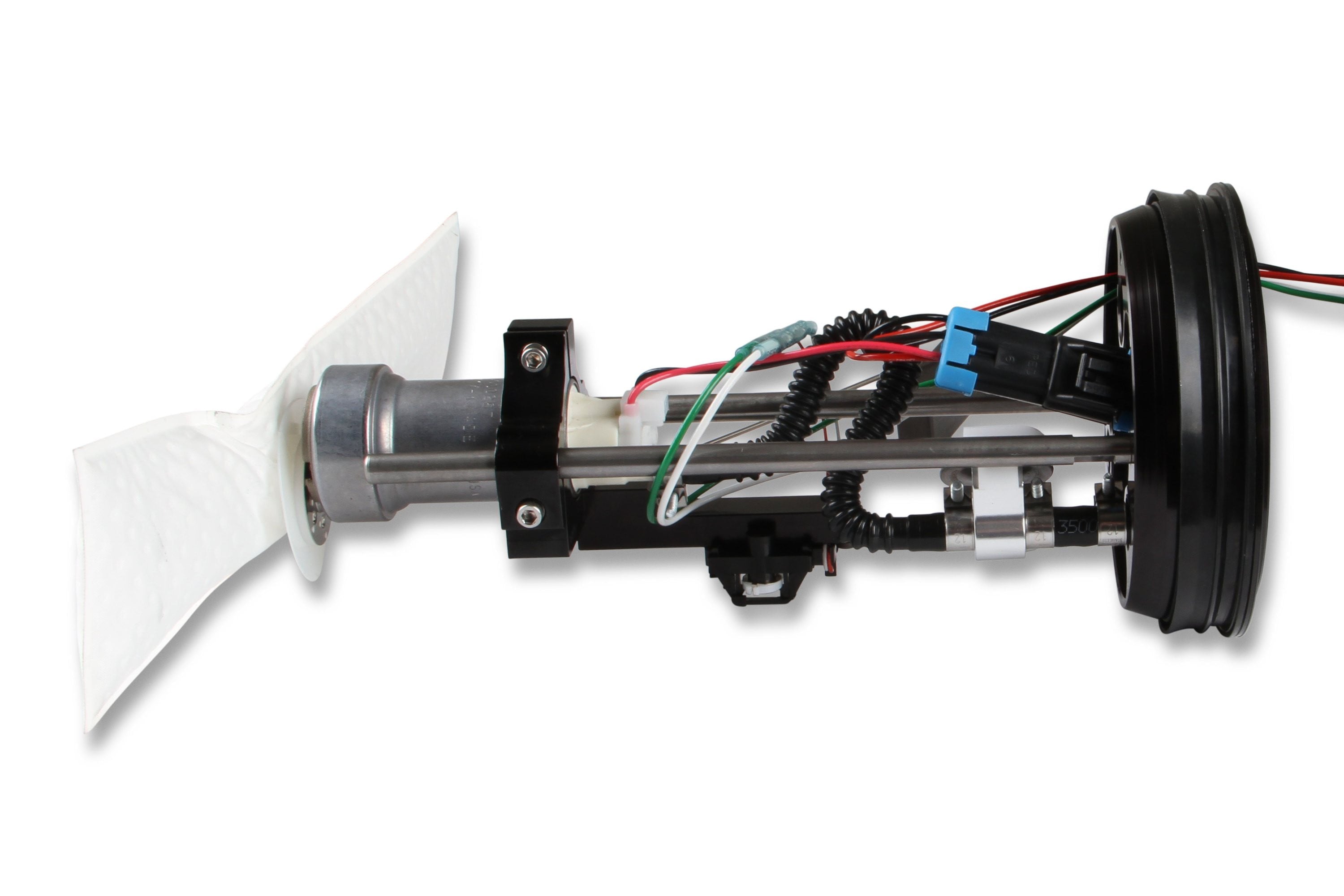

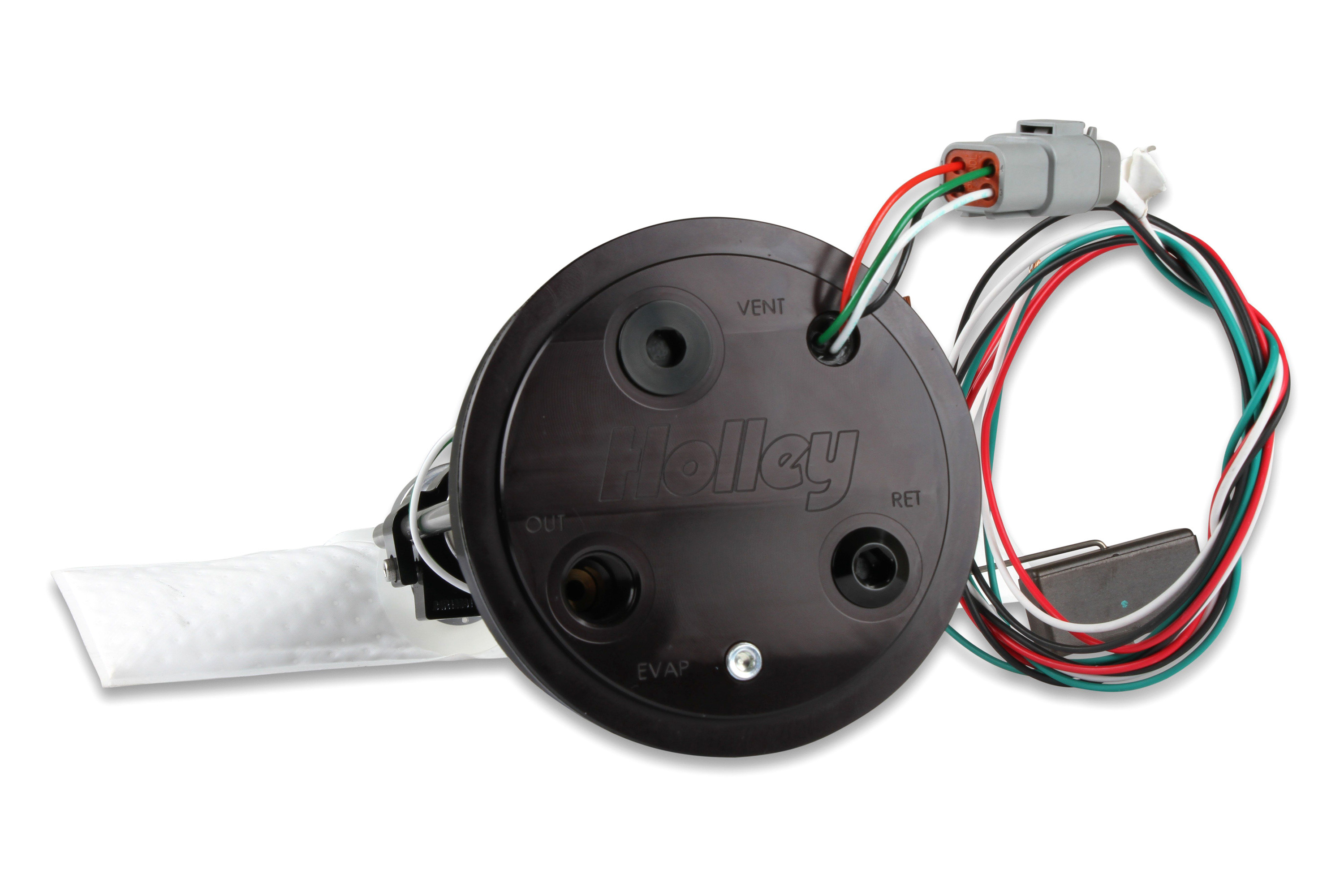

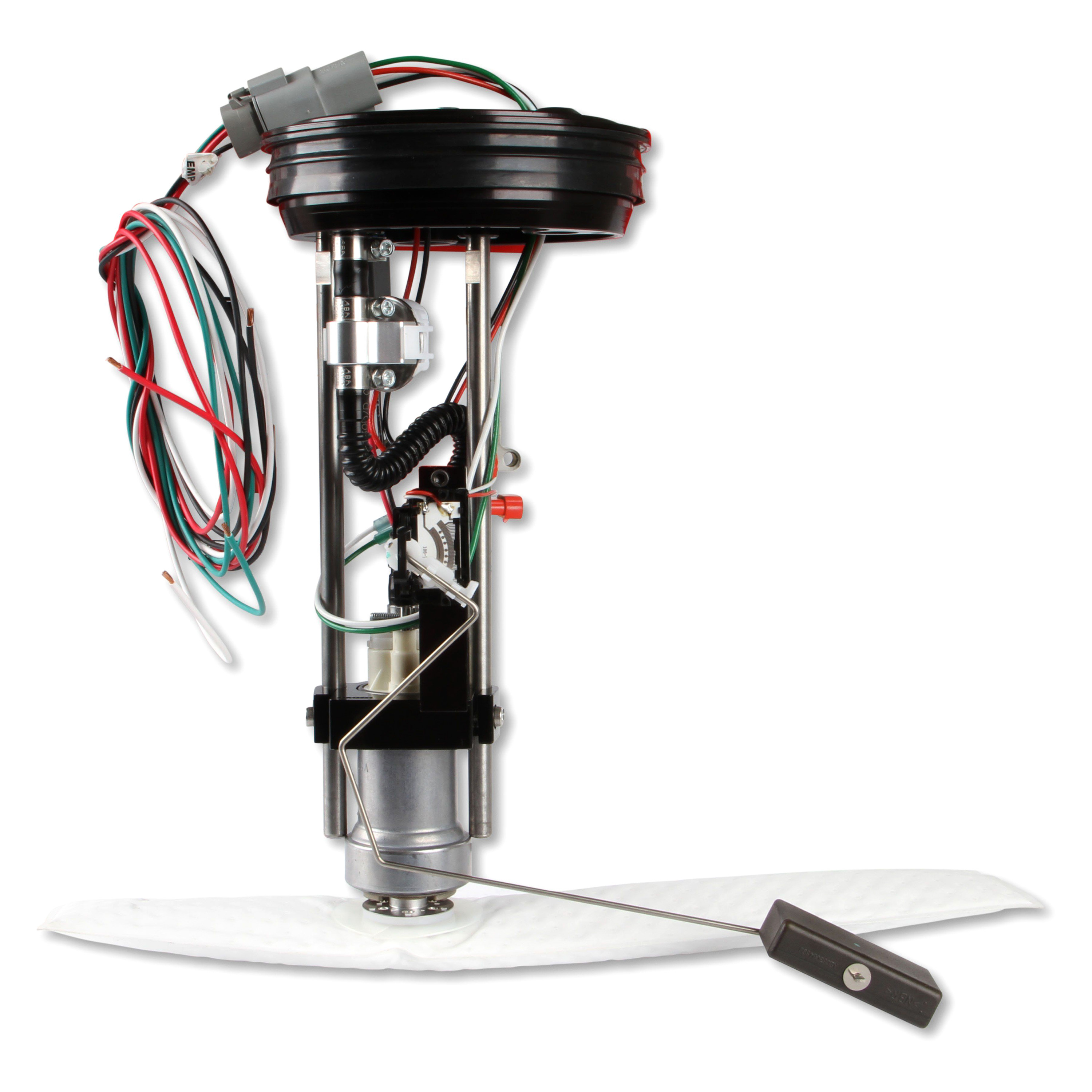

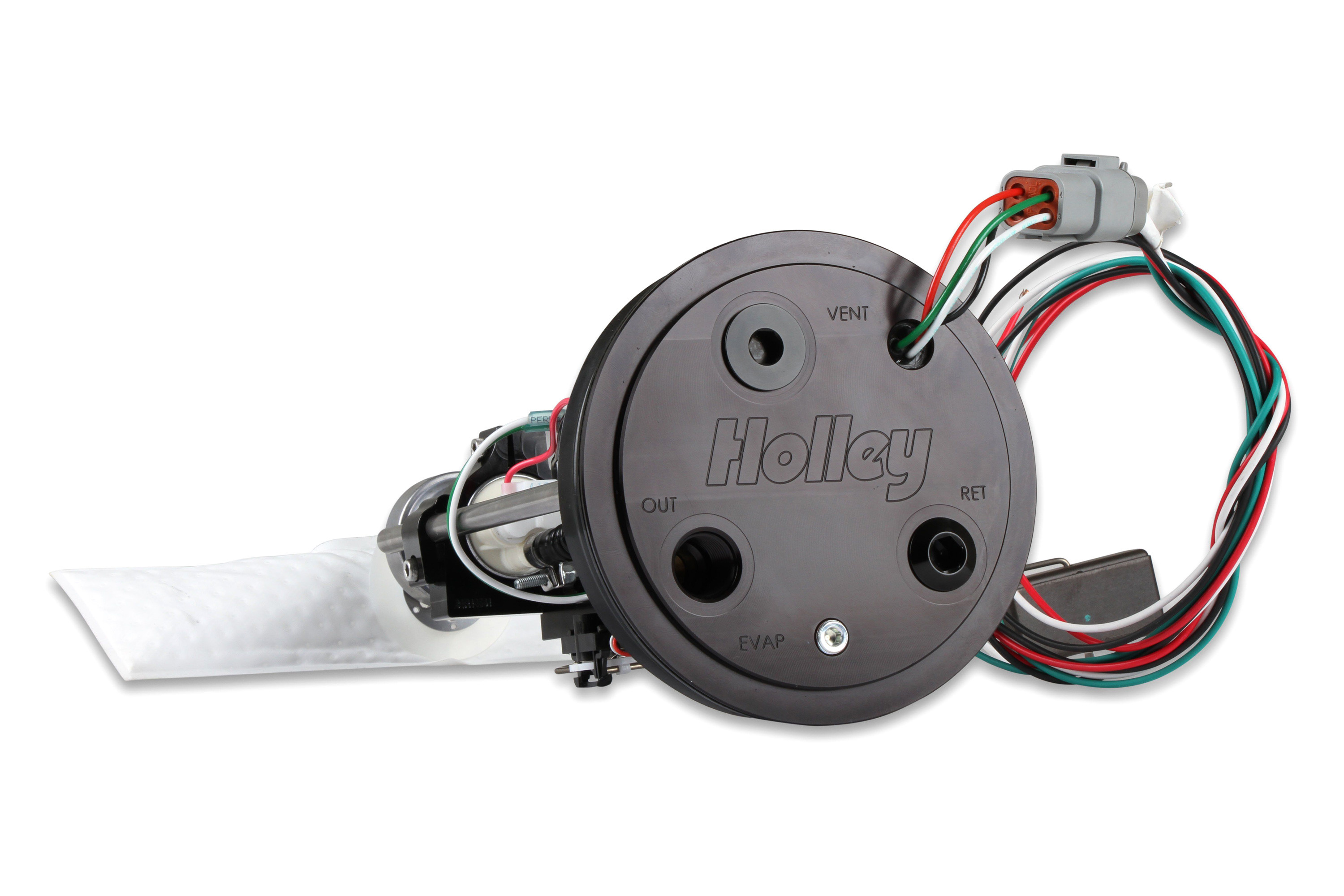

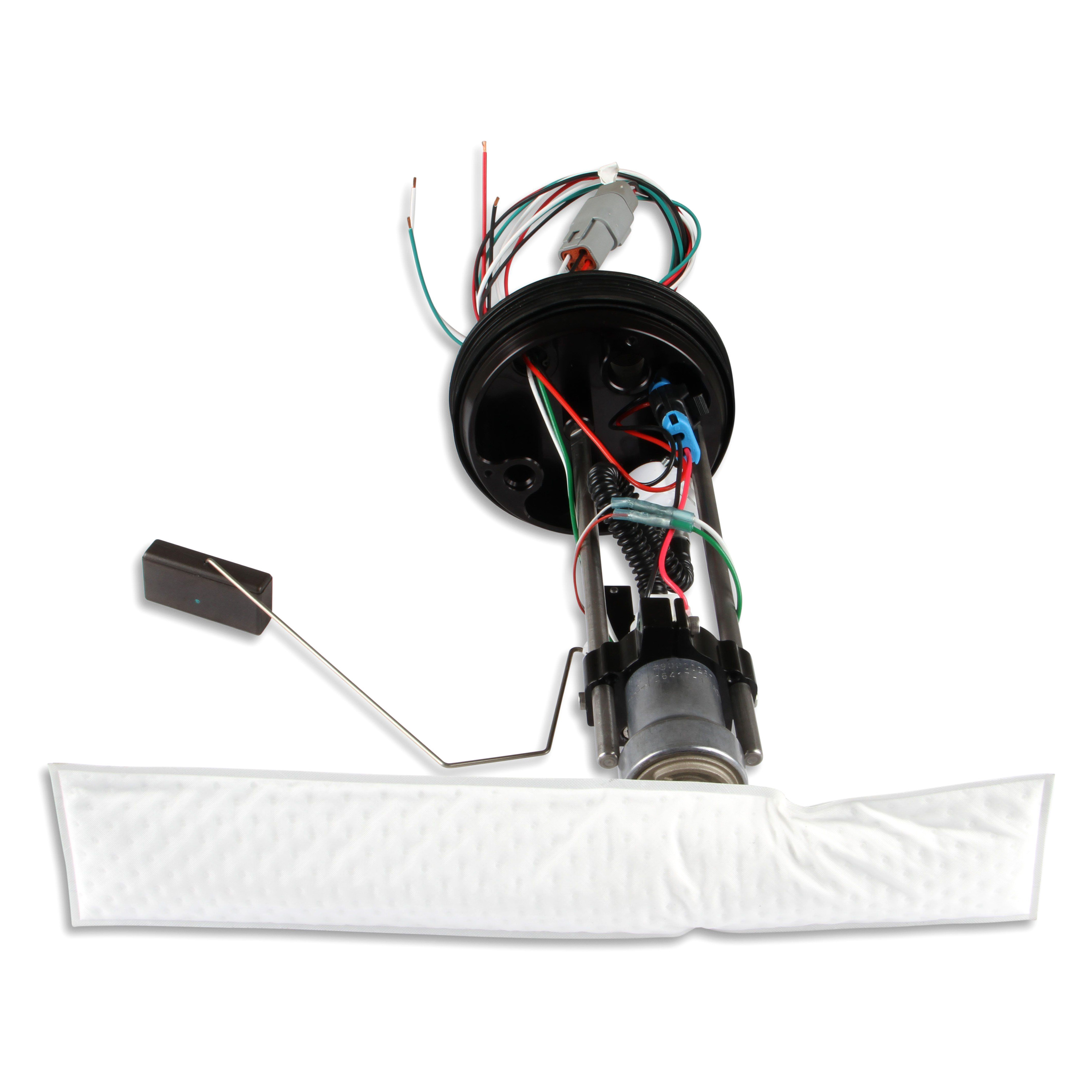

Fuel Pump Module System with Fuel Sending Unit (12-324) by Holley®. Update the fuel system in your Dodge truck with a high performance in-tank EFI fuel pump module. These fuel modules fit inside the factory tank & feature a billet aluminum flange, HydraMat®, fuel sending unit, and high performance pump. Choose from 255 or 450 LPH (liters per hour) fuel flow & return style or returnless design. The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat® is the solution!

Installation

Holley® - Fuel Pump Module System with Fuel Sending Unit Installation Instructions

Holley® - Fuel Pump Module System with Fuel Sending Unit Installation Instructions Holley® - Warranty Holley® - Catalogs Made In USA Holley Authorized Dealer FAQ Video About us

Brand:

Holley

Part Number:

12-324

UPC:

090127107331

Alternate MPN:

12324

Warranty

Holley warrants its products to be free from defects in materials or workmanship for a period of 90 days. The warranty period begins on the date the product is delivered.

Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.

Holley limits the warranty on Metallic Ceramic Coatings to be free from defects in material and workmanship for a period of 90 days from the date of purchase. This limited coating warranty does not apply to any products which have been subjected to adverse conditions, such as high heat encountered during engine break-in or if used during any racing activity.

Holley Performance Products warrants its new marine products to be free from defects in material and workmanship for a period of 90 days from date of purchase. For the safety and protection of persons and property, all United States Coast Guard and other marine product safety installation and use requirements and recommendations must be carefully studied and applied. The above recommendations include, but are not limited to the recommendation that the installation, adjustment, and repair of Holley carburetors or other marine products must be performed only by a trained mechanic having adequate marine fuel system experience, and in strict compliance with the applicable Holley installation, maintenance, and other instructions. Failure to follow such requirements and recommendations will void this Holley Marine Limited Warranty, and Holley disclaims any responsibility and/or liability for accidents resulting from such failure.

Holley® Performance Products warrants its Holley® Street Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Street Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.

Holley® Performance Products warrants its Holley® Marine Avenger™ Carburetor to be free from defects in material and workmanship for the life of the product on parts and one year on repair labor. After a period of one year, Holley® will charge standard rates for repair labor. For any Holley® Marine Avenger™ Carburetor used in any type racing or off-road use will only be covered by a one (1) year limited warranty on parts and labor.
