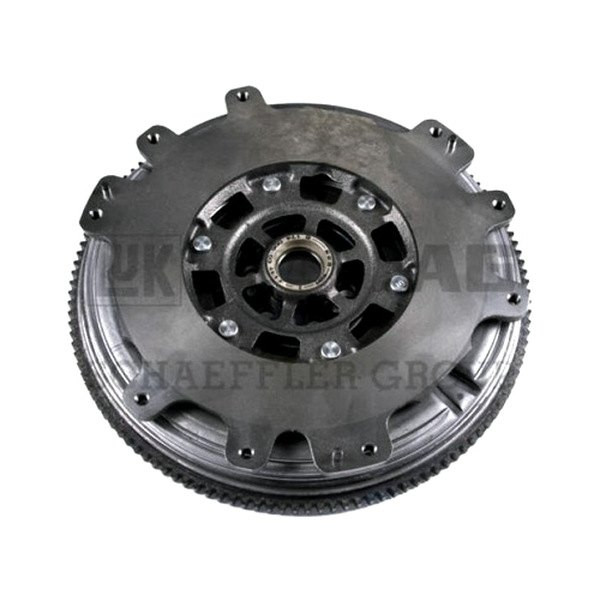

LuK® DMF099 - Dual Mass Flywheel

7 reviews|Item # mpn575204867
Vehicle Specific
    Select Vehicle
    Replaces Original (OE) Part #:12310EA000, 1262082Z00
    Authorized Dealer
    $388.20
    In Stock (21) - Ships within 24 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Nissan
    Suzuki

    Specifications

    Ring Gear To Friction Surface
    2.024 inch
    Ring Gear To Friction Surface
    51.4 mm
    Number of teeth, starter ring gear
    124
    Ring Gear Number
    L-09180-0071-03
    Dowel Hole Pattern
    5
    Crank Hole Dia.
    .465 inch
    Crank Hole Dia.
    11.8 mm
    Dowel hole diameter
    .236 inch
    Dowel hole diameter
    6 mm
    Cup depth, secondary flywheel
    .280 inch
    Cup depth, secondary flywheel
    7.1 mm
    Overall Casting O.D.
    12.504 inch
    Overall Casting O.D.
    317.6 mm
    Centering diameter / dowel hole
    11.024 inch
    Centering diameter / dowel hole
    280 mm
    Bolt hole PCD crankshaft
    2.598 inch
    Bolt hole PCD crankshaft
    66 mm
    Flywheel Friction Surface Inner diameter
    6.063 inch
    Flywheel Friction Surface Inner diameter
    154 mm
    Flywheel friction surface outer diameter
    9.685 inch
    Flywheel friction surface outer diameter
    246 mm
    Flywheel Thickness [mm]
    2.378 inch
    Flywheel Thickness [mm]
    60.4 mm
    Bolt Hole Pattern
    21
    Crank To Friction Surface
    1.728 inch
    Crank To Friction Surface
    43.9 mm
    Ring Gear Mounting O.D.
    11.417 inch
    Ring Gear Mounting O.D.
    290 mm
    Ring Gear Thickness
    .394 inch
    Ring Gear Thickness
    10 mm
    Torque Capacity DMFW
    13.150 inch
    Torque Capacity DMFW
    334 mm
    Ring Gear Major Dia.
    12.400 inch
    Ring Gear Major Dia.
    314.96 mm
    Bolt hole PCD clutch pres.plte
    11.024 inch
    Bolt hole PCD clutch pres.plte
    280 mm
    I.D. for Pilot
    1.039 inch
    I.D. for Pilot
    26.4 mm

    Features

    • Engineered and manufactured to OE specifications
    • All new components - including ring gear and dowel pins
    • Perfectly balanced
    • Precision-machined from premium grade cast iron
    • Superior quality friction surface
    • Excellent heat-absorbing capacity
    • Order from the comfort of your home or office
    • 8 mounting bores
    • With pilot bearing
    • No SVHC present

    Product Details

    Dual Mass Flywheel (DMF099) by LuK®. LuK dual mass flywheels absorb engine vibrations before they are transmitted to the driveline where they can create gear rattle. These units feature a built-in damper designed to isolate engine torque spikes and prevent transmission damage. By design, dual mass flywheels cannot be resurfaced.

    Installation

    LuK® - Installation Instructions

    The flywheel is an integral part of a clutch replacement. In today’s tightly packaged clutch systems, flywheels can easily be machined beyond their usable life – a critical flaw that would not be evident until after the clutch is installed. Improper machining can also cause interference, no release and slipping problems. Pairing your LuK RepSet with a new LuK flywheel is a smart, cost-effective alternative to resurfacing.

    LuK® - ManualLuK® - Installation InstructionsLuK Authorized DealerInstallationAdditional InformationAbout us
    Brand:
    LuK
    Part Number:
    DMF099
    UPC:
    670774201448
    OE Numbers:
    12310EA000, 1262082Z00
