Specifications
| Nominal output voltage (output 1 & 2) | |
|---|---|
| Nominal output voltage (output 3) | |
| Output current output 3 (current limited) | |
| Input current 'Smart Input' | |
| Max. AC current (230 V / 120 V) | |
| Total charge current | |
| Number of battery outlets | |
| Battery capacity range | |
| Nominal input voltage | |
| AC connection | |
| Power supply mode | |
| Display/read-out | |
| Dimensions, H x W x D | |
| Weight | |
| Approvals | |
| Charge characteristic | |
| Temperature compensation | |
| DC voltage compensation | |
| Power consumption (DC side) | |
| Current Control function | |
| Power factor control | |
| Temperature range (ambient temp.) | |
| Cooling | |
| Protection degree | |
| Protections | |
| MasterBus compatible | |
| Charger Status Interface (alarm contact) |
Features
- Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR
- Combine Lithium Ion, Gel or AGM, and large or small 12/24 V battery banks on a single battery charger
- Charges multiple batteries while being underway
- Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C
- Safe Charge: quickly recognize the State of Charge for extended battery life
- Very wide operating range
- Compact, easy to connect and quick to install
Product Details

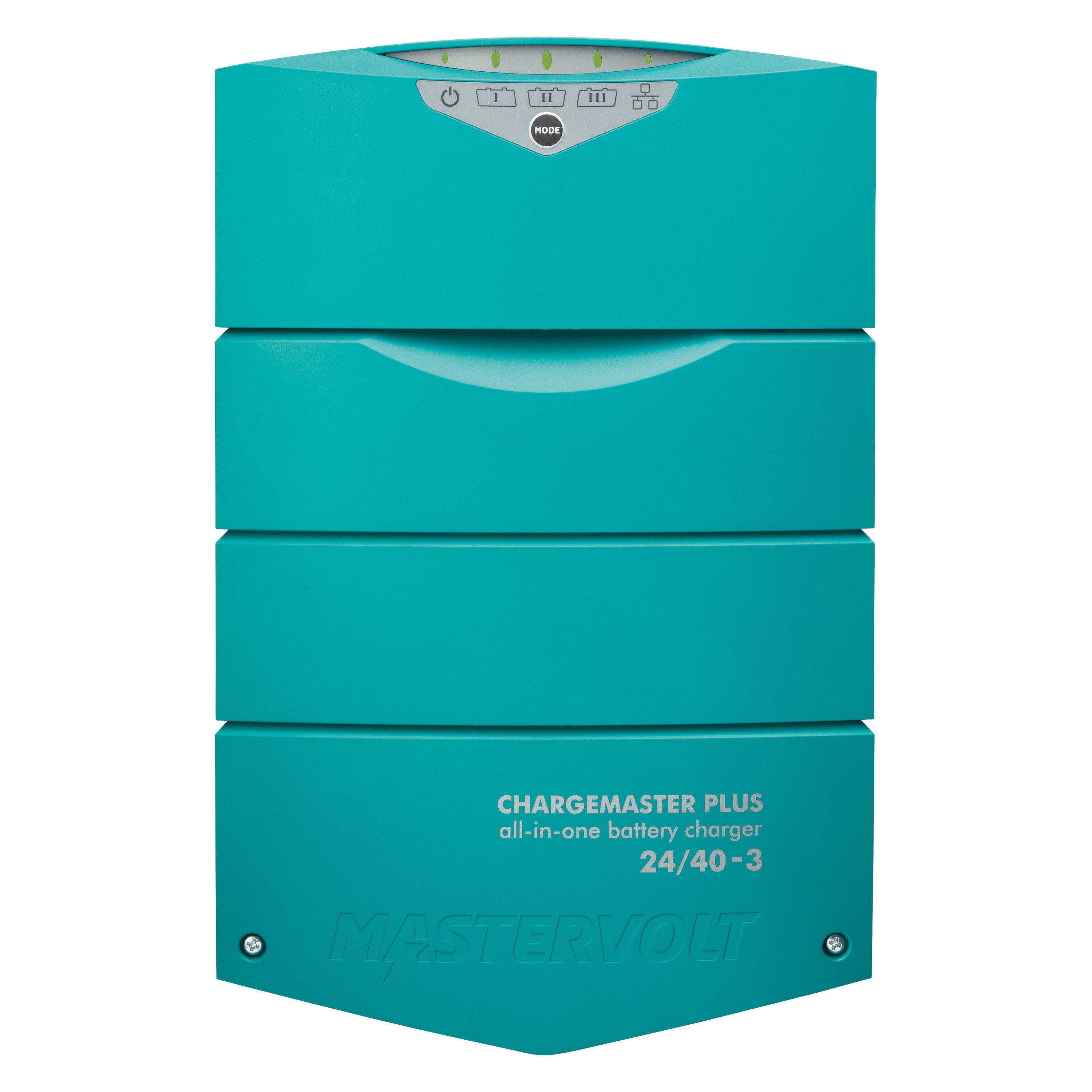

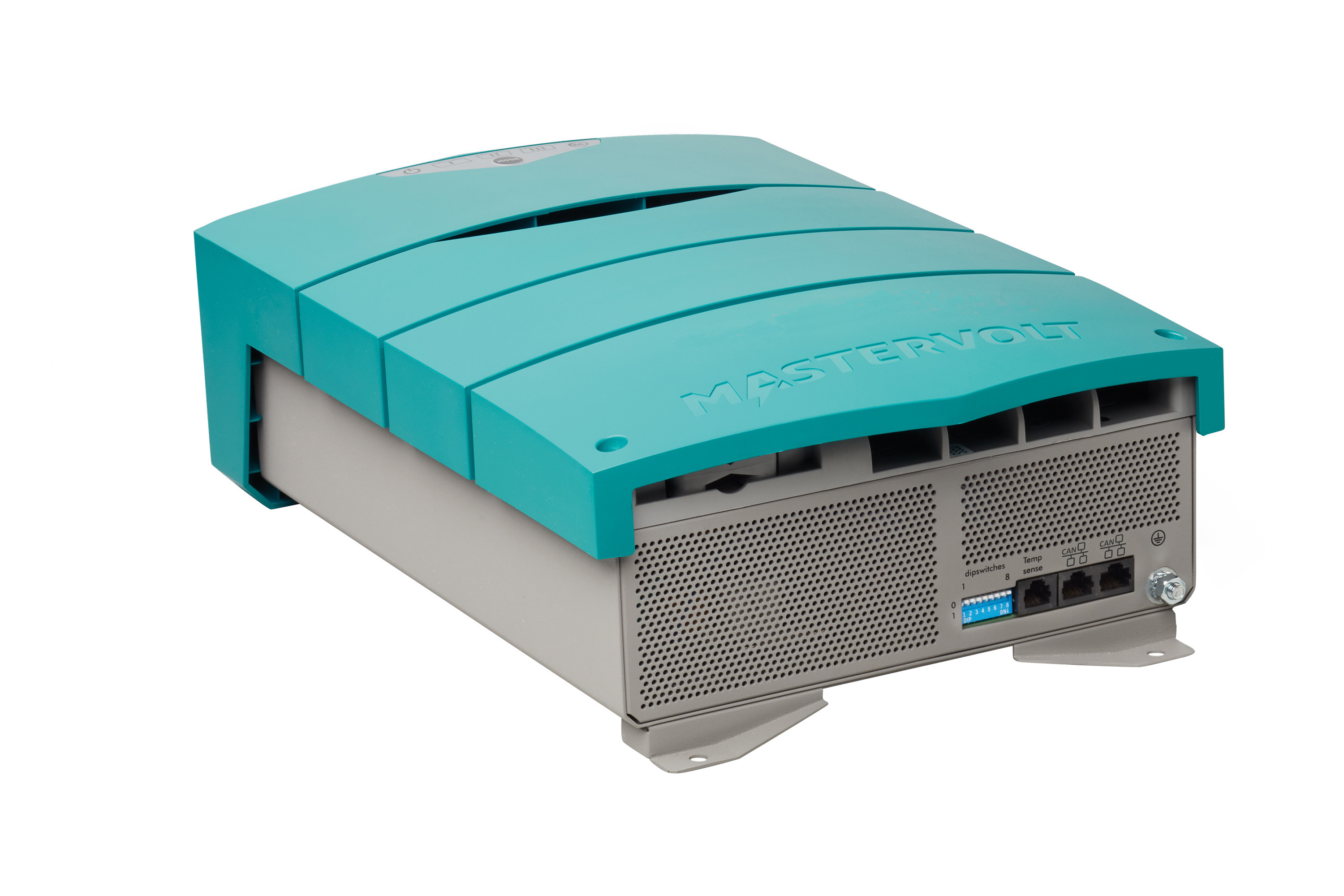

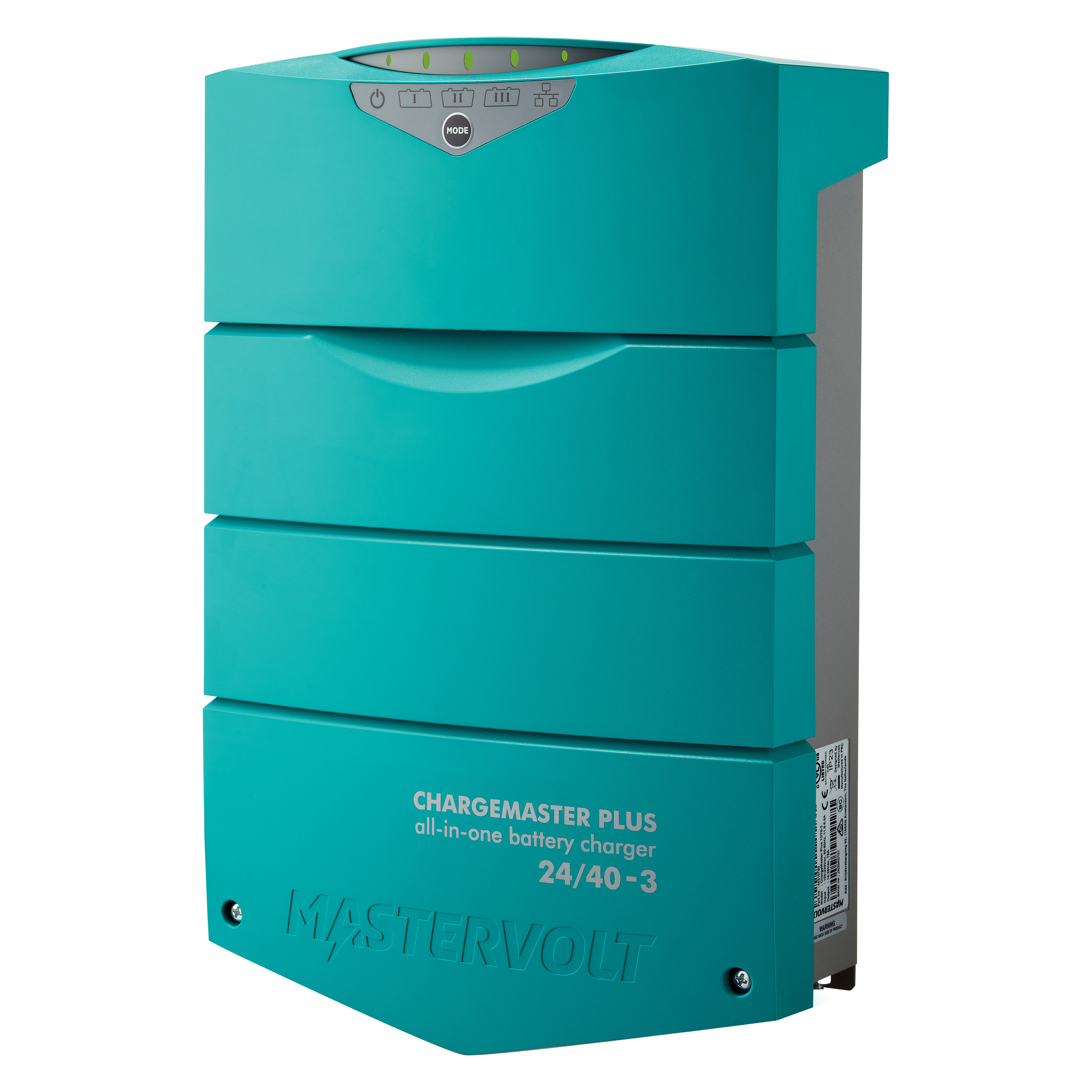

ChargeMaster Plus 40A 24V 3-Bank Battery Charger with CZone & NMEA Interfaces (44320405) by Mastervolt®. ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of three batteries in a fast and safe way and works anywhere in the world.
Battery’s Best Friend
With the new Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method.
Global Charging
The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, ChargeMaster Plus is CE, E-mark, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.
System Simplicity

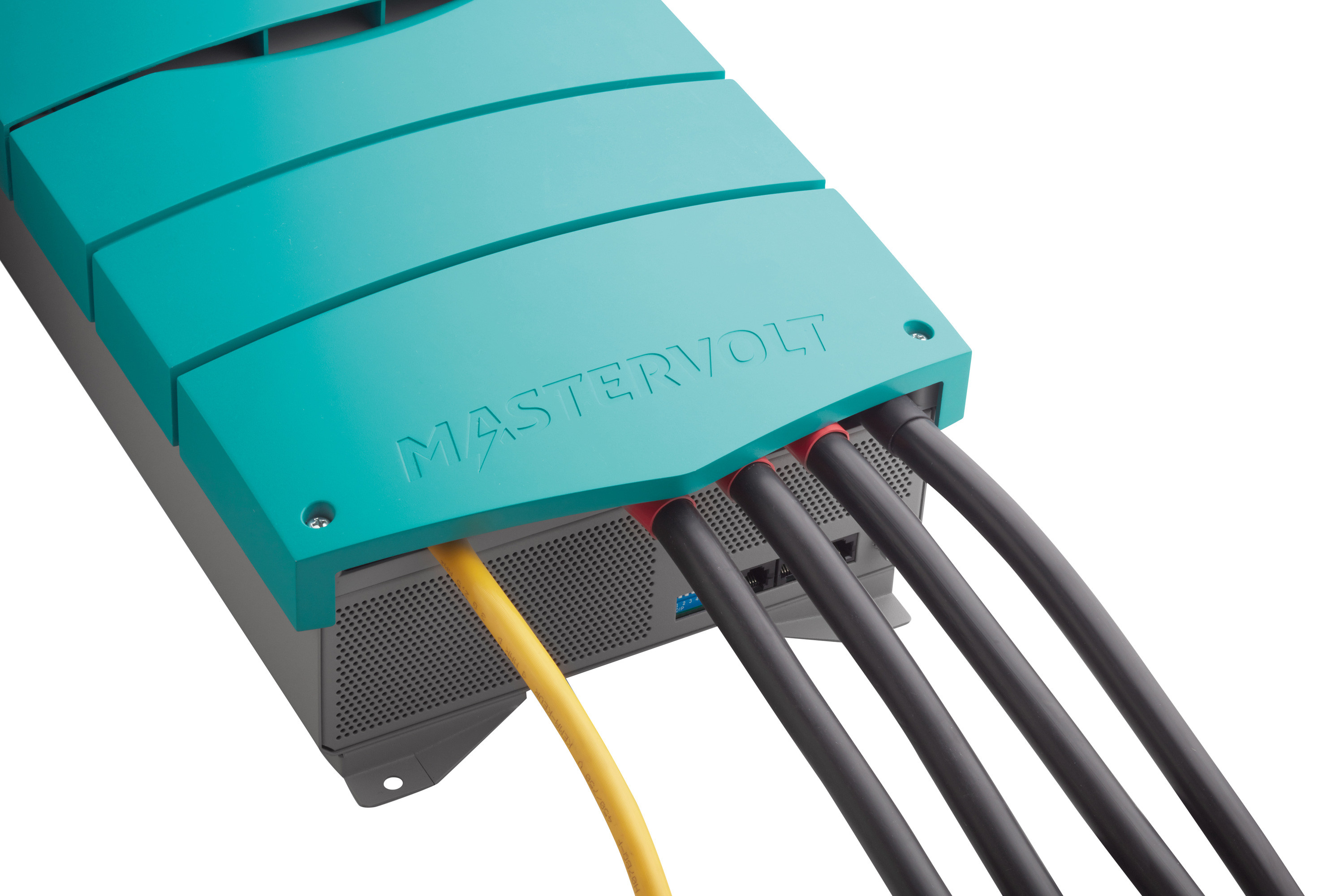

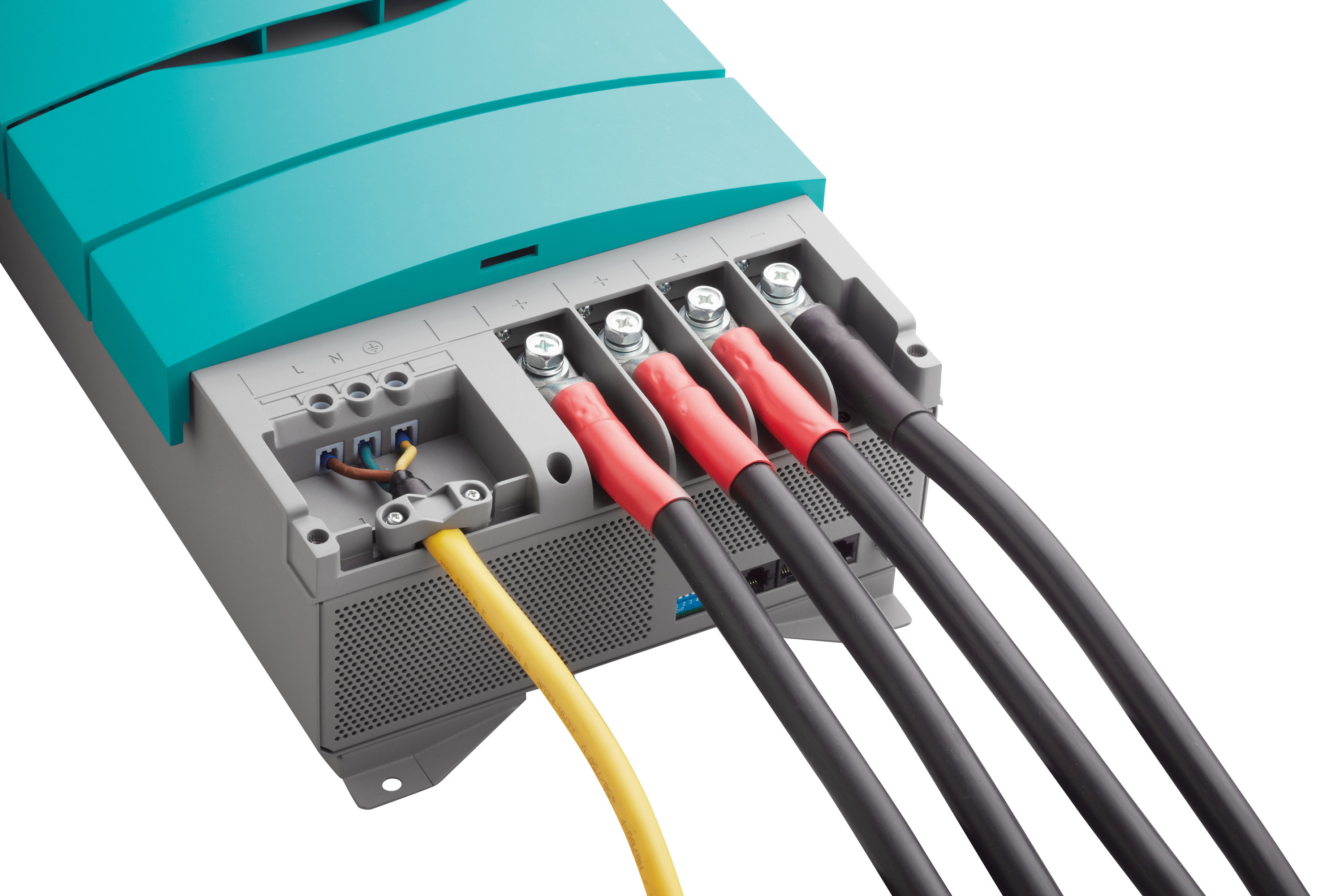

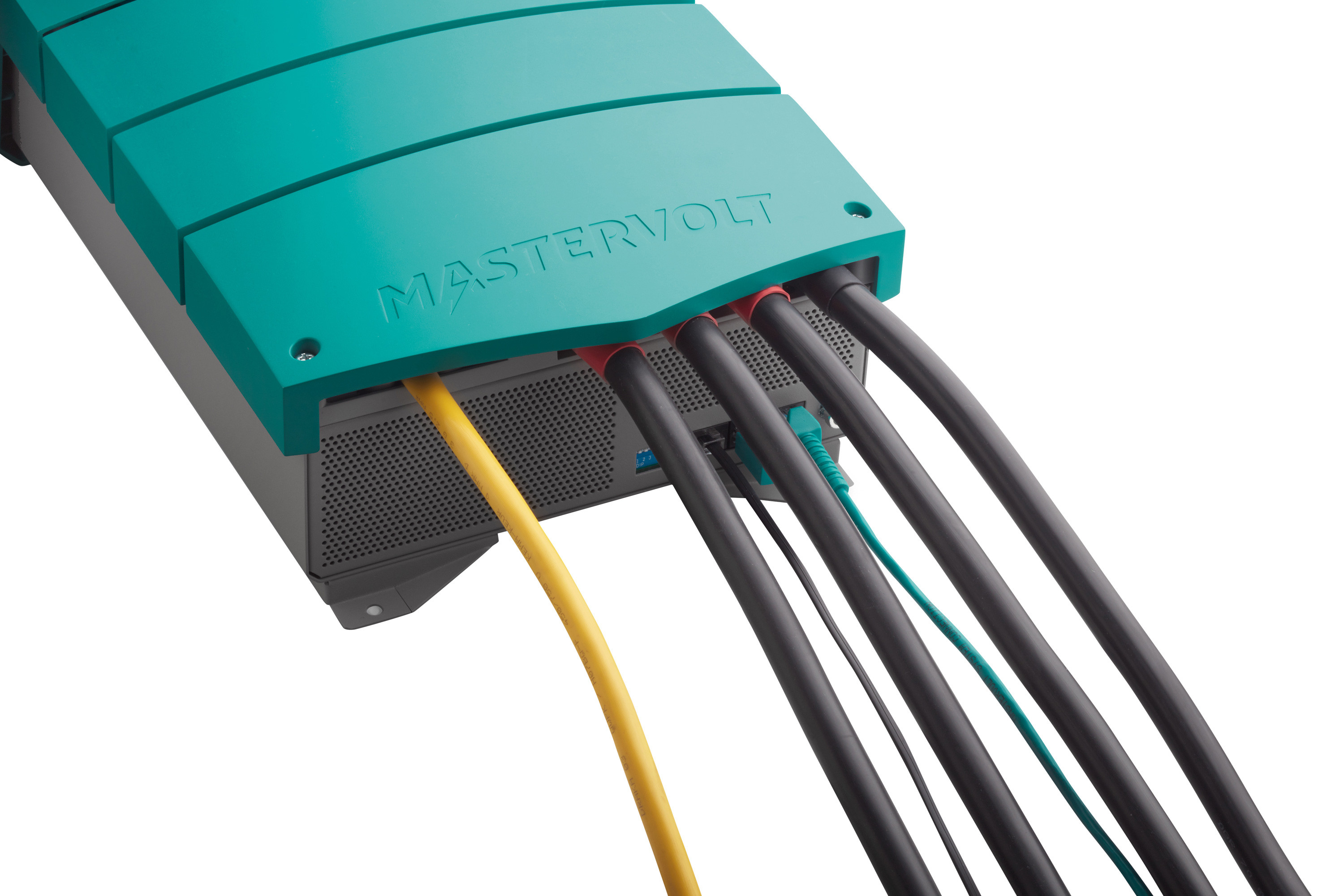

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.
Powerful Connections

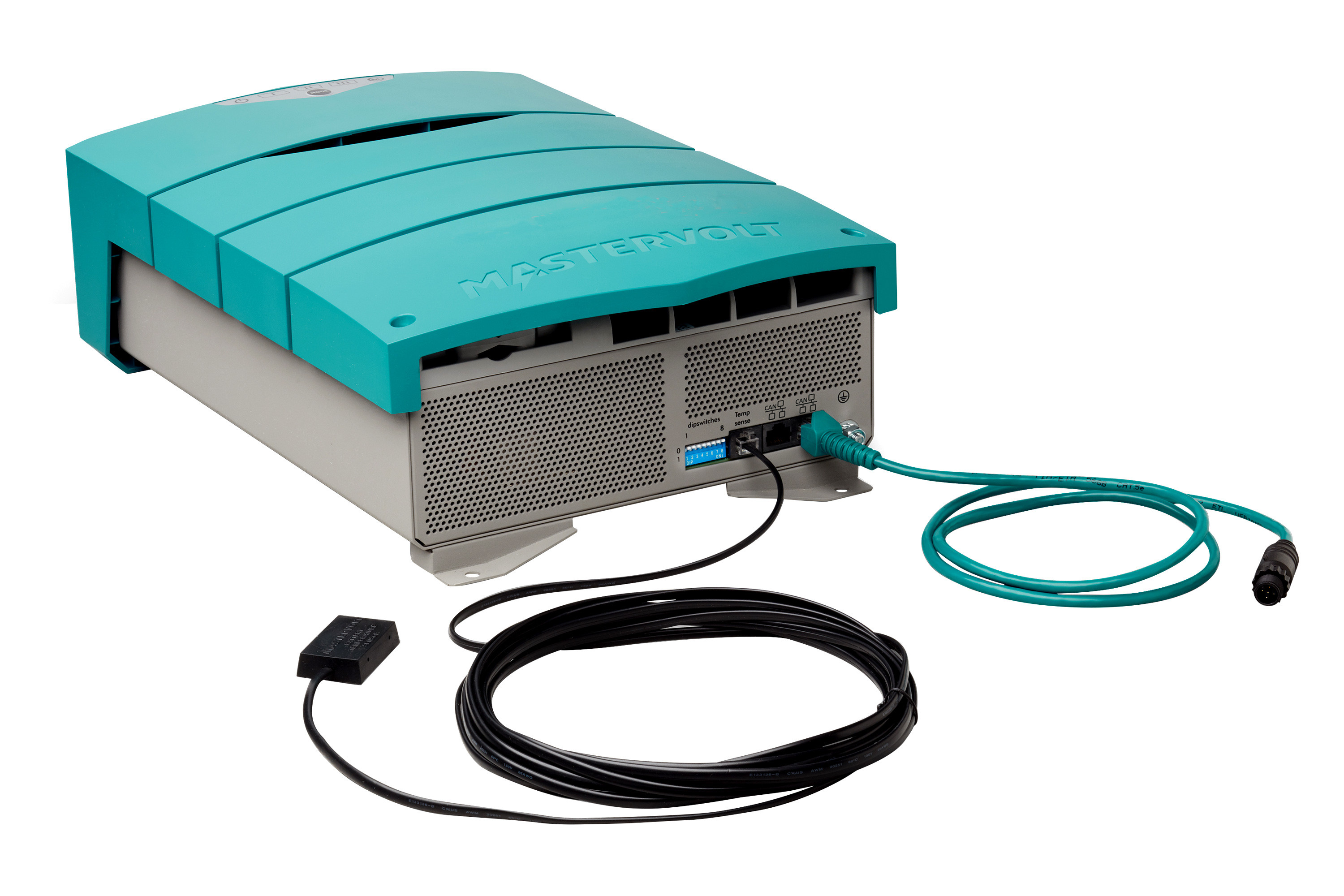

In modern applications, all components work together. CAN-based MasterBus enables the charger to communicate with displays, shunts and power systems including communication standards like CZone®. NMEA and CANopen. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.
