Vehicle Fitment
Dodge
Jeep
Ram
Features
- Multiple camera inputs:Reverse (force reverse camera on anytime)Additional camera support with added VS41 video switcher (sold separately):Dual blind spots (configurable control options)Front (configurable control options)
- Reverse (force reverse camera on anytime)
- Additional camera support with added VS41 video switcher (sold separately):
- Dual blind spots (configurable control options)
- Front (configurable control options)
- Independent full A/V input (to OE radio option)
- Retains last user settings for systems such as:Start-StopSport-modeEco -modeRemote Start Climate Control
- Start-Stop
- Sport-mode
- Eco -mode
- Remote Start Climate Control
- Navigation & Radio Feature Unlock ie, APPs & BT functions
- 3 Programmable 12 Volt OutputsOutput 1 - provides up to 10 amps
- Output 1 - provides up to 10 amps
- Stores User Options (even with loss of power)
- Text driven menu seen on instrument cluster (using OE vehicle buttons)
- OE steering wheel control functions customizable
- Digital audio EQ presets X3 - (vehicles with factory amp only)
- LED and dip switches for ease of installation
- VS41 4-input Video Switcher support (plug-and-play)
- Direct USB Updateable
Product Details

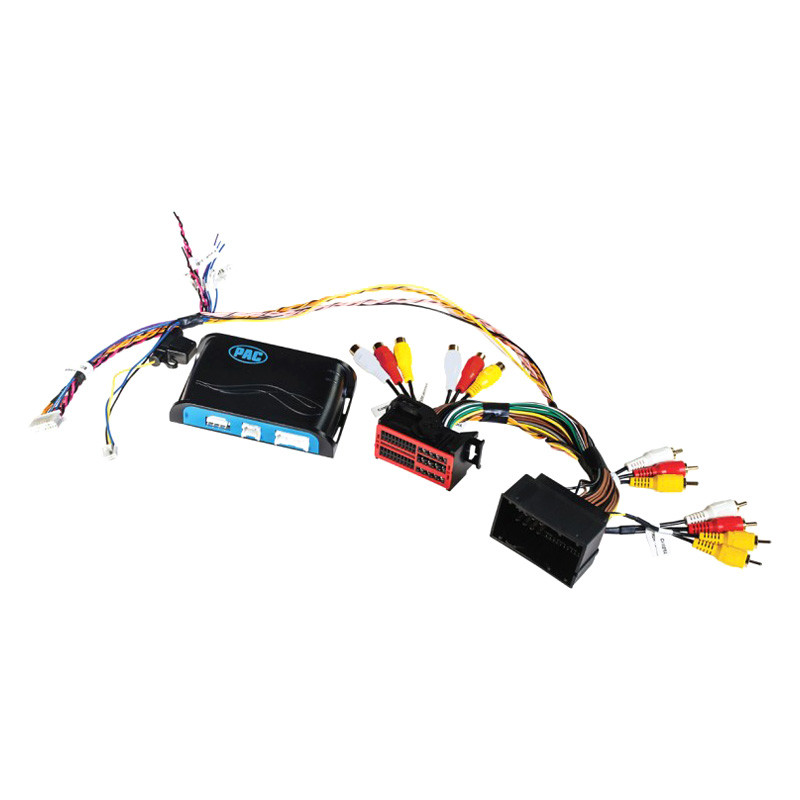

Backup Camera/Navigation Unlock Interface by PAC®. Completely revamped, the BCI-CH41 is a multi-functional interface module for select Dodge/Jeep/Ram/Chrysler vehicles that configures the factory radio to accept the addition of a reverse*, blind spot elimination (left/right side), and front camera inputs for added safety and convenience. It also lets passengers freely use the built-in navigation system and other radio features while the vehicle is in motion. An audio/video media input* for passenger entertainment, the ability to swap/reprogram the vehicle's steering wheel controls and three programmable 12-Volt outputs for powering cameras or other devices are included. Lastly, innovative convenience features such as retaining last memory settings for vehicle models with Start-Stop, Eco-mode, Sport-mode and Remote Start Climate Control are provided.
If this is the first time using the BCI PC Application, download "BCI PC Application".
Download the firmware file.
Extract the BCI PC Application file, then run the installer. This will install the PC Application onto the computer.
Open the BCI PC Application using the new shortcut created on your desktop.
Connect the interface to the computer using a standard to micro USB cable.
Click the "Firmware" icon.
Click "Select File" and browse to the new firmware file. The new firmware can be found where you saved it before beginning.
Once the file is chosen the update will begin. When successful it will show the text "Update Completed".
Multiple camera inputs:
Reverse (force reverse camera on anytime)
Additional camera support with added VS41 video switcher (sold separately):
Dual blind spots (configurable control options)
Front (configurable control options)
Independent full A/V input (to OE radio option)
Retains last user settings for systems such as:
Start-Stop
Sport-mode
Eco -mode
Remote Start Climate Control
Navigation & Radio Feature Unlock ie, APPs & BT functions
3 Programmable 12 Volt Outputs
Output 1 provides up to 10 amps
Stores User Options (even with loss of power)
Text driven menu seen on instrument cluster (using OE vehicle buttons)
OE steering wheel control functions customizable
Digital audio EQ presets X3 (vehicles with factory amp only)
LED and dip switches for ease of installation
VS41 4-input Video Switcher support (plug-and-play)
Direct USB Updateable
Firmware Download, Version V15 (Released on June 11th, 2018)
Release Notes
Removed all BCI-CH41 references from DIC text
Fixes USB connection issues seen with Windows 8 and 10
Firmware Download, Version 14 (Released on August 1st, 2017)
Release Notes
Added BCI App support for:
Front Camera Control
Blind Spot Camera Control
Programmable Outputs 1, 2, 3
Swap Source and Preset SWC
Swap Track and Volume SWC
Remote Start Restore Climate
ECO Memory
Start Stop Memory
Preset EQ
Sport Mode Memory
Added support for On-Demand Activation (Requires v3 Harness)
Fixes:
Front camera on by park assist not working in 2017 Grand Cherokee
Programming Reverse Camera in 2017 Challenger, Charger and 300
User options not being saved when trying to save to the initial default values
Firmware Download, Version 9 (Released on February 16th, 2016)
Release Notes
Initial Release
Utility/Other, Version V6 (Released on November 21st, 2017)
Release Notes
BCI PC Application
