PAC® RPK4-CH4101 - Double DIN Black Stereo Dash Multi Kit with Integrated Climate Controls

Name: PAC® RPK4-CH4101 - Double DIN Black Stereo Dash Multi Kit with Integrated Climate Controls
Brand: PAC
SKU: mpn4704740961
Price: 564.85 USD
Availability: InStock

0 reviews|1 Q&A|Item # mpn4704740961

Vehicle Specific

Notes:

Does not retain the following features in the vehicle's cluster display: Compass; Phone Pop-Ups; Navigation Pop-Ups; Clock
Does not retain the following uConnect features: WiFi Hotspot; SOS/Assist
Does not retain factory amplifiers Speed Controlled Volume

Authorized Dealer

$564.85

In Stock (7)

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Dodge

Ram

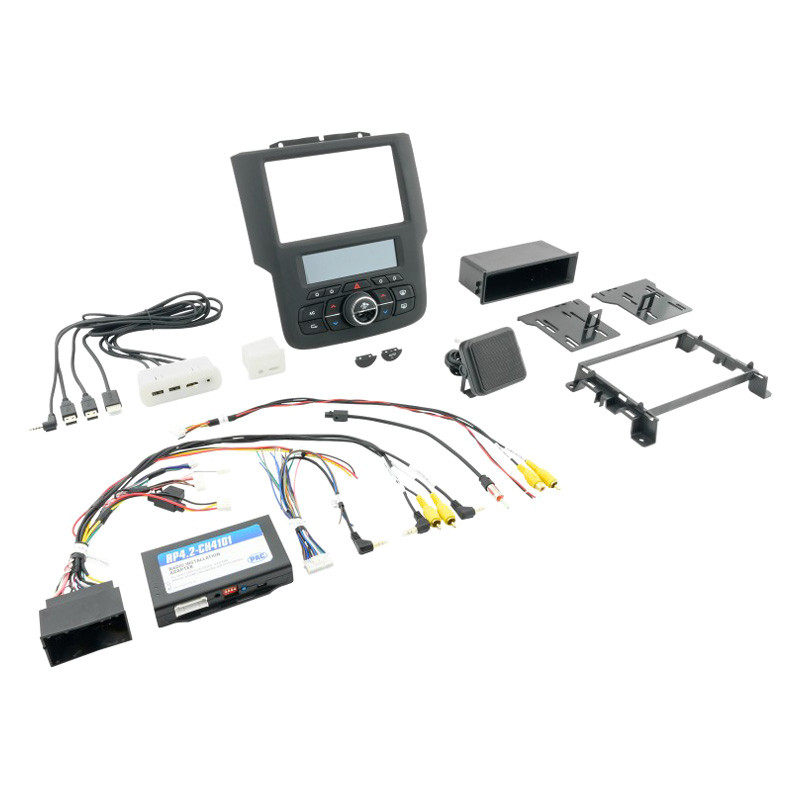

Includes

Main kit plastic with integrated touchscreen
All climate control buttons and knobs
Radio replacement interface
Plug-in vehicle connection harness
Radio connection harness
Reverse camera input harness
USB cable for connecting to OE hub
USB cable for use without OE hub
Chime speaker with bracket
Double DIN mounting hardware
Single DIN pocket
Antenna adapter

Features

Factory-matched dash kit with complete set of climate control knobs and buttons (no need to use OE parts)
4 Programmable hard buttons with proximity-sense technology for quick access of cameras and more
Supports up to 5 driver safety cameras with use of RPA-16P5V, sold separately
Accommodates a single-DIN or double-DIN aftermarket radio
Multi-purpose 5.2" touchscreen LCD display for Climate control; Camera selection; Vehicle settings; Performance gauges; Vehicle information; Feature setup for installer use

Product Details

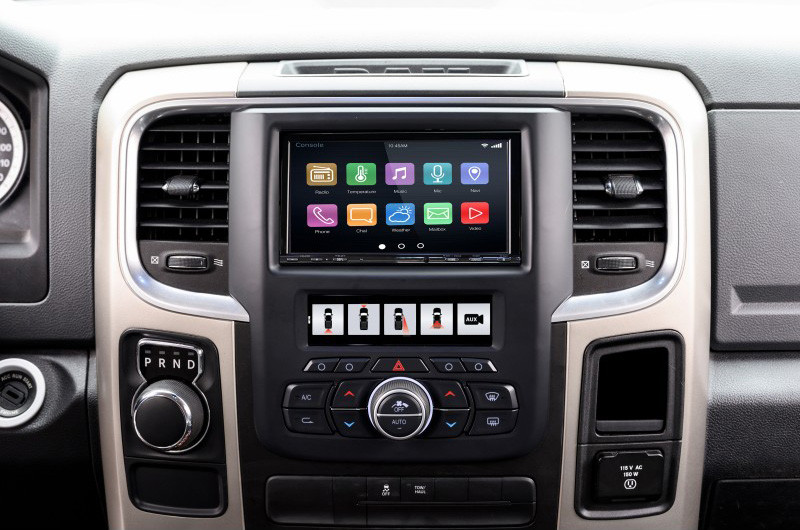

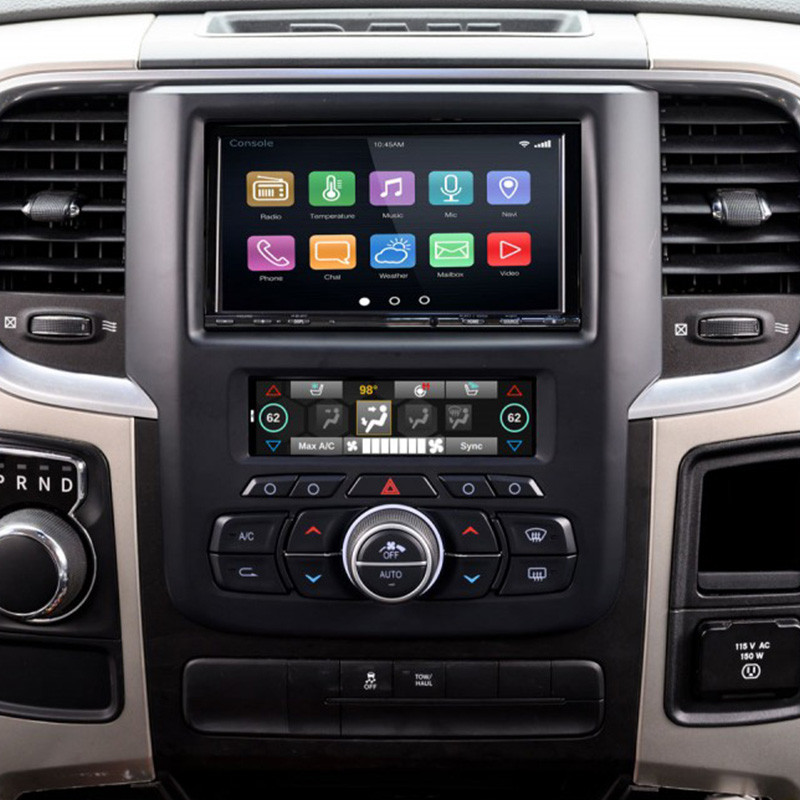

Double DIN Black Stereo Dash Multi Kit with Integrated Climate Controls by PAC®. This complete radio replacement solution provides everything needed to achieve the best possible installation of any aftermarket radio, including factory-matched buttons, knobs, and graphical user interface. Giving the RAM owner a familiar user experience with the benefits of added features provided by the 5.2" LCD touchscreen. Easily swipe between climate control, camera selection, vehicle settings, performance gauges, and vehicle information.

INSTALLATION INSTRUCTIONS

If this is the first time using theRadioPROPC Application, download the Radio PRO PC Application. This can be found at the "Download" tab at the very bottom of the firmware list on this page.
Download the firmware file.
Install the Radio PRO PC Application using the .exefile you downloaded in step one.
Open theRadioPROPC Application using the new shortcut created on your desktop.
Connect the interface to the computer using a standard to microUSBcable.
Click the "Firmware" icon.
Click "Select File" and browse to the new firmware file. The new firmware can be found where you saved it before beginning.
Once the file is chosen the update will begin. When successful it will show the text "Update Completed".

Available March 2020
2 Replacement USB hubs to support all OE styles
4 cables:
USB x2
HDMI
3.5mm

Retains These Features:

Steering wheel control functions
Reverse camera (if equipped)
Bed camera** (if equipped, requires RPA-16P5V)
Amplified audio system (if equipped)
Vehicle settings through 5.2" touchscreen

PAC® - Double DIN Black Stereo Dash Multi Kit with Integrated Climate Controls Guide PAC® - Warranty PAC® - Catalog PAC Authorized Dealer

Brand:

PAC

Part Number:

RPK4-CH4101

UPC:

609098830836

Alternate MPN:

RPK4CH4101

Warranty

LIMITED 1-YEAR WARRANTY

This warranty applies only to the original owner of PAC products. It covers PAC products that, upon inspection by authorized PAC personnel, are found to have failed in normal use due to defects in material or workmanship. Within the first 12 months from date of purchase PAC will repair or replace product at its sole discretion if it is found to be defective in material or workmanship. This warranty does not cover installation expenses. Attempting to service or modify PAC products, or operate them outside their recommended usage will render this warranty void.

Unless prescribed by law, PAC is not liable for any personal injury, property damage, and/or incidental or consequential damages (including water damage) resulting from product malfunctions, defects, and/or misuse. PAC is also not liable for any products that are altered or improperly installed.
