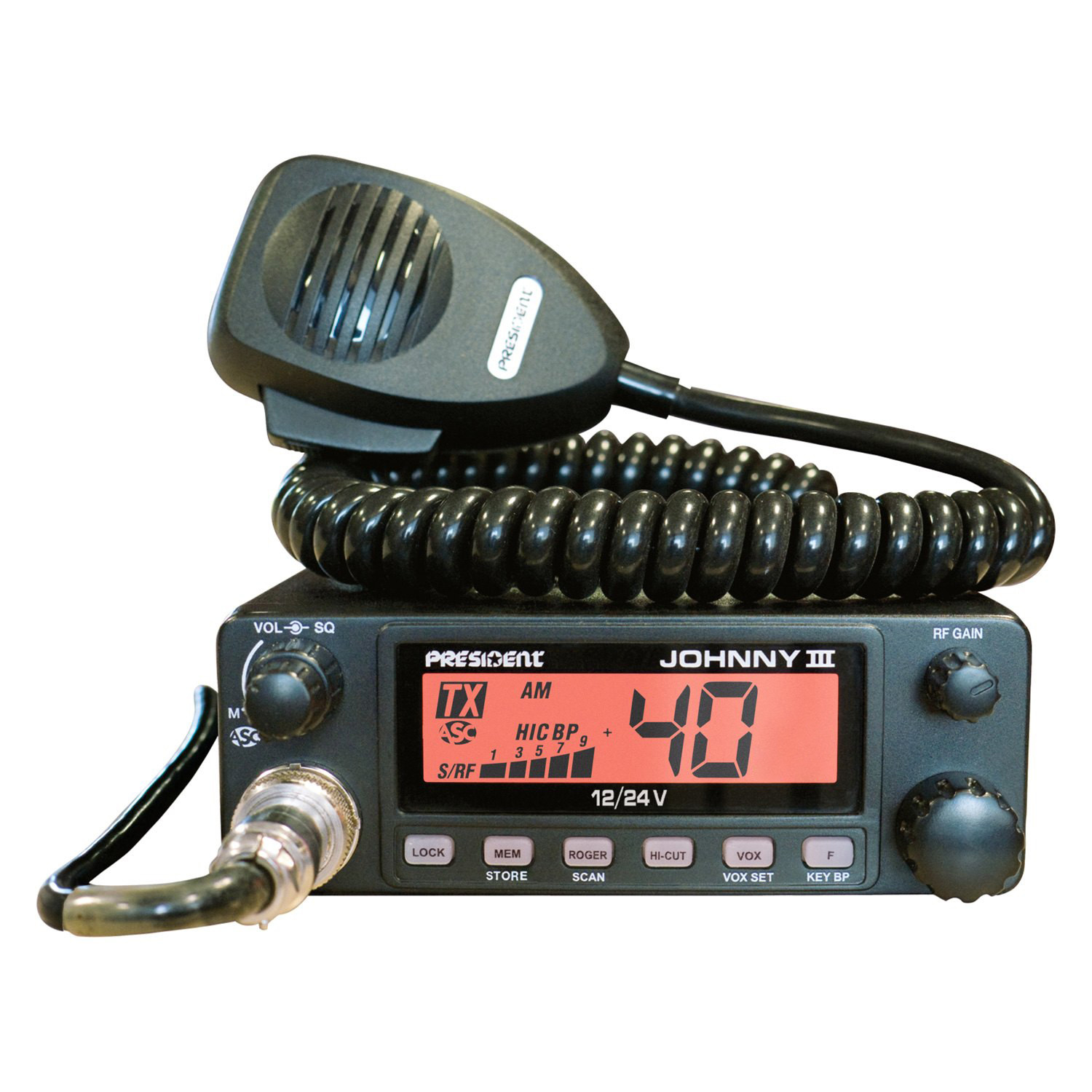

Name: President Electronics® - Johnny III 40-Channel ASC AM Transceiver
Brand: President Electronics
SKU: mpn4637947250
Price: 119.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Vehicle Fitment

This part is universal

Specifications

Accessories supplied	Ultra light electret microphone with support mounting cradle screws
Adjacent channel selectivity	60 dB
AM	Yes
Size	125 (L) x 150 (H) x 45 (D) in mm
Power	12 V / 24 V
Channel Qty	40 Channel
Antenna Impedance	50 ohms
ASC	Yes
Audio Response	300 Hz to 3 KHz
Carrier power	4 W AM
Channel selector	rotary
Display	LCD multifunction
Drain1	1,7 A (with modulation)
Drain2	300 mA nominal / 750 mA maximum
Emitted power in the adj. channel	inferior to 20 μW
External loudspeaker jack	Yes
External Vox microphone jack	Yes
F / Menu function key	Yes
Filter ANL	Yes
Filter HI-CUT	Yes
Filter	ANL (Automatic Noise Limiter) built-in
Frequency allowance	+/- 200 Hz
Frequency image rejection rate	60 dB
Frequency ranges	from 26.965 MHz to 27.405 MHz
Frequency response	300 Hz to 3 kHz
Intermediate frequency rej. rate	70 dB
Key Beep	Yes
Key locking	Yes
Maxi. sensitivity at 20 dB sinad	0.5 μV - 113 dBm
Maximum audio power	2 W
Memory	1
Microphone plug	front (6 pins)
Microphone sensitivity	7 mV
Modulated signal distortion	1,8 %
Modulation modes	AM
RF Gain	Yes
Roger beep	Yes
Scan	Yes
S-meter	Digital
Squelch Sensitivity	minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm
Squelch	Manual squelch
Supply	13.2 V / 24 V
Transmission interference	inferior to 4 nW (- 54 dBm)
Volume	Volume adjustment and ON/OFF
Vox	Yes
Weight1	0.7 kg
Weight2	0.7 kg

Features

Developed with modern technology and innovation
Crafted only from the highest quality materials
Made with quality and safety in mind
40 channels AM
12 / 24 V
Channel rotary switch
Volume adjustment and ON/OFF
Manual squelch and ASC
Multi-functions LCD display
S-meter
Vox function (Hands free)
ANL filter and HI-CUT
RF Gain
Scan
Priority channel memory
F function key
Beep Function
Roger Beep
Key locking
Front microphone plug
External loudspeaker jack

Product Details

Johnny III 40-Channel ASC AM Transceiver by President Electronics®. CB radios allow you to receive and transmit messages free. Several people can exchange remarks, at the same time, and on the same channel. This distinctive feature is the very basis of the CB spirit and results in conviviality and openness towards others. As opposed to telephones which work in duplex mode, conversations take place in simplex mode, in other words you must wait until the end of your correspondent's message before sending your own.

President Electronics® - Johnny III 40-Channel ASC AM Transceiver Manual President Electronics® - Johnny III 40-Channel ASC AM Transceiver Guide President Electronics® - Johnny III 40-Channel ASC AM Transceiver Information President Electronics Authorized Dealer

Brand:

President Electronics

Part Number:

JOHNNYIII

Warranty

2+3-Year Warranty

This device is guaranteed against any manufacturing defects validated by President Electronics’ technical department for 2 years from the date of purchase. President Electronics reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by President Electronics and if the said antenna is at the origin of the breakdown. Under certain conditions, an extension of 3 years warranty is proposed, bringing the total duration of the warranty to 5 years. It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

Any repair under warranty will be free of charge.
Do not proceed with the installation of the device without reading the user manual.
No spare part will be sent nor exchanged by President Electronics services under warranty.
The warranty is only valid in the country of purchase.

Exclusions (are not covered):

Damages caused by accident, shock or inadequate packaging.
Power transistors, microphones, lights, fuses and the non-respect of the installation and use of specifications (including but not limited to the antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage, etc.)
The warranty cannot be extended due to the non-availability of the device while it is being serviced at President Electronics technical services location, nor by a change of one or more components or spare parts.
Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by the company.

If you note malfunctions:

Check the power supply of your device and the quality of the fuse.
Check that the antenna, the microphone, etc., are correctly connected.
Check that the squelch level is properly adjusted; the programmed configuration is the correct one.
All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.
In case of an intervention not covered by the warranty, an estimate will be established before any repair.
