Vehicle Fitment

Chevy

Specifications

Coil Spring Rate	3.6 kg/mm (200 lbs/in)
Shock Absorber Adjustment Type	Double Adjustment

Includes

(2) Rear Double Adjustable Pro Coil Shock System
(2) High Travel Coil Springs
(1) Panhard Bar
(1) Brace Bar
(1) Coilover Hardware Kit
(2) Truck Arms

Features

Tubular truck arms made with 7 gauge DOM steel provide integrated pinion angle adjustment, eliminating the need for angled shims
Set wheelbase with adjustable length truck arms
Adjustable mounts allow for optimum anti-squat
Full-length, adjustable panhard bar with multiple mounting locations corrects roll center geometry to accommodate the amount of drop

Product Details

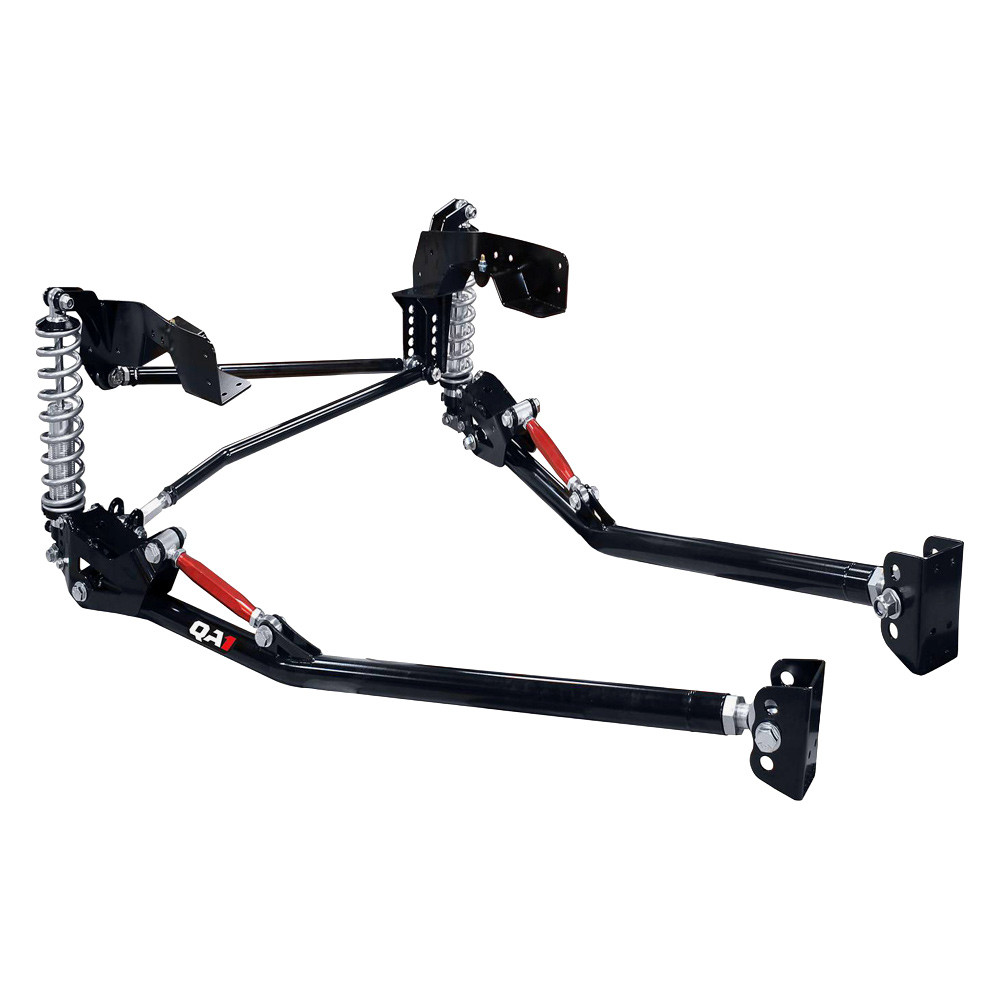

Front and Rear Suspension System (R210-200) by QA1®. Quantity: Sold as a Kit. Suspension system is designed to convert trucks originally equipped with a coil-spring rear suspension to coil-overs. Made in the USA, this system relocates the coil-overs to the outside of the frame rail, closer to the wheel, providing more cornering stability and allowing room for popular aftermarket rear fuel tanks. The factory truck arms are replaced with a 7 gauge DOM steel tubular design with an integrated pinion angle adjustment, eliminating the need for angled shims, and feature QA1’s X Series self-lubricating rod ends. With the adjustable length truck arms, you can set the wheelbase to your exact specifications. The adjustable mounts allow for optimum anti-squat. A full-length, adjustable panhard bar with multiple mounting locations corrects roll center geometry for the desired amount of drop.

Installation

QA1® - Front and Rear Suspension System Installation Instructions

Designed for use with QA1 Pro Coil Systems, this system also includes your choice of QA1’s proven single or double adjustable Pro Coil shocks so you can change the valving to meet your specific needs. Available with three options of high travel spring rates, these shocks allow for ride height adjustability and are 100% dyno tested and serialized.

QA1® - Front and Rear Suspension System Installation Instructions QA1® - FAQ QA1® - Catalogs Made In USA QA1 Authorized Dealer Video Additional Information About us

Brand:

QA1

Part Number:

R210-200

UPC:

806990152503

Alternate MPN:

R210200

Warranty

WARRANTY / DISCLAIMER

QA1 warrants that the products will be free from defects in material and workmanship for one year from date of sale to the original purchaser. QA1 makes no other warranty of any kind, express or implied. QA1 shall have no obligation under the foregoing warranty where the defect is the result of improper or abnormal use, your negligence, vehicle accident, improper or incorrect installation or maintenance, nor when the product has been repaired or altered in any way. QA1's liability in the case of defective products subject to the foregoing warranty shall be limited to the repair or replacement, at QA1's option, of the defective products. Consequential or incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

THE BUYER UNDERSTANDS AND EXPRESSLY RECOGNIZES that racing parts, specialized street rod equipment, rod end bearings, and ALL parts and services sold by QA1 are exposed to many and varied conditions due to the manner in which they are installed and used. BUYER ACKNOWLEDGES that QA1 does not have full knowledge of the intended use of the goods, and BUYER WILL DEFEND AND INDEMIFY QA1 upon demand against all claims, actions, liability, loss and expense (including investigating expense and attorney fees incurred in litigation or because of threatened litigation) for any loss, damage or injury, either to a person or to property, resulting from the direct or indirect use of any QA1 products or inability by the buyer to determine proper use or application of QA1 products. With the exception of the limited liability warranty set forth above, QA1 SHALL NOT BE LIABLE FOR ANY CLAIMS, DEMANDS, INJURIES, DAMAGES, ACTIONS, OR CAUSES OF ACTION WHATSOEVER TO BUYER ARISING OUT OF OR CONNECTED WITH THE USE OF ANY QA1 PRODUCTS. MOTORSPORTS ARE DANGEROUS; AS SUCH, NO WARRANTY OR REPRESENTATION IS MADE AS TO THE PRODUCT'S ABILITY TO PROTECT THE USER FROM INJURY OR DEATH. THE USER ASSUMES THAT RISK.

Reviews

(1)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-1 of 1 Reviews

Sort by

5 of 5

Worth It

QA1 nailed it with this kit. I've got a '69 Firebird and it completely changed the way it drives. No more body roll. It feels way more planted, especially in sharp turns.

QA1® - Front and Rear Handling Kit Level 2

Posted by Ike (Chicago, IL) / December 16, 20241969 Pontiac Firebird

Questions and Answers

(0)

If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

QA1® R210-200 - Front and Rear Suspension System
