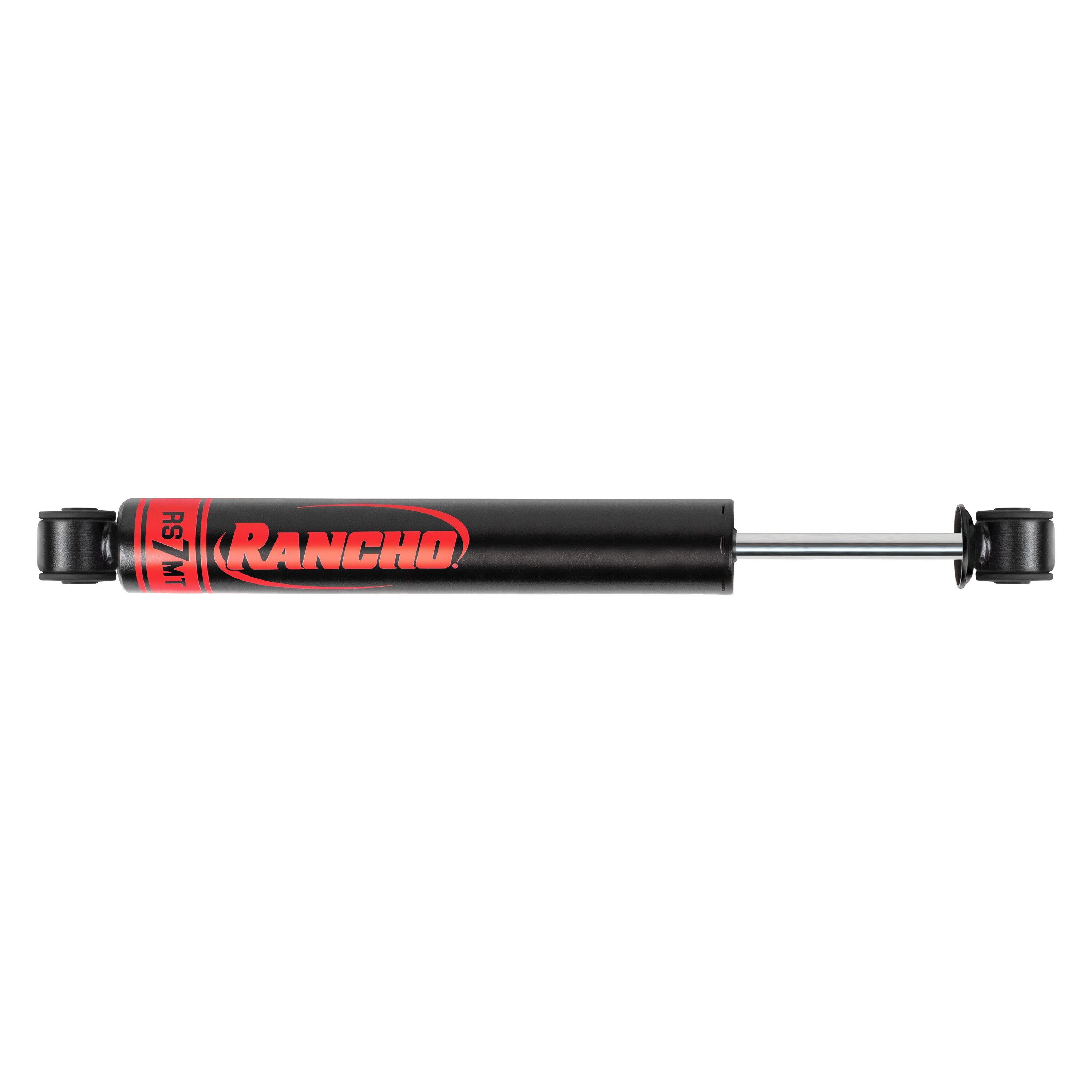

Name: Rancho® RS77416 - RS7MT Front Steering Damper
Brand: Rancho
SKU: mpn4863649450
Price: 108.42 USD
Availability: InStock

Vehicle Fitment

Dodge

Ram

Specifications

Extended Length	23.300"
Compressed Length	14.880"
Color	Black
Travel Length	8.420"
Type	Telescopic
Lower Mount Type	Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL
Upper Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.3/8" Sleeve OAL
Boot Included	No
Gas Charged	Yes
Body Diameter	1.97"
Body Diameter	50 (mm)
Body Length	13.90"
Rod Diameter	14 (mm)
Internal Construction Type	Single Tube
Adjustable Damping	No
Upper Mount Code	LS37
Lower Mount Code	LS24
Hydraulic Lockout	No
Shock Absorber Bore Size	46 (mm)
Additional Info	Without Dust Shield
Additional Info	Not Extended Bumper Stop

Features

Precise handling and performance
Strong and durable
Monotube design
Handles extreme temperature changes
Reduces fade
Smooth performance
The right fit
Keeps dirt and debris out
Built to last
Bold appearance

Product Details

RS7MT Front Steering Damper (RS77416) by Rancho®. Quantity: 1 per Pack. From the pavement to the trail, the new Rancho RS7MT™ monotube shocks are made for adventure. A complete performance upgrade for your vehicle suspension system, Bring It with RS7MT shocks. Engineered to help you handle anything that comes your way, the RS7MT shocks are application-tuned for precision on-road and off-road handling.

MONOTUBE DESIGN

Highly effective in the dissipation of heat, RS7MT shocks are ideal for off-road use, and larger wheel and tire packages. Featuring an integrated dirt wiper sealing system that keeps dirt and debris out, the RS7MT has a hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain. In addition, the RS7MT reduces fade and provides responsive damping for a better ride on- and off-road.

Benefits:

Deflective Disc Valving features digressive, linear or progressive turning based on application requirements for precision handling and performance on- and off-road.
Features a 14mm hardened chrome piston rod to resist scuffs and corrosion, double-welded loops at stress areas, double-strength closure method, and hot form reserve tube
Large 2" monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control, and ability to withstand internal temperatures of -40 to 248 Degrees F
Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade
Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness, while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, shock boot RS1952 and RS1961 are available for purchase
Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out

Rancho® - Specifications Rancho® - Catalog Rancho® - Warranty Made In USA Rancho Authorized Dealer

Brand:

Rancho

Part Number:

RS77416

UPC:

039703012379

OE Numbers:

52122370AA, 52122370AB, 5154661AC, 5154661AD, 5154661AA, 5154661AB

Warranty

LIMITED LIFETIME WARRANTY (limited to qualifying Rancho® products only)*

Tenneco warrants qualifying Rancho® products against defects in materials or workmanship (except finish) when used under normal operating conditions for as long as the products are installed on, and the original purchaser owns, the original vehicle on which they were installed.

LIMITED LIFETIME WARRANTY QUALIFYING PRODUCTS:

Rancho® quickLIFT™
Rancho® RS5000™ Shock Absorbers
Rancho® RS5000X™ Shock Absorbers
Rancho® RS9000XL™ Shock Absorbers
Rancho® RS7000MT™ Monotube Shock Absorbers
Rancho® Light Truck Suspension Components

1-YEAR LIMITED WARRANTY

Rancho® RockGear™ products carry a 1-Year Limited Warranty against defects in materials or workmanship (except finish).

90-DAY LIMITED WARRANTY

Rancho® RS9000XL™ extended length and coil-over shock absorbers carry a 90-Day Limited Warranty against defects in materials or workmanship (except finish).

*Tenneco’s obligation under the Limited Lifetime Warranty, 1-Year Limited Warranty and 90-Day Limited Warranty is limited to replacement of the defective or worn-out product (except finish) with the same (or substantially comparable) product in accordance with this warranty. Cost of removal and installation are not included, and any incidental and consequential damages are excluded under this warranty, regardless of when the failure occurs. The warranties do not apply to products which have been modified, improperly applied or installed on vehicles used for commercial or racing purposes. Further, these warranties are limited to use on privately owned passenger cars or light trucks. The warranties do not apply to extended length shock absorbers or products not specifically listed for applied vehicle. The warranties do not apply to normal wear components, including, but not limited to, suspension bushings, tie rod ends, ball joints or spherical rod ends.

All other warranties not specifically set forth herein, express or implied, are hereby expressly disclaimed to the extent permissible by applicable law. The applicable warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Any implied warranties you may have under state law that may not be disclaimed are limited to the same duration as the applicable warranty set forth herein. Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusion may not apply to you.

Tenneco will contact warranty-serviced consumers to conduct customer satisfaction surveys relating to product and warranty service. Survey activity will provide valuable feedback and help measure the level of consumer satisfaction in different markets.
