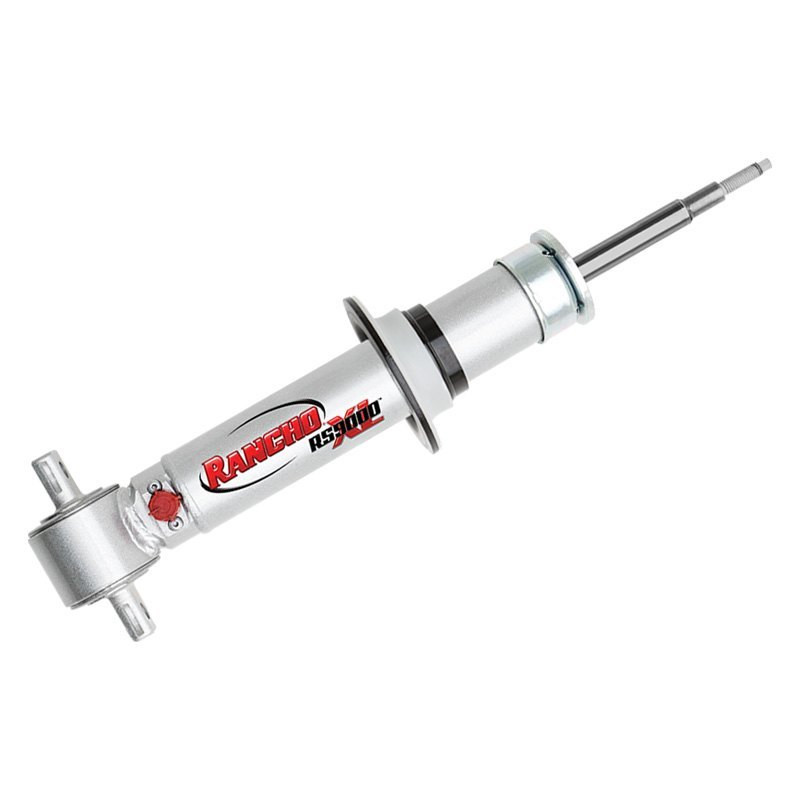

Rancho® RS999786 - RS9000™XL Front Driver or Passenger Side Triple-Tube Strut

9 reviews|Item # mpn1937532
Vehicle Specific
    Select Vehicle
    Notes:
    • It’s recommended to replace shock or strut in pairs (passenger and driver side at the same time)
    • Must Use with Rancho RS6582B System
    Replaces Original (OE) Part #:20810270, 15945872, 19300071, 19300072, 25979393, 25979394, 15924688, 19300040, 25885470, 15886465, 15909491, 15911938, 15918522, 25845438, 25845446, 25845447, 25888675, 25888683, 25888684, 25940740, 20955514, 20955506, 20955498, 15903323, 20955486, 20955497, 22811854, 20955409, 20955408, 22811853, 22811847, 22811852, 20958798, 20765184, 22811846, 20955430, 20955513, 22811855, 25876876, 20765177, 22811845, 20955500, 20958799, 20955487, 20765171, 15846889, 20955495, 20765189, 15935562, 15810161, 25980102, 25871024, 25870984, 20955404, 25871215, 25871030, 25871217, 25871023, 25870990, 22811844, 20955428, 20955407, 25876834, 25871233, 20955413, 25871229, 25871236, 25871240, 25871234, 20833675, 20955414, 25871231, 15935565, 20765185, 25871036, 20955415, 25870986, 20955417, 25871227, 25871225, 25871206, 15918526, 15869657, 20836653, 15886467, 25871212, 20833674, 25888677, 19300036, 20955425, 15839304, 20955405, 25845442, 20955422, 15909490, 25870258, 15815523, 20955406, 15918524, 15909489, 25845445, 25876873, 25870987, 25821027, 20823621, 15926834, 15903305, 20833673, 25871019, 25888679, 15903327, 15911937, 15839302, 25870892, 15939373, 20810264, 25871230, 15905101, 15130478, 25888678, 19300070, 19300037, 15905104, 20955427, 25888682, 25871035, 15911939, 15905103, 25821028, 25876878, 25888676, 15926836, 25876832, 25870256, 25871222, 22853793, 25845441, 15918523, 25870894, 20810269, 15788279, 25979389, 20833778, 25979392, 25871432, 25871207, 25979396, 15130480, 19300038, 20813756, 25885468, 22811843, 25871025, 15926846, 25871226, 25871228, 15926864, 25870890, 25845444, 15922867, 20810265, 15797190, 15903315, 15903303, 15918521, 19300039, 25888674, 25888681, 15815632, 20824497, 25845439, 25796769, 19300068, 25888680
    Authorized Dealer
    $182.74 + Save an extra $9.10
    In Stock (28) - Ships within 24 hrs
    See similar products
    Have a Question? Ask a Specialist
    888-903-4343Live Chat

    Vehicle Fitment

    Chevy
    GMC

    Specifications

    Finish
    Liquid Metallic
    Body Type
    SS7
    Compressed Length
    18.96"
    Extended Length
    22.80"
    Stroke Length
    3.84"
    Body Length
    18.46"
    Dust Shield
    No
    Extended Bumper Stop
    No
    Compressed Bumper Stop
    No
    Lower Mounting
    Eyelet
    Upper Mounting
    Stud
    Extended Hydraulic Lockout
    No
    Reserve Tube Diameter
    2.13"
    Body Diameter
    2.75"
    Piston Rod Diameter
    0.71"
    Piston Diameter
    1.25"
    Adjustable Valving
    Yes
    Boot Color
    Red
    Boot Included
    Yes
    Bushing Color
    Red
    Bushing Material
    Polyurethane
    Gas Charged
    Yes
    Internal Design
    Triple-tube
    Quantity
    Sold individually.
    Remanufactured
    No
    Ride Height
    Stock

    Features

    • Triple-Tube internal design
    • Large, tri-tube body: Increased fluid capacity to operate cooler
    • Large, heavy-duty Nitro-Carb rod: Increases scuffing resistance & corrosion protection
    • 9-position tuning technology: Allows for optimal performance in any environment
    • 9-Position adjustment knob: Provides a clear understanding of tuning level
    • Gas pressurization of shock: Minimizes air-to-oil mixture
    • Graphite-filled, Fluon banded piston: Provides smoother piston travel & greater responsiveness
    • 1-1/4-in. Diameter Sintered Iron piston: Brings increased structural conformity
    • Rebound Bumper: Helps control the rebound motion during harsh driving conditions
    • Low-Friction, self-lubricating seal: Provides an extra layer of defense against dirt & debris
    • Liquid metallic finish: Premium long lasting finish
    • Protective boot: Added protection for the shock rod and oil seal
    • Double-welded loops: Added strength and durability
    • Limited Lifetime Warranty

    Product Details

    RS9000™XL Front Driver or Passenger Side Triple-Tube Strut for 4.0" Lifted Vehicles for Rancho PN RS6582B System (RS999786) by Rancho®. Quantity: 1 per Pack. Added Protection for the Strut Rod and Oil Seal. Gas Charged Unit - Strut Rod Will Extend Automatically, Performs Like 9 Shocks in 1Flexible Pkg, Quickly Adapt To Any Driving Condition. RS9000 XL 9-position adjustable series delivers nine levels of performance to on- and off-road car recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000 XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations.

    Rancho® - SpecificationsRancho® - WarrantyMade In USARancho Authorized DealerCatalogAbout us
    Brand:
    Rancho
    Part Number:
    RS999786
    UPC:
    039703097864
    OE Numbers:
    20810270, 15945872, 19300071, 19300072, 25979393, 25979394, 15924688, 19300040, 25885470, 15886465, 15909491, 15911938, 15918522, 25845438, 25845446, 25845447, 25888675, 25888683, 25888684, 25940740, 20955514, 20955506, 20955498, 15903323, 20955486, 20955497, 22811854, 20955409, 20955408, 22811853, 22811847, 22811852, 20958798, 20765184, 22811846, 20955430, 20955513, 22811855, 25876876, 20765177, 22811845, 20955500, 20958799, 20955487, 20765171, 15846889, 20955495, 20765189, 15935562, 15810161, 25980102, 25871024, 25870984, 20955404, 25871215, 25871030, 25871217, 25871023, 25870990, 22811844, 20955428, 20955407, 25876834, 25871233, 20955413, 25871229, 25871236, 25871240, 25871234, 20833675, 20955414, 25871231, 15935565, 20765185, 25871036, 20955415, 25870986, 20955417, 25871227, 25871225, 25871206, 15918526, 15869657, 20836653, 15886467, 25871212, 20833674, 25888677, 19300036, 20955425, 15839304, 20955405, 25845442, 20955422, 15909490, 25870258, 15815523, 20955406, 15918524, 15909489, 25845445, 25876873, 25870987, 25821027, 20823621, 15926834, 15903305, 20833673, 25871019, 25888679, 15903327, 15911937, 15839302, 25870892, 15939373, 20810264, 25871230, 15905101, 15130478, 25888678, 19300070, 19300037, 15905104, 20955427, 25888682, 25871035, 15911939, 15905103, 25821028, 25876878, 25888676, 15926836, 25876832, 25870256, 25871222, 22853793, 25845441, 15918523, 25870894, 20810269, 15788279, 25979389, 20833778, 25979392, 25871432, 25871207, 25979396, 15130480, 19300038, 20813756, 25885468, 22811843, 25871025, 15926846, 25871226, 25871228, 15926864, 25870890, 25845444, 15922867, 20810265, 15797190, 15903315, 15903303, 15918521, 19300039, 25888674, 25888681, 15815632, 20824497, 25845439, 25796769, 19300068, 25888680
