Name: Revolution Gear & Axle® GM10-342DC - Dry 2 Cut Ring and Pinion Gear Set
Brand: Revolution Gear & Axle
SKU: mpn4510235848
Price: 238.99 USD
Availability: InStock

Vehicle Fitment

Buick

Cadillac

Chevy

GMC

Hummer

Specifications

Ratio	3.42
Material	8620 Steel
Ring Gear Rotation	Standard
Ring Gear Bolt Holes Type	Single Drilled
Ring Gear Bolt Type	10 x 7/16"
Pinion Spline Quantity	30

Features

Made to promote and inspire your off-road adventures
Tested in demanding off-road conditions for maximum durability
Built for maximum strength and endurance

Product Details

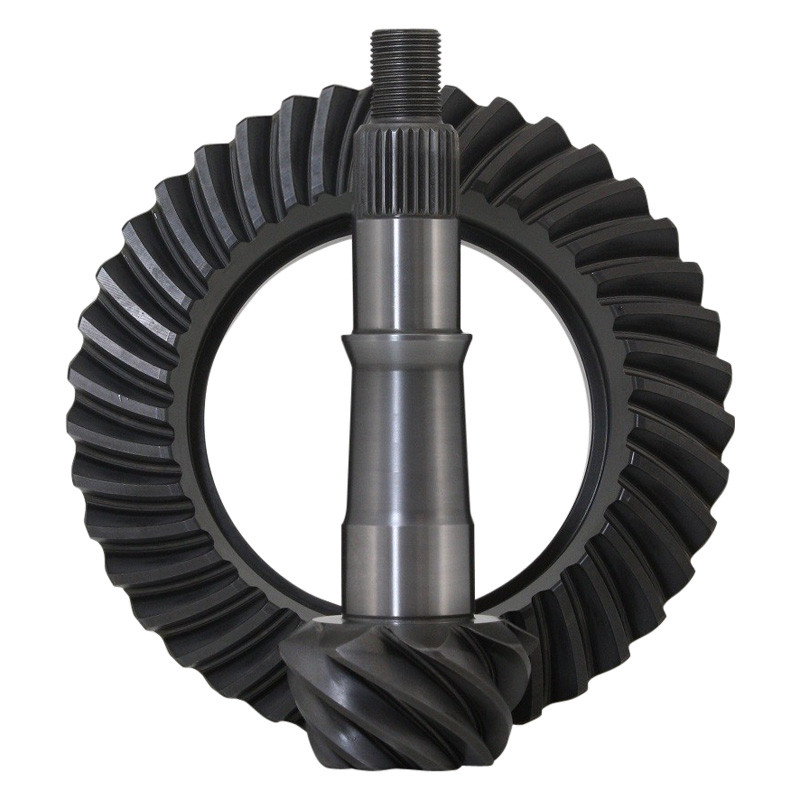

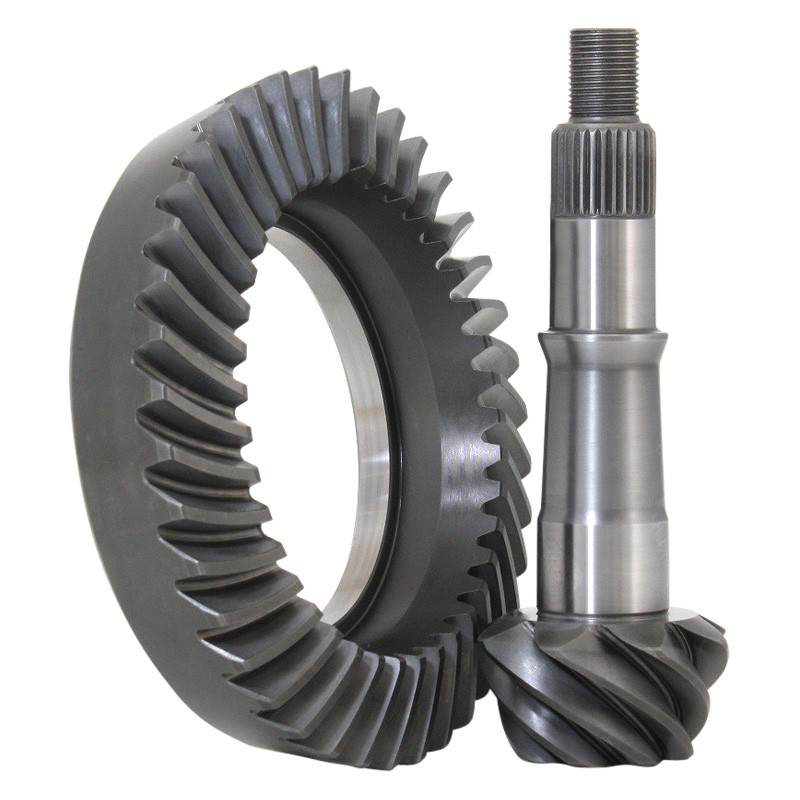

Dry 2 Cut Ring and Pinion Gear Set (GM10-342DC) by Revolution Gear & Axle®. Revolution Gear GM 8.5 Inch (1970 and Up) 10 Bolt Ring and Pinion Gear sets utilize the same gear cutting methods as the Original Equipment manufacturers, employing a Dry 2-Cut process producing the absolute quietest 8.5 Inch gear available with optimal surface finish and contact patterns. All Revolution gear sets are made from the highest quality steel and are precision heat treated to OEM specifications, making for the best aftermarket gears available. All Revolution Ring and Pinion sets are backed by an industry leading 2 Year Warranty against defects. Revolution Gear's precisely controlled manufacturing processes create a flawless setup, smooth operation and longer gear life. With products that have been Street, Off Road and Race proven, you can count on Revolution Gear & Axle products to be the most trusted in the aftermarket.

Installation

Revolution Gear & Axle® - Dry 2 Cut Ring and Pinion Gear Set - Instruction Sheet

Revolution Gear & Axle® - Dry 2 Cut Ring and Pinion Gear Set - Specifications Revolution Gear & Axle® - Dry 2 Cut Ring and Pinion Gear Set - Instruction Sheet Revolution Gear & Axle Authorized Dealer

Brand:

Revolution Gear & Axle

Part Number:

GM10-342DC

UPC:

810038583570

Alternate MPN:

GM10342DC

Warranty

Revolution Gear & Axle warrants the original retail purchaser that all products will be free from defects in materials and workmanship for the periods shown below. Revolution Gear & Axle makes no other warranty of any kind, express or implied. All other warranties, including but not limited to an implied warranty of merchantability or fitness for a particular purpose, are excluded. This warranty is offered provided that the Revolution Gear & Axle product has been installed and maintained correctly, and that it has not been subject to modification, accident, abnormal use or misuse.

This warranty does not cover, and Revolution Gear & Axle shall not be liable for, incidental or consequential damages, including loss of time, road service charges, labor charges, inconvenience, loss of vehicle use, loss of revenues, or loss or damage to personal property (including loss or damage to vehicle parts due to the failure of Revolution Gear & Axle product).

Ring & Pinions - Two-Year Warranty against manufacturing defects
USA Made Front & Rear Axles - Limited Lifetime Warranty against manufacturing defects and breakage. This warranty is non-transferable. Warranty covers axle shaft only
Discovery Series Front & Rear Axles - Ten-Year Warranty against manufacturing defects. This warranty is non-transferable
Rear Axles - Ten-Year Warranty against manufacturing defects. This warranty is non-transferable
Installation Kits - One-Year Warranty against manufacturing defects
Differential Covers - One-Year Warranty against manufacturing defects

Exclusion: RAG12P128, RAF88T103R, C9.25-488D - Three-Year Limited Warranty against manufacturing defects.
