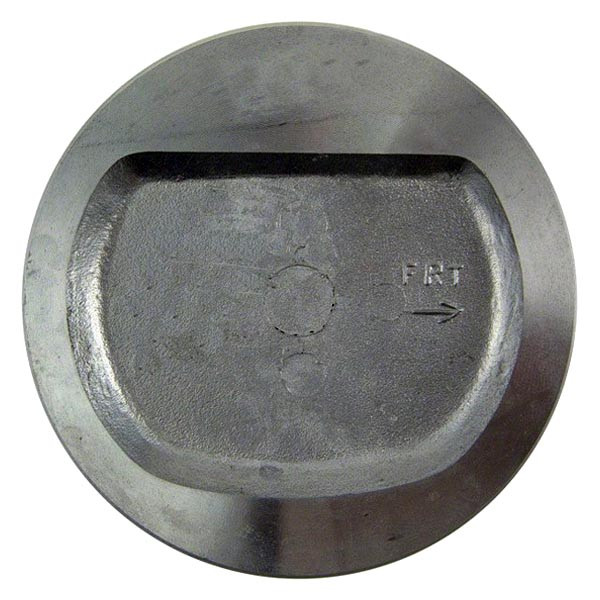

Name: Sealed Power® WH802CP - DUROSHIELD Cast Piston
Brand: Sealed Power
SKU: mpn45036935
Price: 53.25 USD
Availability: InStock

Vehicle Fitment

Jeep

Specifications

Bore	3.8750"
Bore	99 mm
Compression Distance	1.592"
Dome Volume CC	-5
Head Illustration	12
Lock Ring	Included
Material	Hypereutectic
Minimum Clearance	See Piston Fitting Information on carton label
Pin Diameter	0.931"
Pin Diameter	23.647 mm
Pin Offset	0.06"
Pin Offset	1.524 mm
Pin Type	F
Pin Weight Gram	159
Ring 1 Qty	2
Ring 1 Width	1.50mm
Ring 2 Qty	1
Ring 2 Width	4.00mm
Size	Standard
Weight W Pin Gram	00564.+/- 00.
Weight w/o Pin Gram	567

Features

Reduce friction for increased fuel economy and horsepower
Essentially eliminate scuffing and wear
Prevent damage from inadequate lubrication, especially at start-up
Improve cylinder sealing for less blow-by and more power
Require no increase in skirt clearance

Product Details

DUROSHIELD Cast Piston by Sealed Power®. Available on both hypereutectic and POWERFORGED pistons, DUROSHIELD is an exclusive moly-graphite skirt coating that extends engine life and essentially eliminates scuffing. This technologically advanced coating is precisely applied to the piston through a computer-controlled process.

Sealed Power® - Catalog 2014 Made In USA Sealed Power Authorized Dealer

Brand:

Sealed Power

Part Number:

WH802CP

UPC:

614046660496

OE Numbers:

4798329, 53020507

Warranty

Sealed Power warrants its products to be free from defects in materials or workmanship for a period of 12 months. The warranty period begins on the date the product is delivered. The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance. During the warranty period, Sealed Power will repair or replace, at no charge, a product that is defective in materials or workmanship. Sealed Power reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
