Name: Spectra Premium® - A/C Compressor
Brand: Spectra Premium
SKU: mpn5302580654
Price: 211.84 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

Vehicle Fitment

Mack

Volvo

Specifications

Clutch Included	Yes
Compressor Type	SD7H15
Connector Quantity	2
Connector Shape	Block Fitting Female
Discharge Port Inside Diameter	0.5625 in
Discharge Port Inside Diameter	15 mm
Distance Between Mounting Holes	128 mm
Mounting Hole Quantity	4
Mounting Type	Tangent Mount
Pulley Belt Type	Serpentine
Pulley Groove Quantity	8
Pulley Lip Diameter	185 mm
Pulley Lip Diameter	7.3125 in
Pulley Ridge Diameter	180 mm
Pulley Ridge Diameter	7.0625 in
Refrigerant Type	R134A
Suction Port Inside Diameter	0.6875 in
Suction Port Inside Diameter	18 mm
Terminal Quantity	1

Features

100% product performance tested
Packaged to ensure product quality at installation
Extensive line coverage
Continually reviewing the availability of all new compressors to the market to ensure company line coverage remains one of the extensive in the aftermarket
All compressor families are long term tested (500 hours) to ensure product quality and durability
All compressors are built to meet or exceed manufacturer's specifications
Product manufactured under ISO 9001 / TS 16949 certified quality systems
1 year or 12,000 miles / 20,000 Km

Product Details

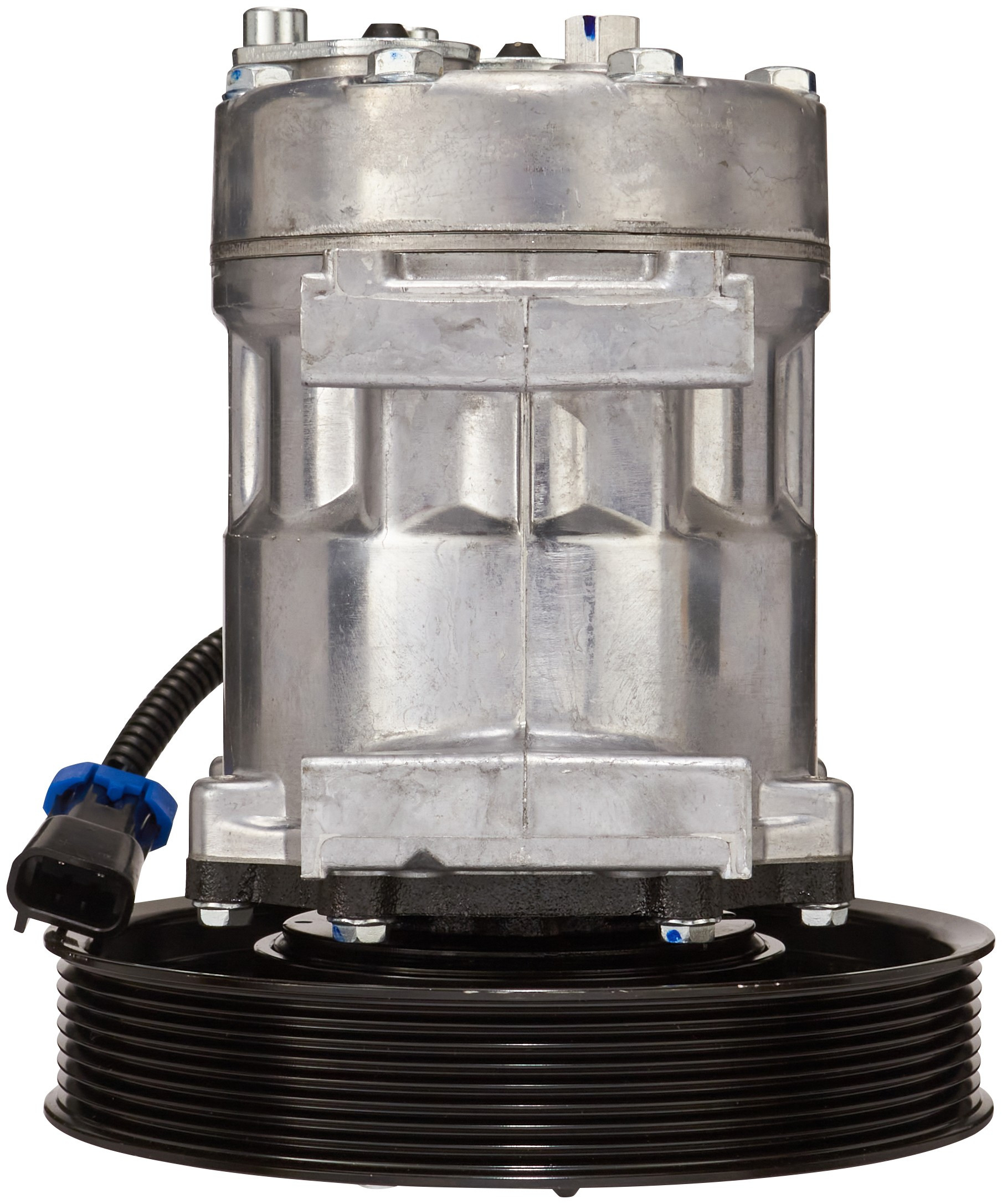

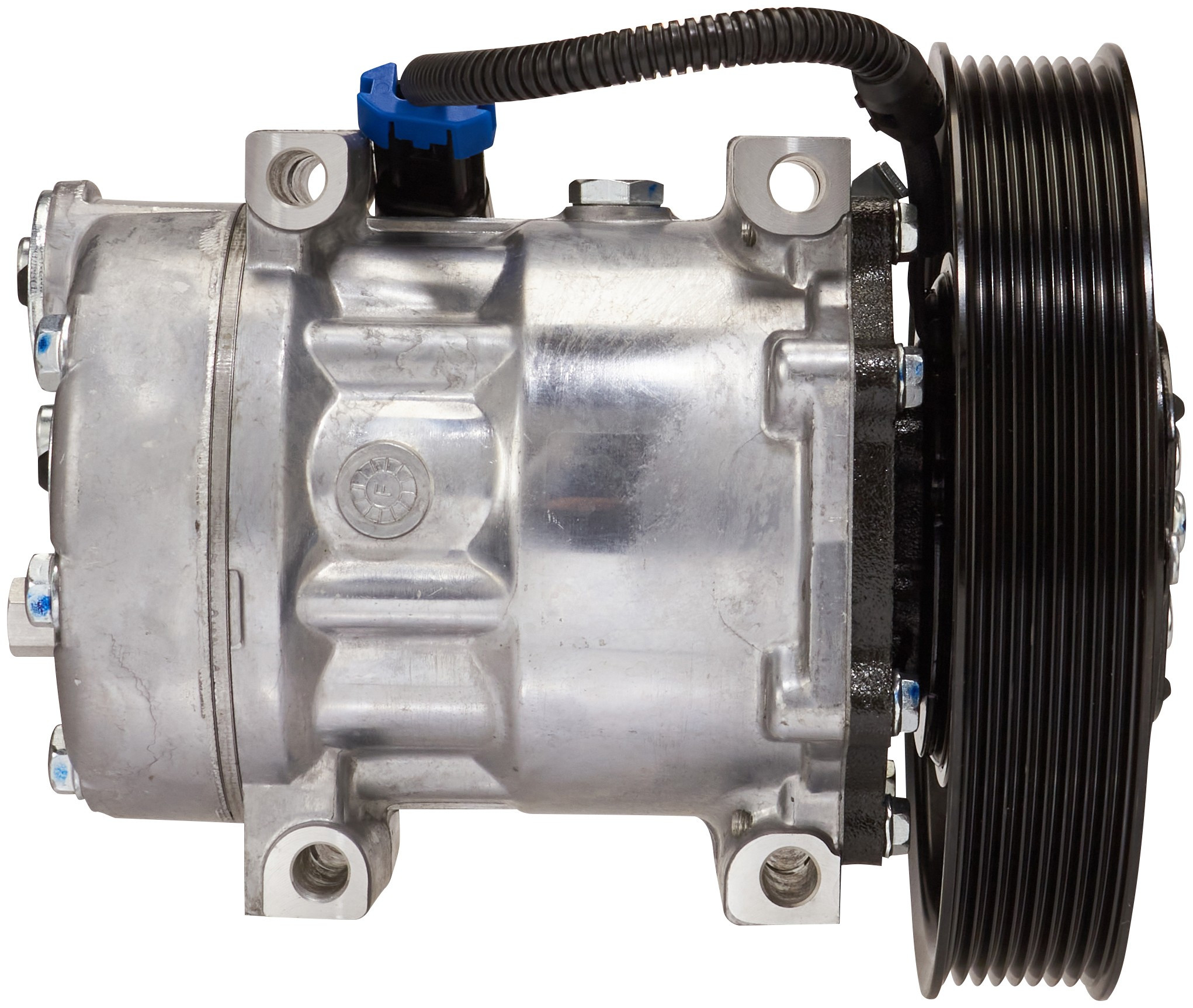

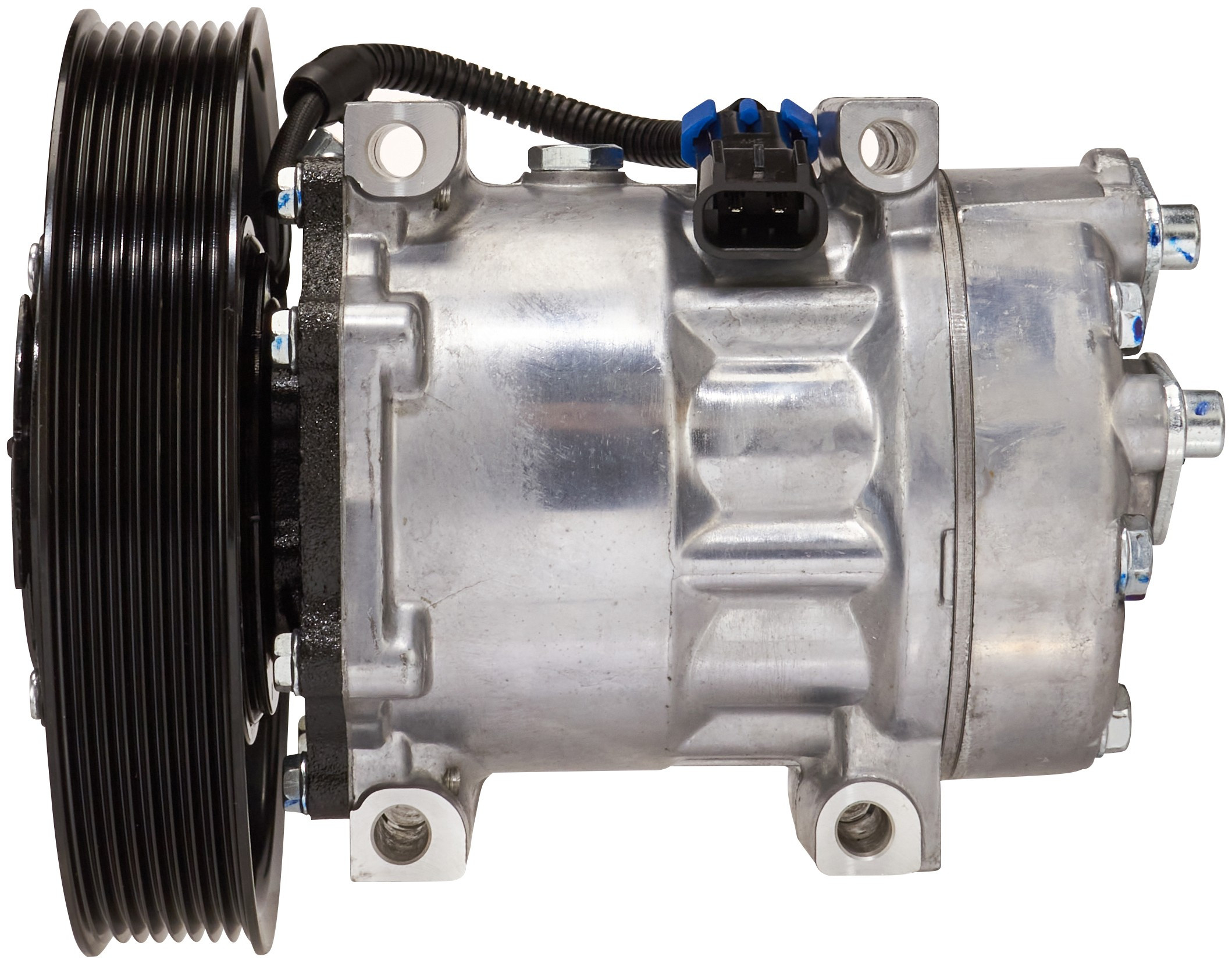

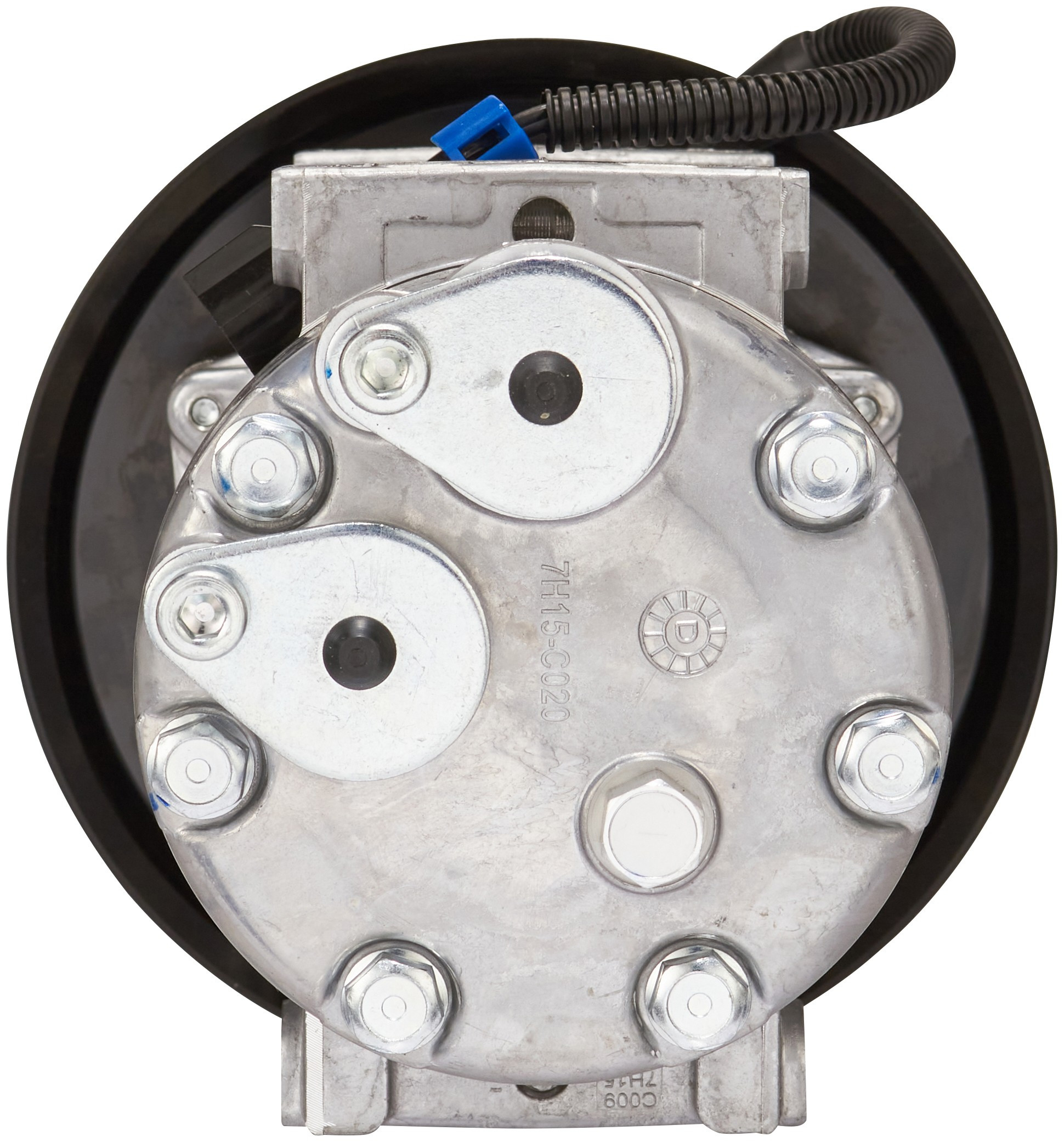

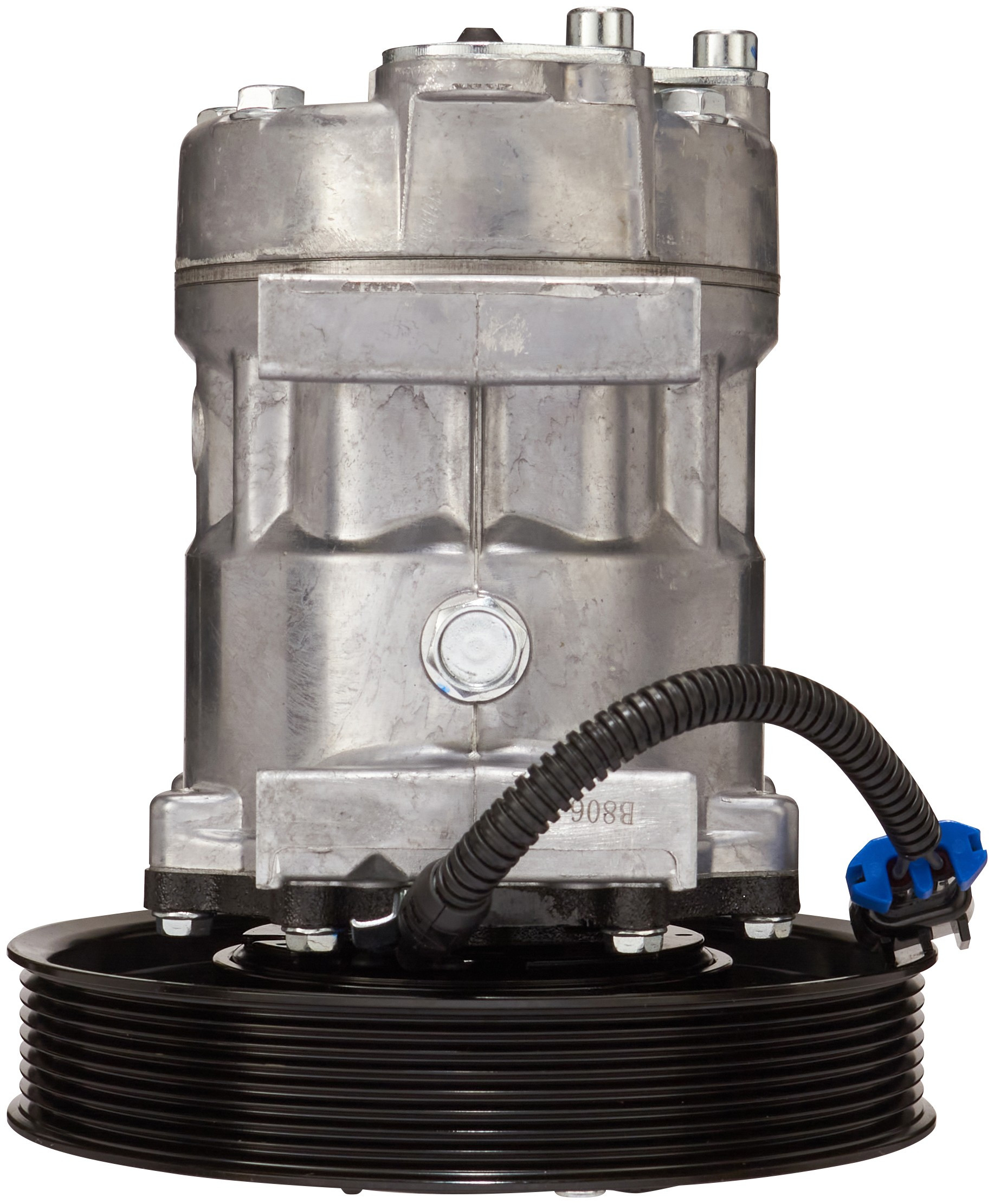

A/C Compressor by Spectra Premium®. With Clutch. Driven by a belt from the engine, the A/C compressor pumps refrigerant through the A/C system when the clutch is engaged. If testing proves that the compressor in your vehicle is faulty, restore A/C operation and performance with this Spectra Premium Compressor that meets or exceeds OE performance.

Installation

Spectra Premium® - Installation Instructions

The main function of an A/C compressor is to take in low pressure refrigerant gas at the compressor inlet and compress it into a high-pressure, high temperature gas, which is sent to the condenser. It must be replaced if it leaks or is mechanically damaged from lack of lubrication caused by no oil, contaminated oil, and sludge, or hydraulic lockup caused by liquid refrigerant entering the compressor or excessive oil in the refrigerant. If symptoms and testing proves that the compressor in your vehicle is faulty, restore A/C operation and performance with this Spectra Premium Compressor.

Innovative engineering, manufacturing technology and quality control ensure that this Spectra Premium compressor meets or exceeds the performance of the original unit it replaces. The product is professionally tested and carefully packaged to ensure the A/C compressor is ready for installation. Manufactured under ISO 9001 / TS 16949 certified quality systems, this compressor is ready to meet the most rigorous demands for quality and function.

Spectra Premium® - Installation Instructions Spectra Premium® - Features Important! Spectra Premium® - A/C Compressor Technical Notice Spectra Premium® - Guide Spectra Premium® - Warranty Spectra Premium® - Information Spectra Premium Authorized Dealer

Brand:

Spectra Premium

Part Number:

0690009

OE Numbers:

82768117

Warranty

Spectra Premium warrants its climate control products, new or remanufactured, to be free from defects in material and workmanship for a period determined in this warranty from the date of installation or date of purchase. The sole liability of Spectra Premium, under this warranty, is to replace or repair such climate control products following its return to Spectra Premium or Spectra Premium’s authorised dealers, together with the original invoice for the climate control product.

This warranty covers any climate control produc2ts furnished from Spectra Premium but does not include labour of any kind or materials not furnished by Spectra Premium or any charge for any such labour or materials.

This warranty does not apply to any equipment which has been repaired or altered outside the factories of Spectra Premium Industries in any way so as, in the judgement of Spectra Premium to affect the stability of the product.

This warranty does not apply to products which have been subjected to misuse, negligence, and / or operating conditions in excess of those for which such equipment was designed and / or deemed defective by Spectra Premium as a result of the physical or chemical effects of water, steam or other liquids, gases or agents present in the system operating environment of the equipment or the failure of the vehicle warning system.

Warranty Coverage

Compressors for passenger cars and light duty vehicles are covered for a period of 1 year or 12,000 miles / 20,000 Km, whichever comes first, from the date of installation
Condensers are covered for a period of 2 years or 24,000 miles / 40,000 Km, whichever comes first, from the date of installation
Heater cores are covered for a period of 1 year or 12,000 miles / 20,000 Km, whichever comes first, from the date of installation
Evaporators are covered for a period of 1 year or 12,000 miles / 20,000 Km, whichever comes first, from the date of installation
Blower motors are covered for a period of 1 year or 12,000 miles / 20,000 Km, whichever comes first, from the date of installation
Equipment and service items are covered for a period of 120 days
Fluorescent and electronic leak detectors, electronic thermometers are covered for a period of 1 year from the date of purchase
All other Climate Control products are covered for a period of 120 days

The warranty for compressors will be denied if the following conditions are not followed (refer to compressor literature in box):

1. R-134a is the only approved refrigerant for all Spectra Premium compressors. Use of any other refrigerant will void the warranty.

2. The accumulator / filter drier must be replaced in conjunction with a compressor and/or condenser replacement.

3. The compressor clutch air gap must be verified prior to installation on the vehicle (refer to OEM specifications).

4. The specific and proper type of oil (see manufacturer’s specifications) should be inserted through the suction port of the compressor or oil plug. With the help of a spanner wrench turn the compressor shaft (not the clutch) 10 to15 times to help properly distribute the oil throughout the compressor and prevent hydraulic lockup.

5. The A/C system must be held under vacuum for a minimum of 45 minutes.

6. The fan clutch or radiator fan motor must be checked for proper operation.

7. For applications using an orifice tube or liquid line containing an orifice tube, the orifice tube must be replaced (installation of an orifice tube repair kit is also valid).

8. If the system has an expansion device (expansion valve) the technician must inspect and clean the filter screen or replace the valve if necessary.

9. The A/C system must be flushed with an approved flushing solvent. The only accepted option to flushing is the installation of an in-line filter or compressor suction screen (providing the refrigerant oil is not contaminated).

10. Condenser and radiator airflow must be cleared of any obstruction or restrictions. Clean and realign bent fins. The technician may need to replace the condenser in specific applications or situations (refer to compressor literature in box).

11. Spectra Premium requests that all parallel flow condensers be replaced when a compressor fails (the condenser design prevents a thorough cleaning and debris will cause system restrictions).

Replacement or repair of the climate control product by Spectra Premium shall be the only remedy available to a purchase under this warranty. Spectra Premium shall not be liable for any consequential or incidental damages of any kind resulting from the use or misuse of these or other products.
