Superwinch® 1455200 - 5,500 lbs S series Electric Winch with Steel Cable

Name: Superwinch® 1455200 - 5,500 lbs S series Electric Winch with Steel Cable
Brand: Superwinch
SKU: mpn4647937003
Price: 781.99 USD
Availability: InStock

0 reviews|Item # mpn4647937003

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$781.99

In Stock (31) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Rated Line Pull	5,500 lbs
Motor	3.6hp (2.7 kW)
Gearing	3-Stage Planetary
Gear Ratio	185:1
Solenoid	Sealed and Breaker Protected

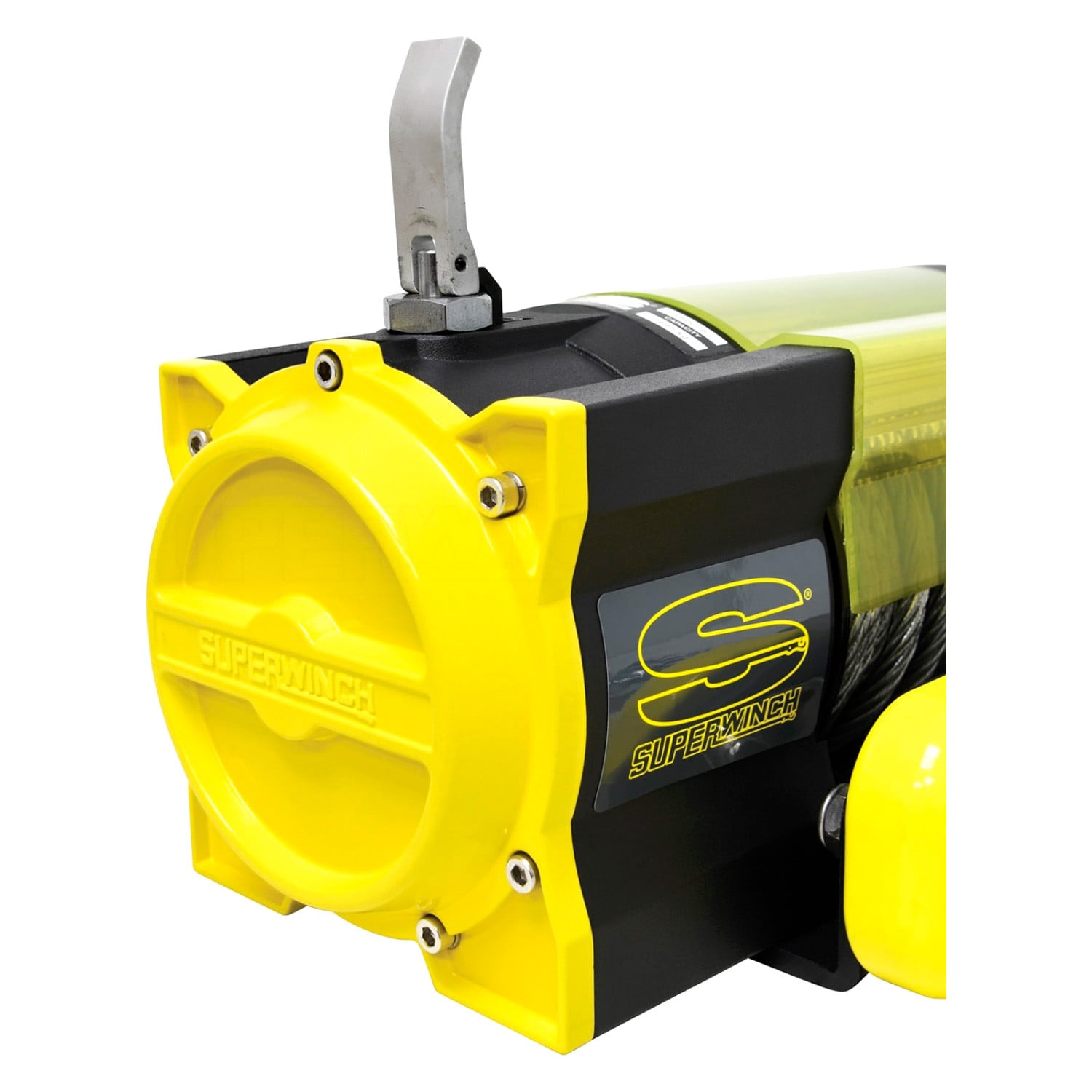

Clutch	Innovative "kick-flip" lever
Brake	100% Load Holding

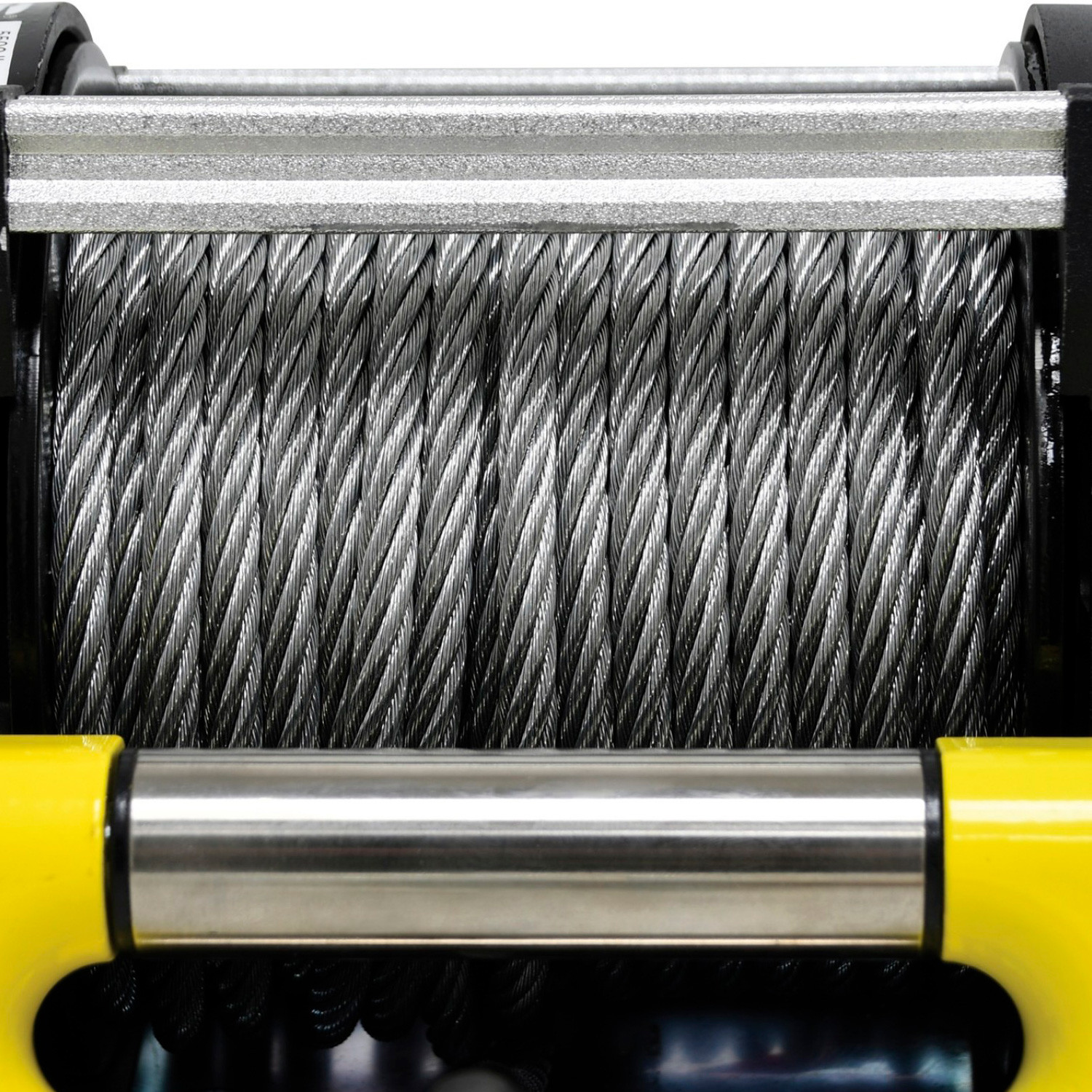

Cable	9/32" x 60' (7.1 mm x 18.3 m)
Hook	Heavy-Duty, Clevis Pinned Latch
Fairlead	Exclusive Roller-Hawse

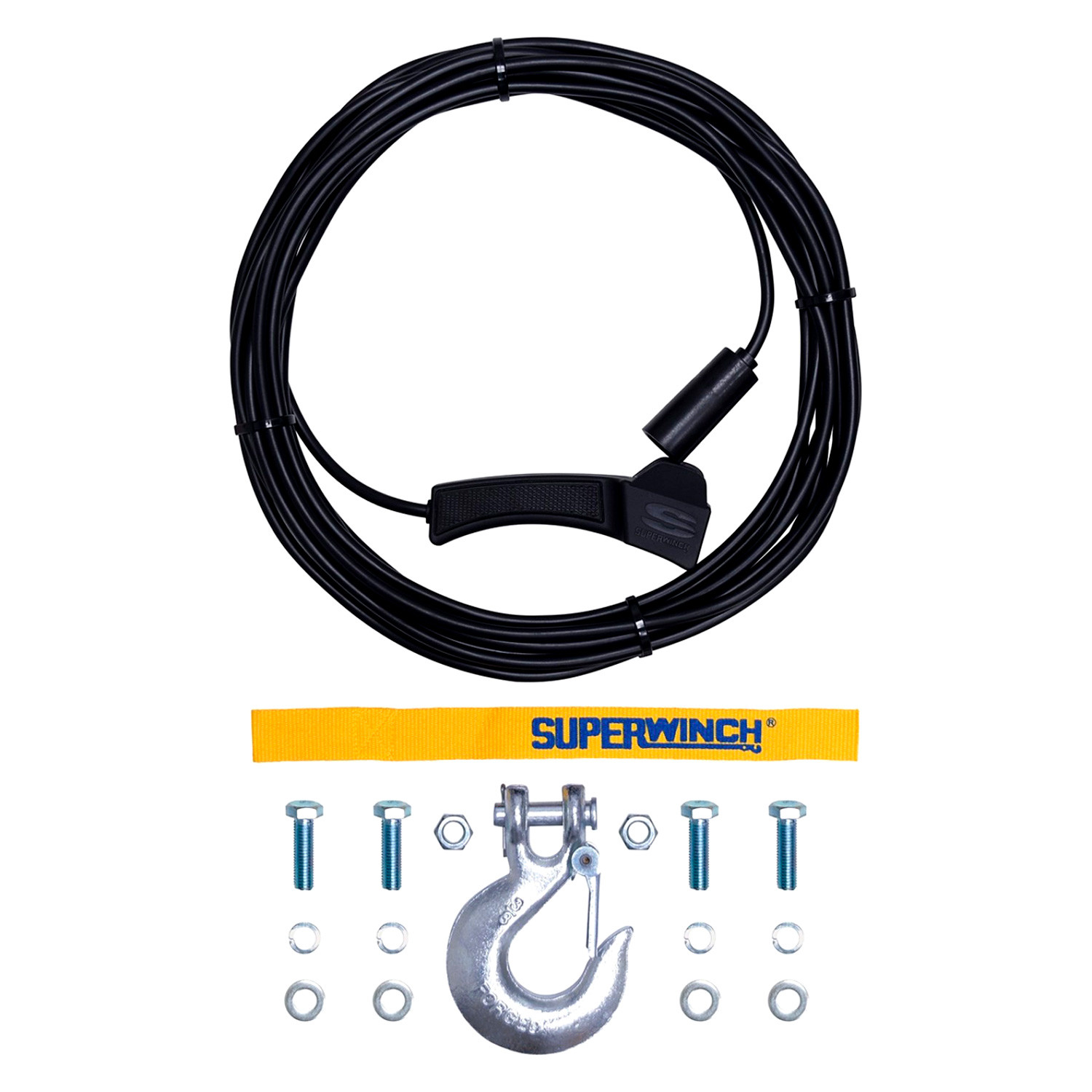

Remote	30' Custom Rocker Remote
Drum Length	4.87" (123.7 mm)
Installed Weight	51 lbs (23.1 kg)
Line Pull	0 lbs 50 Amps Motor Draw / 24 FPM (7.3 MPM)
Line Pull	5500 lbs 340 Amps Motor Draw / 5 FPM (1.5 MPM)
Mounting	2 or 4 bolt, 5' Battery leads, 5 AWG
Warranty	Limited Lifetime Warranty / 3 Year on Solenoid
Additional Info	Drum Barrel Diameter 2.5" (63.5 mm)

Features

High quality at an affordable price
Expertly made from premium materials
Built to match your exact requirements

Product Details

Universal 5,500 lbs S series Electric Winch with Steel Cable (1455200) by Superwinch®. Voltage: 12V DC. This is probably the hardest thing Superwinch has ever done. How do you improve the iconic Superwinch S Series? They added more power, more efficient gearing and a slew of bonus features to make the New S even more of a game changer than the original.

Installation

Superwinch® - Winch with Steel Cable - Installation Instructions

New to the S Series is a 3-stage planetary gearbox. The custom aluminum housing is light and strong (being able to be stepped on was part of the design spec). Freespool control now features an aluminium "kick-flip" level that can be operated by foot. Smart and simple with no parts to rust. Strong, cut steel gears power the new S Series. Extra-wide final stage gearing provides better engagement and longer tooth life.Put yourself in control of your pull like never before. From the included 30' corded rocker remote, to the FM-based wireless control to the smartphone Winch controller ROAM, there's more ways to control your Winch than ever before. Keeping it fairInnovative “Roller Hawse" with stainless steel rollers, the best of both worlds – a SuperWinch Exclusive. Smooth rollers handle the bulk of the work of keeping your Winch line centered while hawse knuckles insure even angle pulls are covered.

Superwinch® - Winch with Steel Cable - Installation Instructions Superwinch® - Winch with Steel Cable - Guide Superwinch® - Winch with Steel Cable - Information Superwinch® - Catalog Made In USA Superwinch Authorized Dealer

Brand:

Superwinch

Part Number:

1455200

UPC:

022705006002

Warranty

Superwinch, LLC. warrants to the original retail buyer only that mechanical components of the genuine SUPERWINCH®
Winch Model listed above (“Product”) shall be free from defects in materials and workmanship for (2) two years and electrical components for (1) one year from the provable date of purchase. Any Product Superwinch determines to be defective will be repaired or replaced at Superwinch’s sole discretion without charge to Buyer upon Buyer’s compliance with these procedures. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

This warranty does not apply to defects in any Product caused by: (1) normal wear and tear; (2) failure to comply with any installation, operation or maintenance instructions provided by Superwinch including but not limited to subjecting the Product to loads in excess of the load listed in the Owner’s Manual or instructions for the particular Product and model number; (3) commercial or industrial use; (4) alteration or modification by parties other than Superwinch; (5) misuse, abuse, neglect, accident, Acts of God or terrorism; or (6) other causes beyond the control of Superwinch after delivery of the Product by Superwinch to its authorized distributor. If any model or sample was shown to Buyer, such model or sample was used for illustrative purposes only and shall not be construed as a warranty that the Product shall conform to the sample or model.

To the fullest extent permitted by applicable law, the following are hereby excluded & disclaimed:
(1) All warranties with respect to the wire and synthetic rope, whether sold alone, with or used in or incorporated in any Product.
(2) All warranties with respect to the Product’s finish.
(3) All warranties of fitness for a particular purpose.
(4) All warranties of merchantability.
(5) All claims for consequential or incidental damages, including damage caused by or during the removal or reinstallation of the Product.

Some states or jurisdictions do not allow limitations or exclusions in consumer transactions, and these limitations or exclusions may not apply to Buyer.
The warranty gives Buyer specific legal rights and there may be others. If a warranty is deemed to apply to this Product, it shall be limited for a period of one (1) year from the provable date of purchase of the new Product. NO agent, dealer, distributor or employee of Seller is authorized to make modifications to this warranty, and no such statements, whether oral or written, shall be binding on the Seller. Superwinch, Inc reserves the right to change Product design without notice. In situations in which Superwinch has changed a Product design, Superwinch, Inc shall have no obligation to upgrade or otherwise modify previously manufactured product.
