TeraFlex® - Base Front and Rear Suspension Lift Kit TeraFlex® - Truly Escape

TeraFlex® 1402002 - 4.5" Base Front and Rear Suspension Lift Kit

Name: TeraFlex® 1402002 - 4.5" Base Front and Rear Suspension Lift Kit
Brand: TeraFlex
SKU: mpn4620973579
Price: 941.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 review|Item # mpn4620973579

Vehicle Specific

Notes:

Caster Correction required – not included
Sport and Sahara models require aftermarket wheels with 4.5" backspacing or less – or Offset Wheel Adapters for stock wheels – NOT included
Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35" or larger tires
Sport and Sahara models require the INCLUDED 0.5" front and 0.5" rear bump stop strike pad shims in order to fit 35" tires
Sport and Sahara models require an additional 0.5" Front and Rear Bump Stop Strike Pad Shim Kit (# 1959300) – NOT INCLUDED – in order to fit 37" tires
Rubicon models require the INCLUDED 0.5" front and 0.5" rear bump stop strike pad shims in order to fit 37" tires
Front Control Arm Sport Brackets (# 1938125) recommended to correct caster angles and restore factory geometry
Requires longer shocks - NOT INCLUDED

Authorized Dealer

$941.99

In Stock (1) - Ships Tomorrow 06.26.26

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Jeep

Specifications

Install Time	5 Hours
Max Tire Size	37"
Wheels and tires recommended parameters	Sport / Sahara (with 3" front and 2.5" rear bump stops): 35", Sport / Sahara (with 3.5" front and 4" rear bumps stops): 37", Rubicon (with 2.5" front and 3" rear bump stops: 37"
Additional Info	Without Shocks

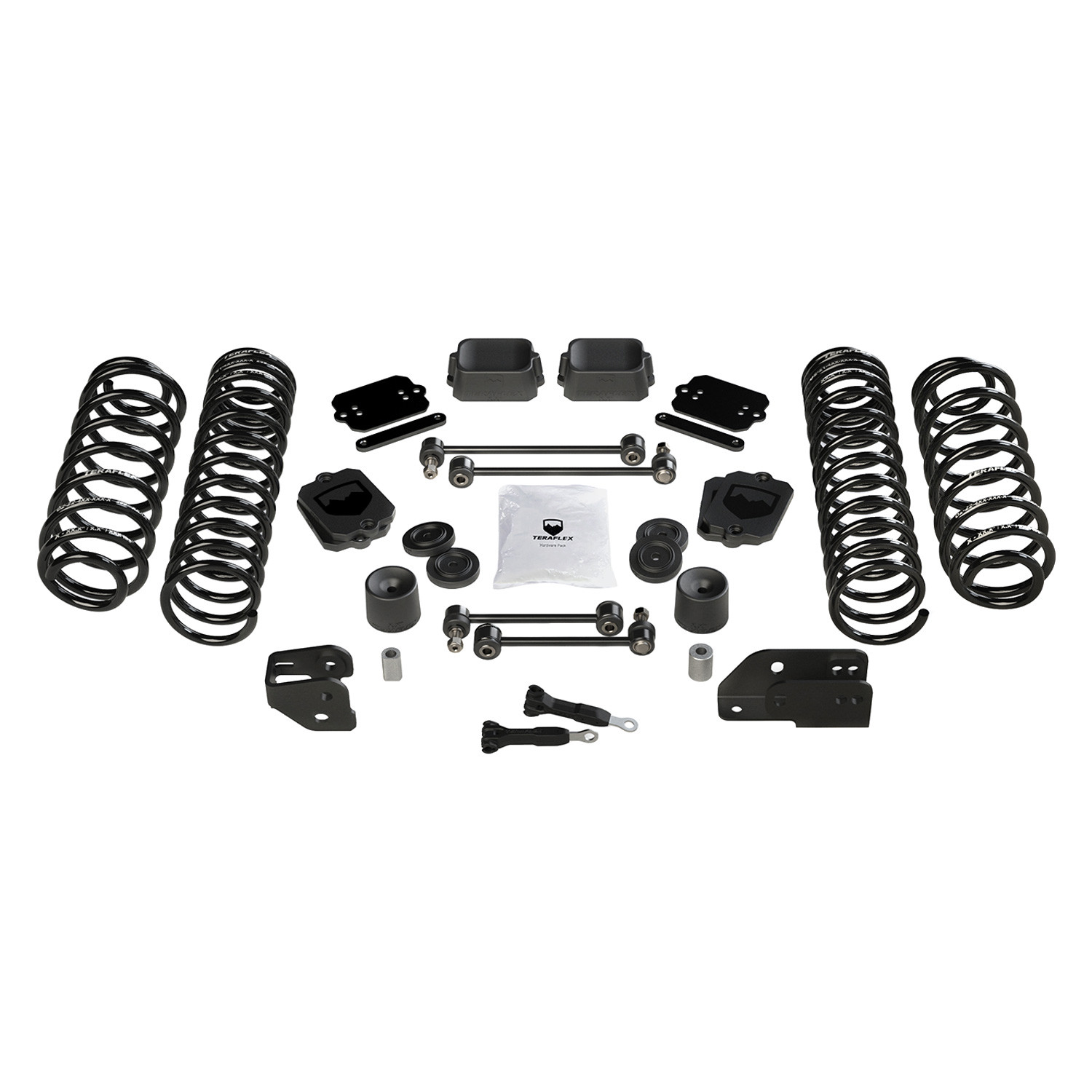

Includes

4.5" Lift Coil Springs
HD Forged Front Track Bar Bracket (Part Number 1953500)
HH Forged Rear Adjustable Track Bar Bracket (Part Number 1953600)
2" Front And Rear Bump Stop Strike Pad Kit (Part Number 1959500)
0.5" Front And Rear Bump Stop Strike Pad Shim Kit (Part Number 1959300)
Longer Front Sway Bar Links (11.5") - Pair
Longer Rear Sway Bar Links (10.75") - Pair (Part Number 744500)
Front Brake Line Anchors - Pair (Part Number 1101255)
All Necessary Hardware

Features

Improved ground clearance
Allows larger-diameter tires to clear wheel wells
Allows Jeep to climb steeper hills
Lift the body on the frame
Lift the suspension higher over the axles

Product Details

Base Front and Rear Suspension Lift Kit with 4.5" Lift Height by TeraFlex®. Max Tire Size: 37". Lift it for several good reasons, all of which will make it more capable in off-road situations. Lift it to install larger diameter tires by making more room in the wheel wells. Lift it to improve ground clearance for climbing over stumps and rocks. And lift it for the appearance and the commanding driving position, even on the street.

Installation

TeraFlex® - Base Front and Rear Suspension Lift Kit Installation Instructions

Lifting your Jeep more than an inch or so can lead to a number of issues that, fortunately, are relatively simple to address. And those new parts to fix these issues can also be parts that are sturdier and more long-lasting than the stock parts you're replacing – and that's always a good thing. Off-roading, by its very nature is harder on your vehicle than grocery-getting or commuting, so upgrading is never a bad idea. Don't forget you'll need to add some provision for helping out things like the brake lines, shift linkage and to compensate for steeper driveshaft angularity.

TeraFlex® - Base Front and Rear Suspension Lift Kit Installation Instructions TeraFlex® - Comparison TeraFlex® - Warranty TeraFlex® - FAQ TeraFlex® - Catalogs Made In USA TeraFlex Authorized Dealer Additional Information About us

Brand:

TeraFlex

Part Number:

1402002

UPC:

843885045663

Warranty

TeraFlex Inc. warrants TeraFlex products to the original retail purchaser to be free of defects in material and workmanship for as long as the original purchaser owns the vehicle on which products were originally installed unless otherwise specified. This warranty does not cover or include product finish, improperly installed or applied products, improperly maintained products, products used for racing or competition or damage due to abuse or neglect. Failure to complete regular maintenance on TeraFlex flexarms (grease every 3000 miles) will void this warranty.

All TeraLow products are warrantied to be free of defects in material and workmanship for two years from date purchased.

TeraFlex axles are covered by the TeraFlex Inc. 12-month warranty to be free of defects in materials and workmanship from date purchased.

All Falcon Shocks are warrantied to a period of three years from the original date of purchase. Upon verification, TeraFlex Inc. will repair or replace the shock absorber at no cost.
