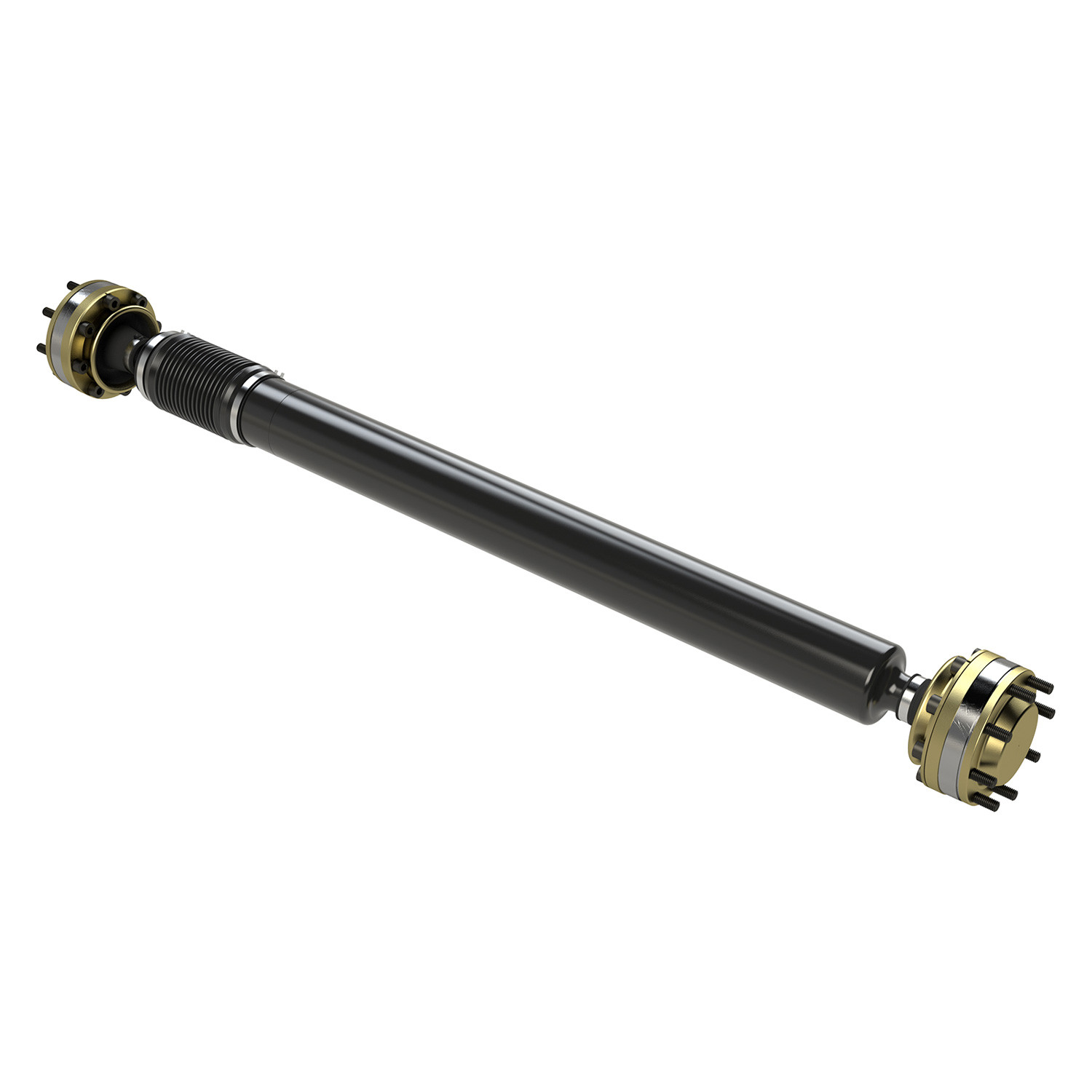

TeraFlex® 4607300 - Front CV Driveshaft

Specifications

Features

• Rzeppa style joint allows a smooth transfer of torque regardless of the joint angle
• High angle CV housing supports larger lifts & maximum articulation without joint damage
• Anti friction coating applied to splines for long term service
• Boot Sealed slip spline section provide years of maintenance free operation
• Dynamically balanced as an assembly with yokes to eliminate vibrations
• 2-3/8” carbon steel tubing for superior strength and longevity
• Black Trivalent Zinc Chromate Coating for improved corrosion resistance

Product Details

Front CV Driveshaft by TeraFlex®. The TeraFlex high angle Rzeppa CV driveline combines the smooth torque transfer of a true CV joint with the high angle misalignment of a traditional u-joint. The 2-3/8” carbon steel tubing is laser welded for precision construction to reduce harmonic vibration and further refines high RPM dynamics. The driveline is zeroed out during final assembly to provide a true centric assembly that does not require additional weights to balance. The innovative features address all of the previous shortcomings found in the factory style driveline, without sacrificing the benefits. This unique Rzeppa Joint and high angle boot are designed with the extreme angles associated with larger lift heights in mind. Unlike a U-joint style driveline, the Rzeppa joint does not experience a significant loss in strength due to high angles. This is especially important on JKs with 3 or more inches of lift.
