Transfer Flow® 0800113244 - Split Refueling Dual-Tank System

Name: Transfer Flow® 0800113244 - Split Refueling Dual-Tank System
Brand: Transfer Flow
SKU: mpn4846920028
Price: 3247.00 USD
Availability: InStock
Rating: 5 (2 reviews)

2 reviews|Item # mpn4846920028

Vehicle Specific

Notes:

Product dimensions include 3" in width for the mounting brackets and 3" in height for the filler neck
Accuracy of optional Rochester fuel gauge may be less depending upon tank shape and if tank is on a level surface. Accuracy may be less near full and empty
Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles

Authorized Dealer

$3,247.00

In Stock (14) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Chevy

Dodge

Ford

GMC

Nissan

Ram

Toyota

Features

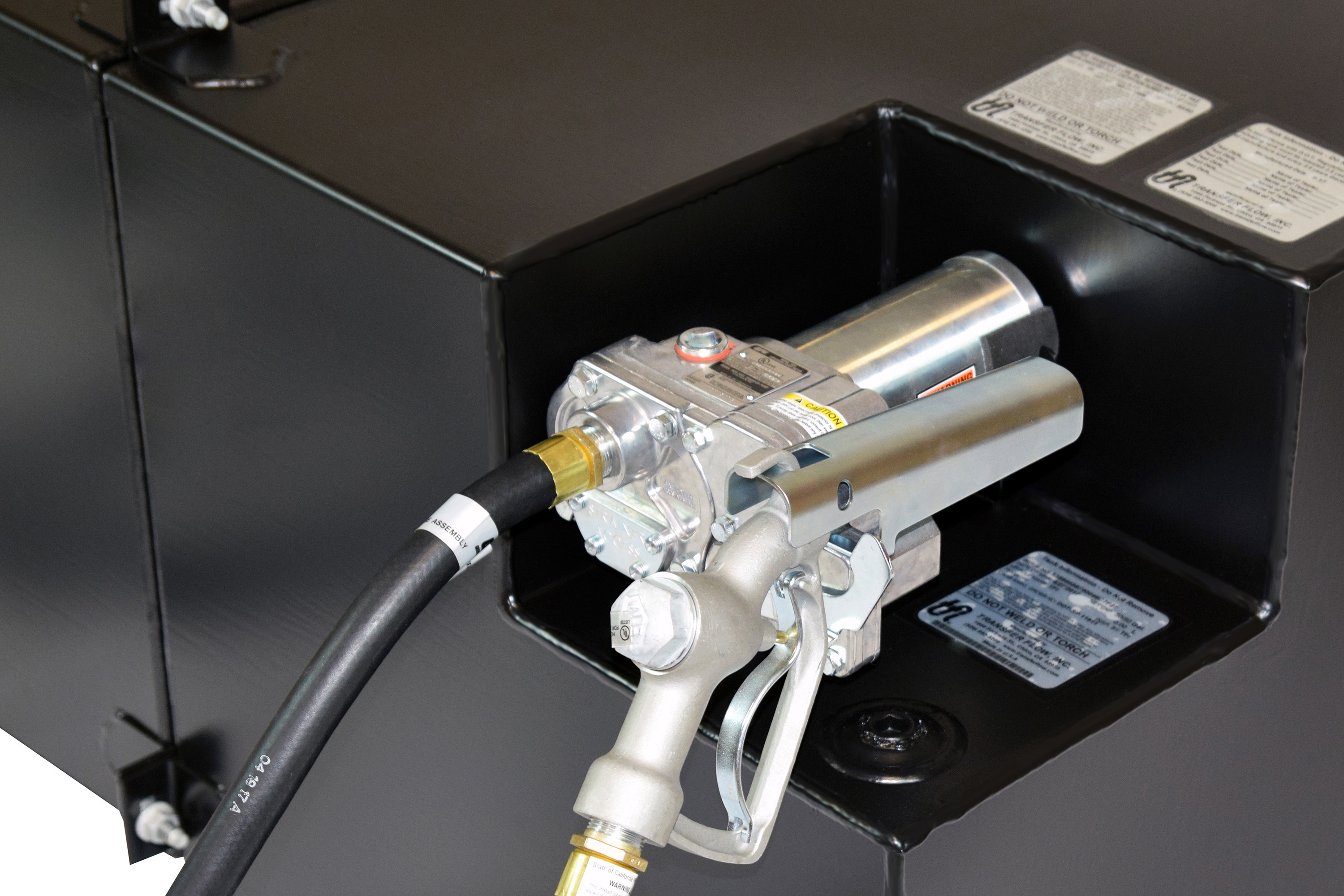

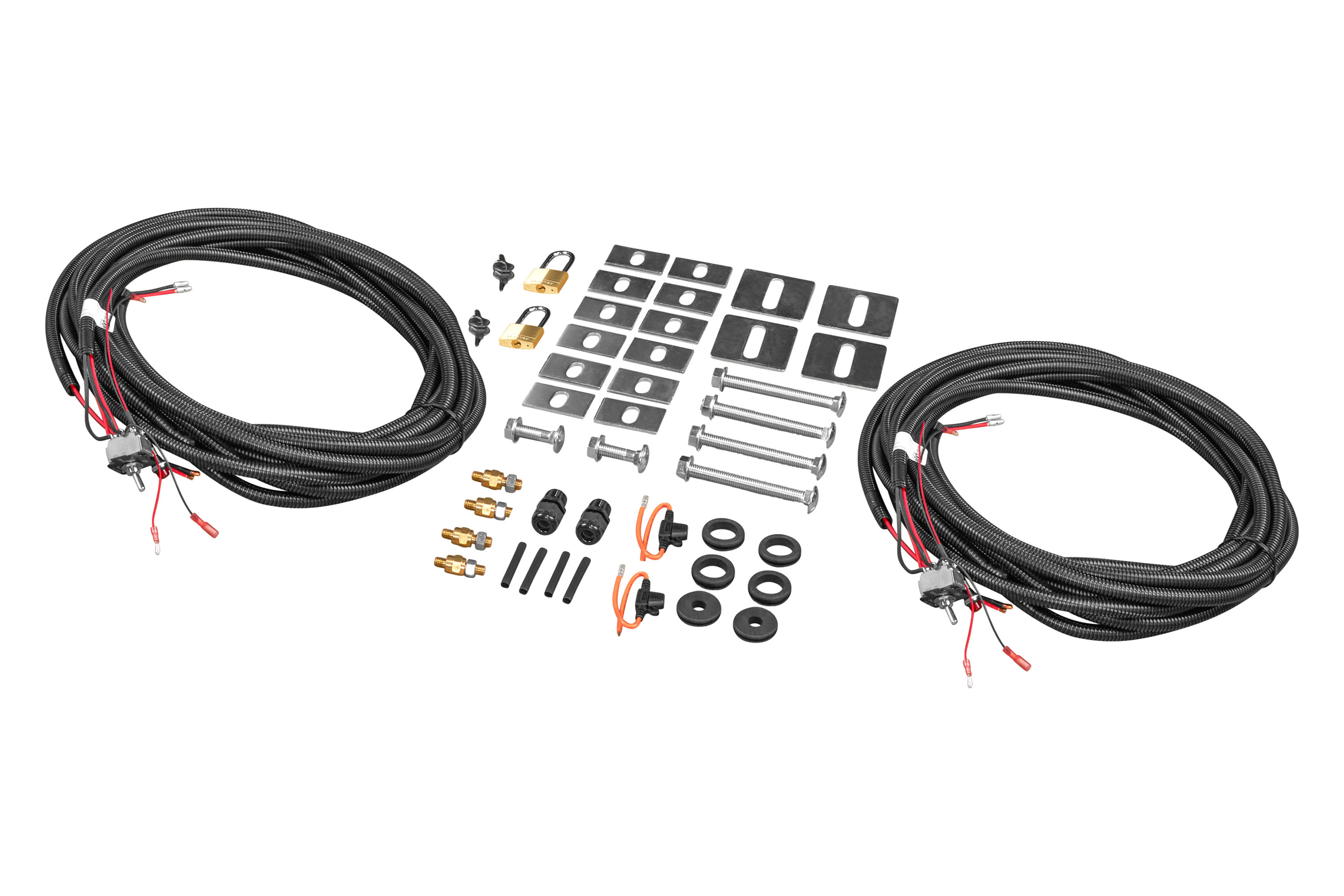

Comes with 12-volt GPI fuel pump, 12 ft. hose, nozzle, wiring harness with cab-mounted power switch, and mounting hardware
DOT legal for gasoline, diesel, methanol/ethanol, and kerosene
Holds two types of fuel
Built from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength
Powder coated black for durable satin finish
Easy-to-use hose-purge feature eliminates messes
Pumps up to 15 gallons per minute
Baffled to prevent fuel sloshing
6 year, unlimited mile warranty
Made in the USA

Product Details

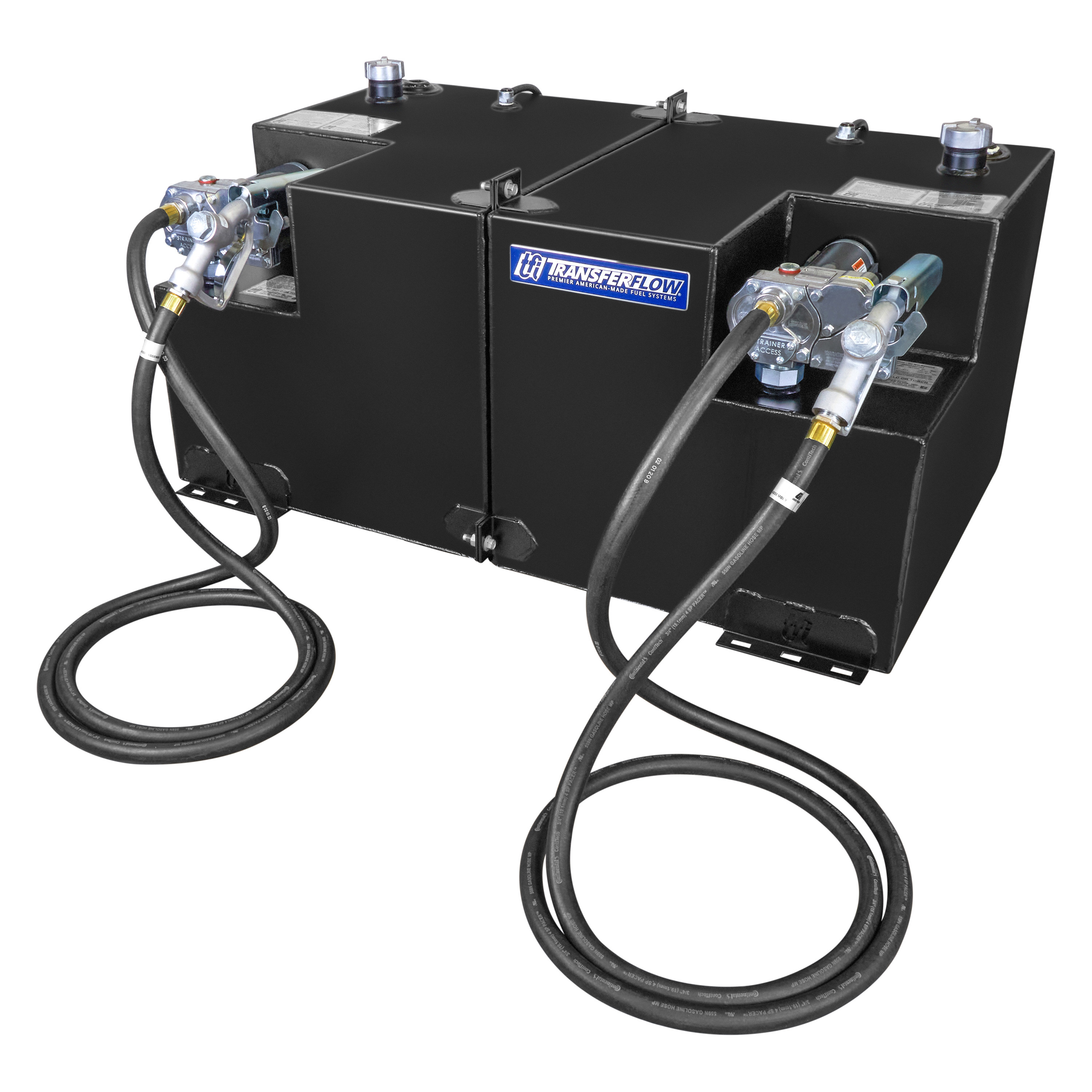

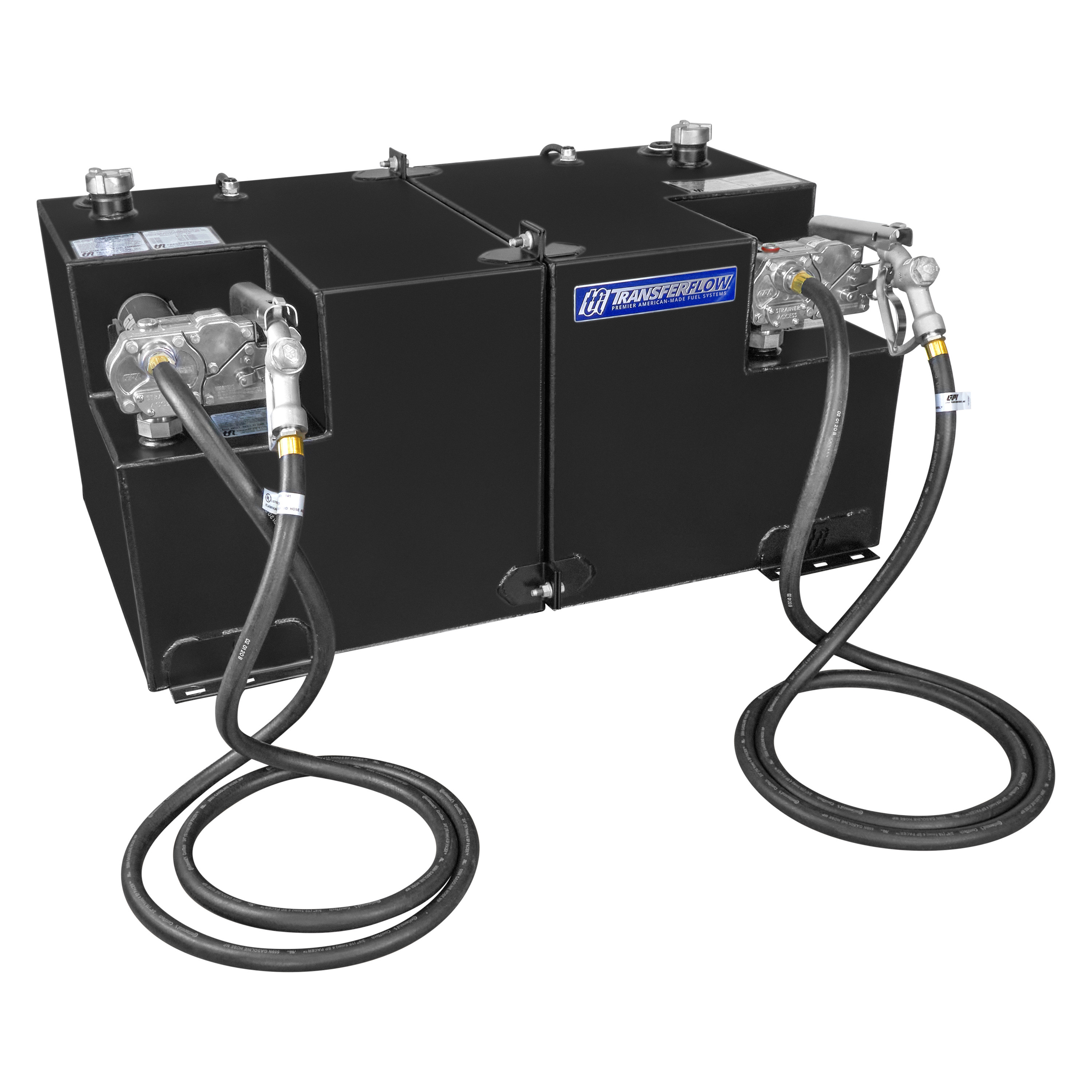

Split Refueling Dual-Tank System by Transfer Flow®. 1 Piece. 50/50 Gallon. Dimensions: 47.38"L x 31"W x 24.19"H. With two 50-gallon tanks in the back of your truck, this unique tank system provides the most versatility while holding two different types of fuel. Transfer Flow 50/50 split refueling tank system is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, and kerosene. The easy-to-use hose-purge feature allows you to pull any fuel left in the hose back into the refueling tanks to eliminate messes in the truck bed and stretch your extra fuel capacity even further. The 50/50 split refueling tank is made from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength; and powder coated black for durable satin finish. This tank system comes with two 50-gallon fuel tanks, two 12-volt refueling pumps, two 12-foot hoses, two nozzles, two wire harnesses with dash-mounted power switches, mounting hardware, and rollover valves.

INSTALLATION

Install at Transfer Flow

If you are interested in visiting Transfer Flow manufacturing facility in Chico, California, Transfer Flow be happy to install your new fuel tank system for you. While you're here enjoy a facility tour, learn how Transfer Flow fuel tanks are made, and meet the craftsmen behind the product.

Locate an Installer Near You

With more than 325 qualified installers across the country, it's easy to locate an installer near you. Order your Transfer Flow fuel tank through us and have it shipped to your selected installer or order a fuel tank through the installer directly.

Do-It-Yourself Installation

If you want to get your hands dirty, you can easily install the fuel tank yourself. Transfer Flow tank systems come with comprehensive step-by-step instructions to make installation a breeze. Transfer Flow also have installation videos on Transfer Flow YouTube channel to walk you through each step of the process.

Transfer Flow® - Information Transfer Flow® - FAQ Transfer Flow® - Catalog Made In USA Transfer Flow Authorized Dealer

Brand:

Transfer Flow

Part Number:

0800113244

UPC:

860064000305

Warranty

1. Six Year/Unlimited Mile Warranty
TRANSFER FLOW, INC. (“TFI”) fuel systems and parts are - EXCEPT AS NOTED IN PARAGRAPHS 2, 3, AND 4 BELOW - covered by a six year unlimited mile warranty against defects in material and workmanship. This warranty is in effect in the United States and Canada from the date the unit is purchased by the Original Purchaser (“Original Purchaser” shall mean the person who purchases for his own use).

2. Specific Parts Warranty

Specific parts purchased from TFI are warranted against defects in material and workmanship as follows:

Sending units are covered by a two year warranty from the date of purchase by the Original Purchaser for the Original Vehicle.
12-volt refueling pumps are covered by a two year warranty from the date of purchase by the Original Purchaser for the Original Vehicle (And Are Not To Be Used For Aviation Fuel).
6 PSI pumps are covered by a two year warranty from the date of purchase by the Original Purchaser for the Original Vehicle.
30 Gallon Toolbox and Fuel Tank Combo - MaxFlo-TFI are covered by a 3 year/unlimited mile warranty from the date of purchase by the Original Purchaser for the Original Vehicle.

3. Exclusions And Limitations

The Tfi Warranty, Described In Paragraphs 1 And 2 Above, Is Subject To The Following Exclusions And Limitations:

The rights of the Original Purchaser under the TFI warranty are LIMITED to return of the goods and repair or replacement of nonconforming goods.
This Warranty Does Not Cover Incidental Or Consequential Damages, Including, But Not Limited To: Loss Of Use Of The Warranted Product, Loss Of Time, Inconvenience, Transportation Expenses, Towing, Expenses For Travel, Lodging, Telephone And Gasoline, Loss Or Damage To Personal Property Or Loss Of Revenue. Note: Some States Do Not Allow The Exclusion Or Limitation Of Incidental Or Consequential Damages, So The Above Limitation Or Exclusion May Not Apply To You.
Warranties will only cover products on which the identification label is affixed; if the label has been removed or defaced, the warranty is no longer valid.
TFI fuel systems are compatible with a maximum 20% concentration of biodiesel fuel manufactured ASTM D7467 specifications. Concentrations above 20% or failing to comply with ASTM D7467 specifications will void warranty.
The Warranty Provided In Paragraphs 1 And 2 Above Is Exclusive And Is In Lieu Of All Other Warranties (Express, Implied, Or Otherwise) Including, But Not Limited To, Any Warranties Of Merchantability And Fitness For A Particular Purpose. In The Event Implied Warranties May Not Be Excluded, The Term Of Any Implied Warranty Shall Not Exceed The Term Of The Applicable Express Warranty Provided In Paragraphs 1 And 2 Above. Some States Do Not Allow Limitations On How Long An Implied Warranty Lasts, So The Above Limitation May Not Apply To You.
The warranty will not apply when product failure is caused by conditions beyond the control of TFI, such as:
(a) Malfunction due to incorrectly ordered product
(b) Damage from misuse, negligence, or failure to provide reasonable and necessary maintenance
(c) Damage caused by improper installation or not following installation instructions.
(d) Damaged caused in shipment or improper handling
(e) Damage caused by contaminated fuels or fuel additives
(f) Product modification or alteration
Products made from pickled and oil material are not covered under warranty for corrosion.
The in-line fuel filter provided with the TFI fuel system is not covered by warranty as it is a standard maintenance item.
Any action against TFI for breach of the warranty must be commenced within one (1) year after the cause of action has accrued.
Any action against TFI for breach of the warranty must be commenced in the Superior Court of Butte County, State of California.

4. Warranty Claim Procedures

If you have difficulty with your fuel system, consult the dealer where the unit was originally purchased. Your dealer will then contact TFI and request assistance. TFI will require model, part and serial numbers, proof of purchase, and date of installation. TFI reserves the right to examine the claimed defect in the field or upon return of the tank or component to TFI’s facility with all shipping charges being prepaid. If a part is defective and must be replaced, TFI will provide a Returned Merchandise Authorization (“RMA”) number, authorization, and instructions for replacement or further handling.
No payment will be made for parts purchased or repaired in the field without prior authorization by TFI.
TFI will pay its established warranty labor rates to service points or service dealers who have service agreements with TFI.
If an item is shipped as a replacement for a defective part, a charge will be made for this part. Credit will be considered upon return of the defective item. ALL RETURNED ITEMS MUST BE IDENTIFIED WITH THE RMA NUMBER AND RETURNED WITHIN 30 DAYS OF OPENING THE CLAIM.

5. Federal Regulatory Provisions

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State, and in accordance with specific federal regulations. TFI does not authorize any person to create for TFI any other obligation or liability in connection with TFI fuel systems. If TFI fails to successfully perform its obligation under this warranty, the Original Purchaser has available the remedies provided by the Magnuson-Moss Warranty Act (P.L. 93-637) and any applicable state law.
