Vehicle Fitment

Toyota

Specifications

Core Height	22.97"
Core Length	27.56"
Core Material	Aluminum
Core Thickness	0.63"
Engine Oil Cooler Included	No
Fin Count (every 4")	72
Fin Wave Height	5"
Find Wave Pitch	2.8
Flow Configuration	Crossflow
Inlet Connection Type	Hose Clamp
Inlet Diameter	38mm
No. Of Rows	1
Outlet Connection Type	Hose Clamp
Outlet Diameter	38mm
Total Fin Row Count	90
Total Tube Count	89
Transmission Oil Cooler Included	No
Tube Count (every 4")	15
Tube Width x Height	1.5
Accessories Included	plastic clip & rubber seals
Built-in Receiver/dryer	Yes
Configuration	Parallel Flow Condenser(PFC)
Core Height (in)	21.3
Core Length (in)	28.58
Core Thickness (in)	0.47
Inlet Diameter	15.5mm
Inlet Fitting Design	Block Fitting
Outlet Diamter	14.5mm
Outlet Fitting Design	Block Fitting

Includes

Product	MPN	Brand	QTY
Engine Coolant Radiator	13842	TYC	1
Front A/C Condenser	30176	TYC	1

Features

OE quality at an affordable price
Direct replacement
Installs the same as factory unit
Same dimensions as OE part
Same gauge material as OE
Installation requires no modifications
Limited lifetime warranty

Product Details

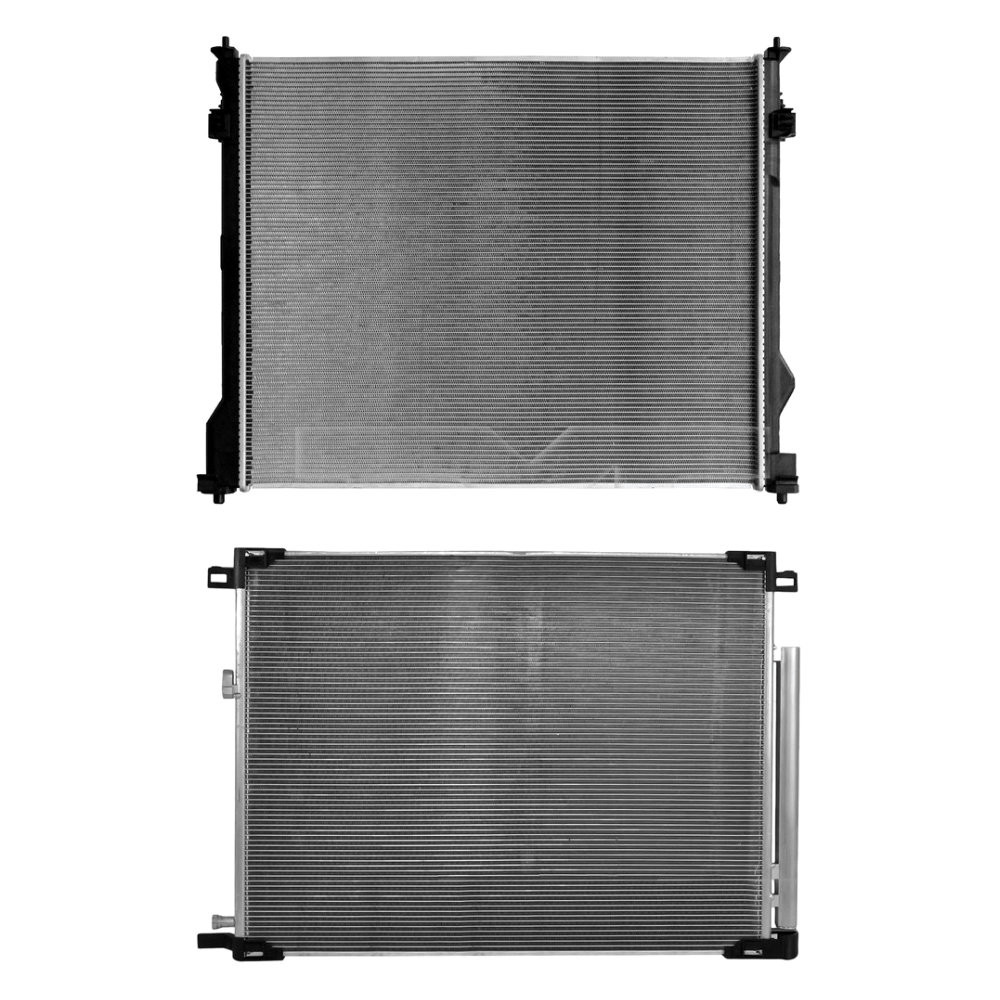

Radiator and Condenser Kit by TYC®. When you notice that your radiator is leaking, clogged or otherwise damaged, you don't have to pay the high dealer price for a replacement any more. Designed to be identical to the factory unit from the number of fluid tubes to the placement of cooling fins, TYC radiators will give you the same quality for much less.

The cooling system of your automobile is vital to your engine's overall health and longevity. That is why it’s critical to replace leaking, malfunctioning, cracked or otherwise damaged cooling parts and components in time. Without proper cooling, your engine can crack and seize up, which can lead to engine damage. To save your energy, time and money, get the superior OEM parts we offer for your vehicle. Each product is made from high quality materials to maintain proper cooling of your engine and prevent overheating.

TYC® - Warranty TYC Authorized Dealer Catalog Video About us

Brand:

TYC

Part Number:

BNDL-474687

Alternate MPN:

BNDL474687

OE Numbers:

TO3030341, 884A00E010, 16400F0080, TO3010375, 884A00E060, 884A00E111

Warranty

TYC Corporation warrants its products to be free from defects in material and workmanship for as long as they remain installed on the vehicle for which they were originally purchased. Any TYC product found to be defective shall be repaired or replaced. This warranty is non-transferable and will be voided under any of the following conditions:

Use in commercial or fleet, governmental, off-road, or racing applications.
Failure due to natural/environmental forces; either external or internal erosion, including effects of salt-air corrosion and electrolysis from internal cooling system fluids.
If TYC determines alteration, improper use, incorrect installation, or negligence.
A faulty vehicle engine temperature warning system.
Improper installation, which caused the damage to connection threads.
Removal of any stamp, label, or manufacturer’s identification.

This warranty applies only to those products that have been installed in accordance with accepted industry standards by a certified technician.
