Vehicle Fitment

Chevy

GMC

Specifications

Core Height	28.50"
Core Length	33.46"
Core Material	Aluminum
Core Thickness	2.36"
Engine Oil Cooler Included	No
Fin Count (every 4")	70
Fin Wave Height	6.3"
Find Wave Pitch	2.9
Flow Configuration	Crossflow
Inlet Connection Type	Hose Clamp
Inlet Diameter	51mm
Outlet Connection Type	Spring Lock
Outlet Diamter	56.5mm
Rows	2
Total Tube Count	184
Transmission Oil Cooler Included	Yes
Tube Count (every 4")	13
Components Included	Receiver/Drier
Configuration	Parallel Flow Condenser (PFC)
Core Height (in)	34.13
Core Length (in)	17.13
Core Size	34 1/8 X 17 1/8 X 11/16
Core Thickness (in)	0.69

Includes

Product	MPN	Brand	QTY
Engine Coolant Radiator	13690	TYC	1
A/C Condenser	4739	TYC	1

Features

OE quality at an affordable price
Direct replacement
Installs the same as factory unit
Same dimensions as OE part
Same gauge material as OE
Installation requires no modifications
Limited lifetime warranty

Product Details

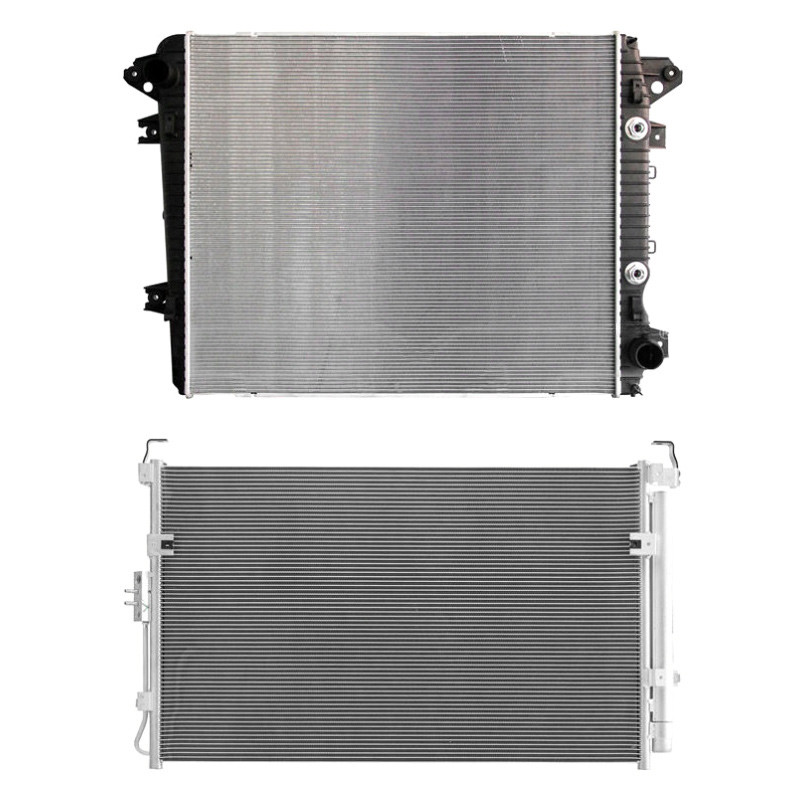

Radiator and Condenser Kit (BNDL-475395) by TYC®. Condenser With Receiver Drier. When you notice that your radiator is leaking, clogged or otherwise damaged, you don't have to pay the high dealer price for a replacement any more. Designed to be identical to the factory unit from the number of fluid tubes to the placement of cooling fins, TYC radiators will give you the same quality for much less.

The cooling system of your automobile is vital to your engine's overall health and longevity. That is why it’s critical to replace leaking, malfunctioning, cracked or otherwise damaged cooling parts and components in time. Without proper cooling, your engine can crack and seize up, which can lead to engine damage. To save your energy, time and money, get the superior OEM parts we offer for your vehicle. Each product is made from high quality materials to maintain proper cooling of your engine and prevent overheating.

TYC® - Warranty TYC Authorized Dealer Catalog Video About us

Brand:

TYC

Part Number:

BNDL-475395

Alternate MPN:

BNDL475395

OE Numbers:

22807235, GM3030311, 23258965, 84224661, GM3010615

Warranty

TYC Corporation warrants its products to be free from defects in material and workmanship for as long as they remain installed on the vehicle for which they were originally purchased. Any TYC product found to be defective shall be repaired or replaced. This warranty is non-transferable and will be voided under any of the following conditions:

Use in commercial or fleet, governmental, off-road, or racing applications.
Failure due to natural/environmental forces; either external or internal erosion, including effects of salt-air corrosion and electrolysis from internal cooling system fluids.
If TYC determines alteration, improper use, incorrect installation, or negligence.
A faulty vehicle engine temperature warning system.
Improper installation, which caused the damage to connection threads.
Removal of any stamp, label, or manufacturer’s identification.

This warranty applies only to those products that have been installed in accordance with accepted industry standards by a certified technician.
