Name: UAC® CK2074 - A/C Compressor Replacement Service Kit
Brand: Universal Air Conditioner
SKU: mpn4981337791
Price: 273.85 USD
Availability: InStock
Rating: 4.4 (16 reviews)

Vehicle Fitment

Ford

Specifications

Casing Outside Diameter	128
Clutch Included	Yes
Clutch Maximum Diameter	104.5
Coil Clock Position	12
Coil Voltage	12
Color	blue
Compatible Refrigerant Oil Type	pag46
Compressor Type	FS20
Connector Gender	Female
Connector Quantity	1
Connector Shape	square
Diameter (mm)	10.8
Diameter (mm)	3.5
Discharge Port Inside Diameter	15.5
Distance Between Mounting Holes	68.65
Distance From Clutch To Mounting Flange	95
Hub Type	DENSO
Inlet Type	pnut
Inlet/ Outlet (mm)	19
Inner Diameter (mm)	8.8
Length (mm)	228
Length (mm)	89.5
Material Type	plastic/ cloth
Mounting Flange Thickness	19.33
Mounting Hole Quantity	6
Mounting Type	Tangent
Oil Filled	Yes
Outlet Type	Male Spring Lock
Pulley Belt Type	Serpentine
Pulley Groove Quantity	6
Pulley Outside Diameter	121
Pulley Ridge Diameter	114.97
Refrigerant	R134A
Refrigerant Type	R134A
Refrigerant Type	R-134A
Screen Micron Rating	120
Service Port (Y/ N)	Y
Suction Port Inside Diameter	18.3
Switch Included	No
Switch Port (Y/ N)	Y
Switch Port Size	12
Switch Service Port	Yes
Terminal Qty	2
Terminal Type	Pin
Thermal Or Non Thermal	non thermal
Tube Outside Diameter	10.8
Wire Qty	2

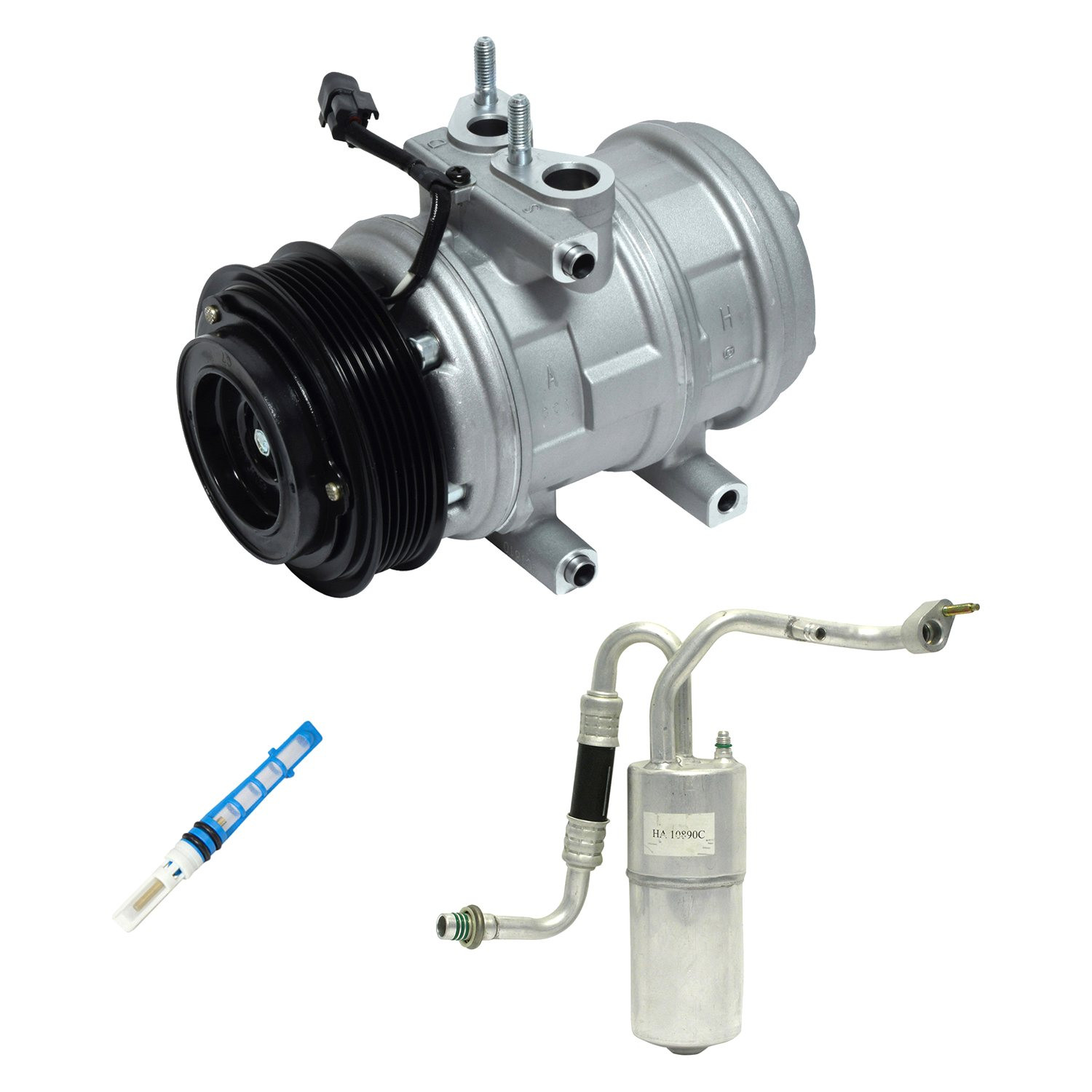

Includes

COMPRESSORS (CO 10905C)
EXP VALVES/ORIF TUBE (EX 5296C)
HOSE/TUBE ASSY (+ACCUM-DRIER) (HA 10890C)

Features

Helps maintain a desired temperature inside your car
Made of durable materials
Ensures reliable performance
Guarantees high efficiency
Provides long lasting service life

Product Details

A/C Compressor Replacement Service Kit (CK2074) by UAC®. Short. Compressors are the heart of the A/C system, with a heavy responsibility to pump A/C refrigerant throughout the automobile’s A/C system. That’s why UAC take the upmost care when developing new compressors. UAC branded compressors meet exact OE specifications, and that they are manufactured at a tier 1 facility. When you purchase a new compressor from UAC, you are receiving a high quality product at price that is very affordable.

The products by Universal Air Conditioner provide comfortable driving for you and your passengers all year round maintaining the desired temperature inside the cabin of your car, truck or SUV. These products deliver a superior combination of perfect fit, high efficiency, and long lasting service life. UAC products are made of durable materials which guarantee their reliable performance and excellent durability.

Universal Air Conditioner® - Information Universal Air Conditioner Authorized Dealer Product lines Warranty About us

Brand:

Universal Air Conditioner

Part Number:

CK2074

UPC:

711307516681

Warranty

Universal Air Conditioner, Inc (UAC) products made in Asia that fail because of defect in material or workmanship, within a period of 1 year from day of purchase from UAC, will be replaced to the original purchaser at no charge. All other products will be subject to that manufacturer's warranty. There are no other warranties expressed, implied or intended other than the 1 year from day of purchase warranty.

This warranty is subject to the following conditions and exclusions:

1. Valid Proof of Purchase. Warranty requests are only accepted with valid proof of purchase from UAC.

2. Proper Installation. Proper installation in accordance with furnished instructions and/or acceptable industry installations methods, as stated in service manuals must be followed by installation personnel. Install the clutch on Compressors purchased without a clutch and set the clutch air gap per OEM specifications. Check clutch electrical circuit for proper voltage per OEM specifications. After compressor installation, turn the compressor shaft a minimum of 10 revolutions to remove excess lubricant from the compressor. Evacuate entire A/C system for a minimum of 45 minutes. Recharge with the proper refrigerants: R134a or R12. When replacing scroll compressors, it is common that debris from the original compressor gets lodged in the condenser and causes the replacement compressor to experience a catastrophic failure. This can be identified by holes and large cracks in the body of the fitted replacement compressor. To avoid a warranty from being denied by UAC, the installer must flush the evaporator and replace the following: Compressor with clutch, Multi-pass, parallel flow condensers (Parallel Flow Condensers cannot be flushed), Drier or Accumulator, Expansion Valve or Orifice Tube, Seals, and O-rings. The work order submitted to UAC as part of the warranty request must indicate that all of these parts were replaced.

3. Exclusions. The following conditions automatically void the warranty obligations: abuse, improper use, shipping damage, damage from dropping, dead batteries, cosmetic damage, failure to service at recommended intervals and failure to follow printed instructions. Clogged or broken expansion valves and/or orifice tubes, malfunctioning fuses, relays, switches, and electrical components are excluded from warranty coverage. Compressor warranty is void unless the drier/accumulator, orifice tube and/or expansion valve is replaced upon installation and system is flushed using generally accepted methods. If the condenser is a parallel-flow type, it must be changed. The proper lubricant must be used. Units returned without lubricant and not properly capped are excluded from warranty coverage. UAC does not accept products for Stock Adjustment.

4. Service Tools and Equipment. Warrantied products will be repaired and returned to the customer. This includes vacuum pumps, leak detectors, manifold gauge sets and recovery, recycle and recharge equipment.

Reviews

(16)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

Sort by

1-10 of 16 Reviews

5 of 5

Easy Install

Everything showed up as expected and install was a cinch

UAC® CO29103C - A/C Compressor Assembly

Posted by Customer / August 23, 20212018 Subaru Forester

4 of 5

Perfect Fit and Came With O-Rings

Ordered this to replace mine and it was fast shipping and matched mine perfectly! I was surprised to see new replacement O-Rings were included in the box and also had some oil pre-filled in the compressor. Only sucky thing was the brokerage fees that were charged by UPS to ship to Canada. Was an extra 50$.

UAC® - A/C Compressor Assembly

Posted by Lorne (Beaver Bank, NS) / May 26, 20212009 Nissan Maxima

5 of 5

Great Service

Check out was amazingly simple. I received the new pump faster than anticipated. I relied on my son's excellent assistance to install the pump. Fast and easy. Amazing knowledge. I need to have system recharged, but it works, no more noises, no more stuffy car days. I will return for other items. I still have my core, should I return to TRUCKiD. It was not requested nor return slips provided.

UAC® - A/C Compressor Assembly

Posted by Kevin (Ebensburg, PA) / July 28, 20201995 Buick Roadmaster

2 of 5

Lasted 18 Months

I wouldn't expect it to freeze up in less than 2 years, but it did.

UAC® - A/C Compressor

Posted by Dotty (Glendale, AZ) / July 14, 20202003 Mitsubishi Eclipse

2 of 5

Lasted 18 Months

I wouldn't expect it to freeze up in less than 2 years, but it did.

UAC® - A/C Compressor

Posted by Customer / July 14, 20202003 Mitsubishi Eclipse

5 of 5

Ac Compressor

Works great fit good. Very Happy with product.

UAC® CO10529AC - A/C Compressor Assembly

Posted by Gary (Brandon, WI) / May 26, 20202001 Mitsubishi Eclipse

4 of 5

A/C Compressor and Fan and Relay

It was a good looking product, fit just fine, wasn't much cheaper by time shipping was added.

UAC® CO4975AC - A/C Compressor Assembly

Posted by Daniel (Braham, MN) / August 07, 2019

5 of 5

Awesome

Great product, very pleased with this awesome kit.

UAC® KT1268 - A/C Compressor Kit

Posted by Dean (Houma, LA) / August 02, 20191992 Ford F-350

4 of 5

What the Heck

Just crapped out today! Working for three days. :(

Posted by Dennis (Norwood, NJ) / June 16, 20181994 Nissan Sentra

5 of 5

Perfect Fit

Bolted right in no issues.

UAC® CO101510C - A/C Compressor Assembly

Posted by Thomas (Cartersville, GA) / September 10, 20171998 Ford F-150

Questions and Answers

(0)

If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
