Name: UAC® CK3958 - Rear A/C Compressor Kit
Brand: Universal Air Conditioner
SKU: mpn4981339369
Price: 324.40 USD
Availability: InStock
Rating: 4.4 (16 reviews)

Vehicle Fitment

Ford

Specifications

Capillary Length (mm)	130
Case Color	Silver
Casing Outside Diameter	-
Clutch Included	Yes
Clutch Maximum Diameter	-
Coil Clock Position	12
Coil Voltage	12
Color	Red
Compatible Refrigerant Oil Type	PAG 46
Connector Gender	Male
Connector Quantity	1
Connector Shape	square
Diameter (mm)	9.8
Discharge Port Inside Diameter	13.5
Distance Between Mounting Holes	68.5
Distance From Clutch To Mounting Flange	106
Hub Type	Leaf Spring
Inlet Size	No.6
Inner Diameter (mm)	7.5
Length (mm)	298
Length (mm)	89.4
Material Type	plastic/ cloth
Max Operating Pressure	0.55±0.035
Mounting Flange Thickness	-
Mounting Hole Quantity	6
Mounting Type	Tangent
Oil Filled	Yes
Pulley Belt Type	Serpentine
Pulley Groove Quantity	6
Pulley Lip Diameter	-
Pulley Outside Diameter	106
Pulley Ridge Diameter	100
Refrigerant Type	R134A
Refrigerant Type	R-134A
Rotation	CW
Screen Micron Rating	120
Suction Port Inside Diameter	16.5
Switch Included	No
Switch Service Port	No
Switch Type	-
Terminal Qty	2
Terminal Type	Spade
Thermal Or Non Thermal	non thermal
Tube Outside Diameter	10.8
Wire Gauge Measurement	-
Wire Qty	1

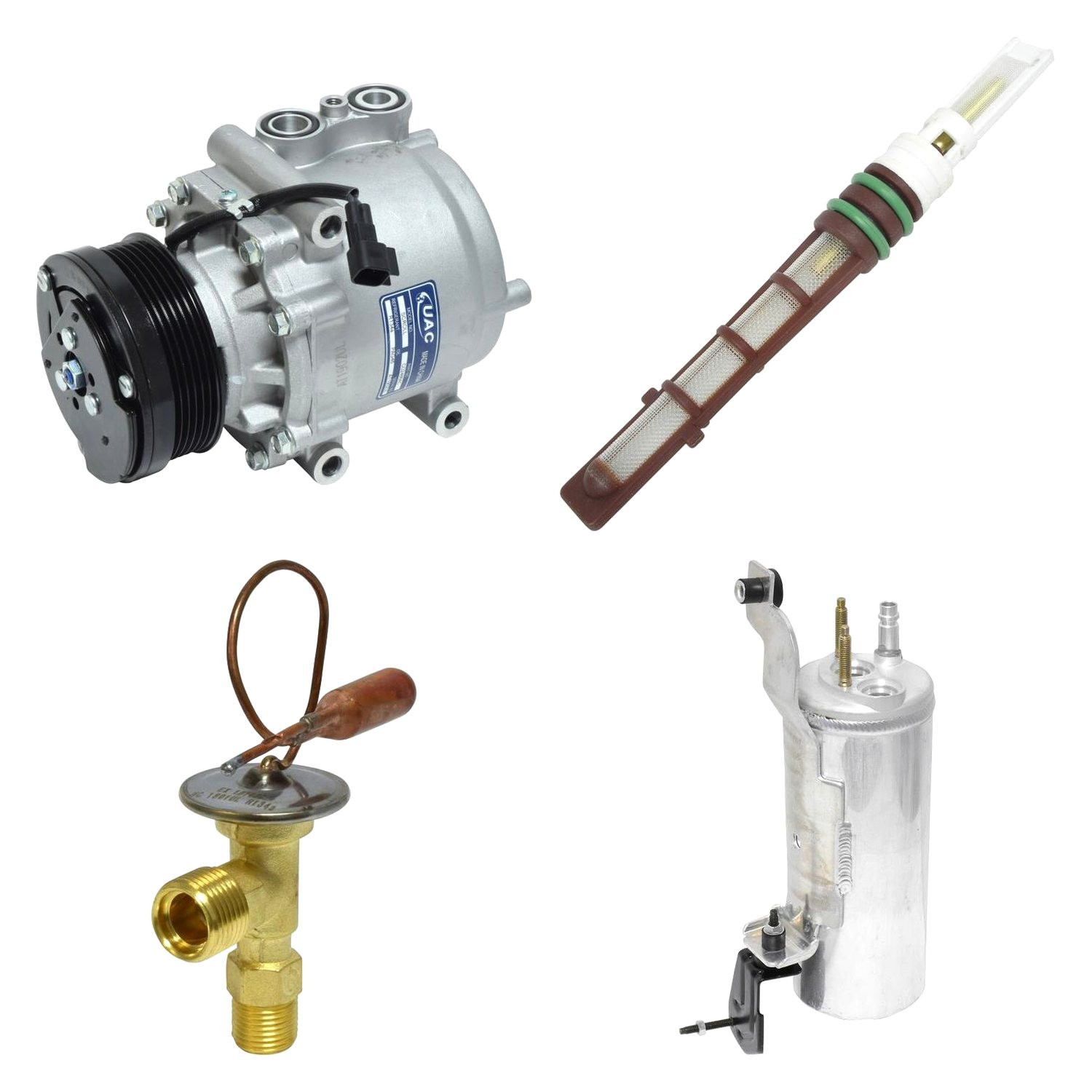

Includes

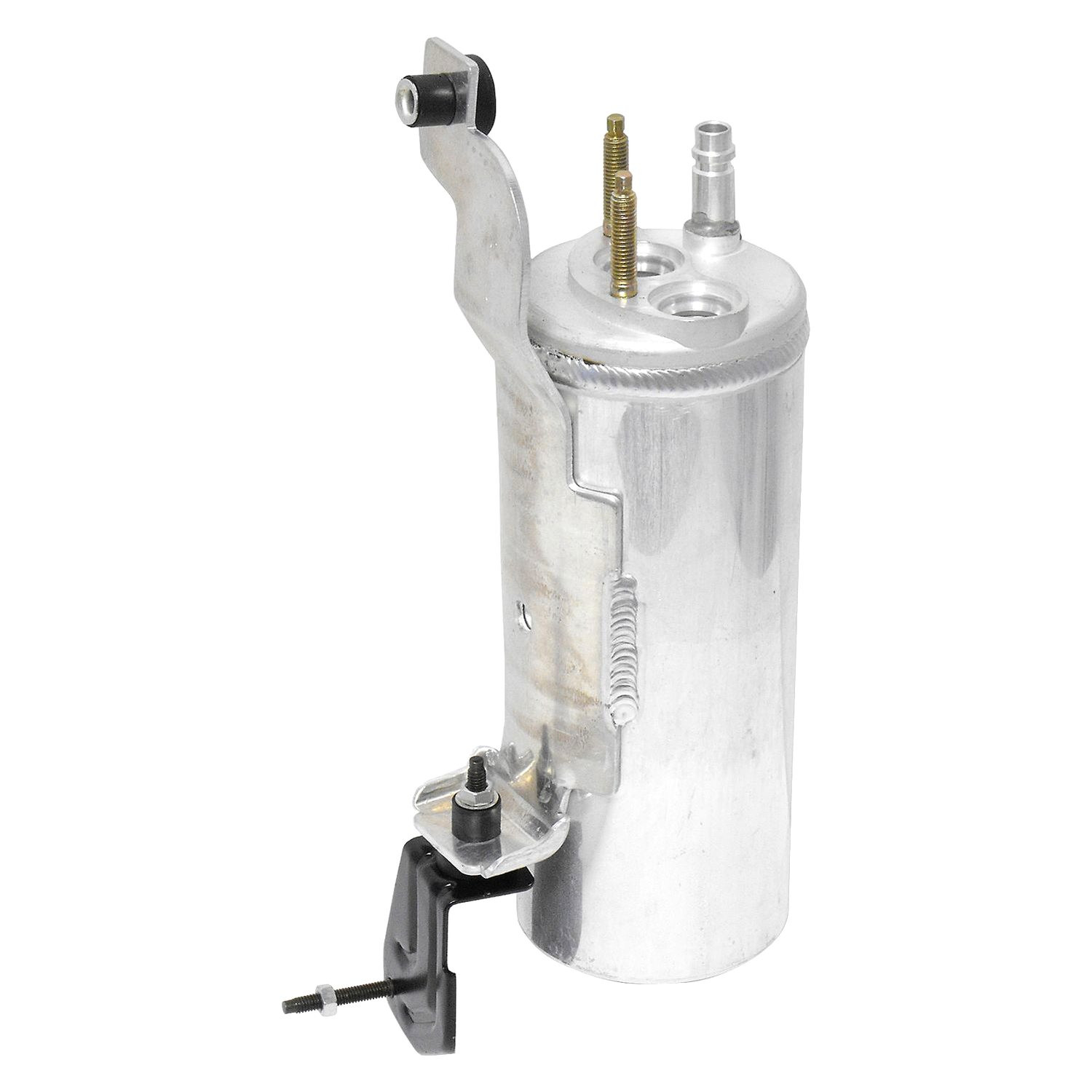

ACCUMULATORS/DRIERS (RD 10041C)

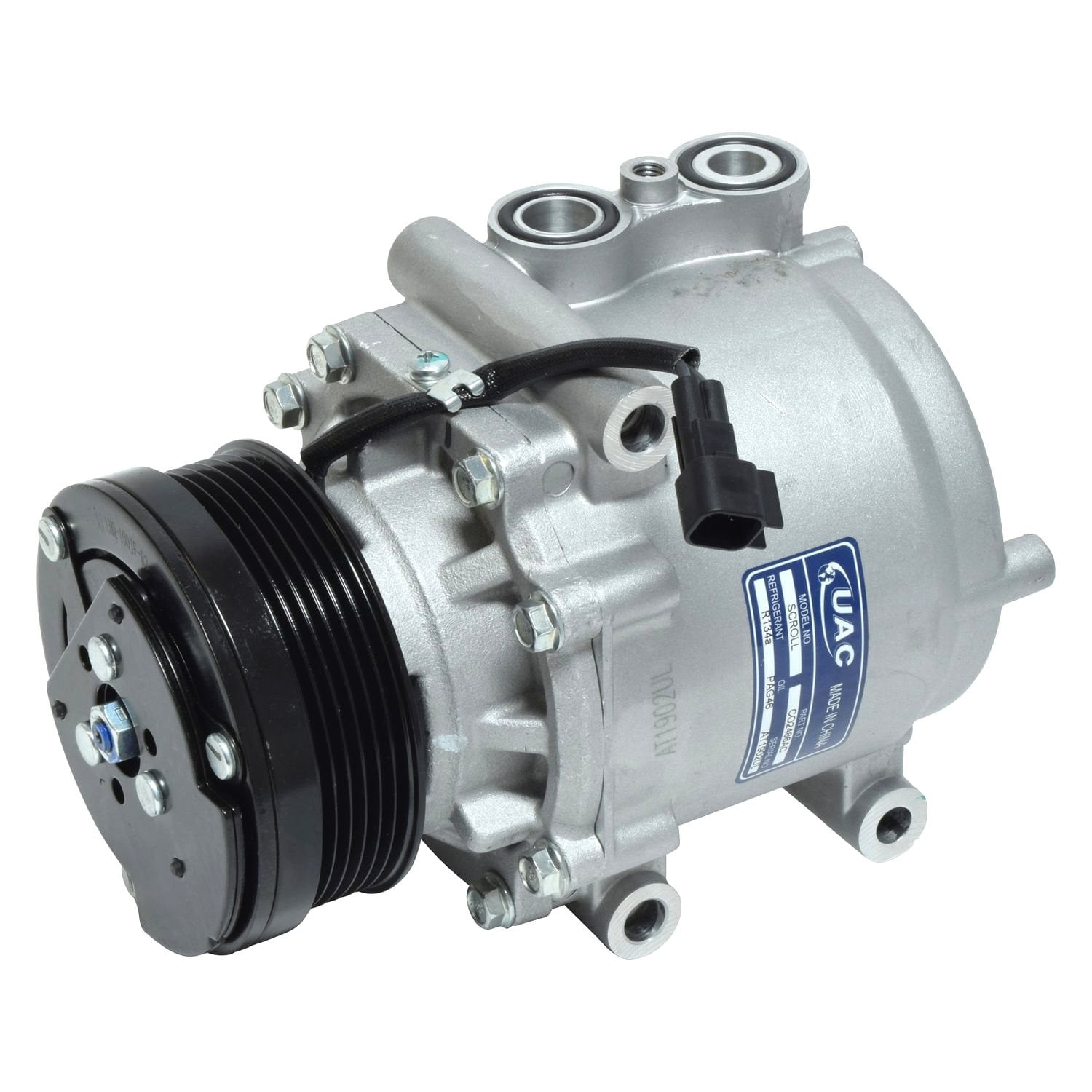

COMPRESSORS (CO 2486AC)

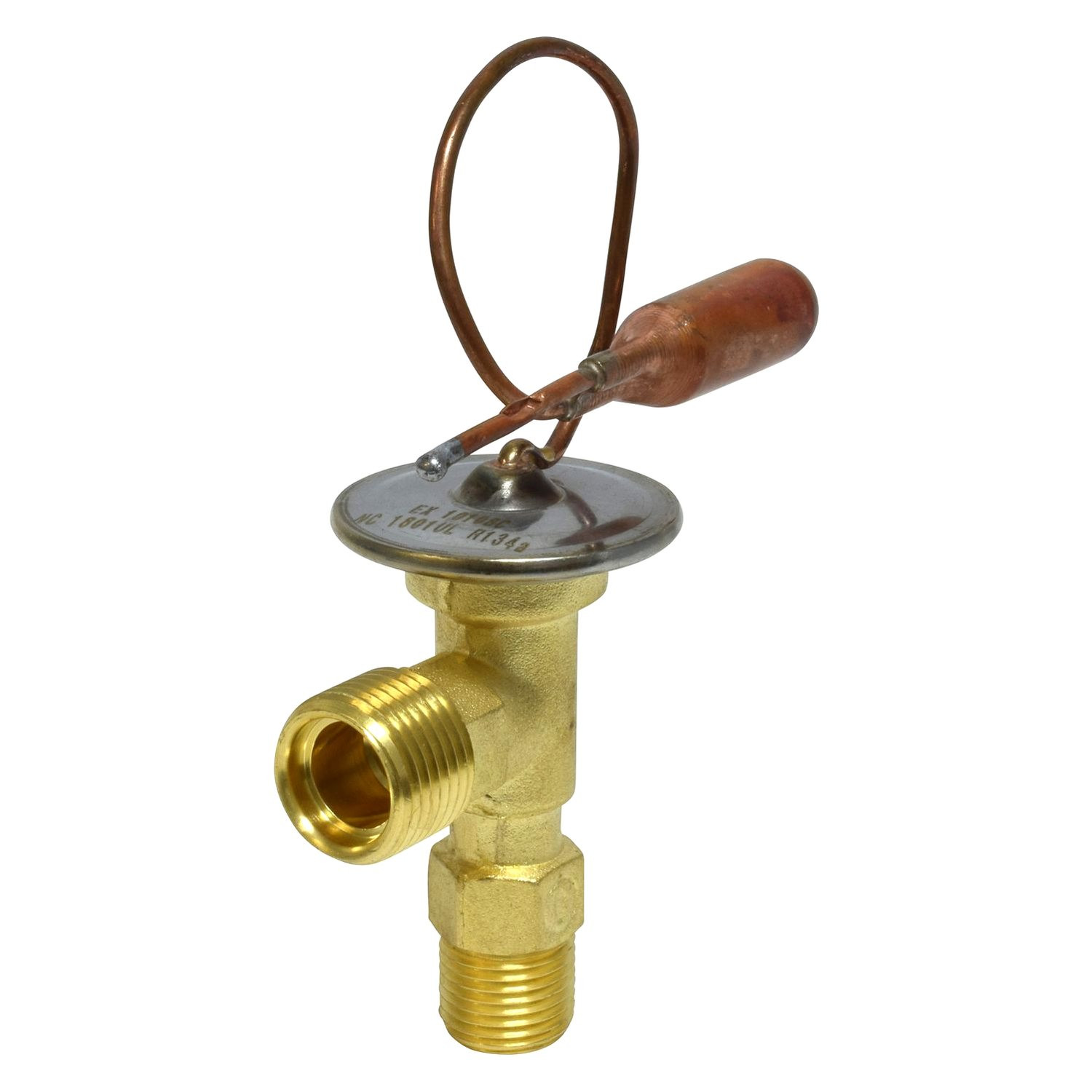

EXP VALVES/ORIF TUBE (EX 1000C)

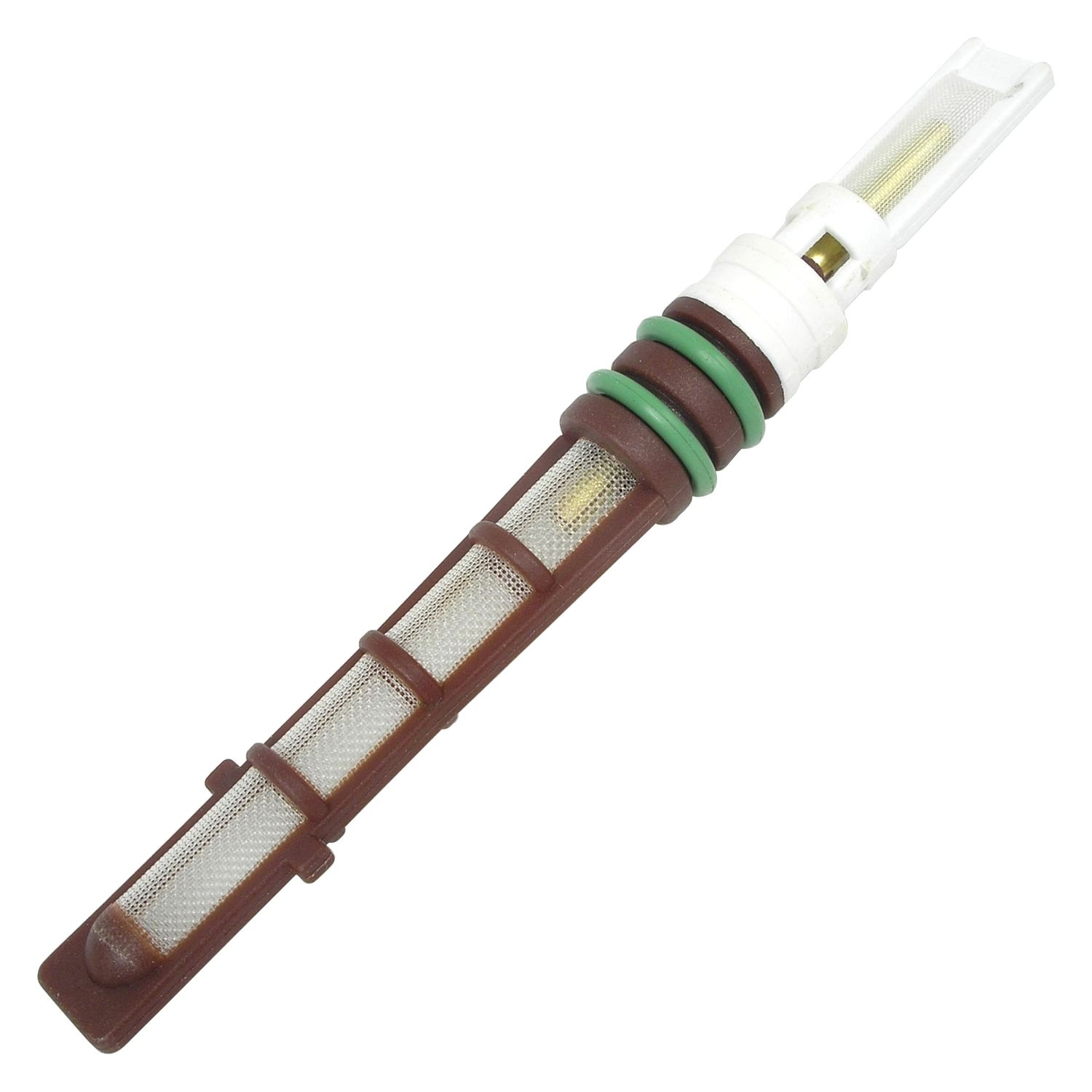

EXP VALVES/ORIF TUBE (EX 10108C)

Features

Helps maintain a desired temperature inside your car
Made of durable materials
Ensures reliable performance
Guarantees high efficiency
Provides long lasting service life

Product Details

Rear A/C Compressor Kit (CK3958) by UAC®. Short. Compressors are the heart of the A/C system, with a heavy responsibility to pump A/C refrigerant throughout the automobile’s A/C system. That’s why UAC take the upmost care when developing new compressors. UAC branded compressors meet exact OE specifications, and that they are manufactured at a tier 1 facility. When you purchase a new compressor from UAC, you are receiving a high quality product at price that is very affordable.

The products by Universal Air Conditioner provide comfortable driving for you and your passengers all year round maintaining the desired temperature inside the cabin of your car, truck or SUV. These products deliver a superior combination of perfect fit, high efficiency, and long lasting service life. UAC products are made of durable materials which guarantee their reliable performance and excellent durability.

Universal Air Conditioner® - Information Universal Air Conditioner Authorized Dealer Product lines Warranty About us

Brand:

Universal Air Conditioner

Part Number:

CK3958

UPC:

711307356898

Warranty

Universal Air Conditioner, Inc (UAC) products made in Asia that fail because of defect in material or workmanship, within a period of 1 year from day of purchase from UAC, will be replaced to the original purchaser at no charge. All other products will be subject to that manufacturer's warranty. There are no other warranties expressed, implied or intended other than the 1 year from day of purchase warranty.

This warranty is subject to the following conditions and exclusions:

1. Valid Proof of Purchase. Warranty requests are only accepted with valid proof of purchase from UAC.

2. Proper Installation. Proper installation in accordance with furnished instructions and/or acceptable industry installations methods, as stated in service manuals must be followed by installation personnel. Install the clutch on Compressors purchased without a clutch and set the clutch air gap per OEM specifications. Check clutch electrical circuit for proper voltage per OEM specifications. After compressor installation, turn the compressor shaft a minimum of 10 revolutions to remove excess lubricant from the compressor. Evacuate entire A/C system for a minimum of 45 minutes. Recharge with the proper refrigerants: R134a or R12. When replacing scroll compressors, it is common that debris from the original compressor gets lodged in the condenser and causes the replacement compressor to experience a catastrophic failure. This can be identified by holes and large cracks in the body of the fitted replacement compressor. To avoid a warranty from being denied by UAC, the installer must flush the evaporator and replace the following: Compressor with clutch, Multi-pass, parallel flow condensers (Parallel Flow Condensers cannot be flushed), Drier or Accumulator, Expansion Valve or Orifice Tube, Seals, and O-rings. The work order submitted to UAC as part of the warranty request must indicate that all of these parts were replaced.

3. Exclusions. The following conditions automatically void the warranty obligations: abuse, improper use, shipping damage, damage from dropping, dead batteries, cosmetic damage, failure to service at recommended intervals and failure to follow printed instructions. Clogged or broken expansion valves and/or orifice tubes, malfunctioning fuses, relays, switches, and electrical components are excluded from warranty coverage. Compressor warranty is void unless the drier/accumulator, orifice tube and/or expansion valve is replaced upon installation and system is flushed using generally accepted methods. If the condenser is a parallel-flow type, it must be changed. The proper lubricant must be used. Units returned without lubricant and not properly capped are excluded from warranty coverage. UAC does not accept products for Stock Adjustment.

4. Service Tools and Equipment. Warrantied products will be repaired and returned to the customer. This includes vacuum pumps, leak detectors, manifold gauge sets and recovery, recycle and recharge equipment.
