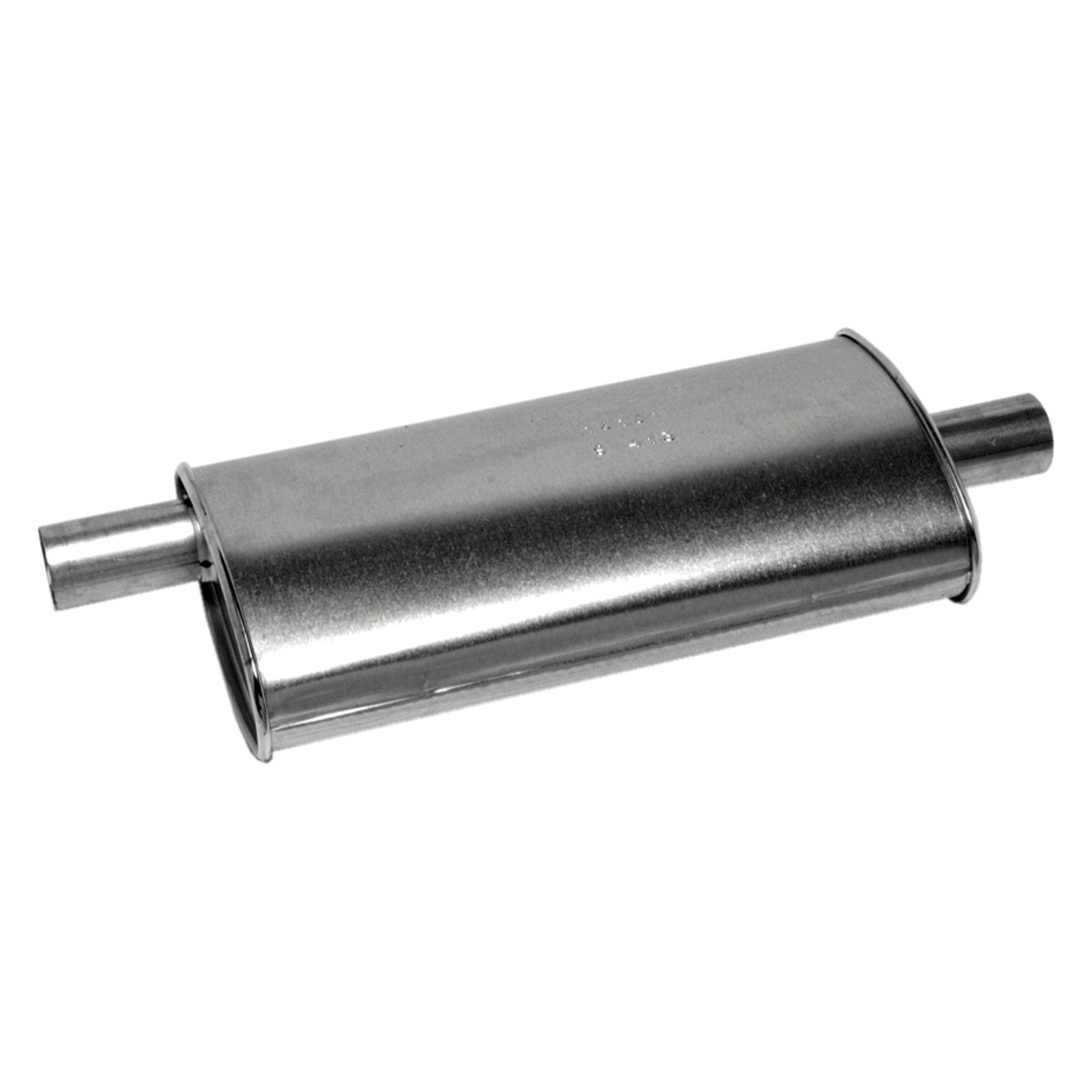

Walker® 17820 - SoundFX™ Steel Oval Aluminized Exhaust Muffler

Name: Walker® 17820 - SoundFX™ Steel Oval Aluminized Exhaust Muffler
Brand: Walker
SKU: mpn1748783
Price: 49.98 USD
Availability: InStock
Rating: 4.7 (144 reviews)

144 reviews|1 Q&A|Item # mpn1748783

Vehicle Specific

Notes:

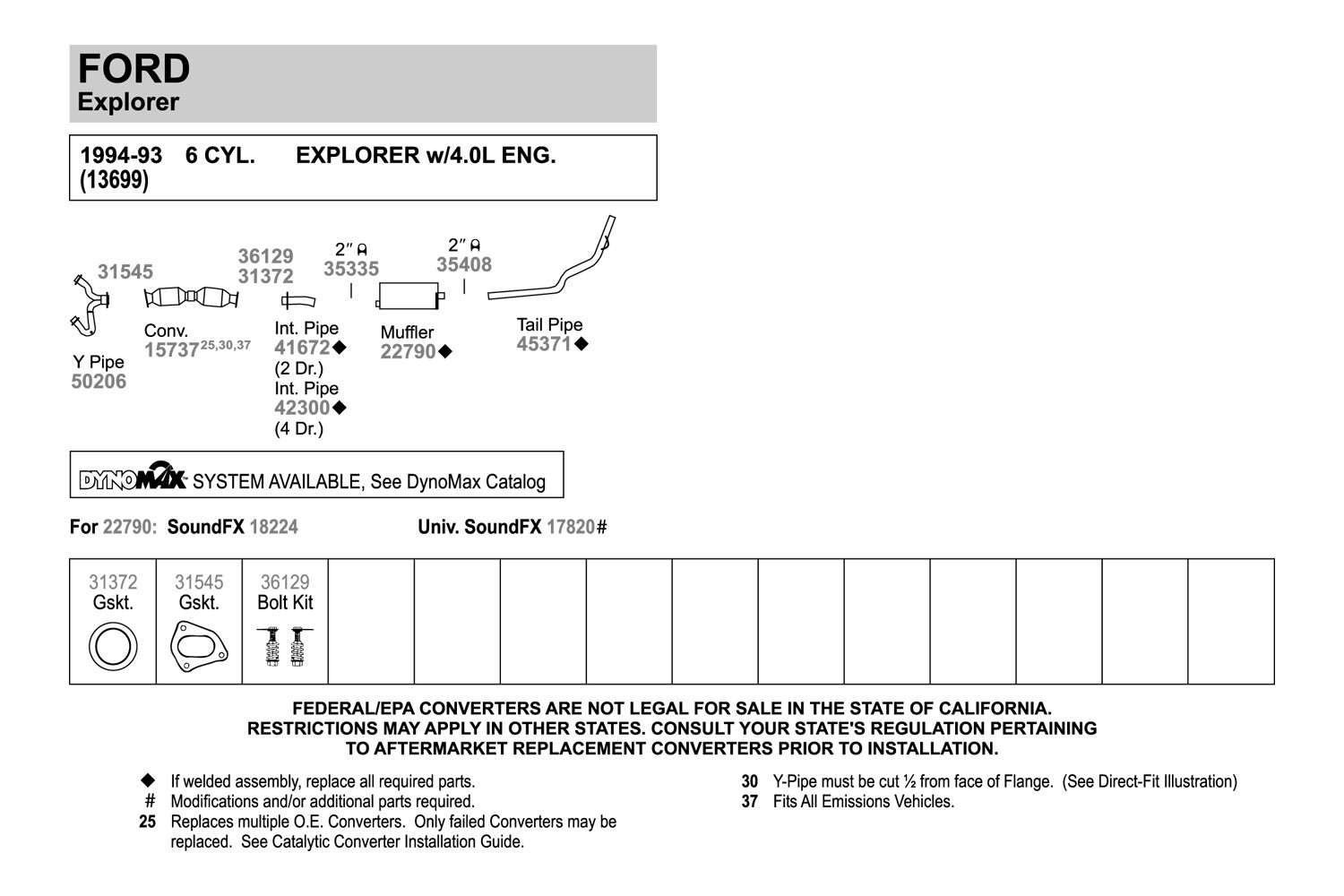

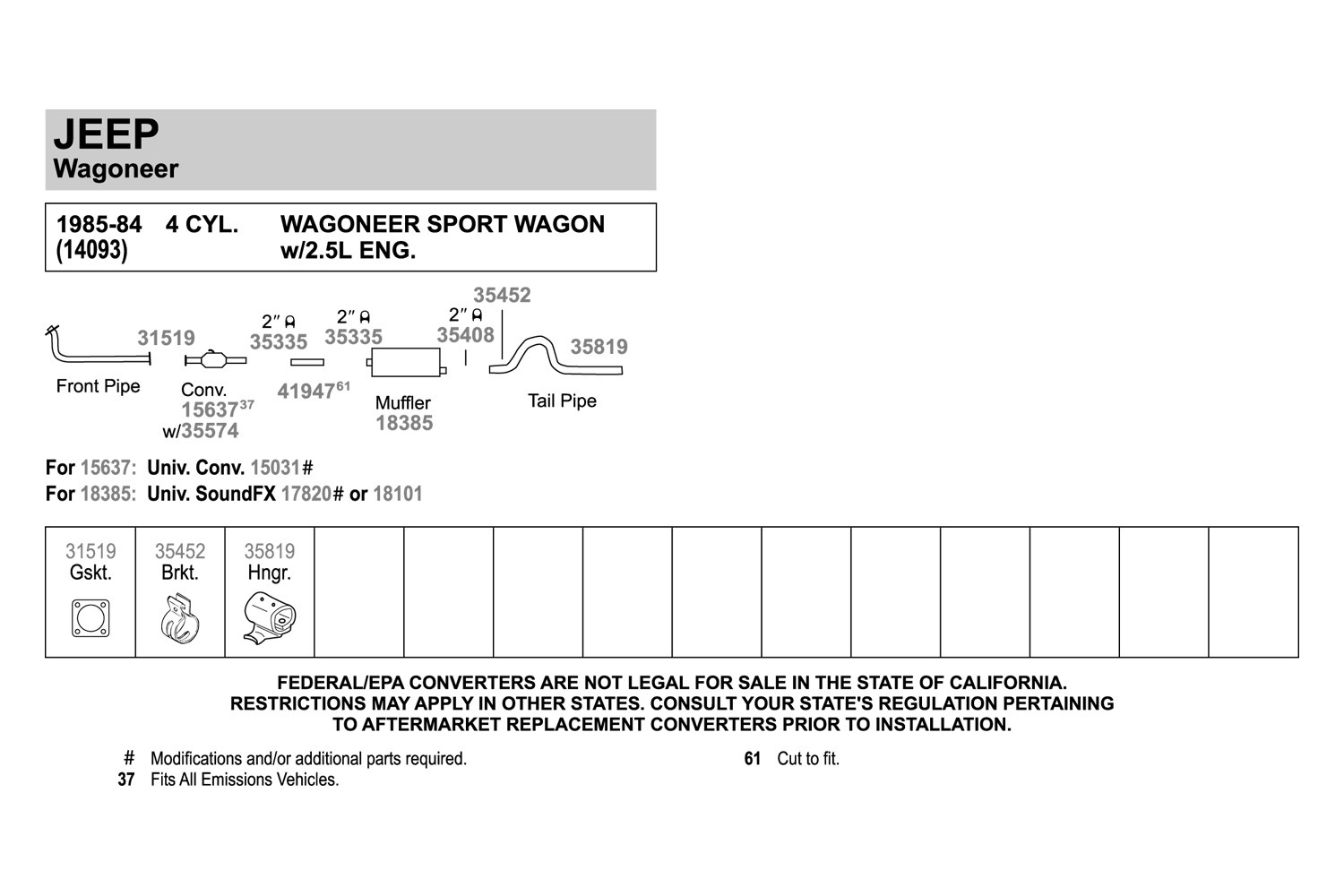

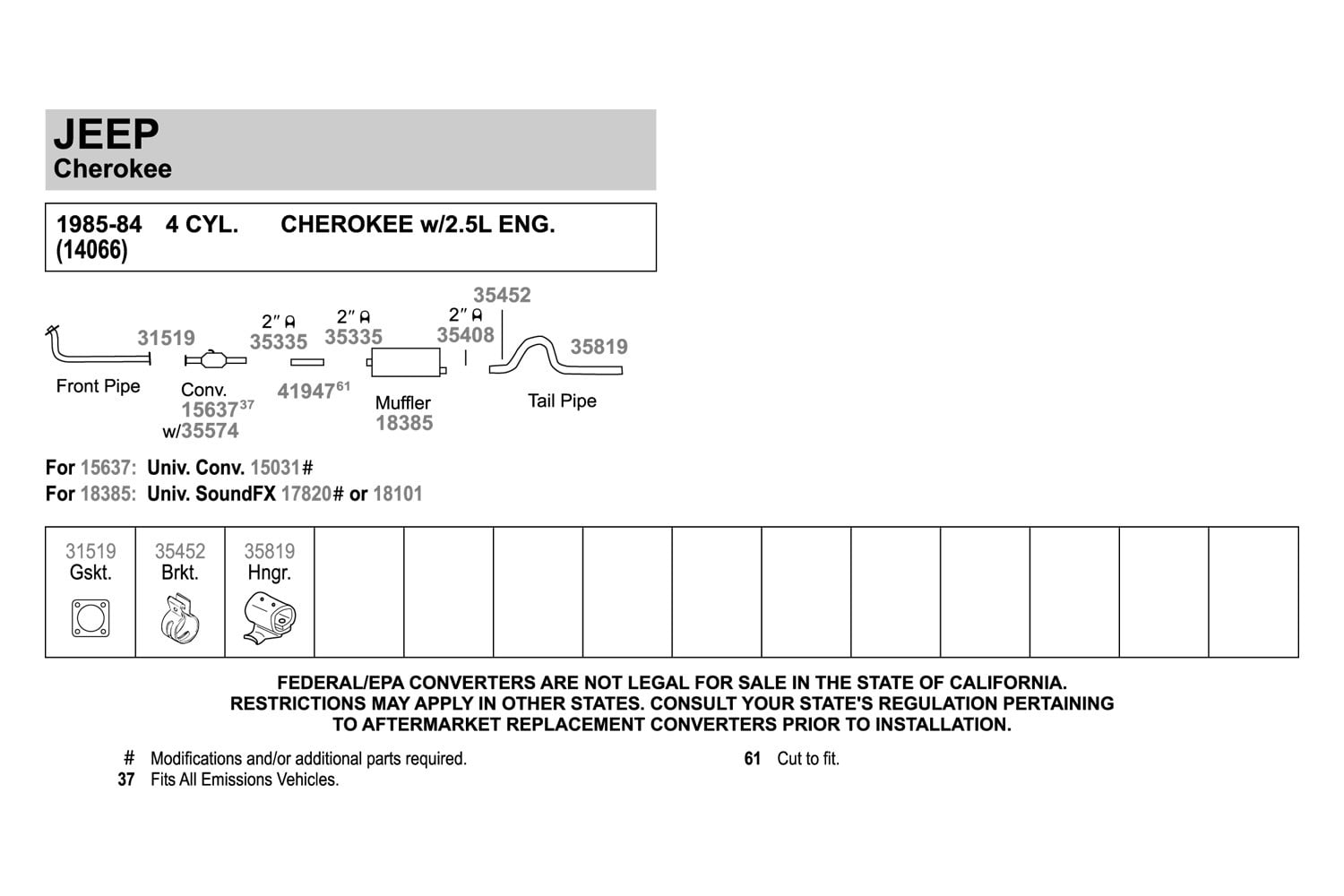

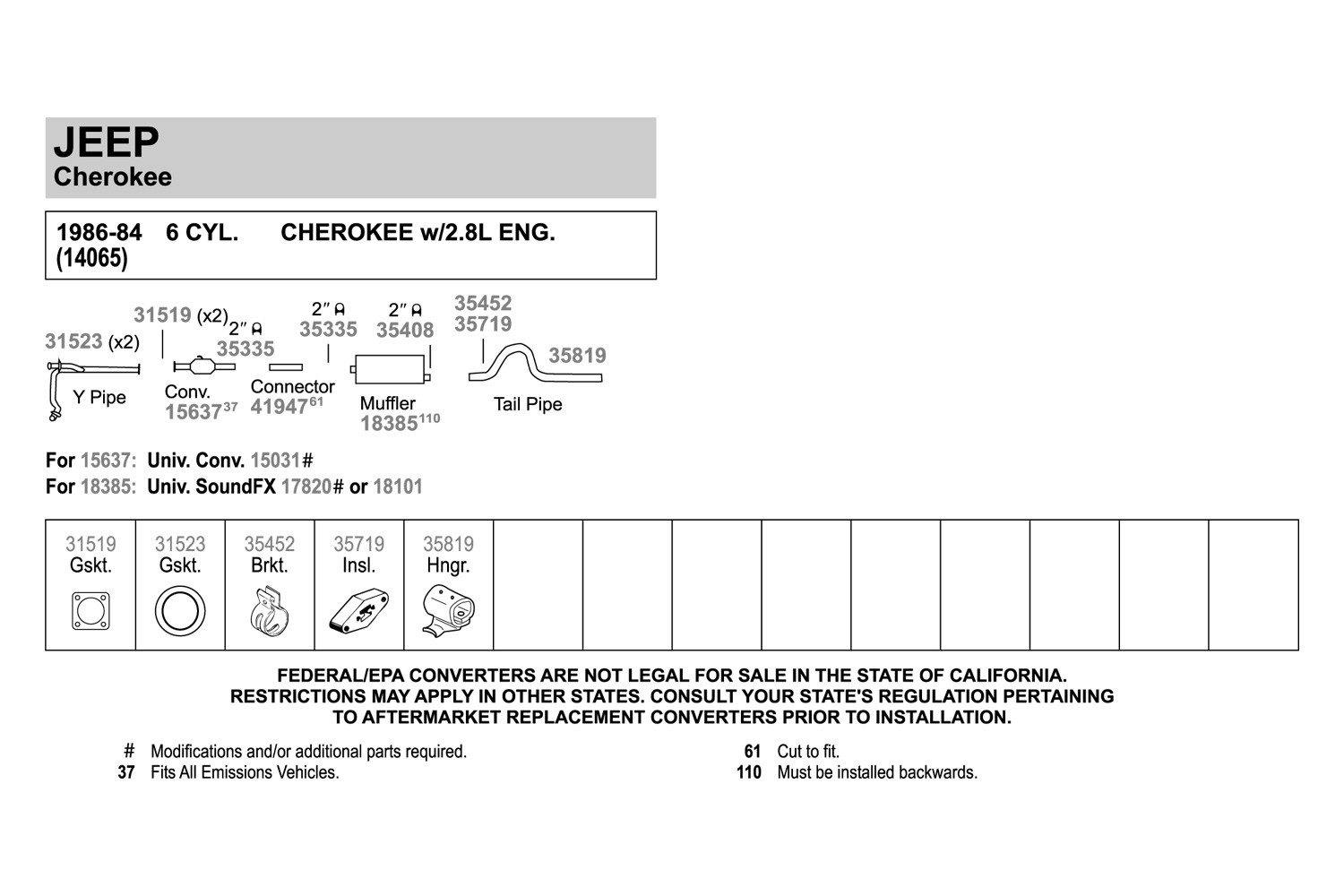

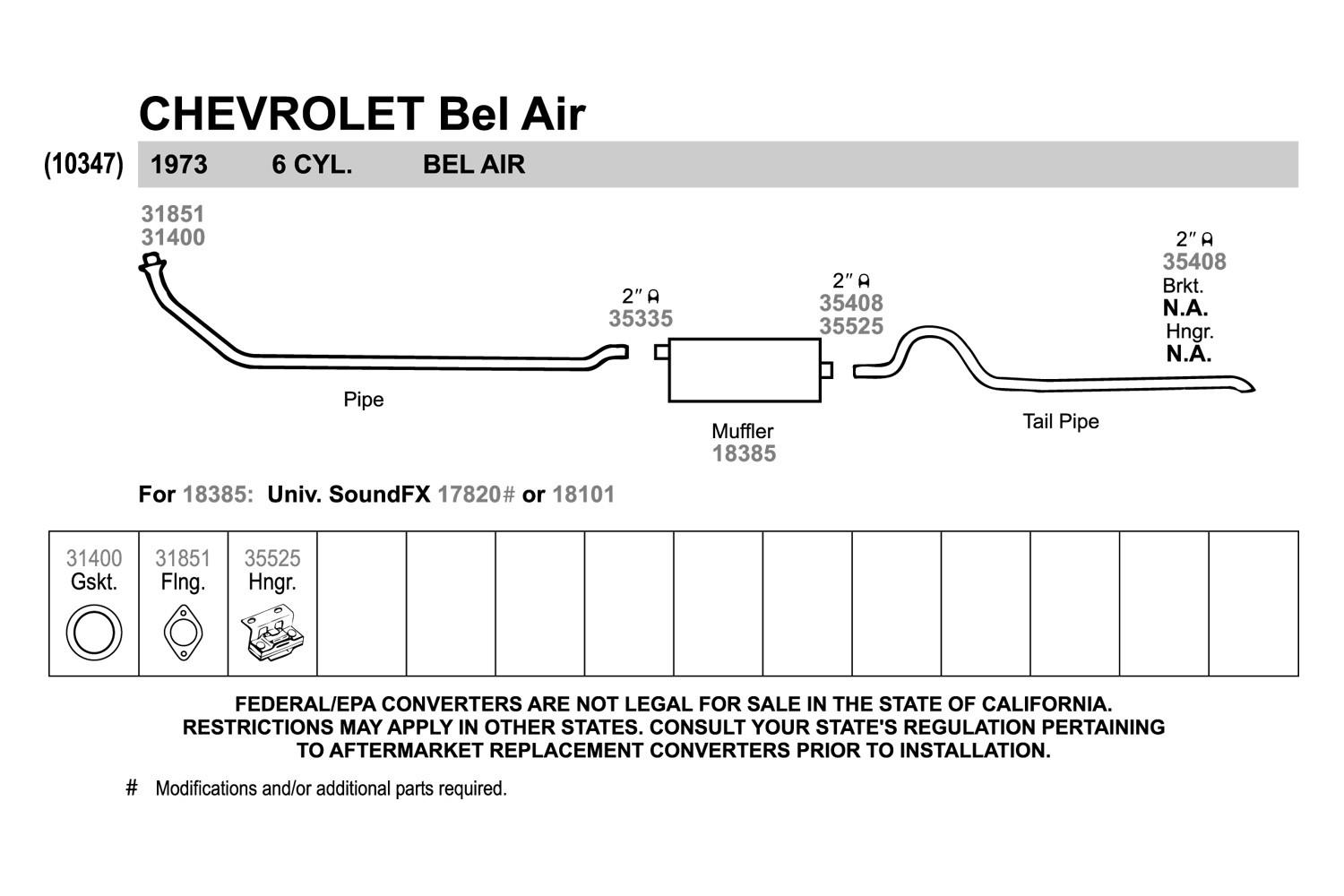

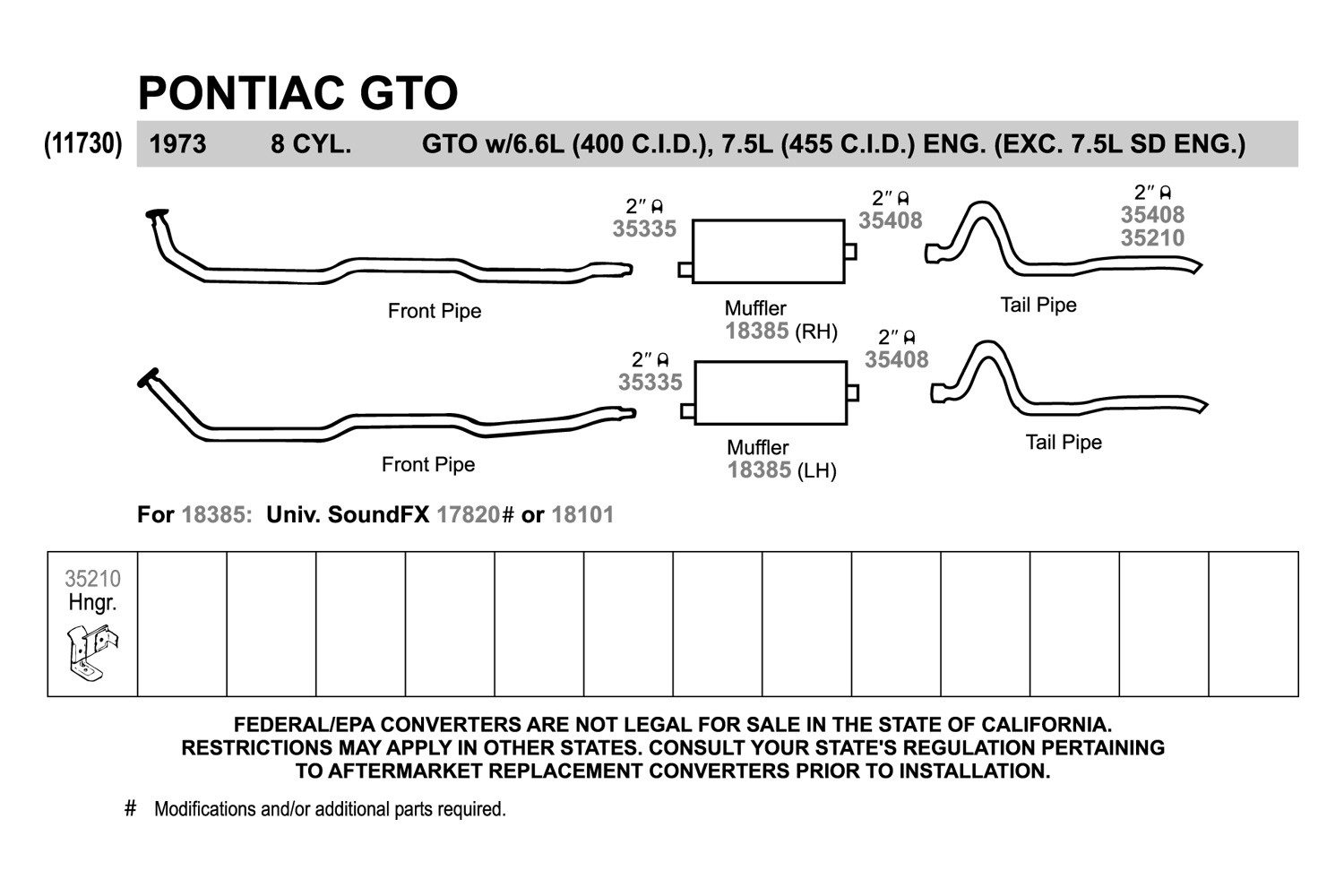

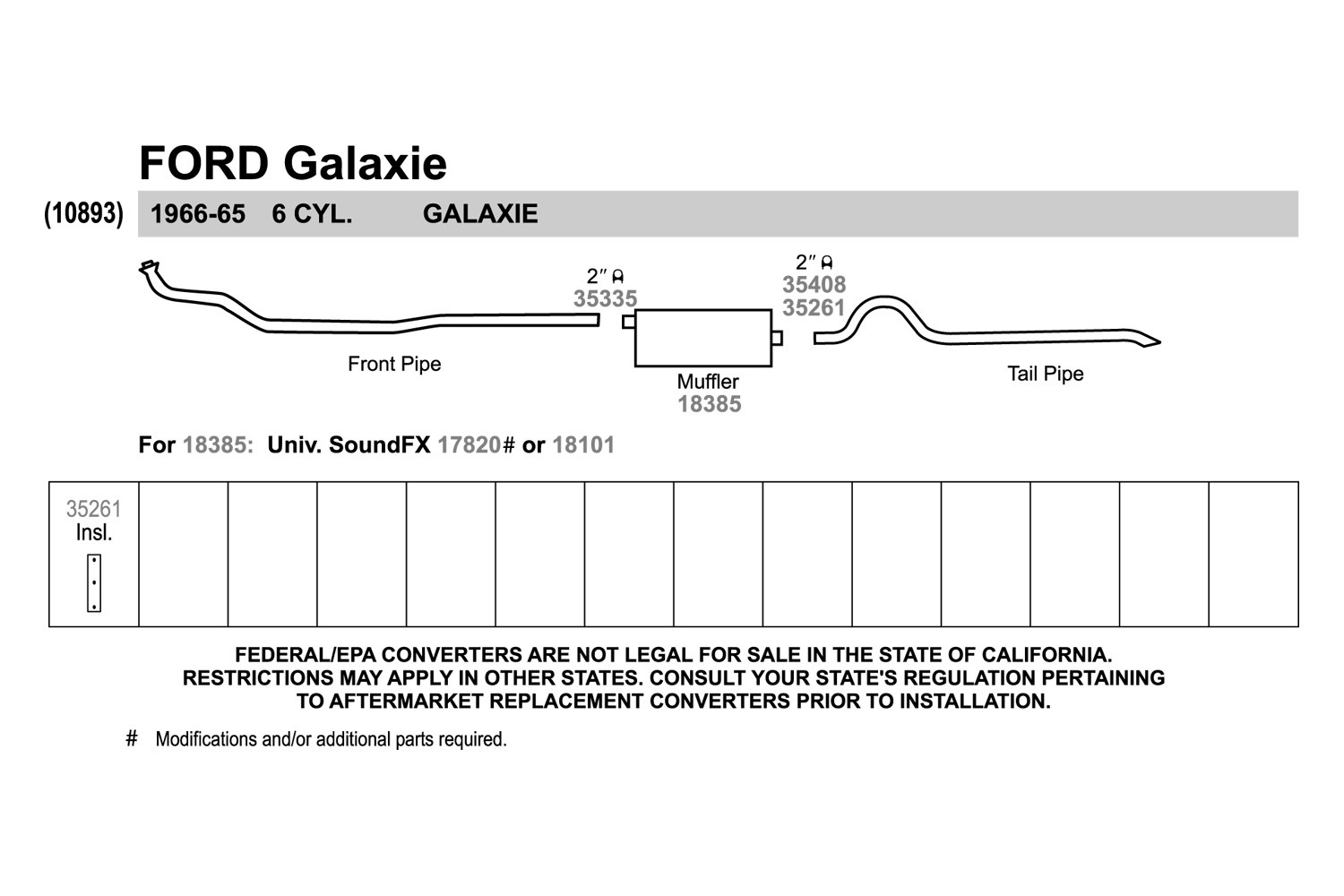

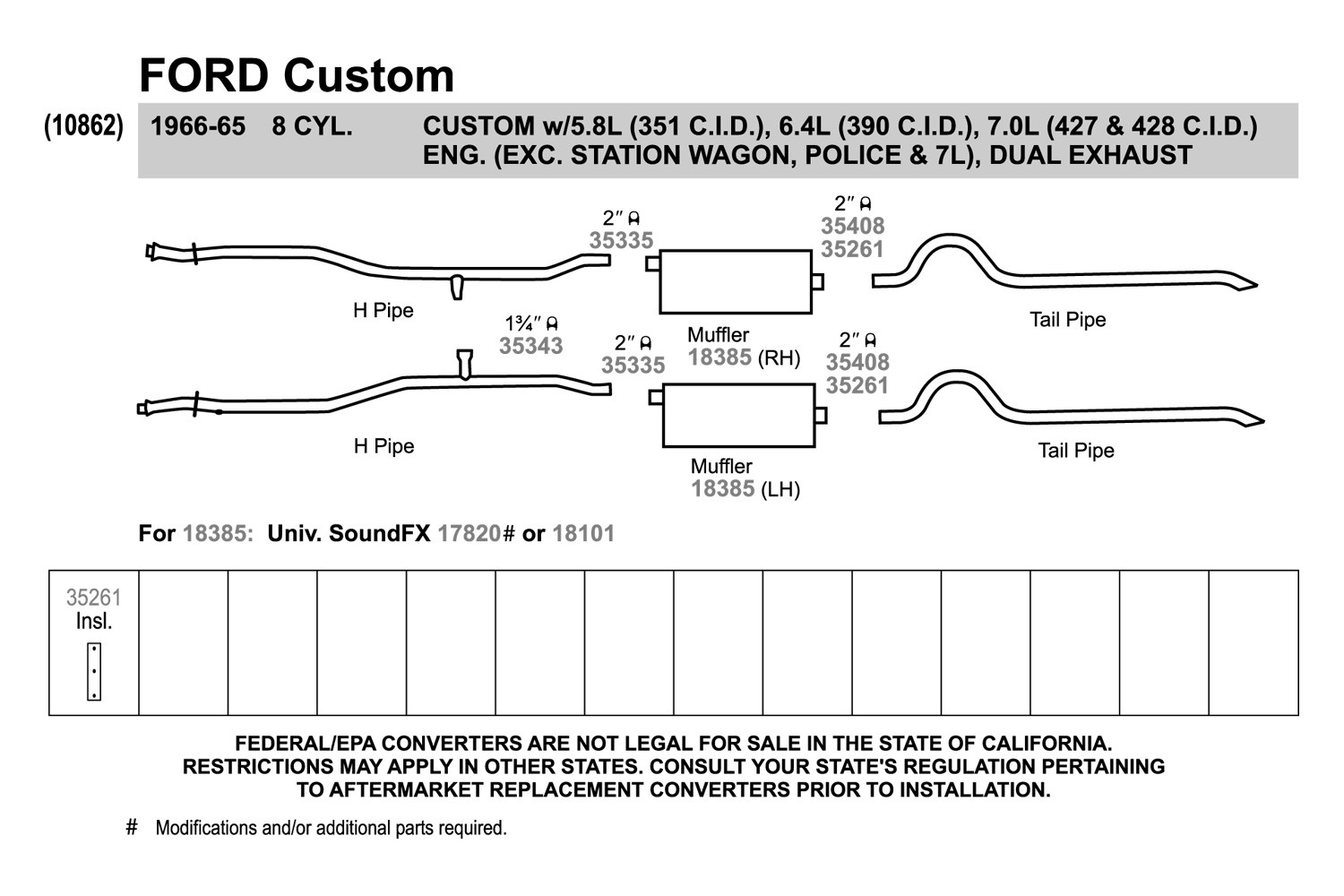

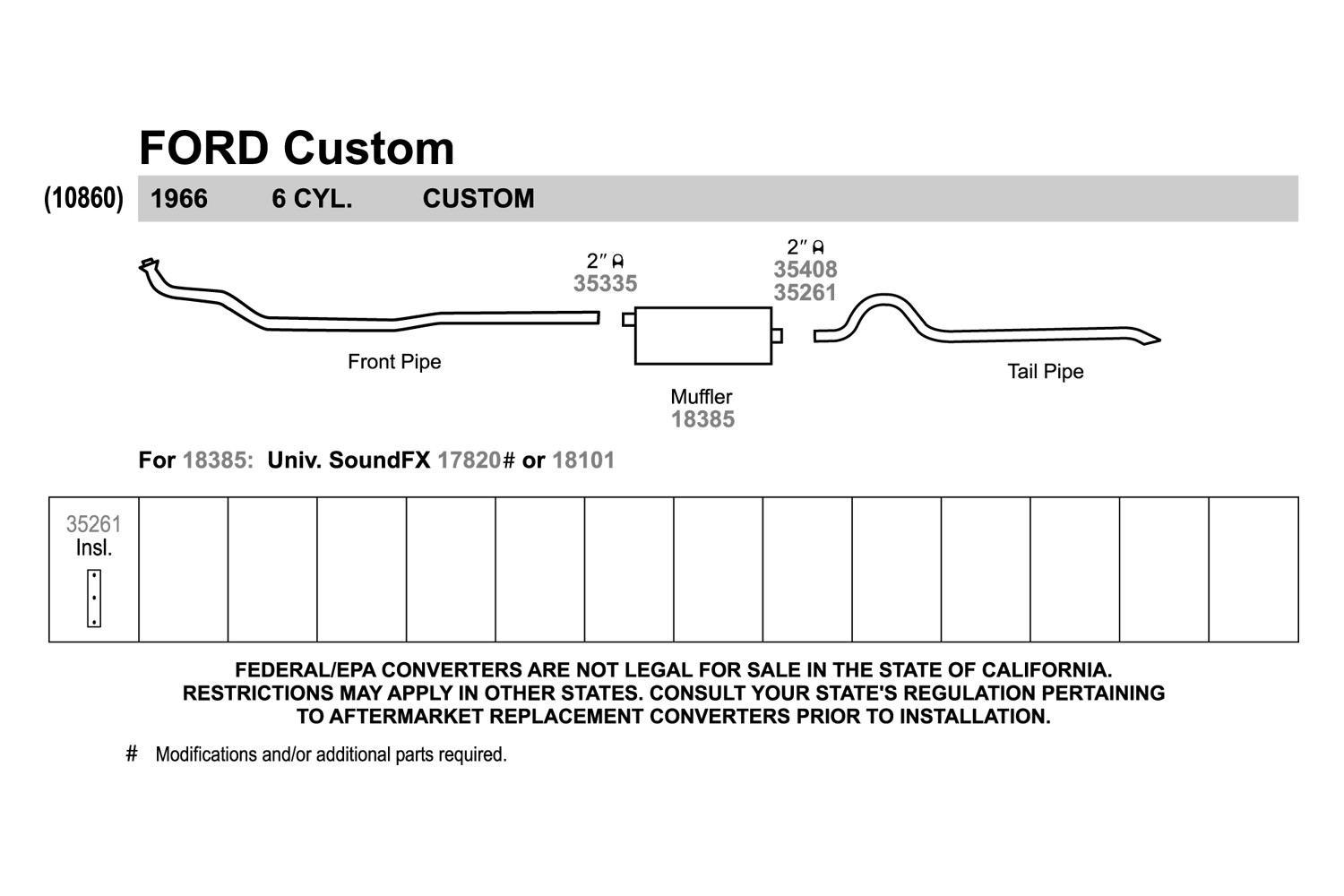

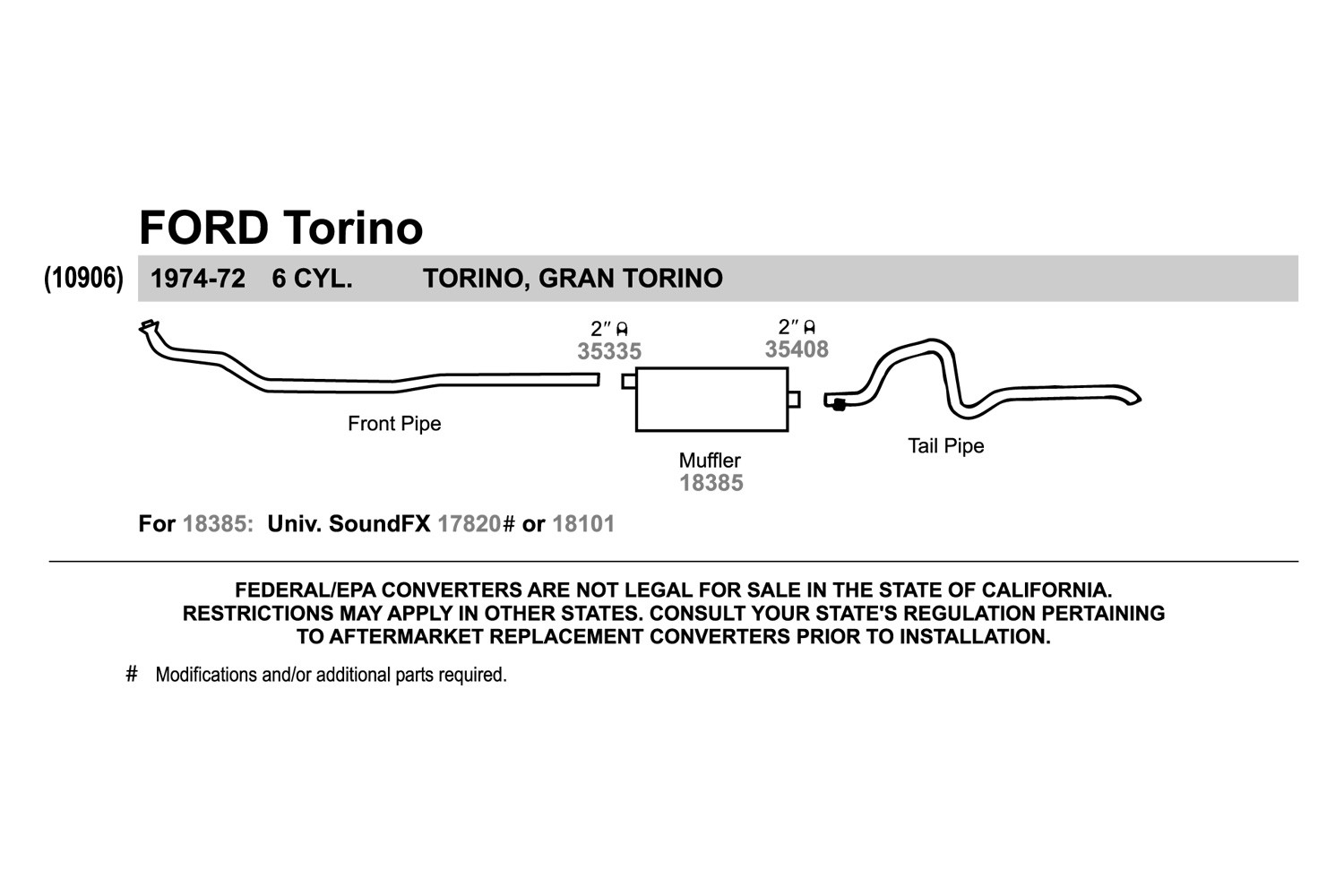

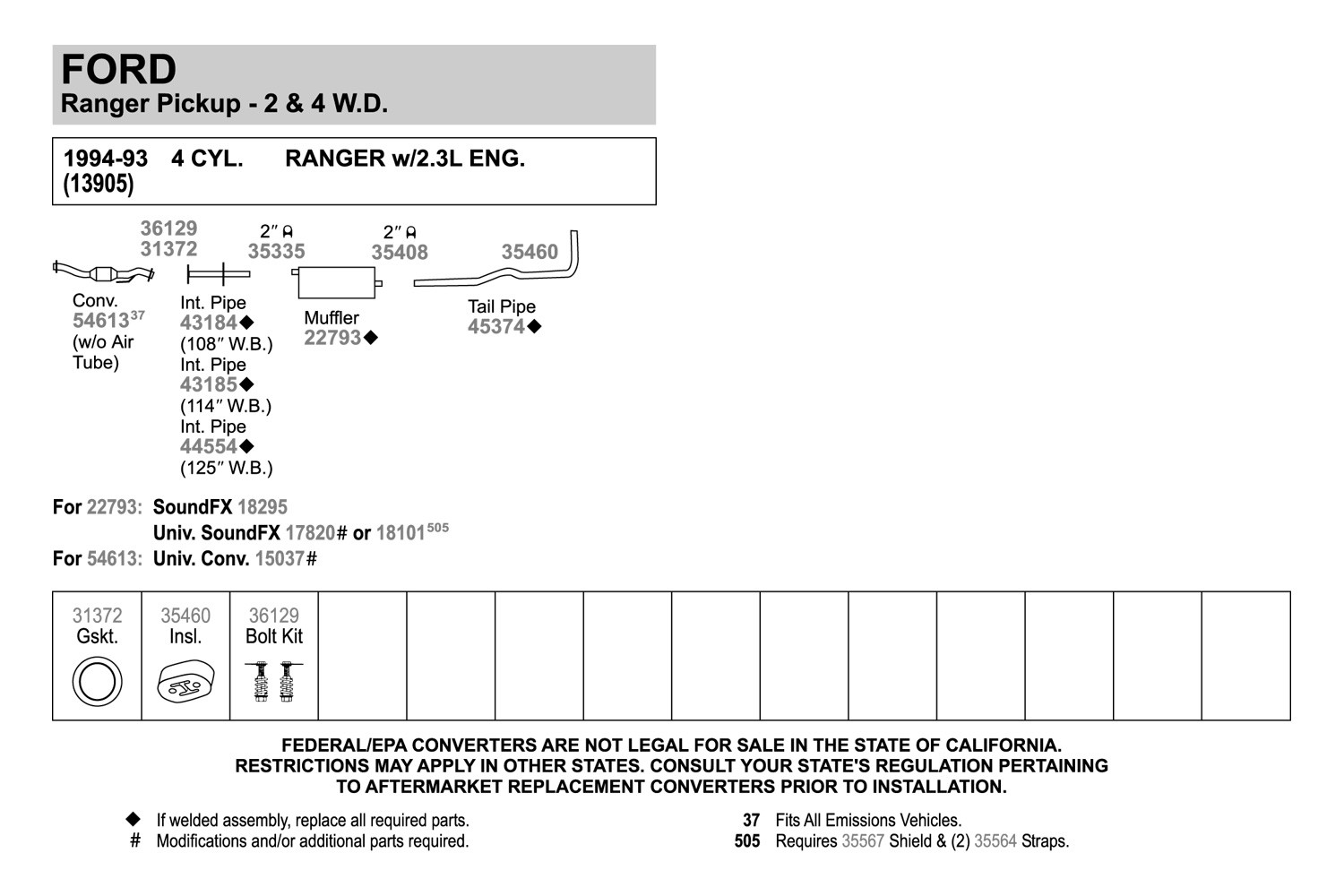

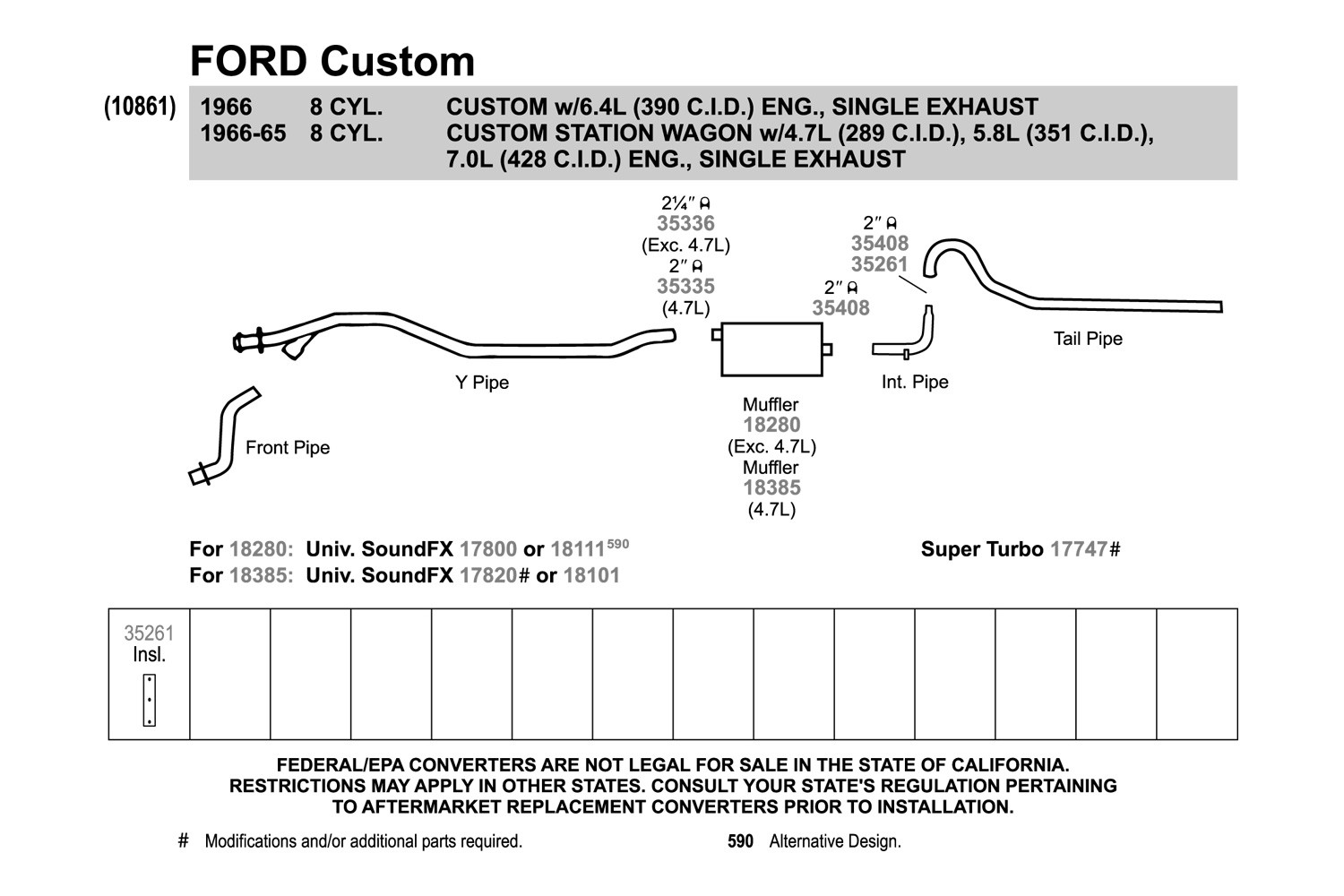

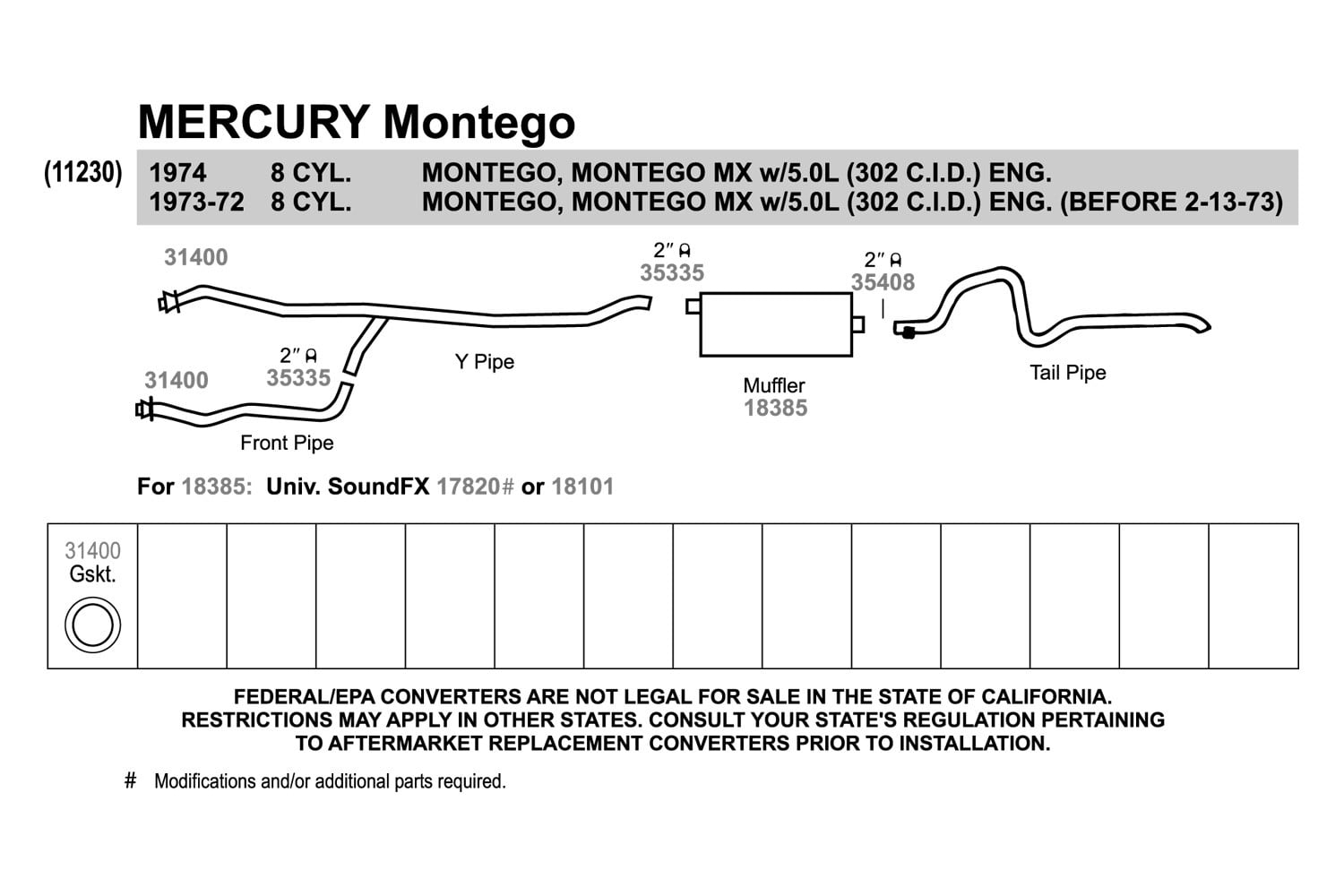

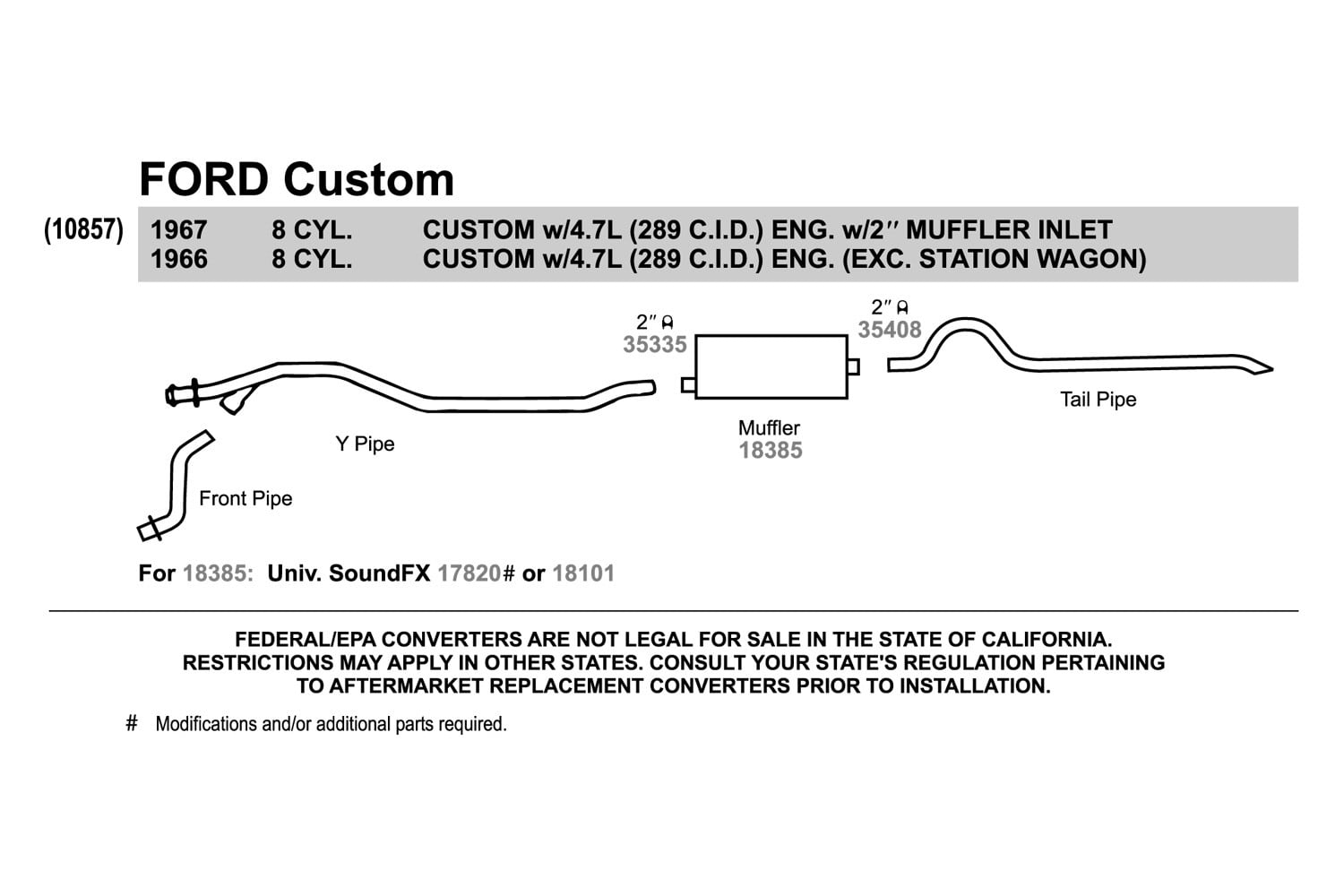

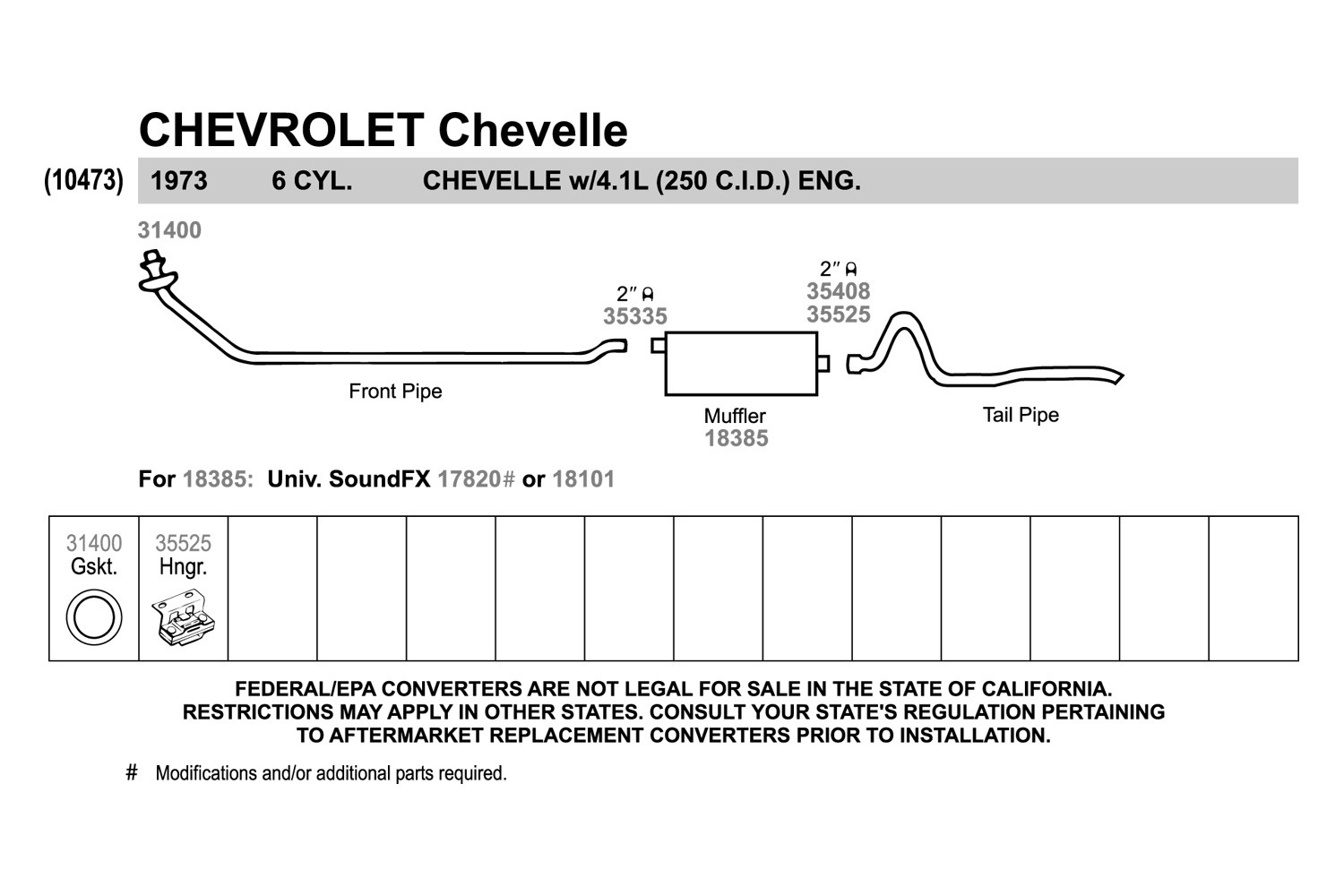

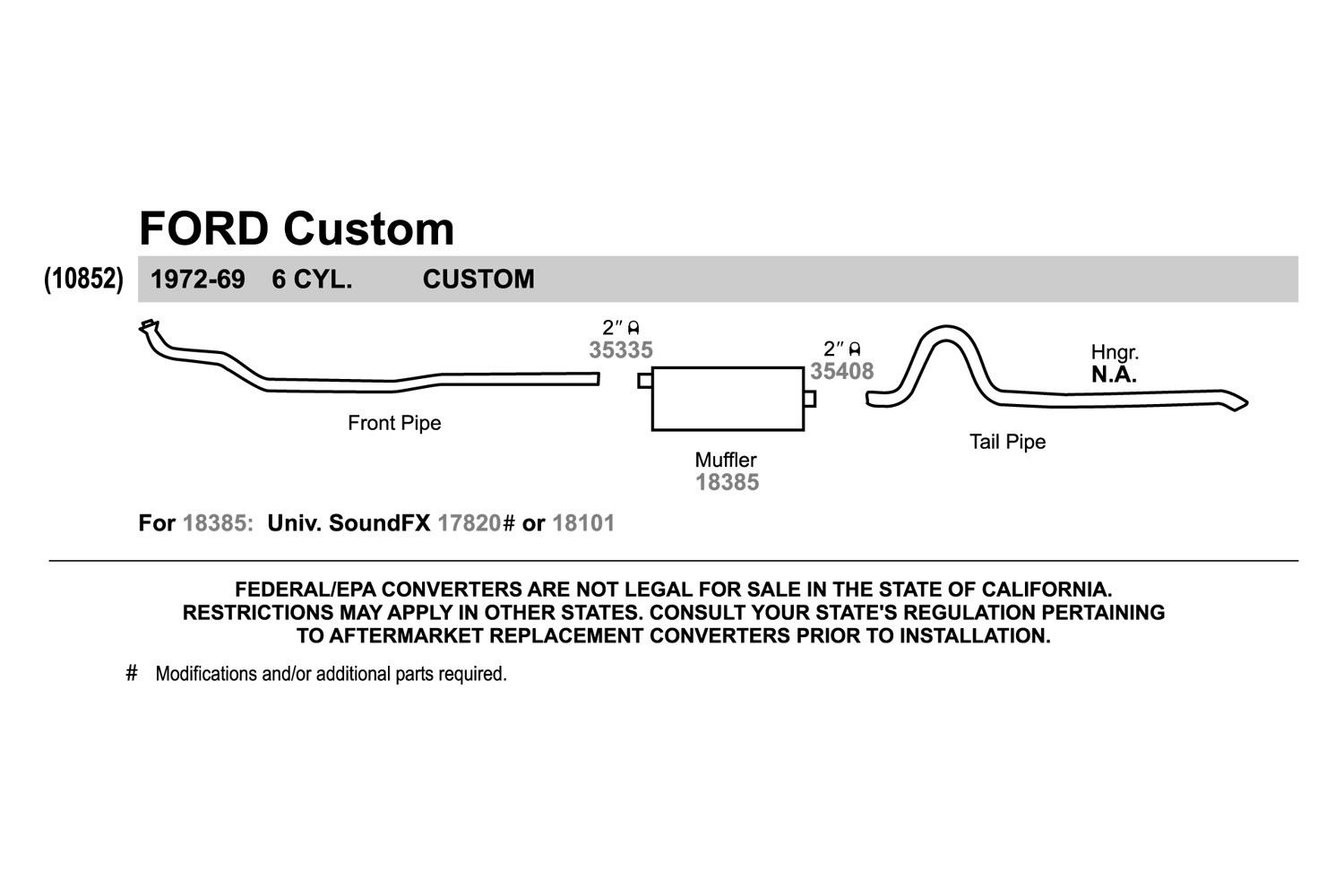

SoundFX Universal for part 22790
Modifications and/or additional parts required

Authorized Dealer

$49.98

In Stock (37)

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

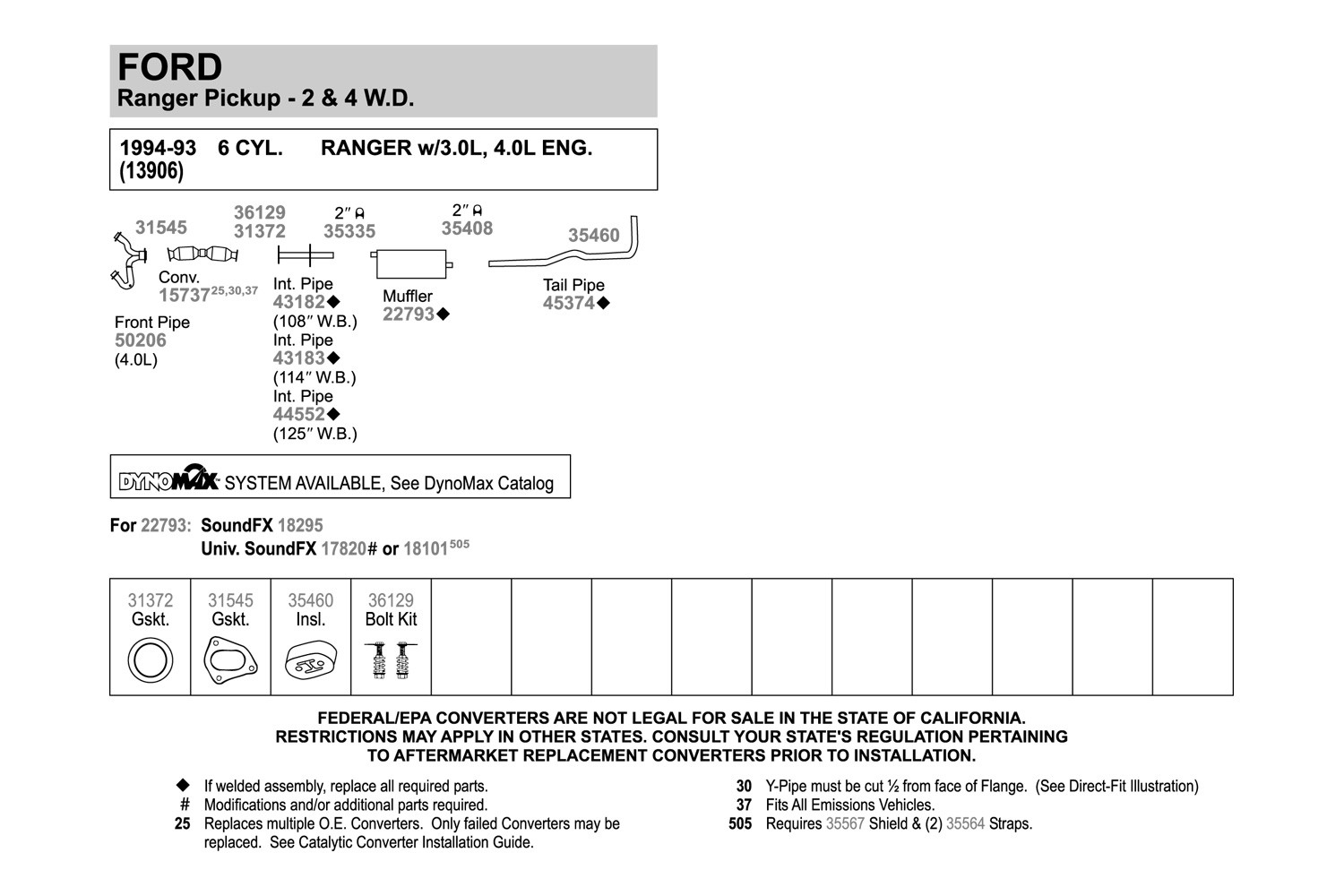

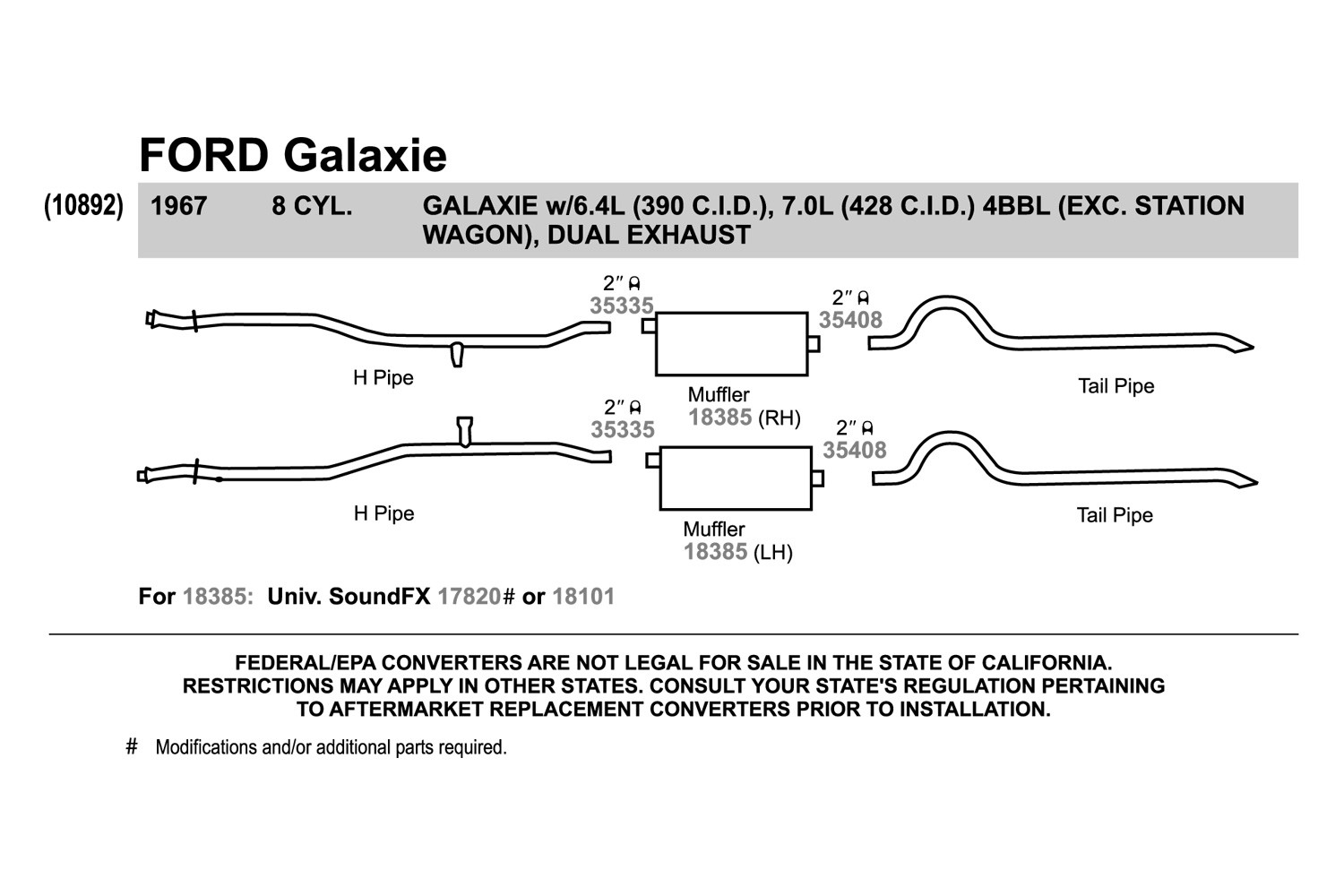

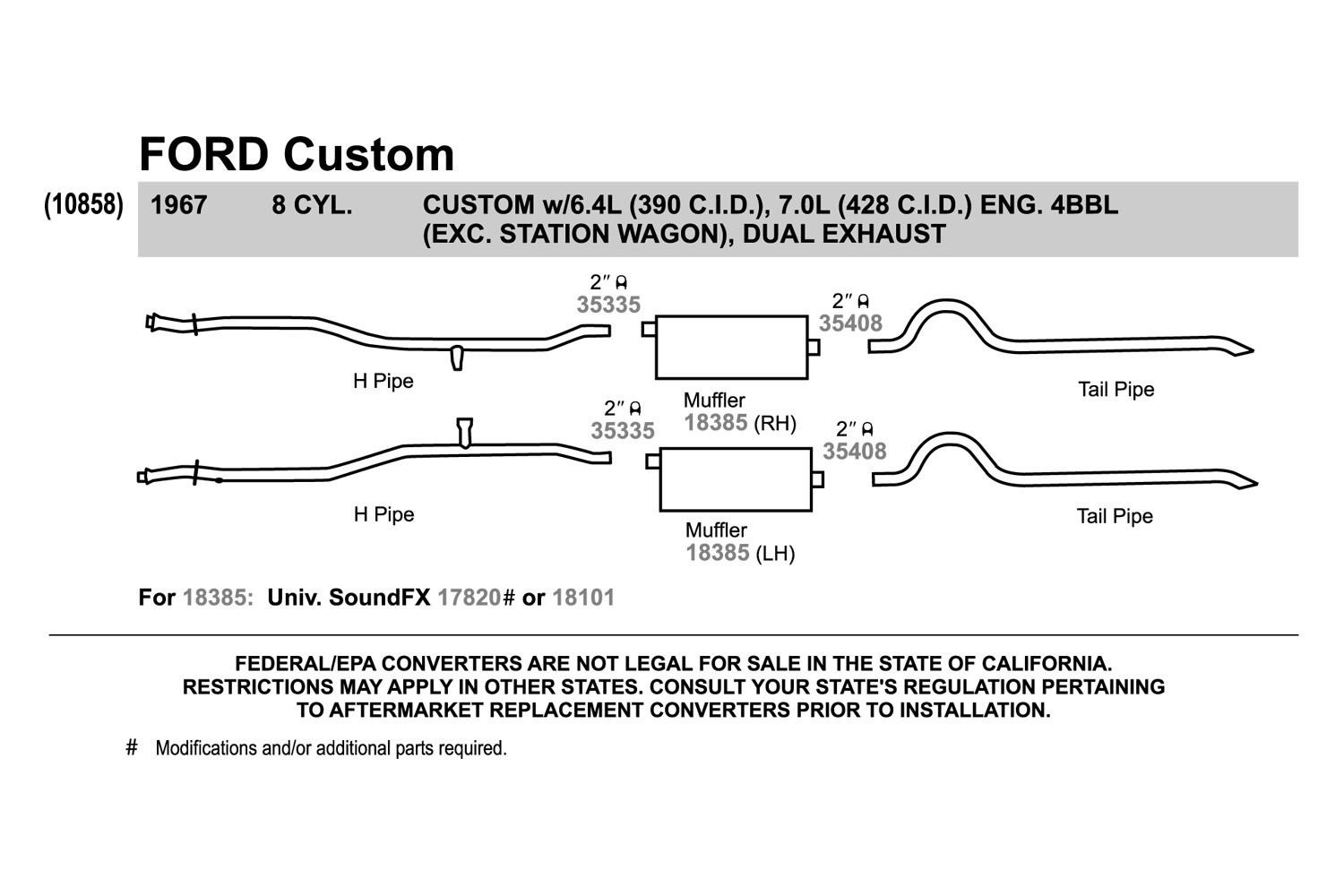

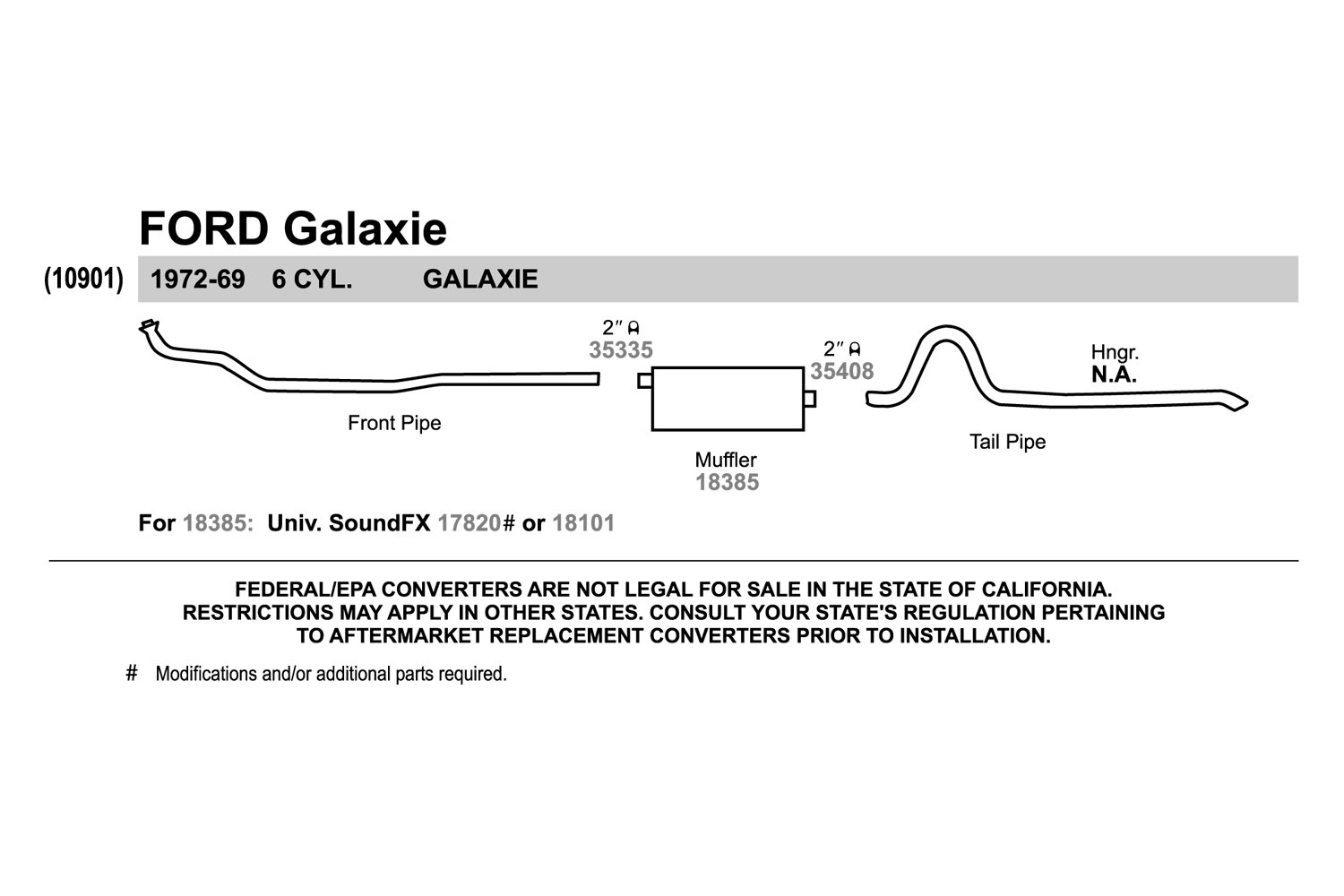

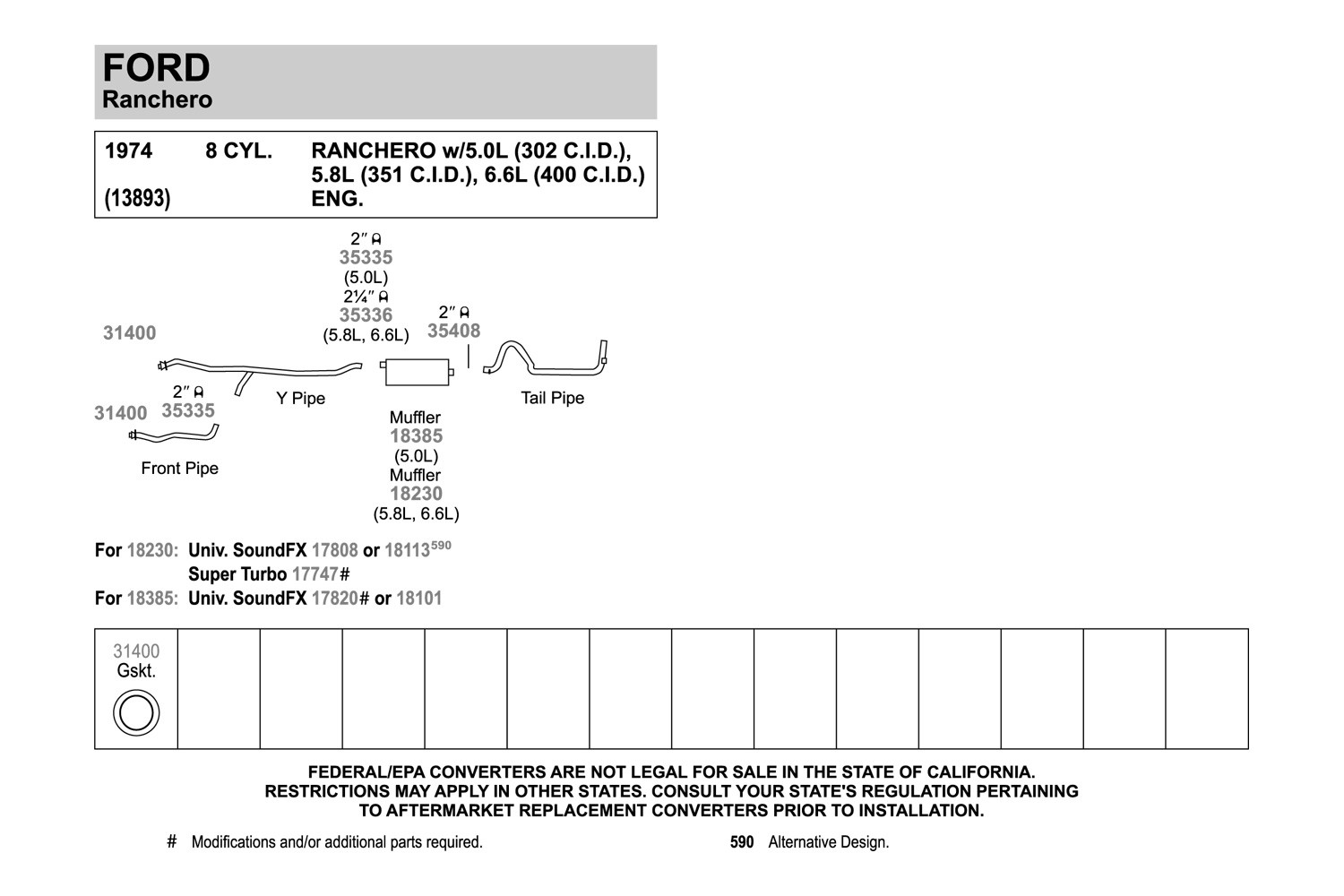

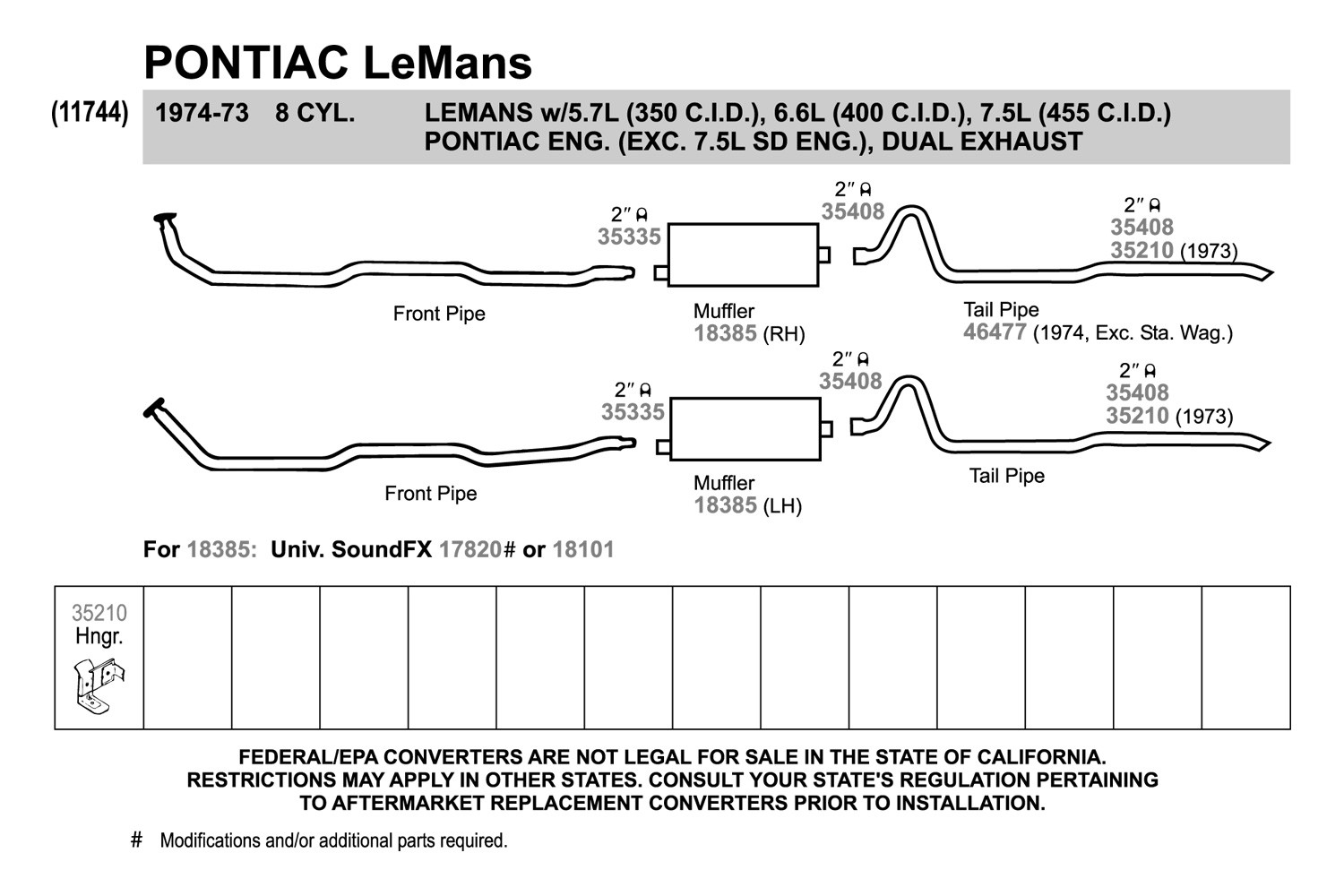

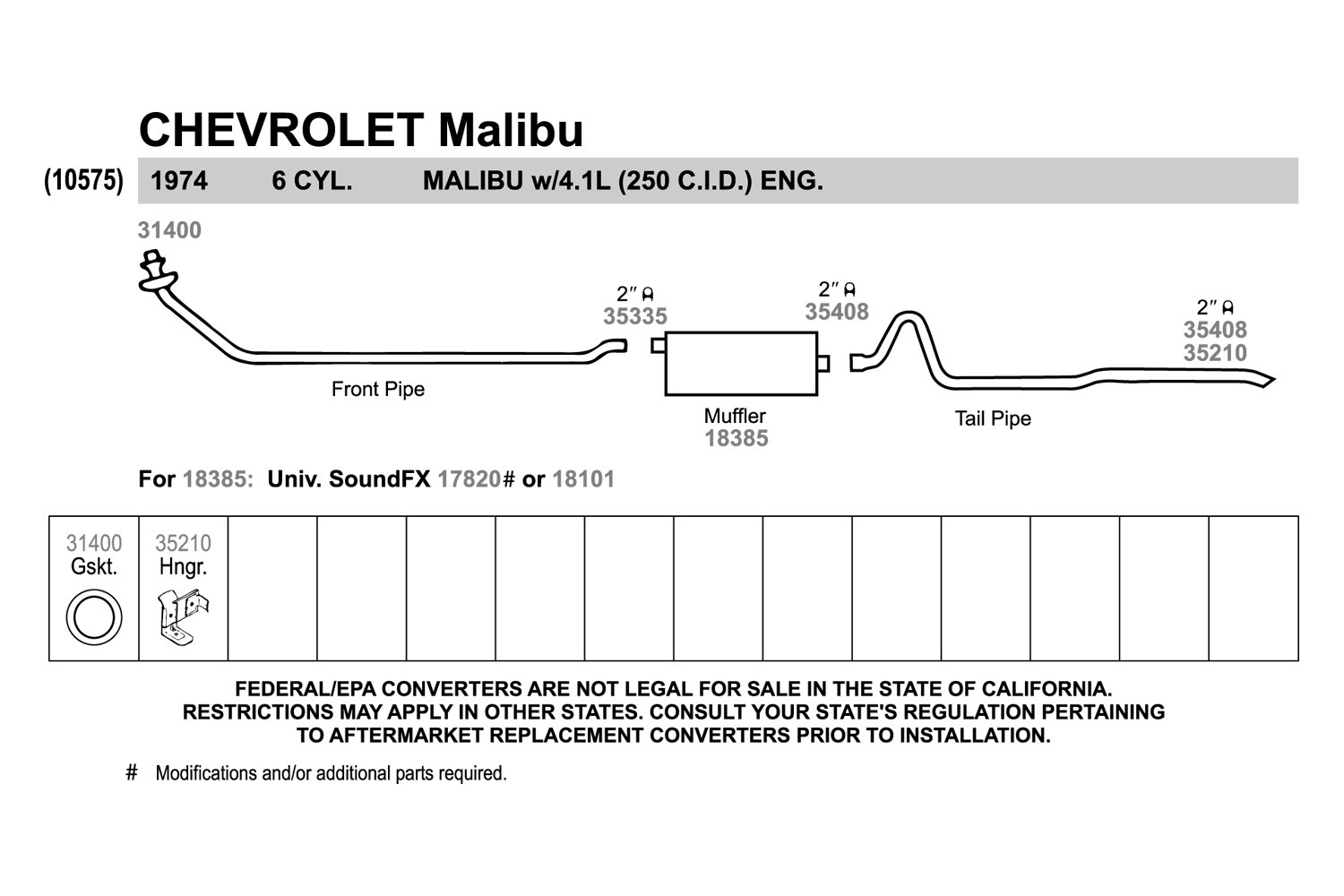

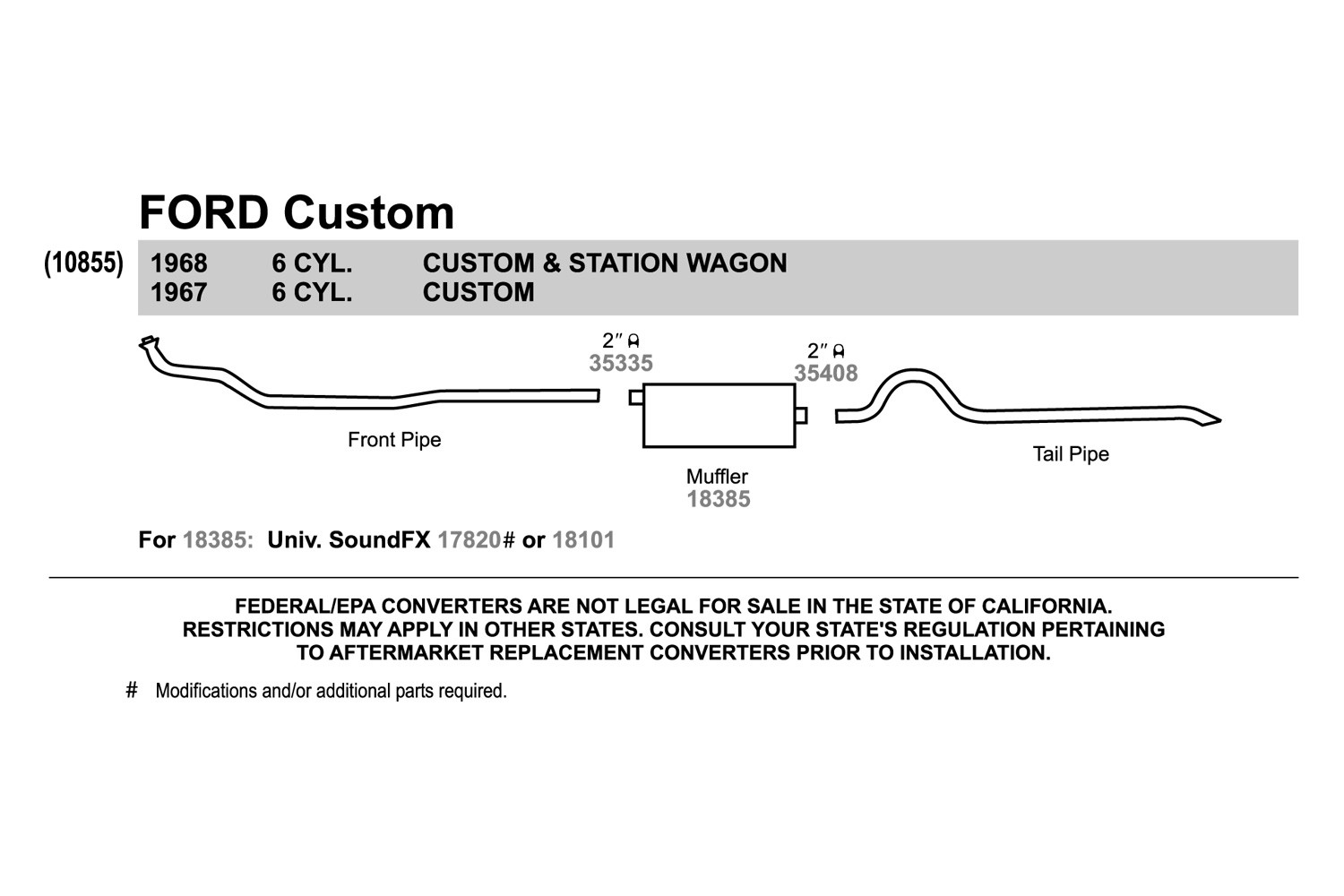

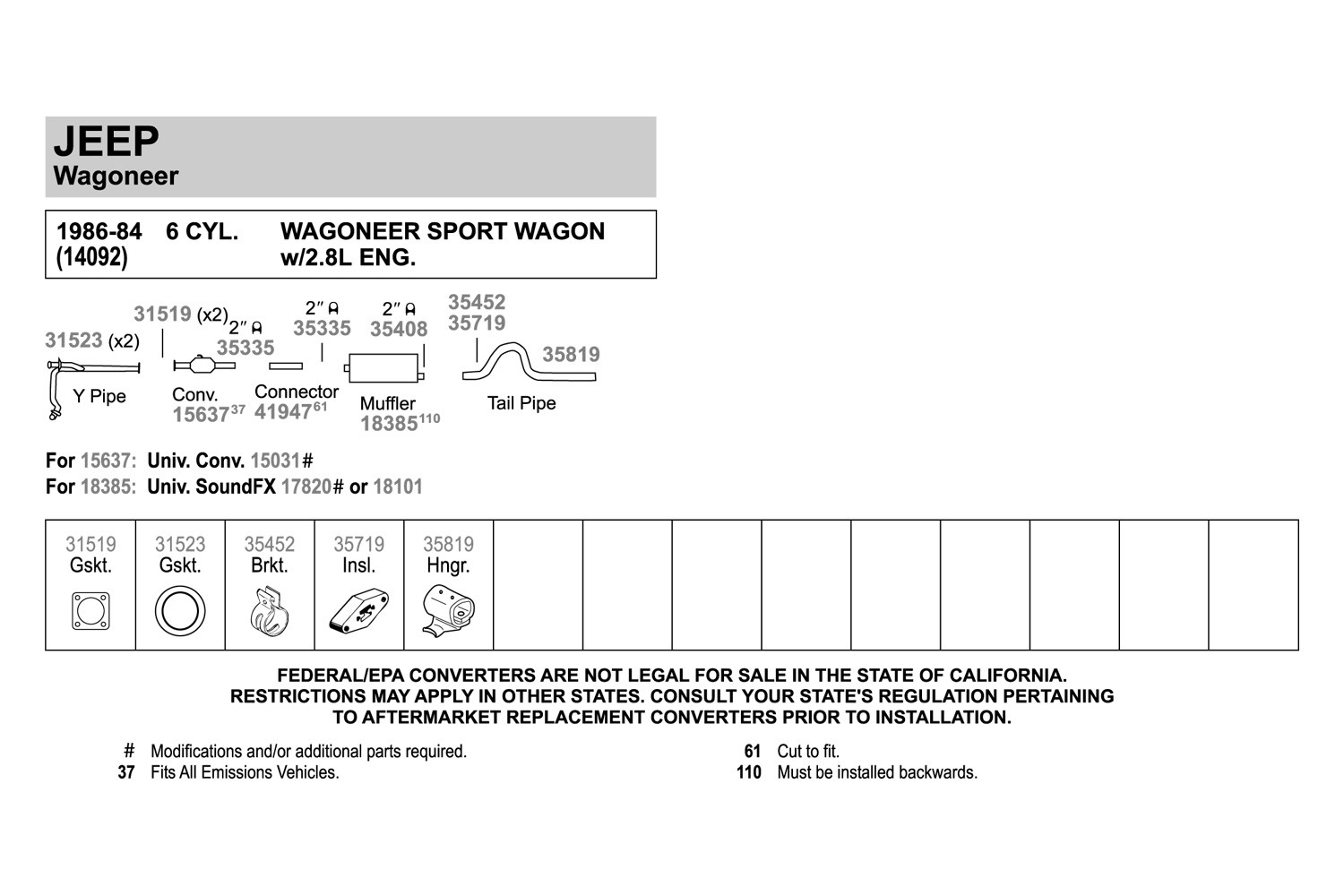

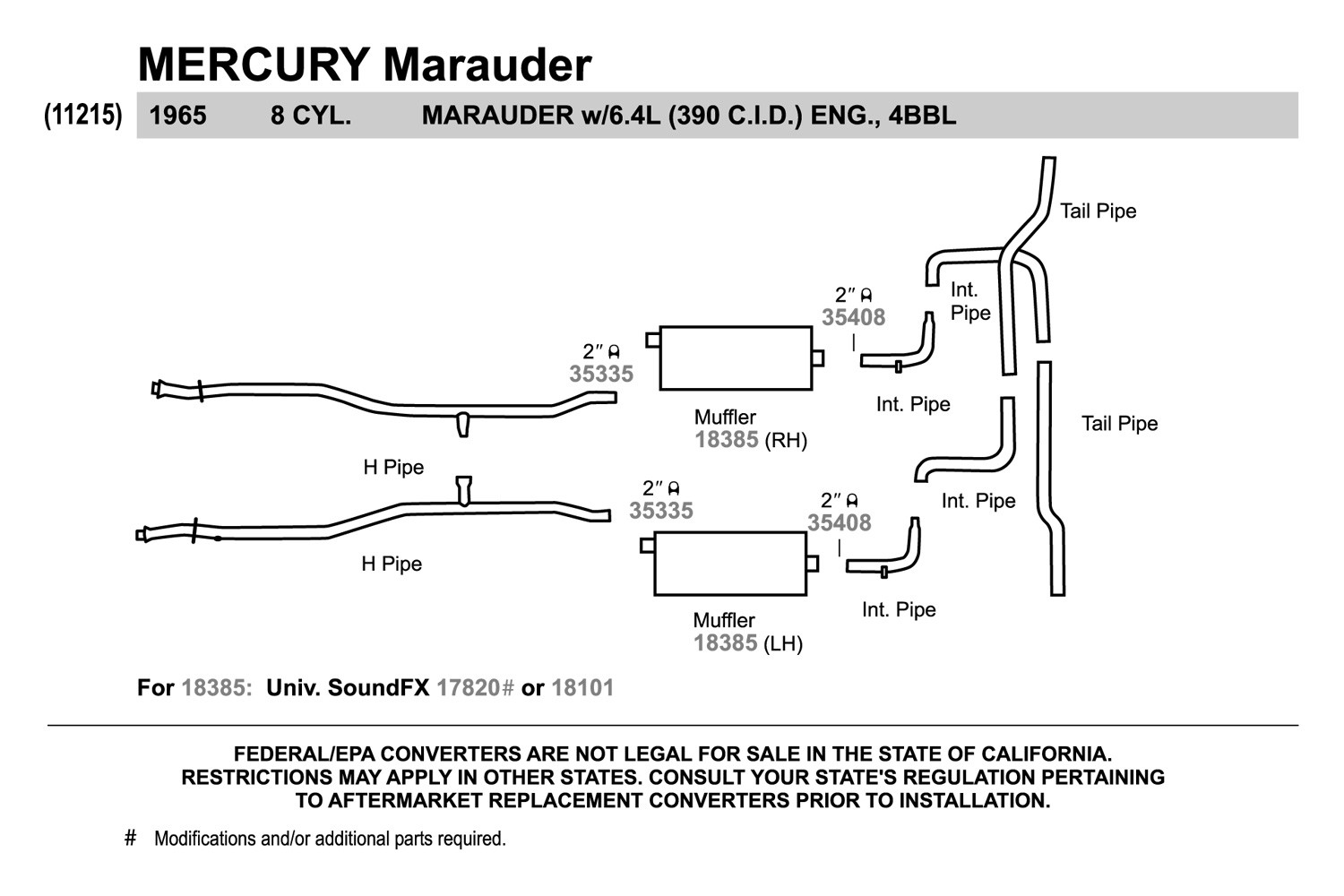

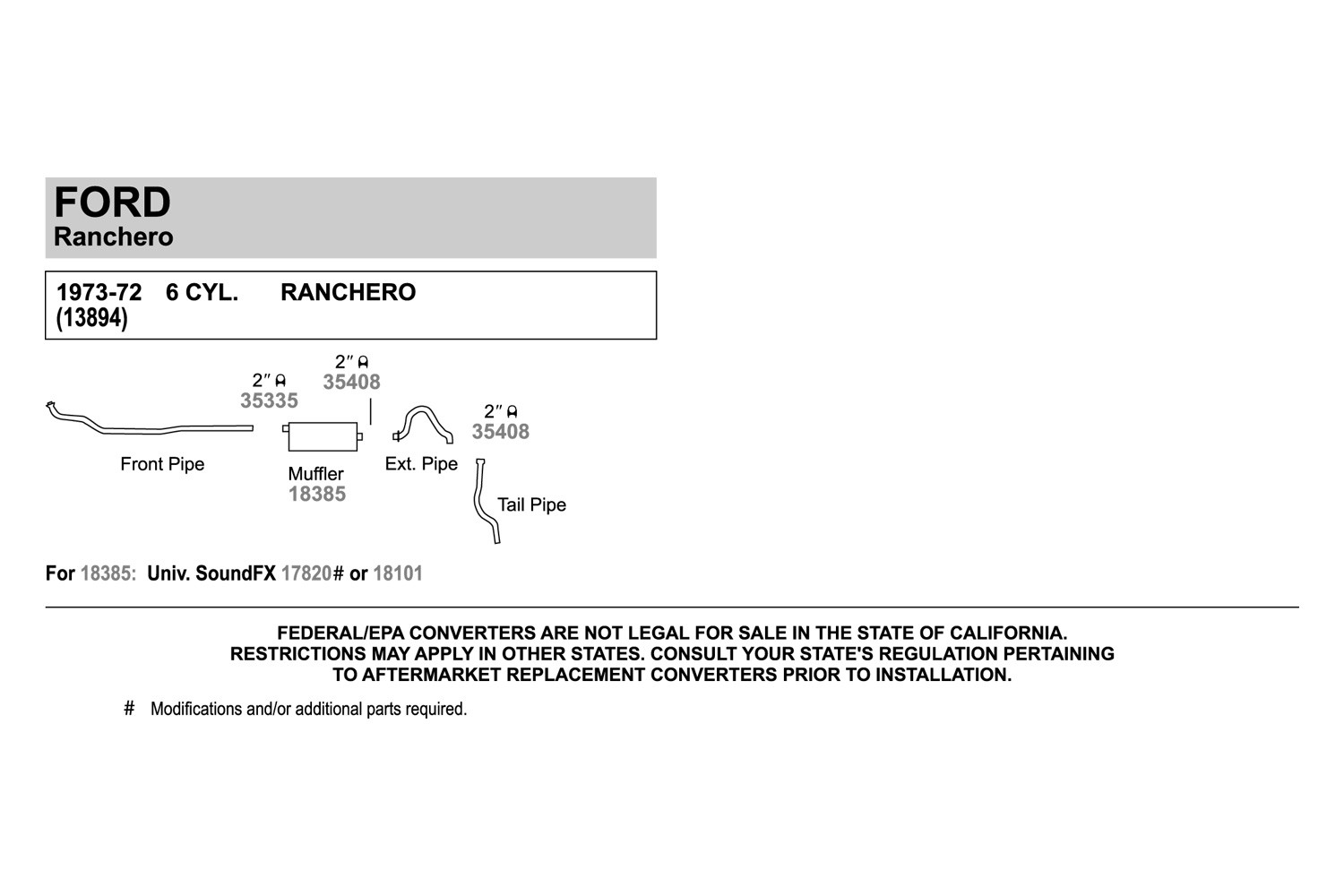

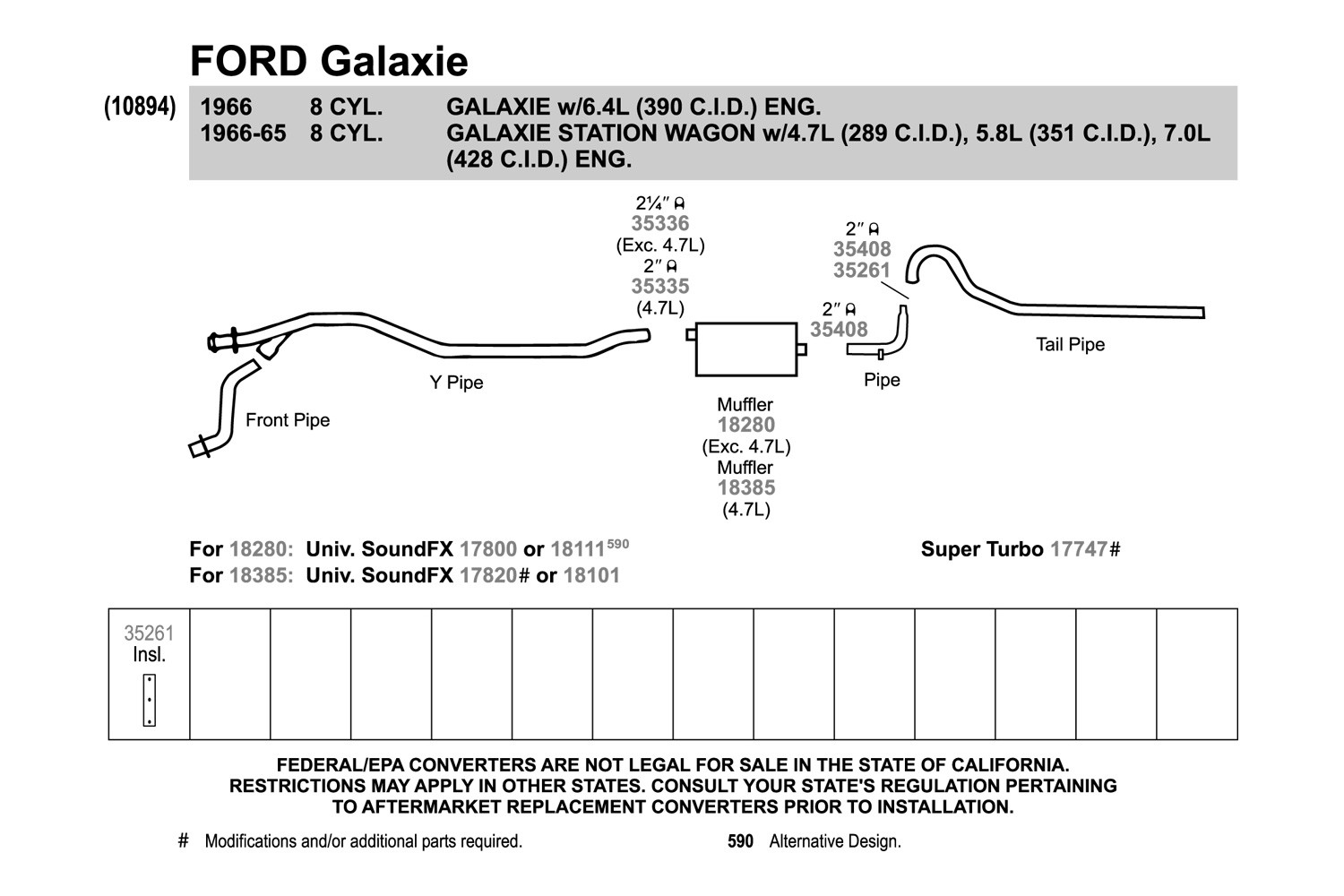

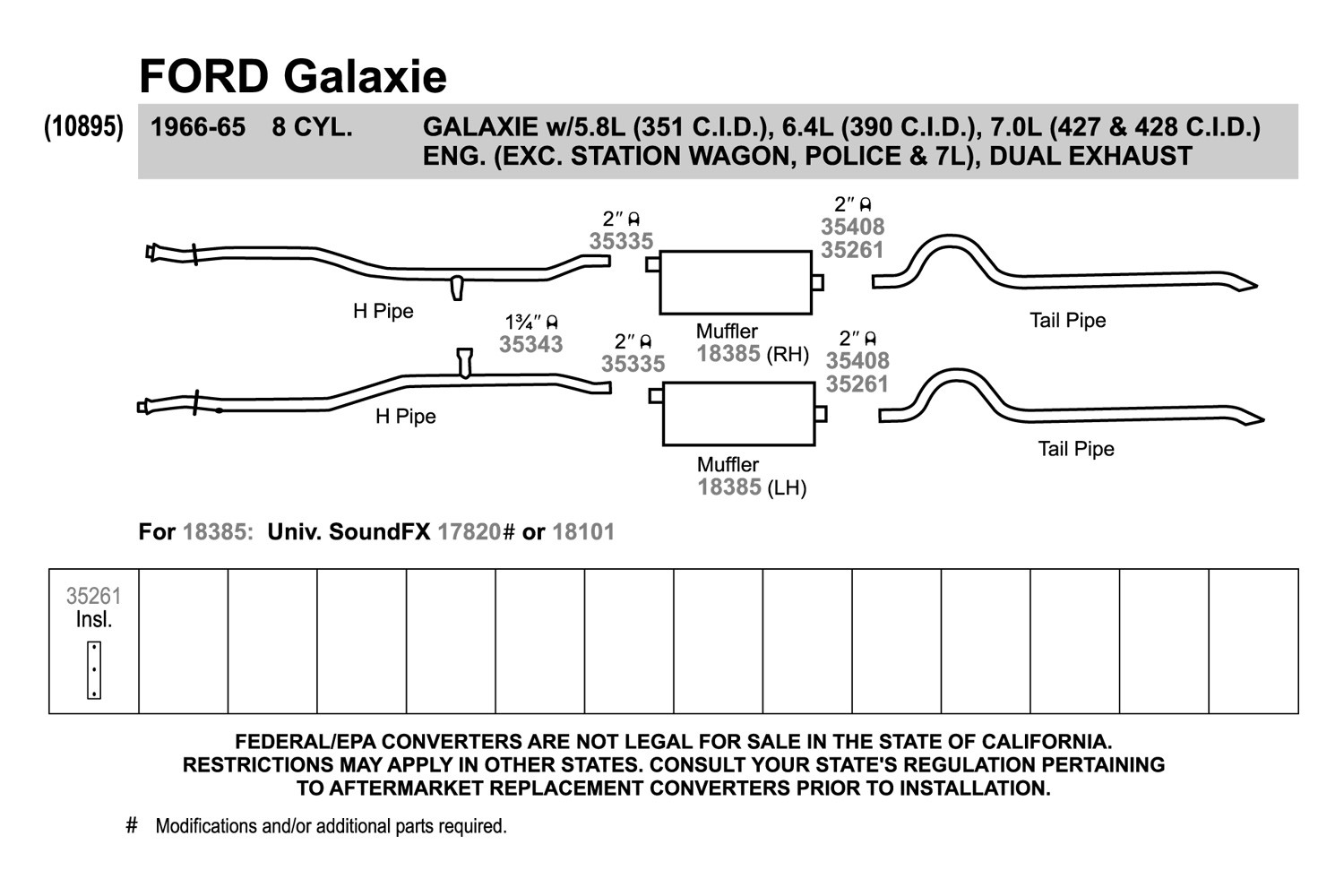

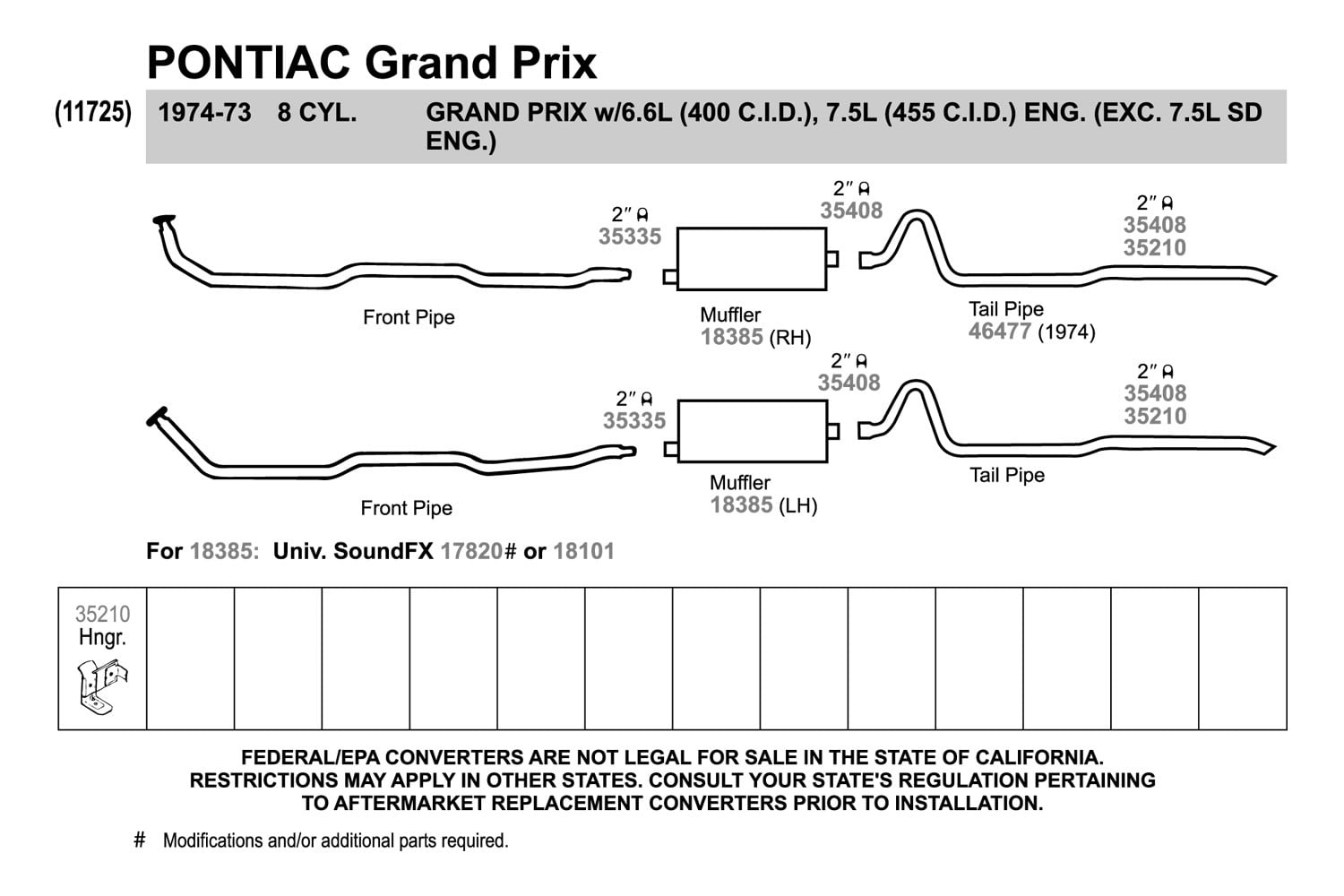

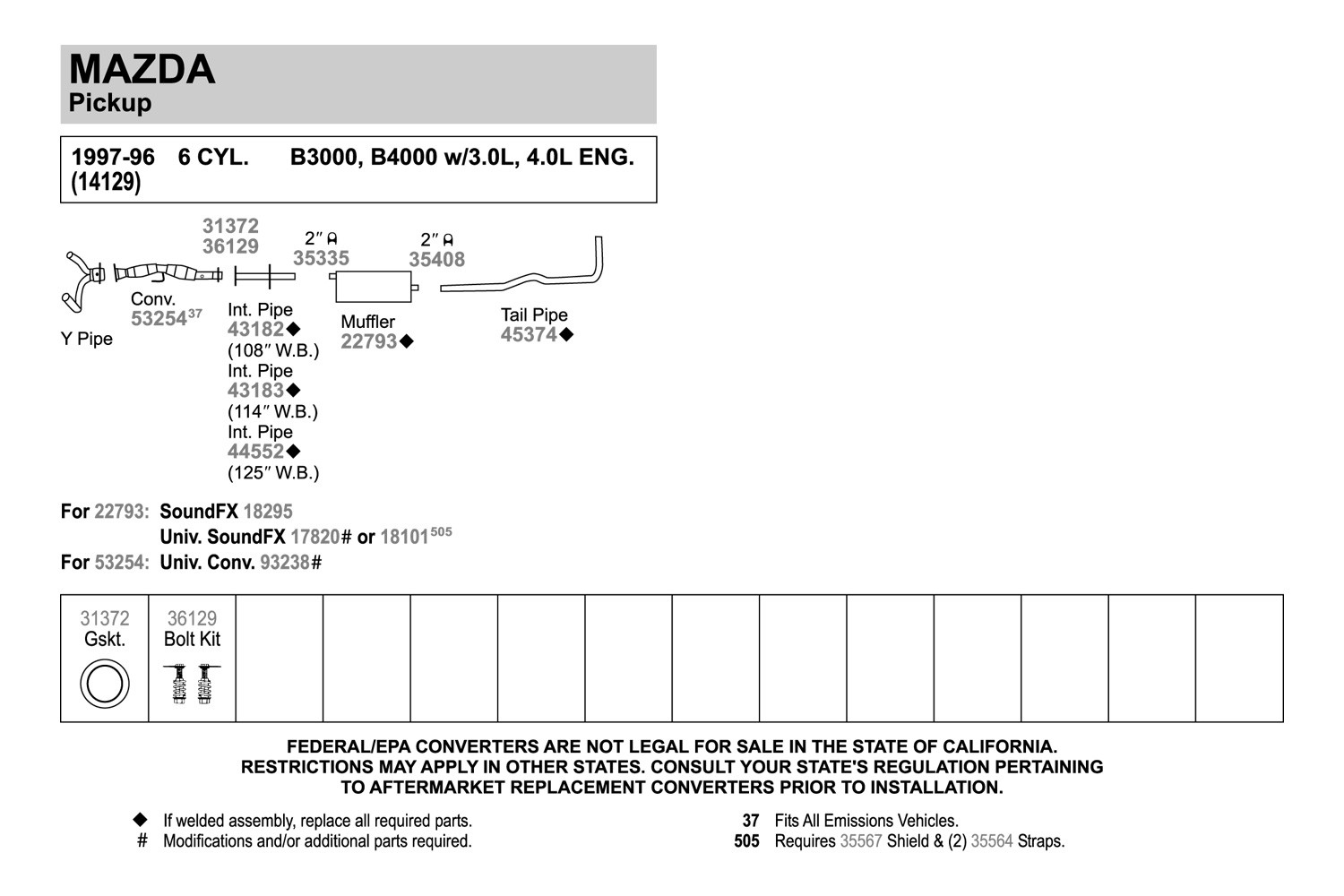

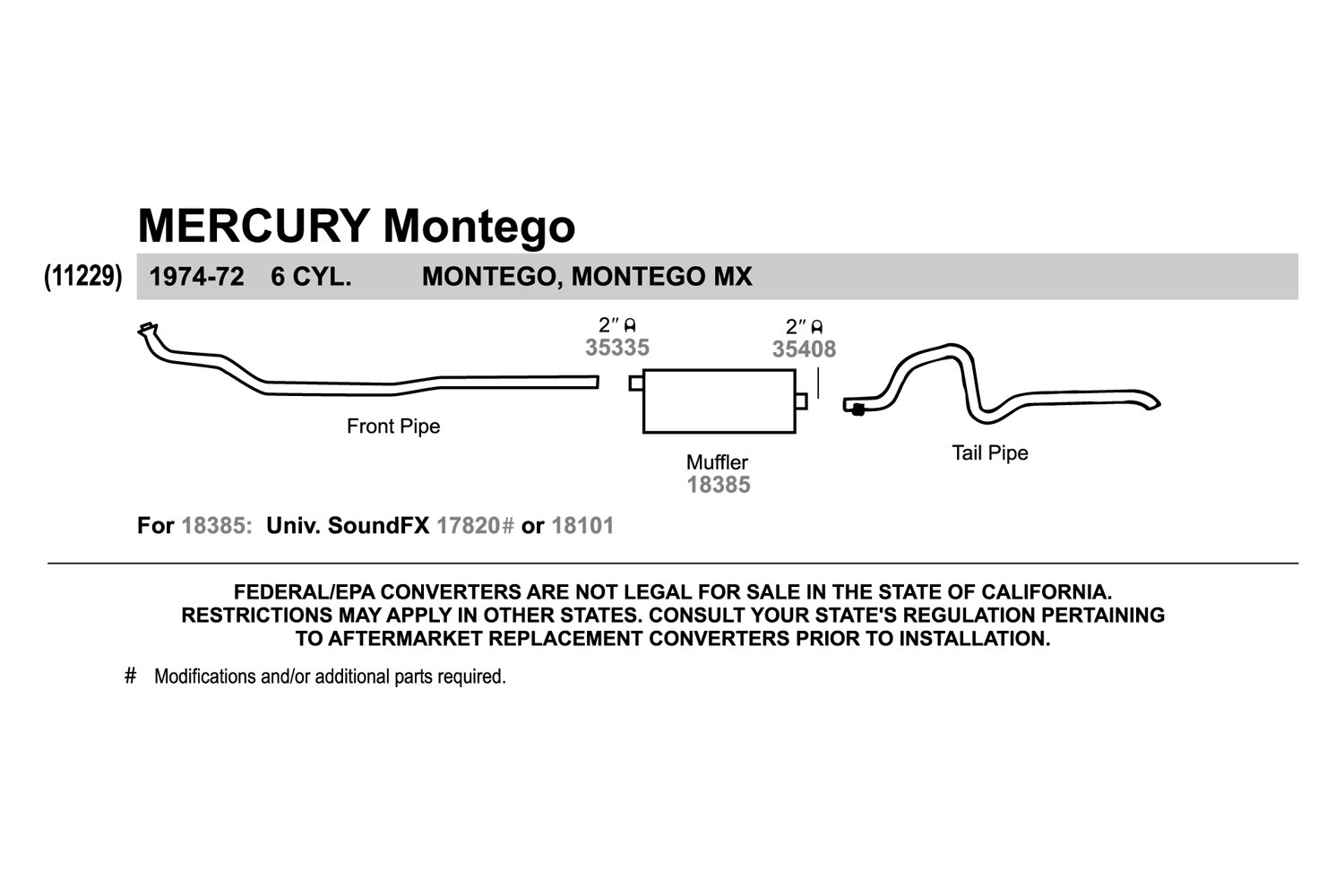

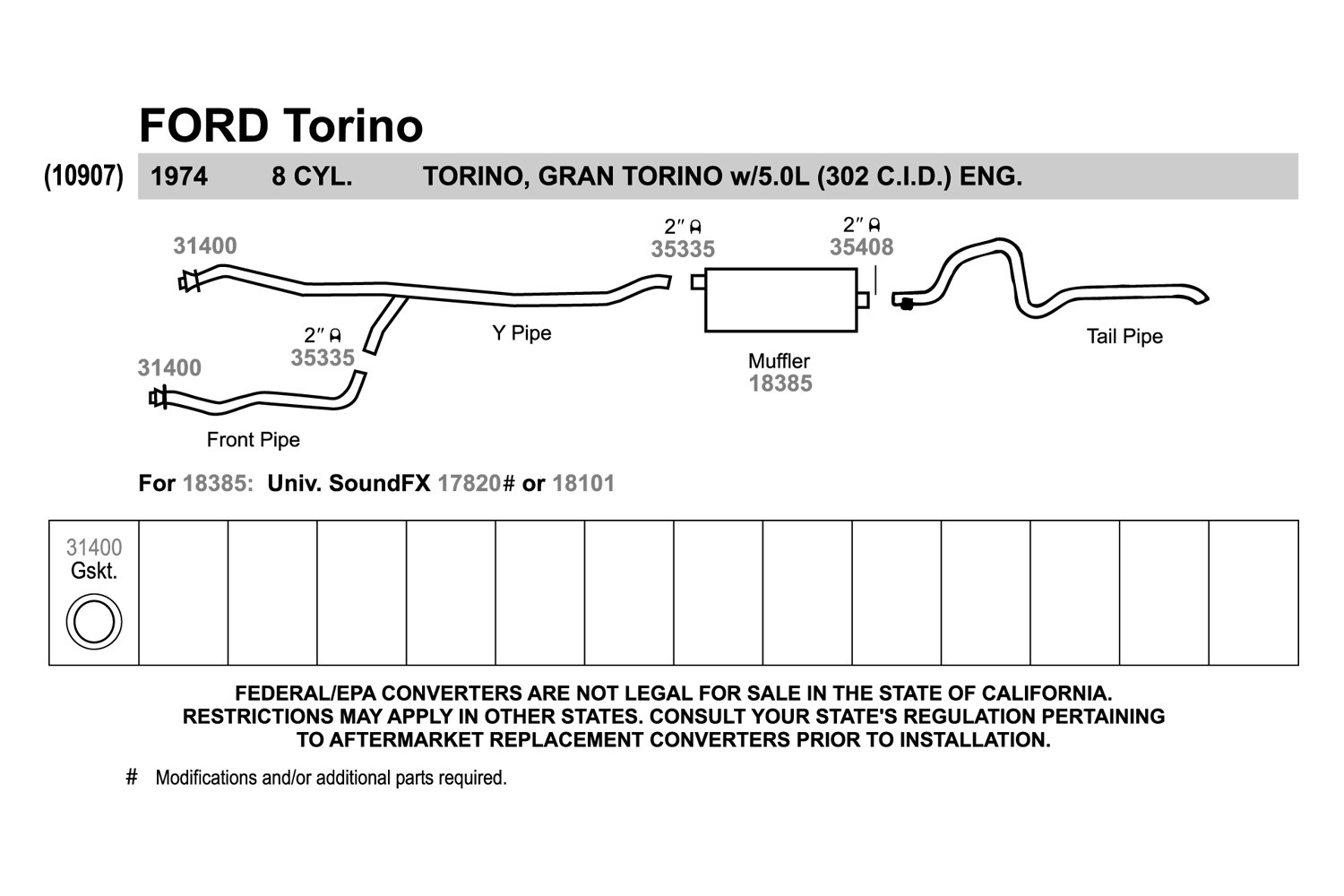

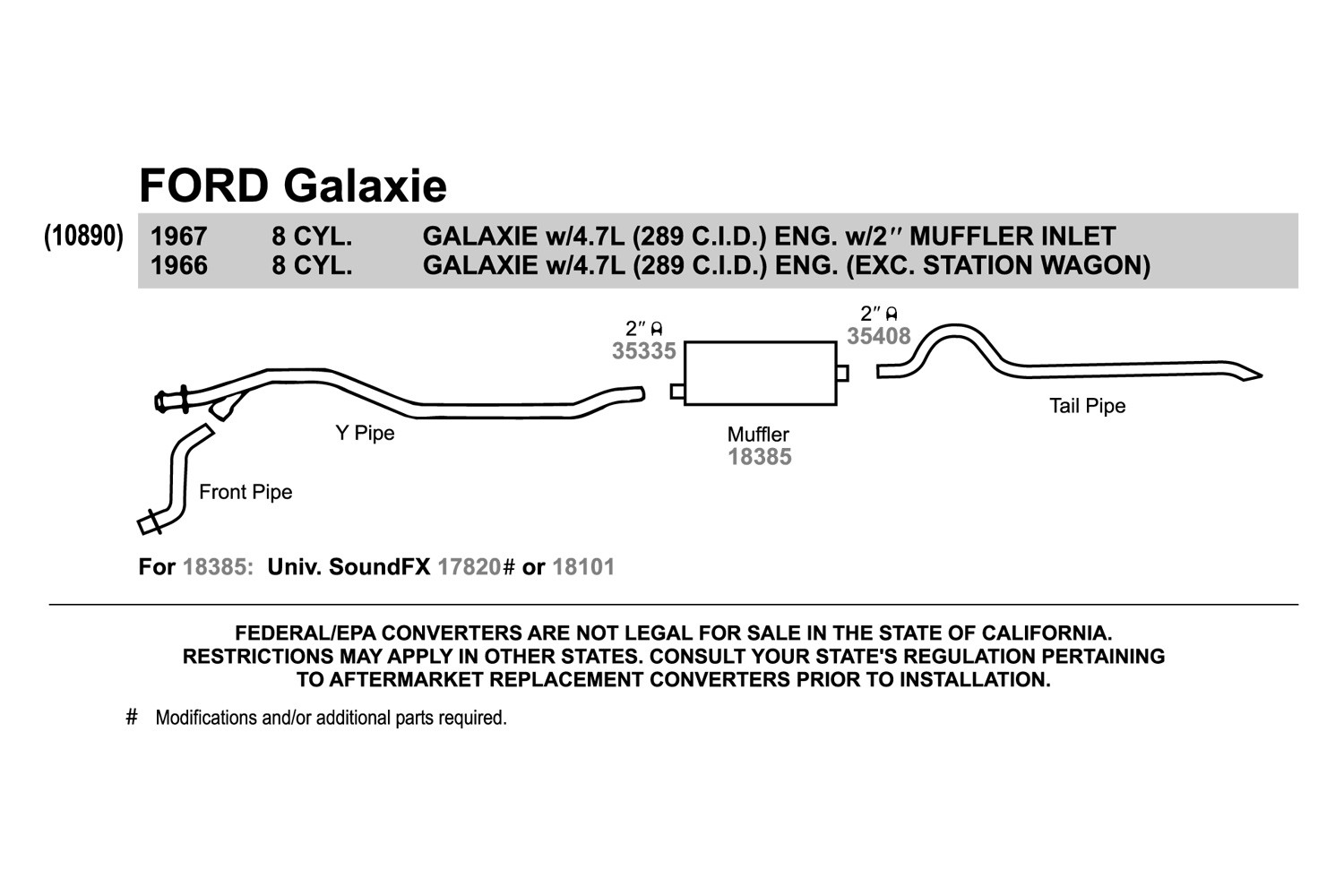

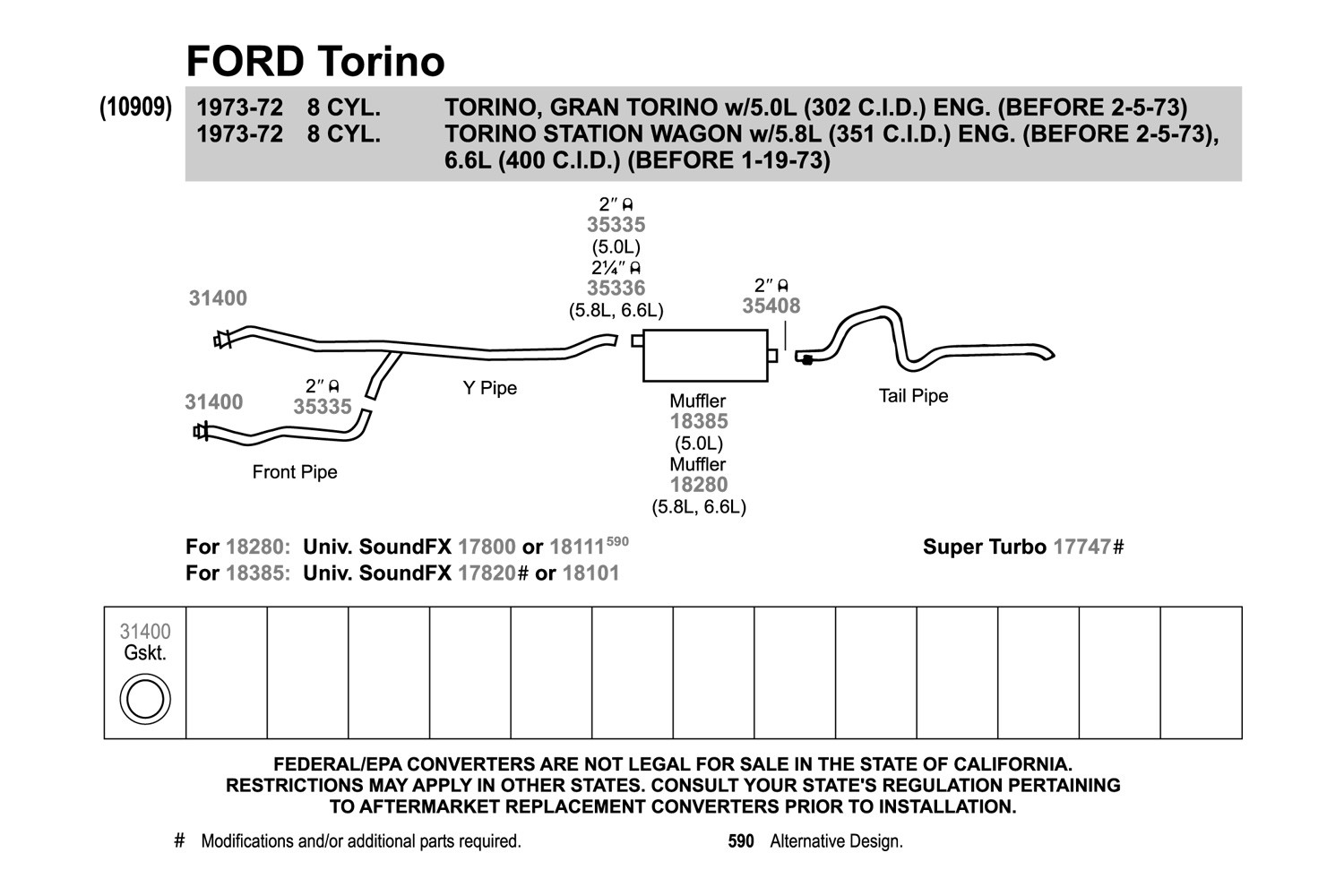

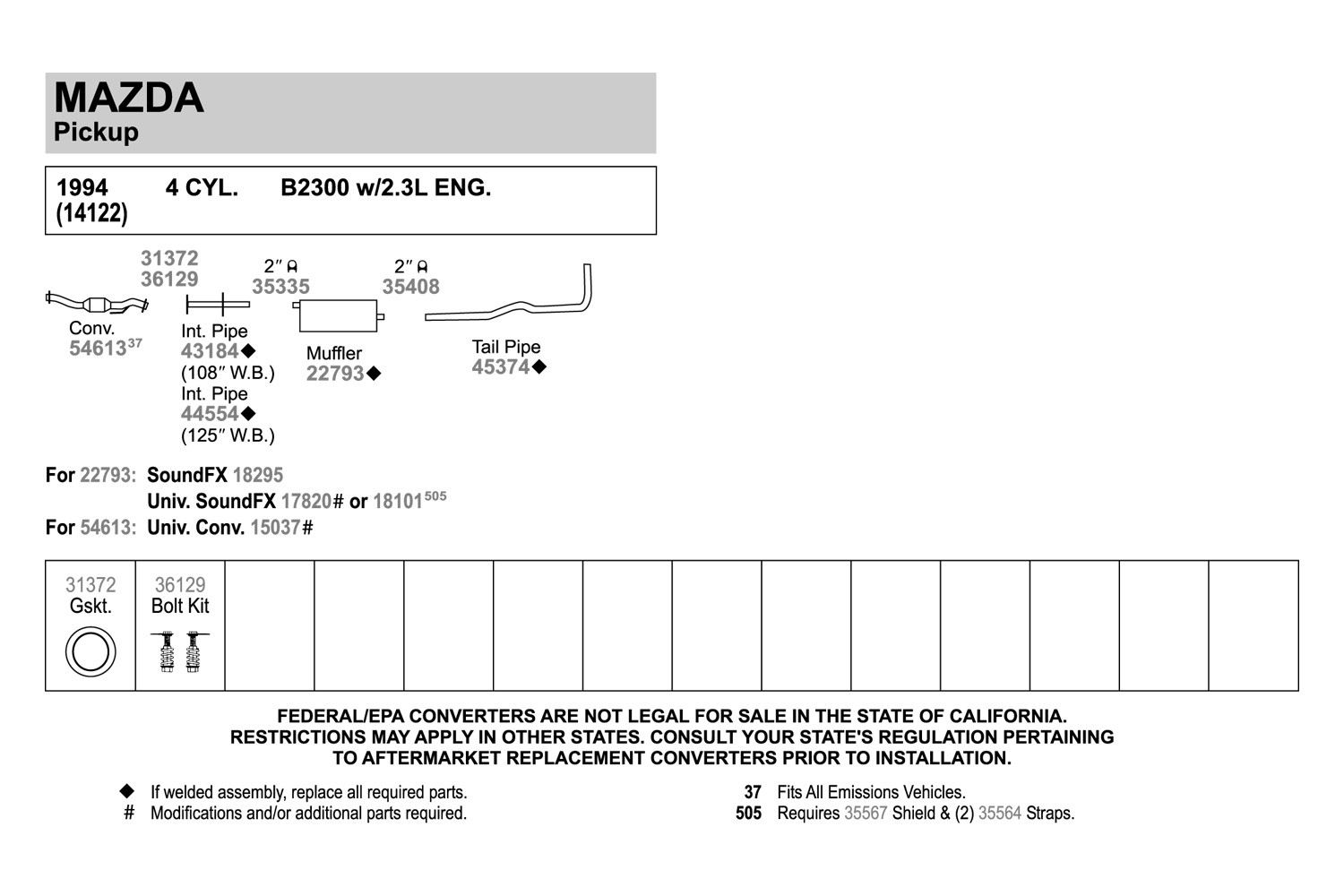

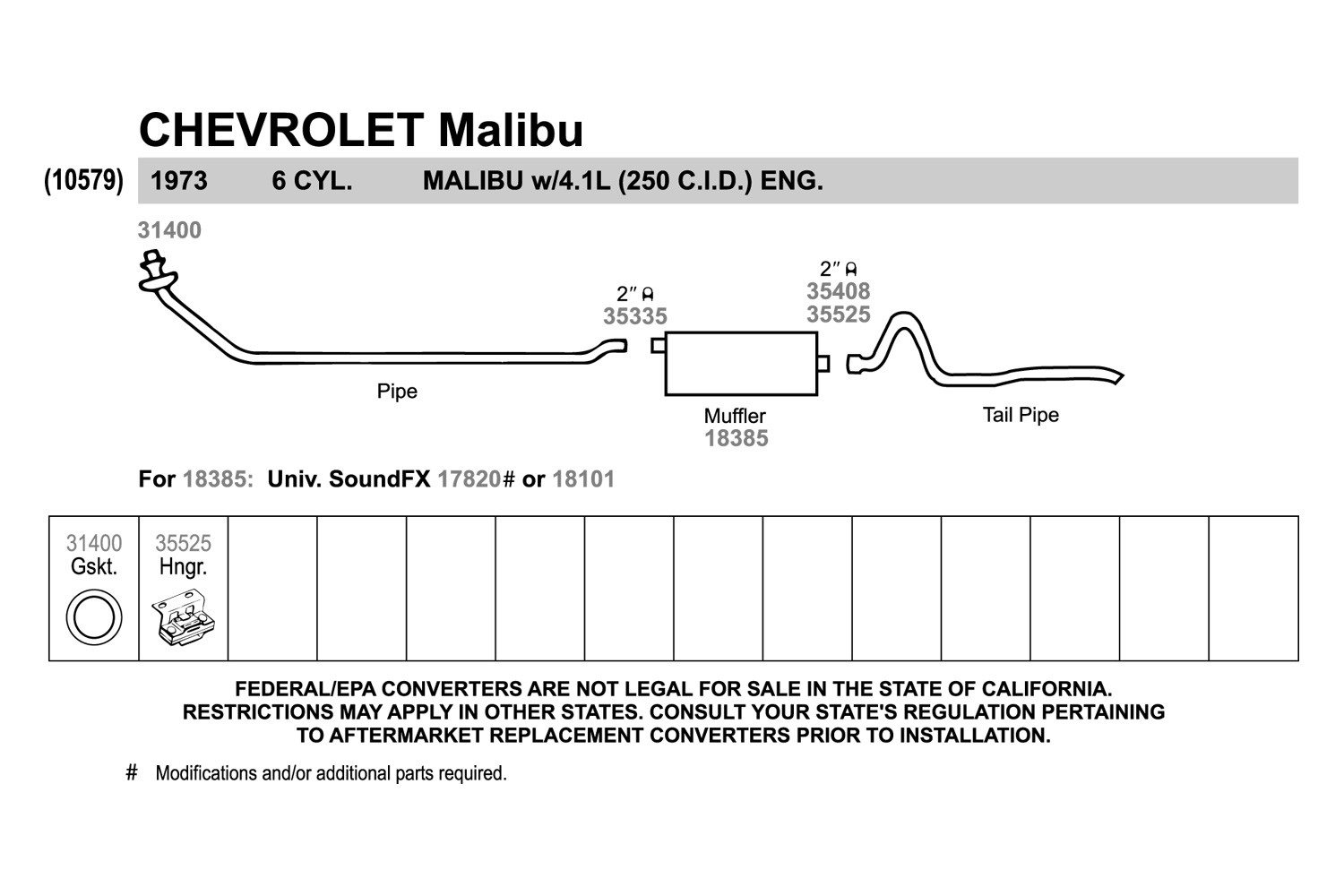

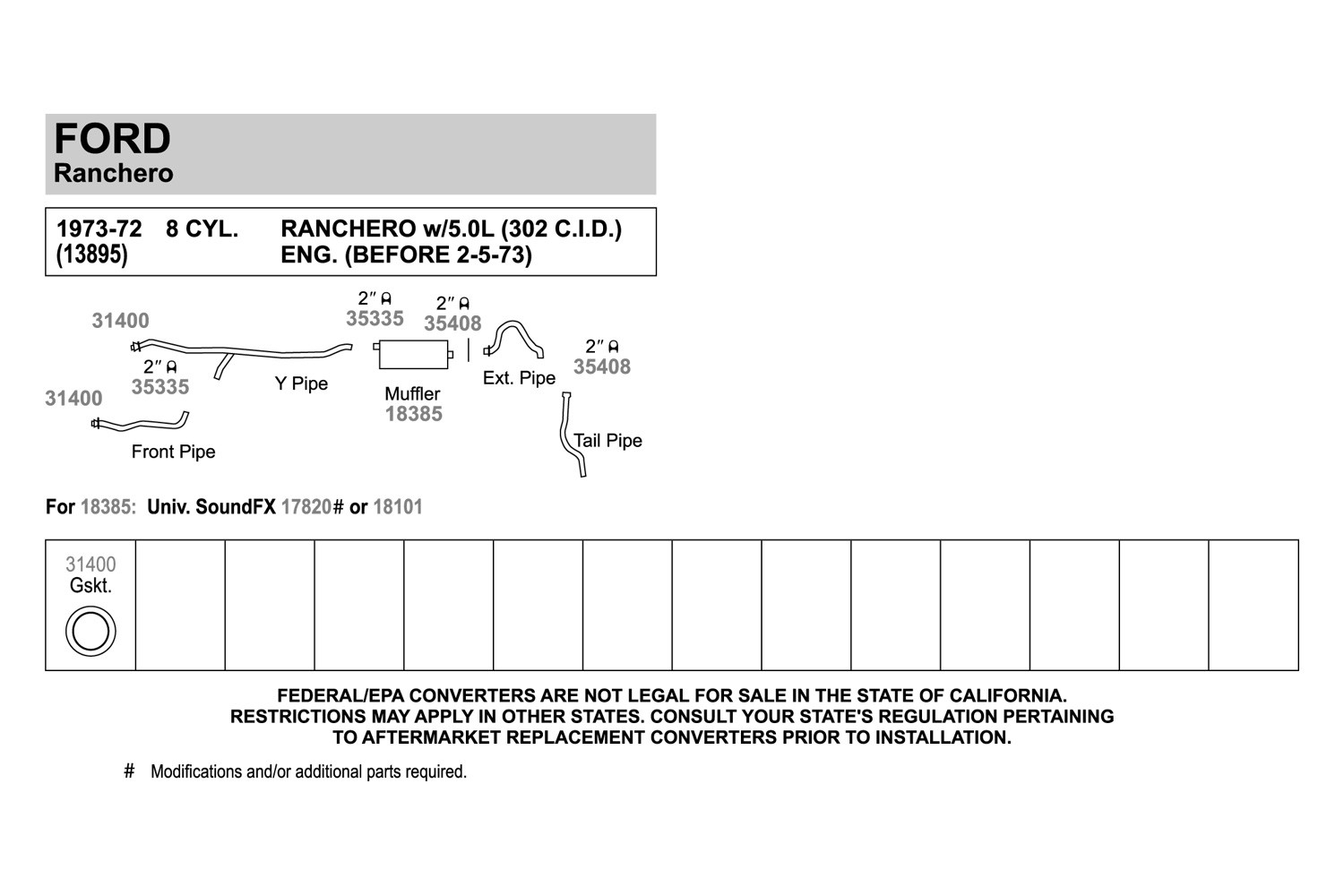

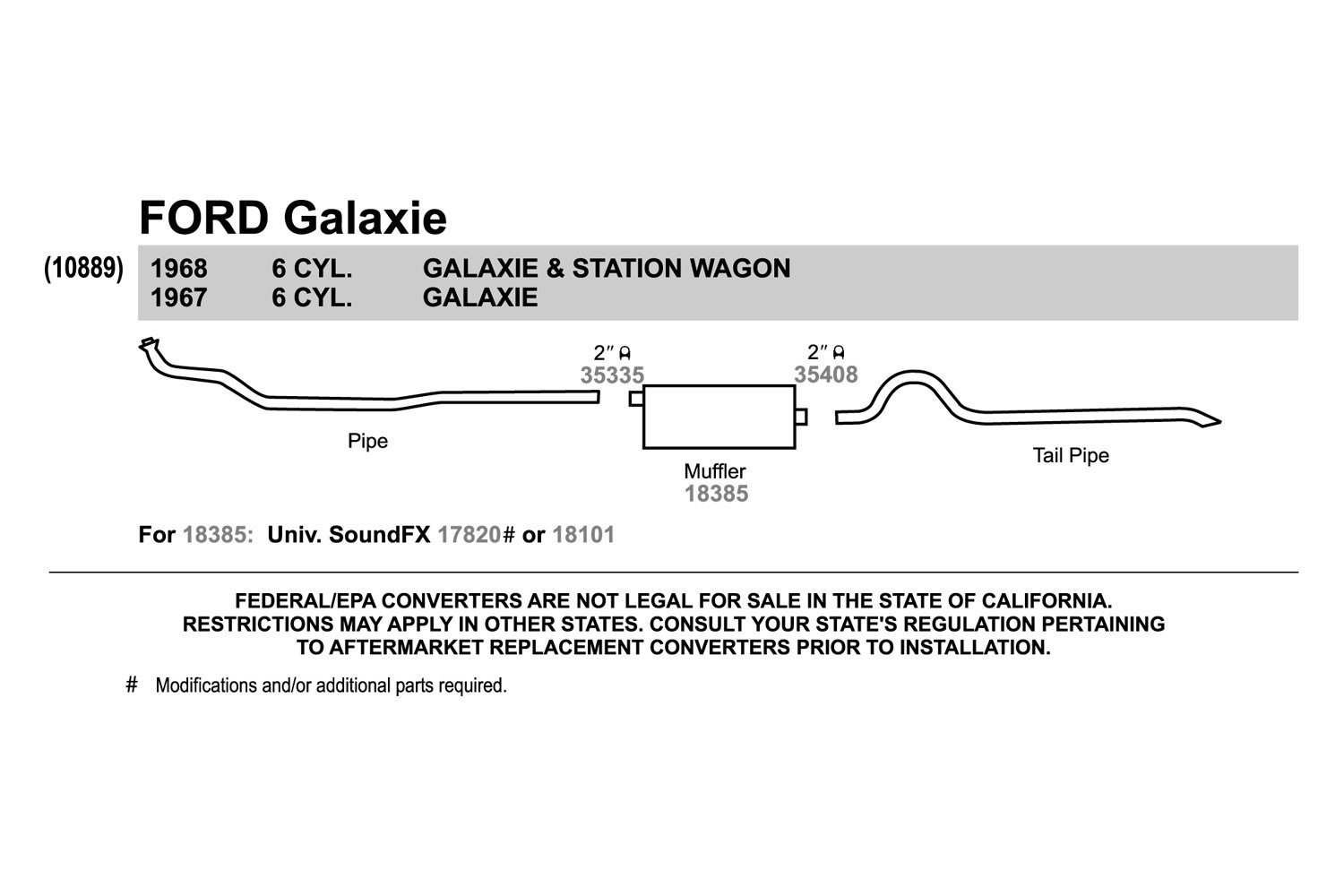

Vehicle Fitment

Ford

Jeep

Mazda

Specifications

Muffler Series	SoundFX™
Inlet - Outlet Configuration	Offset Inlet - Centered Outlet
Muffler Body Material	Steel
Muffler Body Finish	Aluminized
Muffler Inlet Diameter	2"
Muffler Outlet Diameter	2"
Muffler Body Height	4.25"
Inlet Connection Type	Pipe Connection
Outlet Connection Type	Pipe Connection
Connection Type	Pipe
Muffler Body Width	9.75"
Muffler Body Shape	Oval
Muffler Body Length	21"
Muffler Overall Length	26.25"
Muffler Reversible	No
Muffler Type	Combination
Inlet Quantity	1 Inlet
Outlet Quantity	1 Outlet
Inlet Diameter Designation	Inside Diameter
Outlet Diameter Designation	Inside Diameter
Automotive Item Grade	OEM Standard Part
Case Exterior Length (in.)	21.00 in.
Case Shape	Oval
Inlet Diameter (in.)	2.00 in.
Inlet Location	Center
Inlet Quantity	1
Internal Construction	Perforated tube
Muffler Finish	Aluminized
Muffler Material	Steel
Outlet Diameter (in.)	2.00/1.75 in.
Outlet Location	Offset
Outlet Quantity	1
Outlet Style	Standard, without tip
Overall Length (in.)	26.25 in.
Quantity	Sold individually.
Remanufactured	No
Reversible	No
Thickness (in.)	4.250
Width (in.)	9.750 in.

Features

Designed to deliver ultimate performance and pleasing sound quality
100% aluminized material
Reinforced bracketed heads improve structural support and stability
Mechanical interior joints help eliminate distortion and breakage
Spun-locked heads protect against rupture
Two tubes / two partitions internal design

Product Details

SoundFX™ Steel Oval Aluminized Exhaust Muffler (17820) by Walker®. Optional. Muffler Inlet Diameter: 2". Muffler Outlet Diameter: 2". Muffler Body Length: 21". Muffler Overall Length: 26.25". Muffler Configuration: Offset - Centered. This muffler is the right choice if you opt for quality acoustics and performance. Walker offers 100% aluminized steel universal fit SoundFX Mufflers designed to maintain a quality appearance and agreeable exhaust tone.

The SoundFX Muffler by Walker is a quality and cost-effective repair alternative. These mufflers are available in both direct-fit or universal configurations. Direct-fit mufflers are designed as a direct OE replacement and constructed specially for your car and perfectly match the OE muffler in size, shape and hanger placement. This configuration allows for easy, worry-free installation. Universal fit muffler is a more economical option as it is not vehicle-specific.

Each SoundFX Muffler is manufactured from 100% aluminized steel for greater durability and quality appearance. It features reinforced bracketed heads that help improve structural support and stability. One of the reasons of premature muffler failure is rupture from backfires. To provide effective resistance from backfire and exhaust gas leakage, SoundFX Muffler heads are spun-locked to the shell. Internal tubes are mechanically joined to prevent spot weld breakage and flow tube deformation.

Walker® - Warranty Walker® - Features Walker Authorized Dealer FAQ About us

Brand:

Walker

Part Number:

17820

UPC:

086387178204

Warranty

Limited Lifetime Warranty

Walker warrants qualifying exhaust products against defects and wear out when used on private passenger cars and light trucks under normal operating conditions for as long as such original purchaser owns the vehicle on which they were originally installed. Rust/corrosion damage is not covered by this warranty.

Walker’s obligation under this warranty is limited to replacement of the worn out or defective product with the same product in accordance with this warranty. Any incidental and consequential damages are excluded under this warranty, regardless of when the failure occurs. This warranty does not apply to products which have been modified, improperly applied or installed on vehicles used for commercial or racing purposes.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Any implied warranties you may have under state law are limited to the same duration as this warranty. Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusion may not apply to you.

Walker® Quiet-Flow® SS Mufflers and Muffler Assemblies covered by Lifetime Warranty

Walker® CalCat® Converters covered by 5-Year / 50,000-Mile Emissions Warranty and Warranty on Structural Components

Walker® Ultra® Converters covered by 25,000-Mile Emissions Warranty and 5-Year / 50,000-Mile Warranty on Structural Components

Walker® Mega-Flow® Heavy Duty Mufflers installed on vehicles used for commercial purposes in vertical applications are warranted against defects and wear-out for 4 years from date of purchase or 500,000 miles / 800,000 km, whichever occurs first.

Reviews

(144)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-10 of 144 Reviews

Sort by

5 of 5

Excellent Bang (or Lack thereof) for You

I purchased this fella for my 85 Firebird. I'm doing a rebuild on a tight budget for kicks, and am thoroughly impressed. I might as well be driving a Prius lmoa. A fantastic steal if you need a stock muffler, no need to sound like a Honda Civic with its camber adjusted and vape clouds billowing out your window. ;)

Walker® 17836 - SoundFX™ Steel Oval Aluminized Exhaust Muffler

Posted by C (Happy Valley, OR) / December 20, 20191985 Pontiac Firebird

5 of 5

Walker Muffler

Exact fit; excellent product.

Walker® 17192 - SoundFX™ Aluminized Steel Oval Exhaust Muffler

Posted by Marlin (Ephrata, PA) / August 16, 20171992 Dodge Dakota

5 of 5

Walker SoundFX Muffler

Product took a little longer to ship due to back order but the customer service department took care of me and got one out to me asap! Packaged nicely, looks great on my 1976 F150, easy to install took about 30 minutes with a little tweaking had to go to my local auto store and pick up an adapter to fit my pipes. Overall happy with the muffler!

Walker® 17828 - SoundFX™ Aluminized Steel Round Exhaust Muffler

Posted by Peter (Andover, MN) / June 23, 20171976 Ford F-150

5 of 5

Great Muffler

It was easy to install and sounds great. I no longer hear the engine noise that I heard before. Greatest deal on the market!

Posted by James (Charlotte, NC) / November 01, 2016

5 of 5

Great On Time Delivery And Great Product

Product looks great, arrived fast, installation was easy, will recommend to all great product.

Posted by Brandon (Payne, OH) / October 28, 20151995 Ford F-150

5 of 5

Walker 17871 Muffler

I bought this to use in my diesel generator. Most sites make you choose by vehicle make, model, and year. I was looking for specific inlet and outlet measurements. TRUCKiD is the only site I found that gave dimensions and didn't make me choose a car to put it on. Though the muffler is small, it's perfect for quieting my generator exhaust noise. I'm very happy with the product and the service.

Posted by Bruce (Kalamazoo, MI) / December 19, 20141985 Honda Civic

5 of 5

Great muffler

The original muffler on my 93 Saab was completely rusted out and became super loud, so I purchased this one. This is a very quiet muffler and for the price cannot be beat. I attached my new bracket strap to the existing spot and slid the new muffler over the cut exhaust pipe. I tightened the strap around the muffler and put a clamp around where the new muffler met the pipe. I did not remove my rear tire to do this but I did back my car up onto ramps. It took ten minutes to install and now my car is very quiet.

Posted by Arthur (Jackson, MI) / April 03, 20141993 Saab 900

5 of 5

Solid well built!

I used this muffler on my emergency home generator. The connection between the generator motor and muffler was made with a Walker Exhaust 40002 Flex Tubing-Steel and 1 5/8" clamp (at engine) and a 1 3/4" clamp (at muffler). The flex tubing needed to be expanded (using and exhaust expander) to go over the muffler inlet.

Posted by Edward (Stephenson, MI) / January 09, 20141991 Chevy Blazer

5 of 5

Perfect Fit

I was so impressed by how fast my order arrived, and mounted right up no issues.

Walker® 18558 - SoundFX™ Steel Oval Direct-Fit Aluminized Exhaust Muffler

Posted by nicole (Germansville, PA) / June 29, 20251998 Honda Civic

5 of 5

Much Better Than The OEM

Really like the quality the quietness and the performance overall. Very happy and it was easy plug and Play. Of course it will take some effort to get rid of the older one.

Walker® 47800 - Quiet-Flow™ Stainless Steel Oval Aluminized Exhaust Muffler and Pipe Assembly

Posted by Ziyad (Cold Spring, MN) / May 02, 20242005 Nissan Titan

Questions and Answers

(1)

If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Question:

what does mean not reversible

Walker® 17820 - SoundFX™ Steel Oval Aluminized Exhaust Muffler

Posted by Joseph / February 24, 20211984 BMW 3-Series

CARiD Answer:

Hi, a "non reversible" muffler means that there is a dedicated inlet side, and a dedicated outlet side. It must be installed so that exhaust gases enter on the "inlet" side and exit on the "outlet" side. It should not be installed in the reverse position.

Posted by CARiD Expert / March 01, 2021
