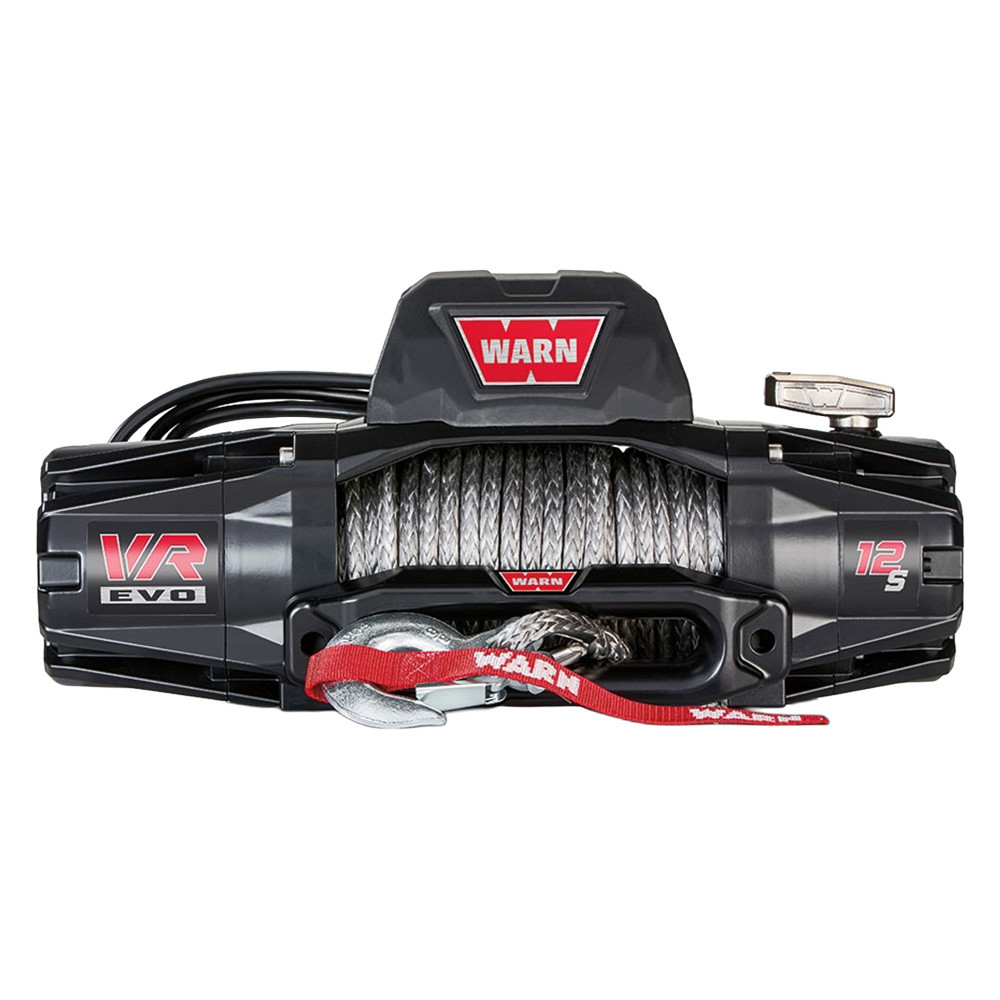

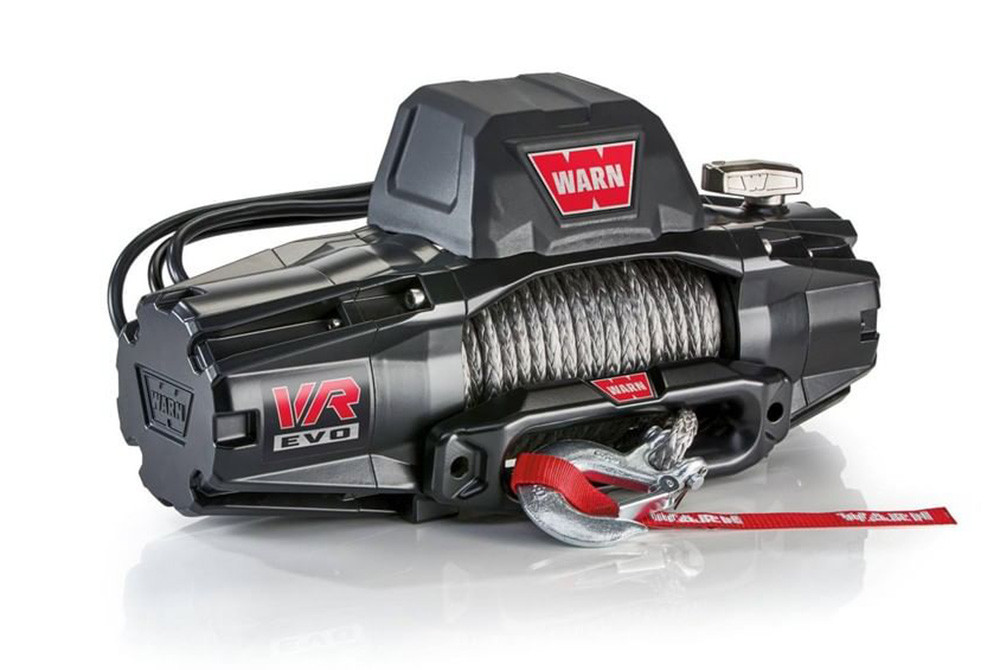

WARN® 103255 - VR EVO Series 12000 lbs Electric Winch

11 reviews|Item # mpn4648986219
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$1,069.99
In Stock (916)
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Type
Electric
Recommended use
Vehicle Recovery
Mounting type
Vehicle Mounted
Voltage
12 Volt DC
Electrical control type
Albright Contactor
Motor type
Series Wound
Drive gear type
3-Stage Planetary
Gear reduction ratio
234:1
Free spooling
Yes
Brake type
Spring
Line diameter
3/8"
Length
85 ft
Line material
Synthetic
Fairlead type
Hawse
Remote type
2 in 1 plug in remote with wireless capability
Mounting hole quantity
4
Mounting pattern length
10"
Mounting pattern width
4-1/2"
Includes mounting hardware
Yes
Color
Black
Max line pull/ line speed
12,000 pounds / 4.0 feet per minute
Max amp draw/ line pull
396 Amps / 12,000 pounds
Drum material
Steel

Features

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
  • IP68-rated waterproof winch construction keeps the elements out
  • High-performance Albright contactor delivers maximum reliability
  • Control packs can be relocated for low-profile installations
  • Durable, one-piece cast-aluminum tie-plate for added strength and durability
  • Two-in-one remote with wired AND wireless options for ease of use and versatility
  • Available with synthetic rope
  • Limited lifetime warranty for mechanical parts and 7 years on the electrical
  • Designed, engineered, and tested by WARN engineers in the U.S.A.

Product Details

Universal VR EVO Series 12000 lbs Electric Winch (103255) by WARN®. Comes with 90' of 3/8" synthetic rope and black hawse fairlead. Voltage: 12V. Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO series winches features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget. Comes with 90’ of 3/8” synthetic rope and black hawse fairlead.
