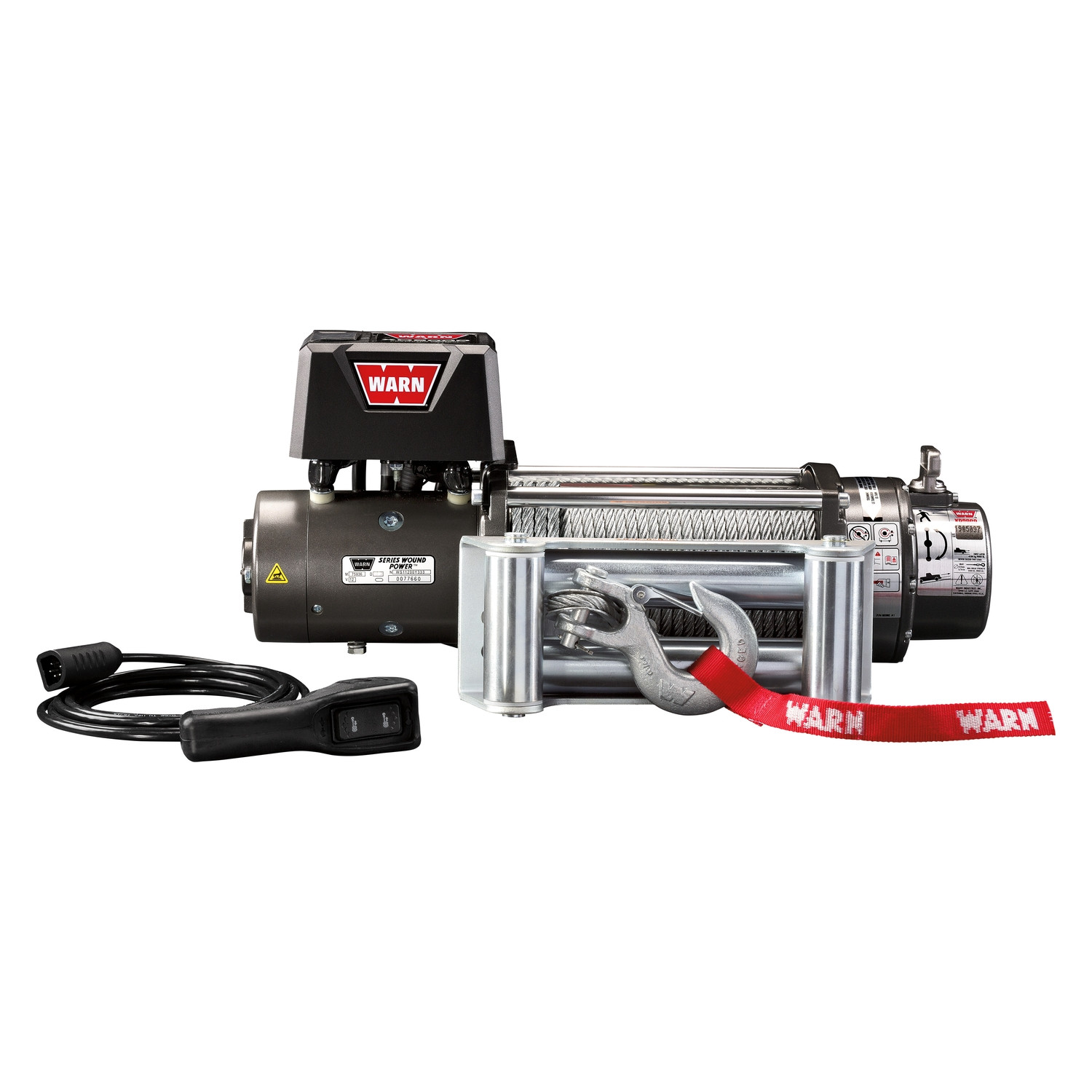

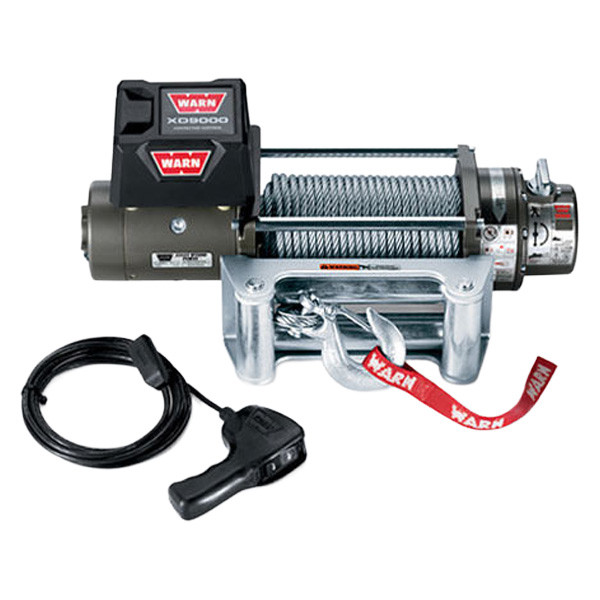

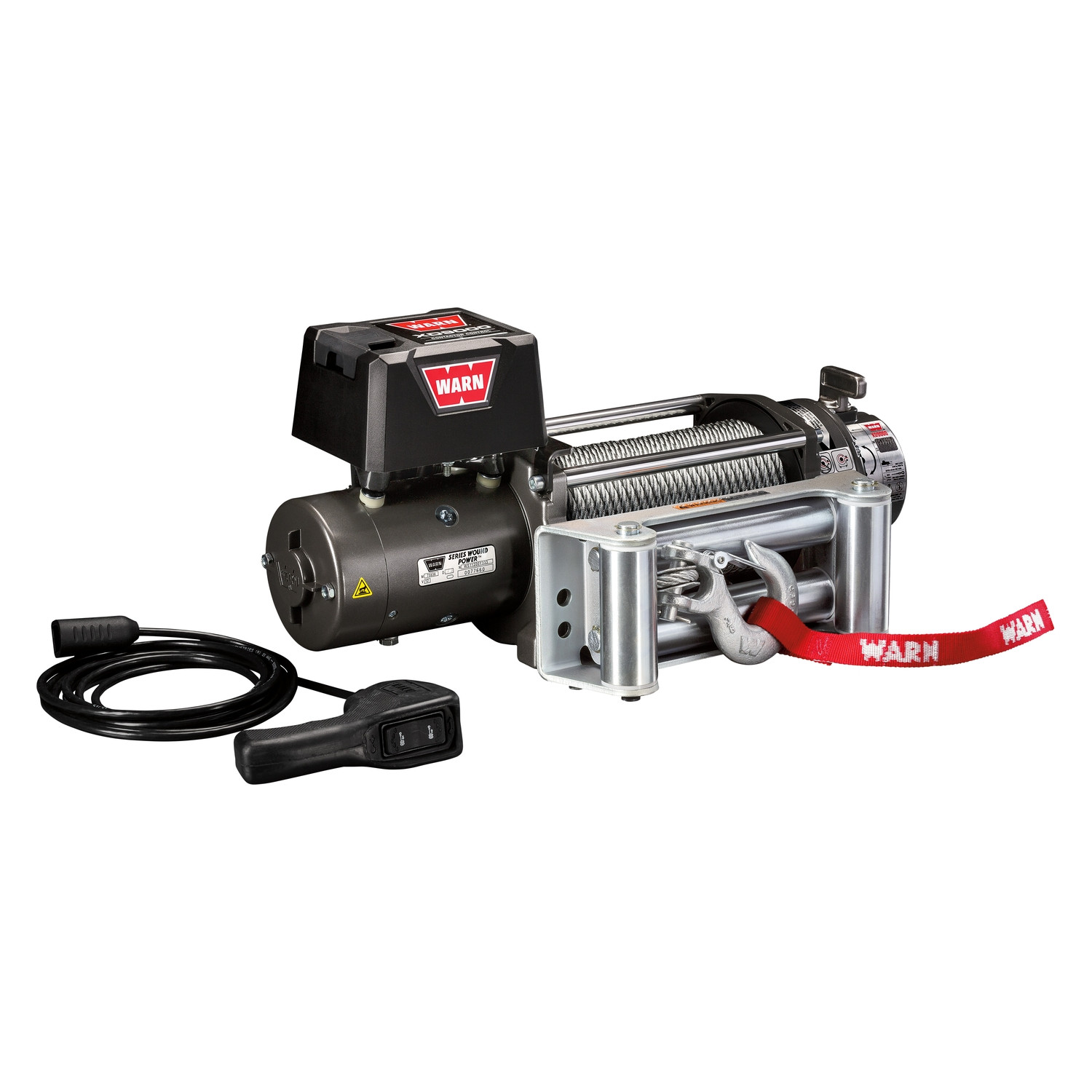

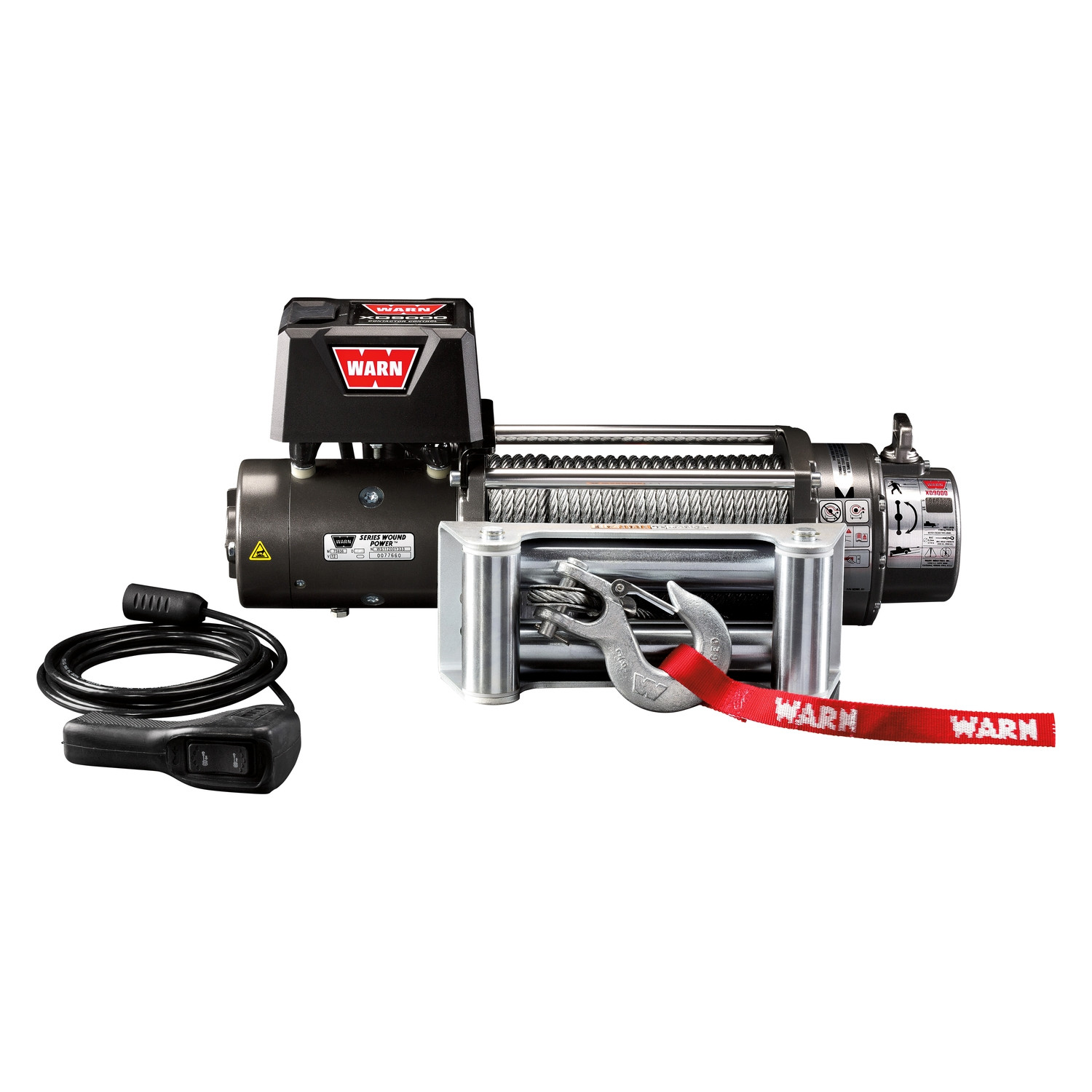

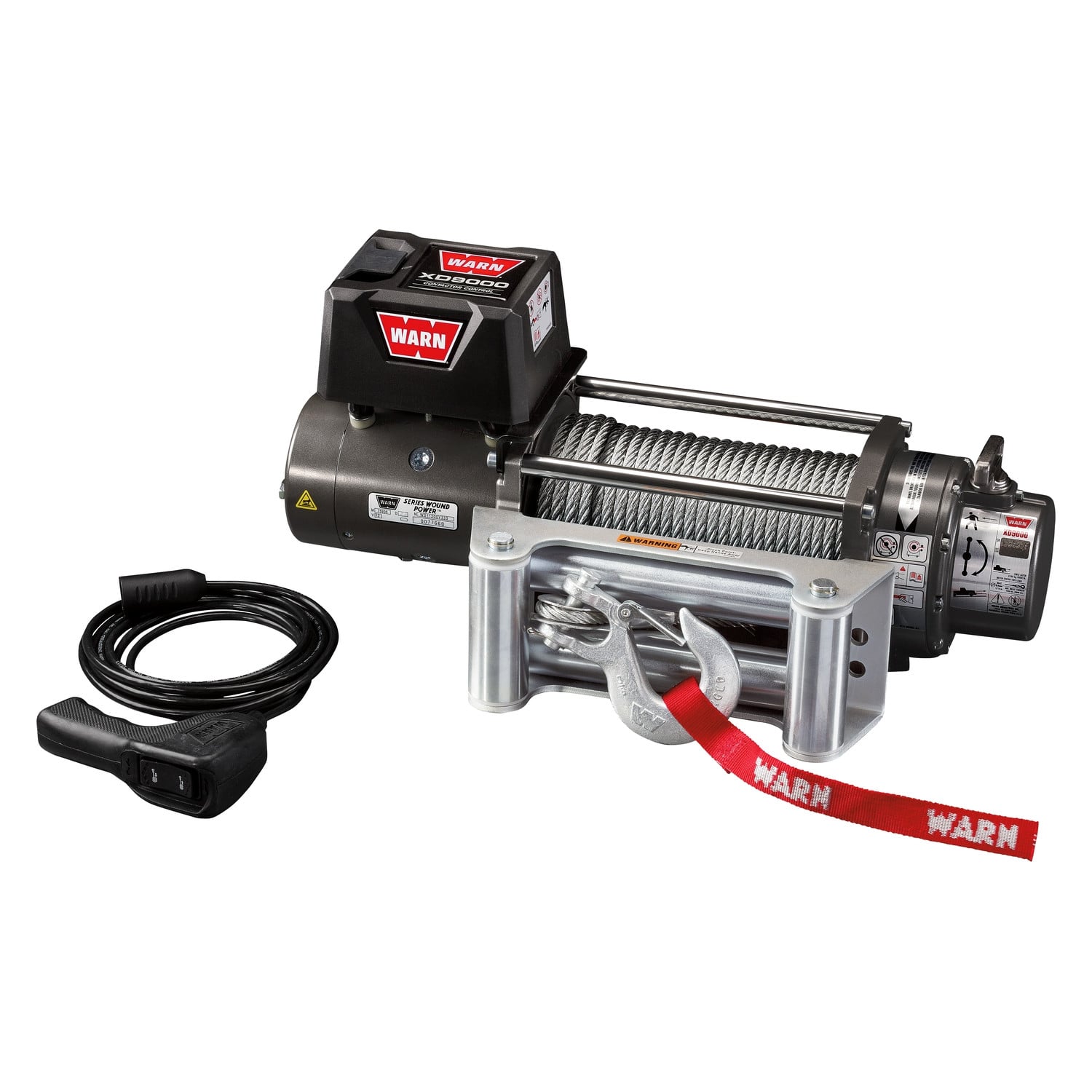

WARN® 28500 - XD Premium Self-Recovery 9000 lbs Electric Winch

Name: WARN® 28500 - XD Premium Self-Recovery 9000 lbs Electric Winch
Brand: Warn
SKU: mpn1740357
Price: 1640.32 USD
Availability: InStock
Rating: 5 (11 reviews)

11 reviews|Item # mpn1740357

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$1,640.32

In Stock (119) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Winch Style	Electric
Pull Rating (lbs)	9,000 lbs.
Volts	12 V
Winch Fairlead Type	Roller
Remote Included	Yes
Remote	12 ft. wired remote
Free-Spooling	Yes
Brake	Yes
Power Out	Yes
Drive Gear	3-stage planetary
Winch Line Included	Yes
Winch Line Type	Cable
Winch Line Diameter (in)	5/16 in.
Winch Line Material	Steel
Winch Line Length (ft)	100 ft.
No Load Line Speed	38.00 fpm
Conforms to J706 Standards	No
Mounting Hole Quantity	4 holes
Mounting Pattern Length (in)	10.000 in.
Mounting Pattern Width (in)	4.500 in.
Weight	78.000 lbs.
Motor Horsepower	4.60 hp
Gear Reduction Ratio	156:1
Quantity	Sold individually.

Features

Power, speed, and reliability in a proven package
Verified performance under real trail conditions
Available for 12V and 24V applications
Series wound high-speed electric motor provides fast line speeds and strong pulls
12V motor develops 4.6 hp, 24V motor develops 2.5 hp

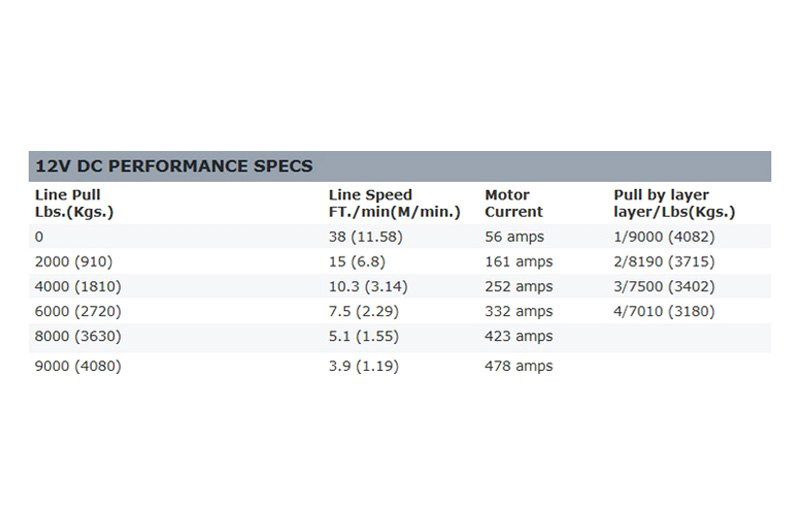

12V winch line speed: 38’ per minute under no load at 56 amps, and 3.9’ per minute at 9000 lb. max. load at 478 amps
24V winch line speed: 22.5’ per minute under no load at 46 amps, and 7.4’ per minute at 9000 lb. max. load at 226 amps
Durable 3-stage planetary gear train with 156:1 gear ratio for smooth, reliable operation
Exclusive brake design provides superior control while winching
Low profile design and separate control box allow for a wide range of mounting options
Comes with 100’ of durable 5/16” diameter galvanized wire rope and roller fairlead
Remote control with 12’ lead
Chip resistant powdercoated finish

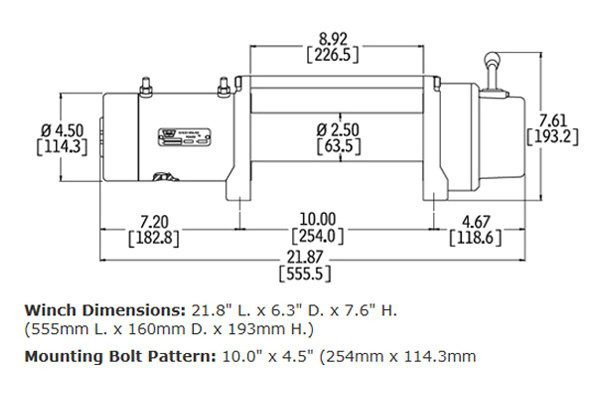

Dimensions: 21.8”L x 6.3”D x 7.6”H
Weight: 78 lbs.
Comes with detailed installation and user instructions
Limited on mechanical parts

Product Details

Universal XD Premium Self-Recovery 9000 lbs Electric Winch (28500) by WARN®. With Roller Fairlead. 12V DC. Rope Length: 100'. Powerful series wound, high-speed electric motor, durable 3-stage planetary gear train, automatic mechanical cone brake, remote control with 12’ lead, and 100’ of durable 5/16” diameter galvanized wire rope with roller fairlead. The separate control box and low profile design allow the winch to be installed where space is tight, and the powdercoated finish will resist chips and corrosion so your winch stays looking its best. The XD9000 is available with a 12V 4.6 hp motor for vehicles with 12V electrical systems and a 24V 2.5 hp motor for vehicles with 24V electrical systems.

Strong pulling power, fast line speeds and proven reliability, all in a compact package, makes the XD9000 just about everything you could want in a winch, which is why it’s one of WARN’s long time best sellers. It’s packed with features that make all this performance in a small package possible, beginning with a series wound high-speed electric motor that delivers the power you need for strong pulls, and fast line speed that won’t waste your time. The 12V motor is rated at 4.6 hp, while the available 24V motor has 2.5 hp. 12V winch line speed is 38’ per minute under no load at 56 amps, and 3.9’ per minute at 9000 lb. max. load at 478 amps. 24V winch line speed is 22.5’ per minute under no load at 46 amps and 7.4’ per minute at 9000 lb. max. load at 226 amps.

100’ of strong 5/16” galvanized wire rope and roller fairlead are supplied with the winch. The durable 3-stage planetary gear train provides smooth, reliable operation, and the exclusive design automatic mechanical cone brake gives you the control you need during winching operations via the included remote with 12’ lead. The XD9000 features a low-profile design and separate control box, for a compact size that gives you a lot of mounting options, even in the smallest spaces. And the powdercoated finish is chip and corrosion resistant for a winch that will stay looking good for years to come.

Comprehensive installation and user instructions are supplied with the XD9000 winch, and it’s backed by a limited to the original purchaser against defects in materials and workmanship on mechanical parts, and a limited 1-year warranty to the original purchaser against defects in materials and workmanship on electrical components.
