WARN® 68801 - 16.5ti Thermometric Self-Recovery 16500 lbs Electric Winch

Name: WARN® 68801 - 16.5ti Thermometric Self-Recovery 16500 lbs Electric Winch
Brand: Warn
SKU: mpn1752000
Price: 2974.99 USD
Availability: InStock
Rating: 5 (11 reviews)

11 reviews|Item # mpn1752000

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$2,974.99

In Stock (130)

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Winch Style	Electric
Pull Rating (lbs)	16,500 lbs.
Volts	12 V
Winch Fairlead Type	Roller
Remote Included	Yes
Remote	12 ft. wired remote
Free-Spooling	Yes
Brake	Yes
Power Out	Yes
Drive Gear	3-stage planetary
Winch Line Included	Yes
Winch Line Type	Cable
Winch Line Diameter (in)	7/16 in.
Winch Line Material	Steel
Winch Line Length (ft)	90 ft.
No Load Line Speed	23.60 fpm
Conforms to J706 Standards	No
Mounting Hole Quantity	4 holes
Mounting Pattern Length (in)	10.000 in.
Mounting Pattern Width (in)	4.500 in.
Weight	138.000 lbs.
Motor Horsepower	4.60 hp
Gear Reduction Ratio	315:1
Quantity	Sold individually.

Features

The strongest pulling power, fast line speeds and overheating protection in a beefy, no-compromises constructed package
Powerful series wound 4.6 hp 12V DC high-speed electric motor and durable 3-stage planetary gear train with 315:1 gear ratio deliver 16,500 lbs. pulling capacity
Motor mounted thermal sensor detects motor temperature and signals LED in remote to blink if temperature is reached where damage could occur with continued operation
80’ of strong 3/8" diameter Spydura Pro synthetic rope

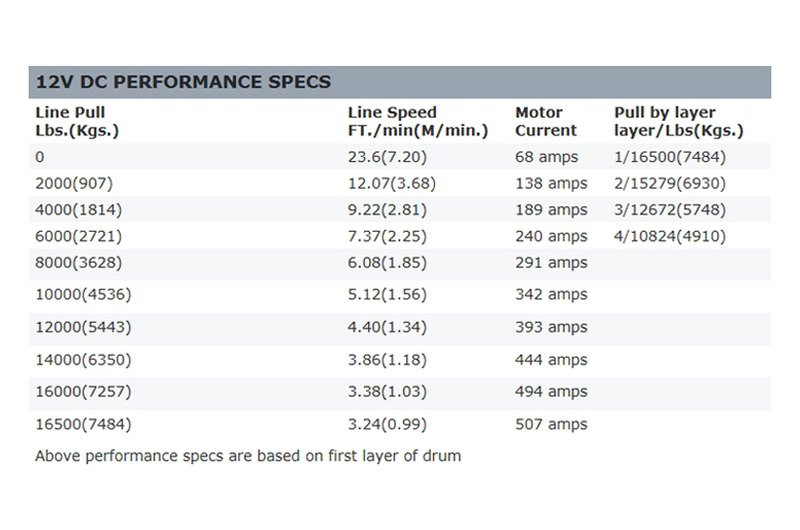

Line speed: 23.6' per minute under no load at 68 amps, and 3.24’ per minute at 16,500 lb. max. limit at 507 amps
Exclusive design automatic mechanical cone brake provides superior control while winching
Extreme-duty sealing protects internals from water and contaminants
Aluminum control box cover provides additional protection for electronics
Remote control with LED light and 12’ lead
Primer base coat and powdercoated top coat resists chips and corrosion

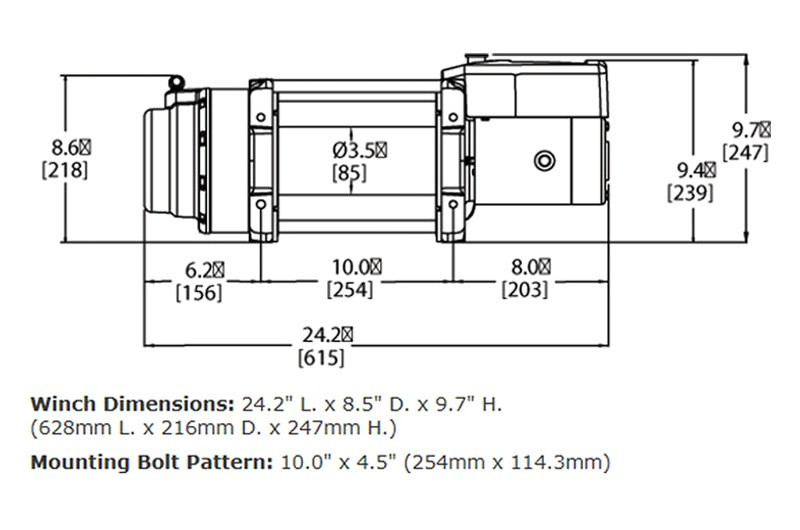

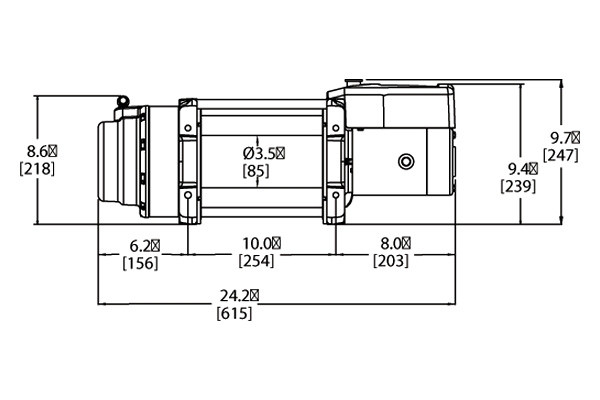

Dimensions: 24.2”L x 8.5”D x 9.7”H
Weight: 138 lbs.
Comes with detailed installation and user instructions
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Product Details

Universal 16.5ti Thermometric Self-Recovery 16500 lbs Electric Winch (68801) by WARN®. With Roller Fairlead. 12V DC. Rope Length: 90'. The 16.5ti is the premier winch in WARN’s Heavy Weight Winch Series, delivering 16,500 lbs. of reliable pulling power. Like all these winches it has the power capacity and heavy-duty large frame construction that big trucks need, but it also has advanced technological features like thermometric control that lets you know when your winch motor is reaching the threshold of overheating. Powered by a series wound 4.6 hp 12V DC high-speed electric motor, the 16.5ti also includes a durable 3-stage planetary gear train, 90’ of strong 7/16” diameter steel wire rope, exclusive design automatic mechanical cone brake, extreme duty sealing to keep out the elements, remote control with thermometric LED indicator and 12’ lead, and chip resistant powdercoated finish.

When you want the ultimate in pulling power, durability, reliability, and the diagnostic abilities of WARN’s thermometric technology, there’s really only one winch to get, the WARN 16.5ti. Its powerful series wound 4.6 hp 12V DC high-speed electric motor and smooth, reliable, and durable 3-stage planetary gear train with 315:1 gear ratio develop 16,500 lbs. of pulling capacity, enough to get the largest trucks and SUVs unstuck. And all that pulling power is housed in a large, heavy-duty structure that can withstand pull after pull. And if you get involved in a long pull and your motor gets hot, a motor-mounted temperature sensor will make the LED in the remote control blink, letting you know that continued operation could cause damage to the winch.

The 16.5ti comes with 80’ of strong 3/8” diameter steel wire rope and roller fairlead. The line speed is 23.6’ per minute under no load at 68 amps, and 3.24’ per minute at 16,500 lb. max. limit at 507 amps. You get optimal winch control with the exclusive design automatic mechanical cone brake, and the remote control with LED light has a 12’ lead. To make sure the elements stay outside and your winch stays dry and fully operational inside, WARN employs extreme-duty sealing and an aluminum control box cover for additional electronics protection. And to ensure your winch stays looking as good as it performs, a primer undercoat is applied followed by a powdercoated finish, to resist chips and corrosion.

Comprehensive installation and user instructions are supplied with the 16.5ti winch, and it’s backed by a limited to the original purchaser against defects in materials and workmanship on mechanical parts, and a limited 1-year warranty to the original purchaser against defects in materials and workmanship on electrical components.
