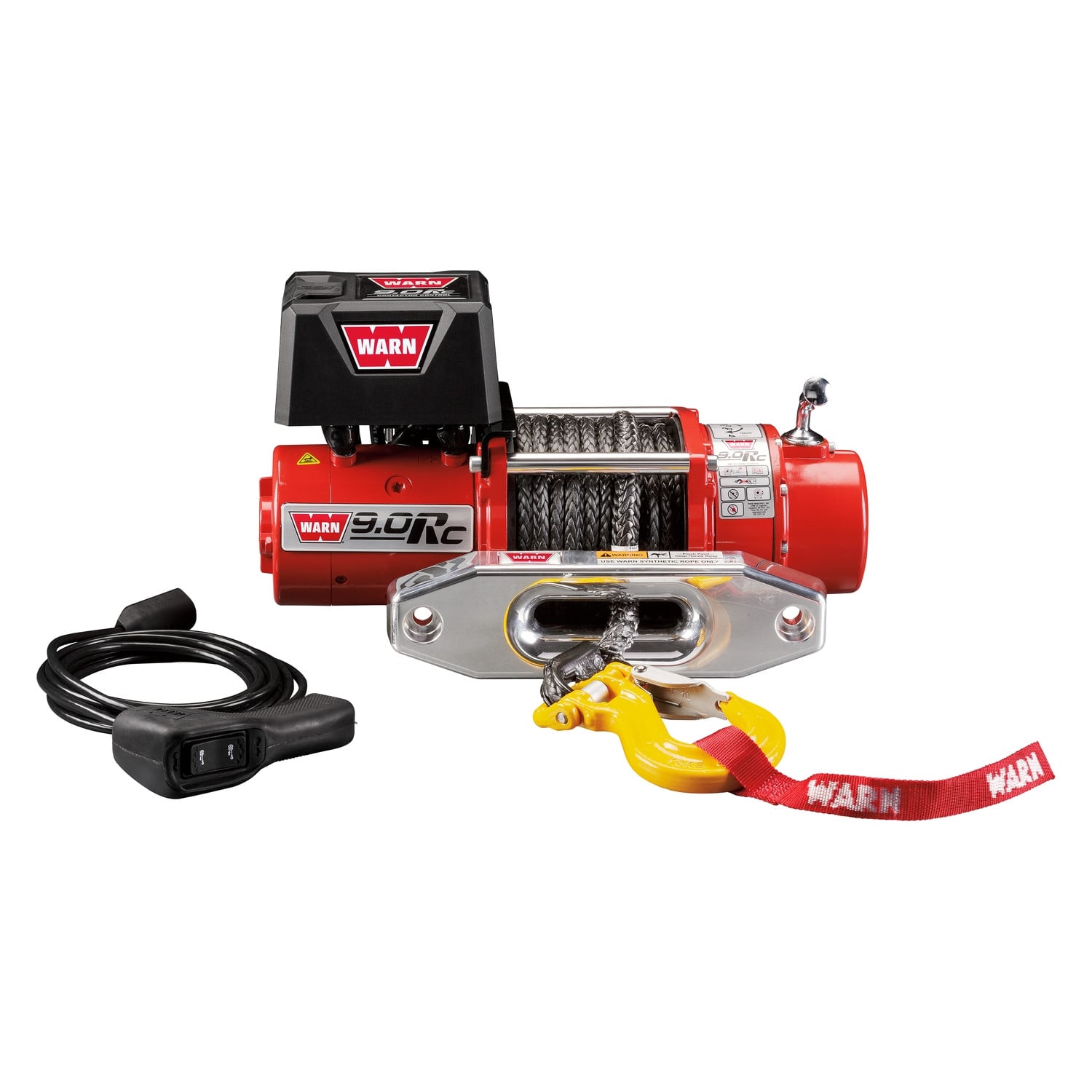

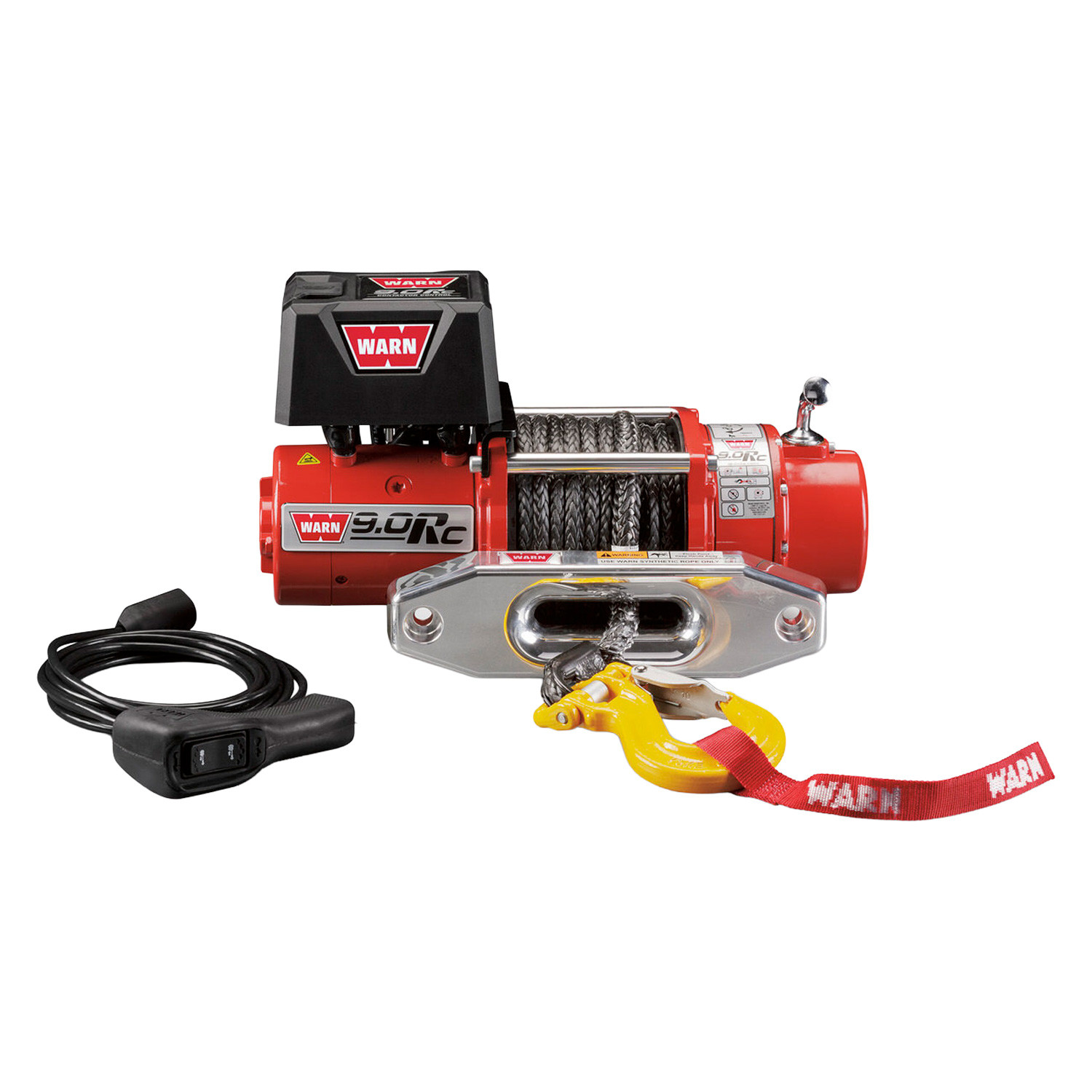

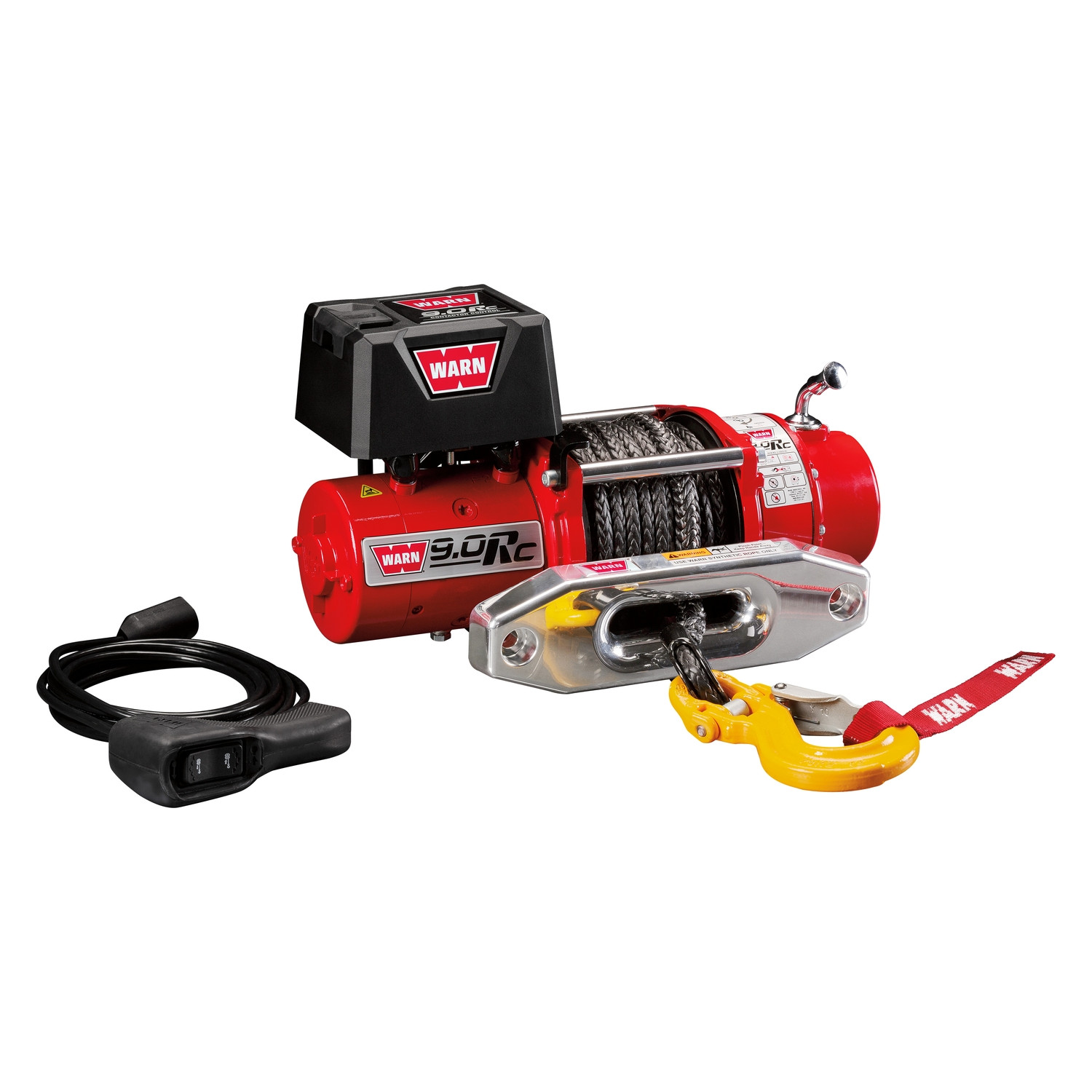

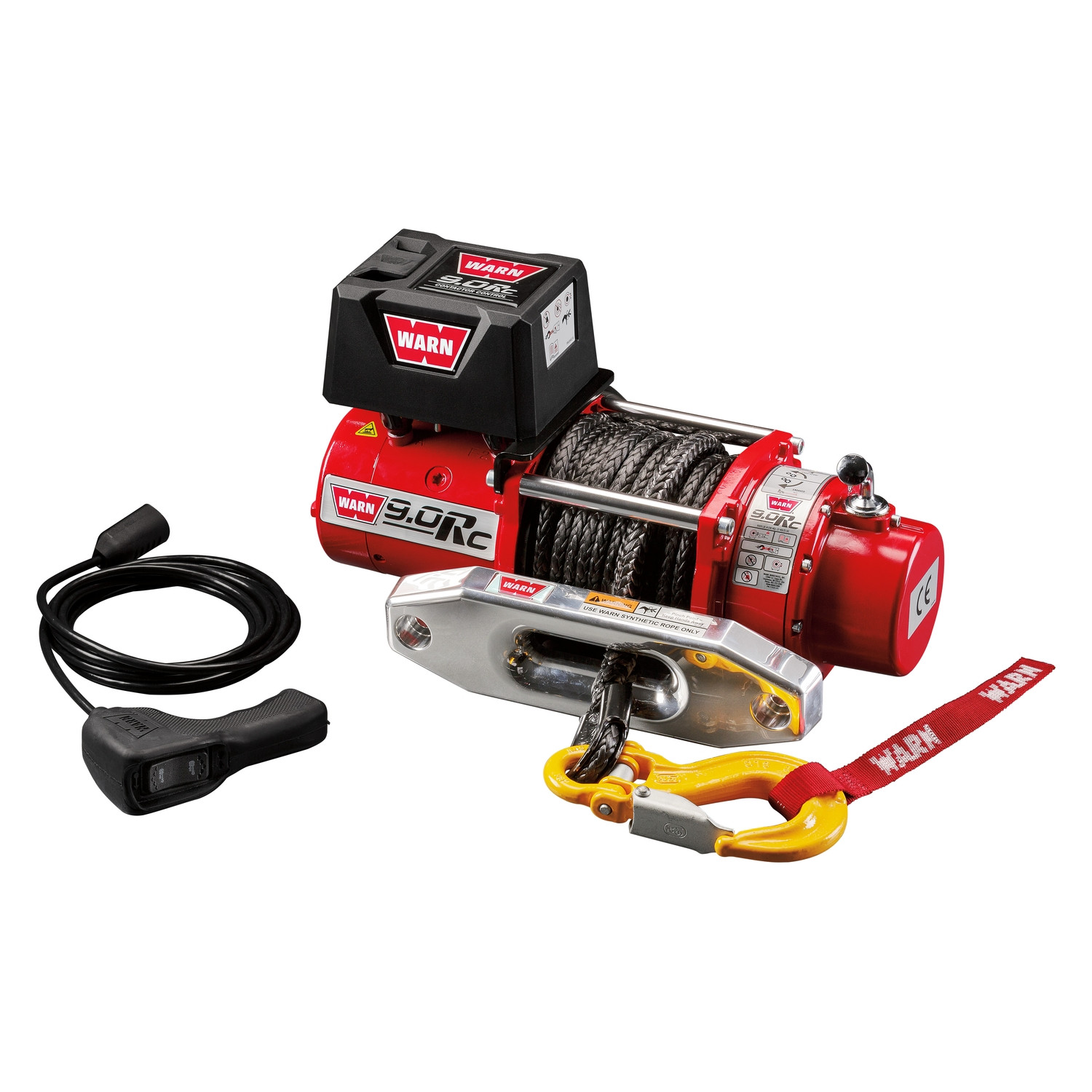

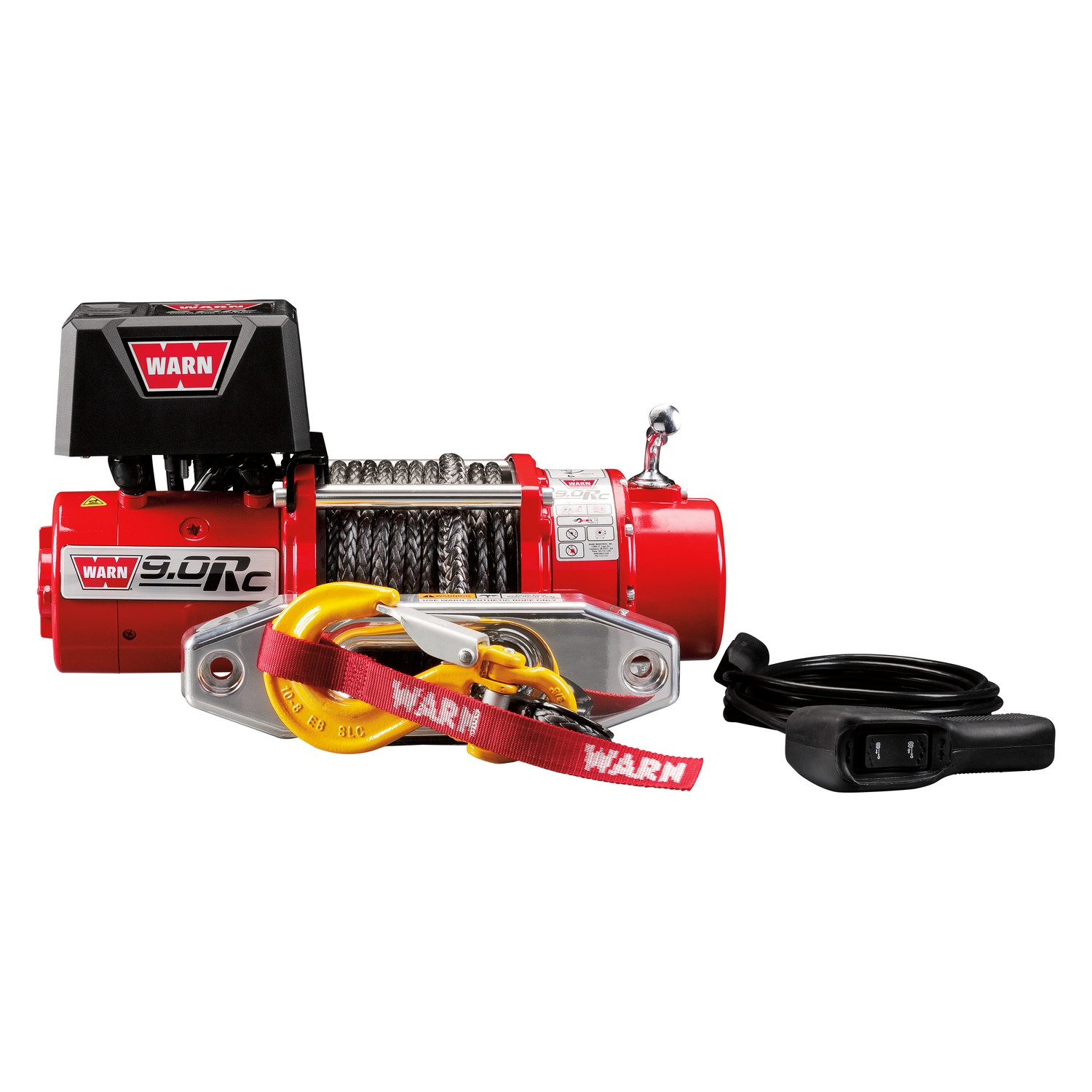

WARN® 71550 - 9.0Rc Rock Crawling 9000 lbs Electric Winch

11 reviews|Item # mpn1753067
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$2,405.49
In Stock (83)
See similar products
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Winch Style
Electric
Pull Rating (lbs)
9,000 lbs.
Volts
12 V
Winch Fairlead Type
Hawse
Remote Included
Yes
Remote
12 ft. wired remote
Free-Spooling
Yes
Brake
Yes
Power Out
Yes
Drive Gear
3-stage planetary
Winch Line Included
Yes
Winch Line Type
Rope
Winch Line Diameter (in)
3/8 in.
Winch Line Material
Synthetic
Winch Line Length (ft)
50 ft.
No Load Line Speed
42.00 fpm
Conforms to J706 Standards
No
Mounting Hole Quantity
4 holes
Mounting Pattern Length (in)
6.000 in.
Mounting Pattern Width (in)
4.500 in.
Weight
54.000 lbs.
Motor Horsepower
4.80 hp
Gear Reduction Ratio
216:1
Quantity
Sold individually.

Features

  • 9000 lbs. of pulling power and fast line speed in a compact, lightweight package that’s ideal for competitive rock crawlers
  • Powerful series wound 4.8 hp 12V DC electric motor
  • 3-stage planetary gear train with 216:1 gear ratio
  • Includes 50’ of 3/8” diameter synthetic rope and 360-degree swivel hook and thimble
  • Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
  • Polished aluminum hawse fairlead
  • Exclusive multi-segment cam actuated brake for positive operator control during winching
  • Line speed: 32’ per minute under no load at 85 amps, 5.6’ per minute at 9000 lb. max. load at 408 amps
  • Contactor control pack delivers long duty cycles and exceptional durability
  • Primer undercoat with gloss red finish coat for superior corrosion resistance

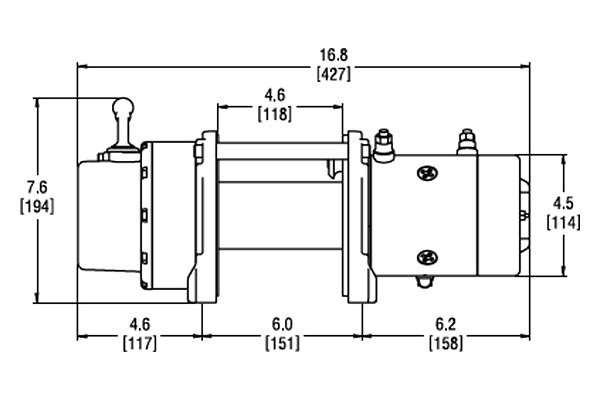

  • Dimensions: 16.8”L x 6.3” D x 7.6” H
  • Weight: 54 lbs.
  • Comes with detailed installation and user instructions
  • Limited lifetime warranty on mechanical parts

Product Details

Universal 9.0Rc Rock Crawling 9000 lbs Electric Winch (71550) by WARN®. Includes 360° Swivel Hook/Thimble, Aluminum Hawse Fairlead. 12V DC. Rope Length: 50'. Rope Length: 50'. This winch was specially created for competitive rock crawlers. Its compact 16.8”L x 6.3” D x 7.6” H dimensions and low profile are perfect for the abbreviated space on most rock crawler bumpers, and at a lightweight 54 lbs. it won’t weigh you down when you’re tacking those tough climbs. But into this small package WARN manages to stuff a powerful 4.8 hp 12V DC series wound electric motor and 3-stage planetary gear train with 216:1 gear ratio to deliver 9000 lbs. of pulling power and fast 5.6’ per minute line speed under max. load. The 9.0Rc comes with 50’ of sturdy 3/8” diameter synthetic rope with rugged 360-degree swivel hook and thimble, polished aluminum hawse fairlead, and pistol grip style remote control with 12’ lead.

Installation

WARN® - M-Series Electric Winch Installation Instructions

Competitive rock crawling is the most extreme type of off-roading, filled with steep climbs, severe approach angles, tight turns, and high speeds. Under these demanding conditions there’s no place for a porky winch with weak pulling power and slow line speeds. To get a leg up on the competition you need the WARN 9.0Rc, designed for the intense demands of competitive rock crawling.

With its powerful 4.8 hp 12V DC series wound electric motor and 3-stage planetary gear with 216:1 gear ratio, the 9.0Rc develops 9000 lbs. of pulling capacity, more than enough to get you over and through the toughest obstacles, yet with fast 5.6’ per minute line speed under max. load that won’t have you wasting valuable time. All this power and speed comes in a compact 16.8”L x 6.3” D x 7.6” H package that weighs only 54 lbs. The light weight and low profile design won’t get in the way or drag you down when you’re negotiating those rocks and boulders.

The 9.0Rc comes with 50’ of 3/8” diameter synthetic rope, 360-degree swivel hook and thimble, and polished aluminum hawse fairlead. A ballistic nylon sliding sleeve is included to provide extra rope protection against abrasion and wear. For positive operator control of the rope during winching, the 9.0Rc is equipped with a multi-segment cam actuated brake. The next-generation contactor control pack resists heat to provide long duty cycles and outstanding reliability, and the winch is controlled via the new-style remote control with pistol grip and 12’ lead.

To ensure the 9.0Rc stays looking good through many seasons of rock crawling adventures, it’s coated in red primer followed by an eye-catching gloss red finish coat, to resist rust and corrosion. Comprehensive, illustrated installation and user instructions are included and the winch is backed by a limited to the original purchaser against defects in materials and workmanship on mechanical parts, and a limited 1-year warranty to the original purchaser against defects in materials and workmanship on electrical components.
