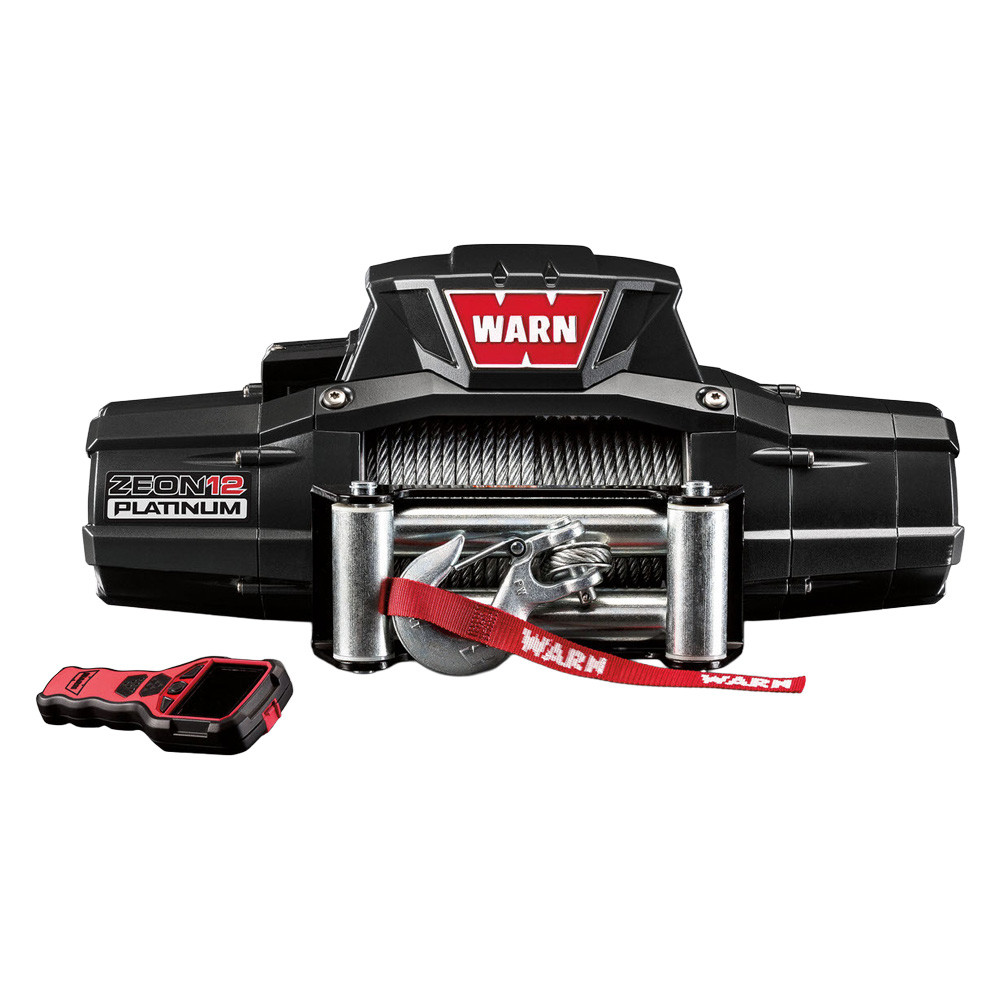

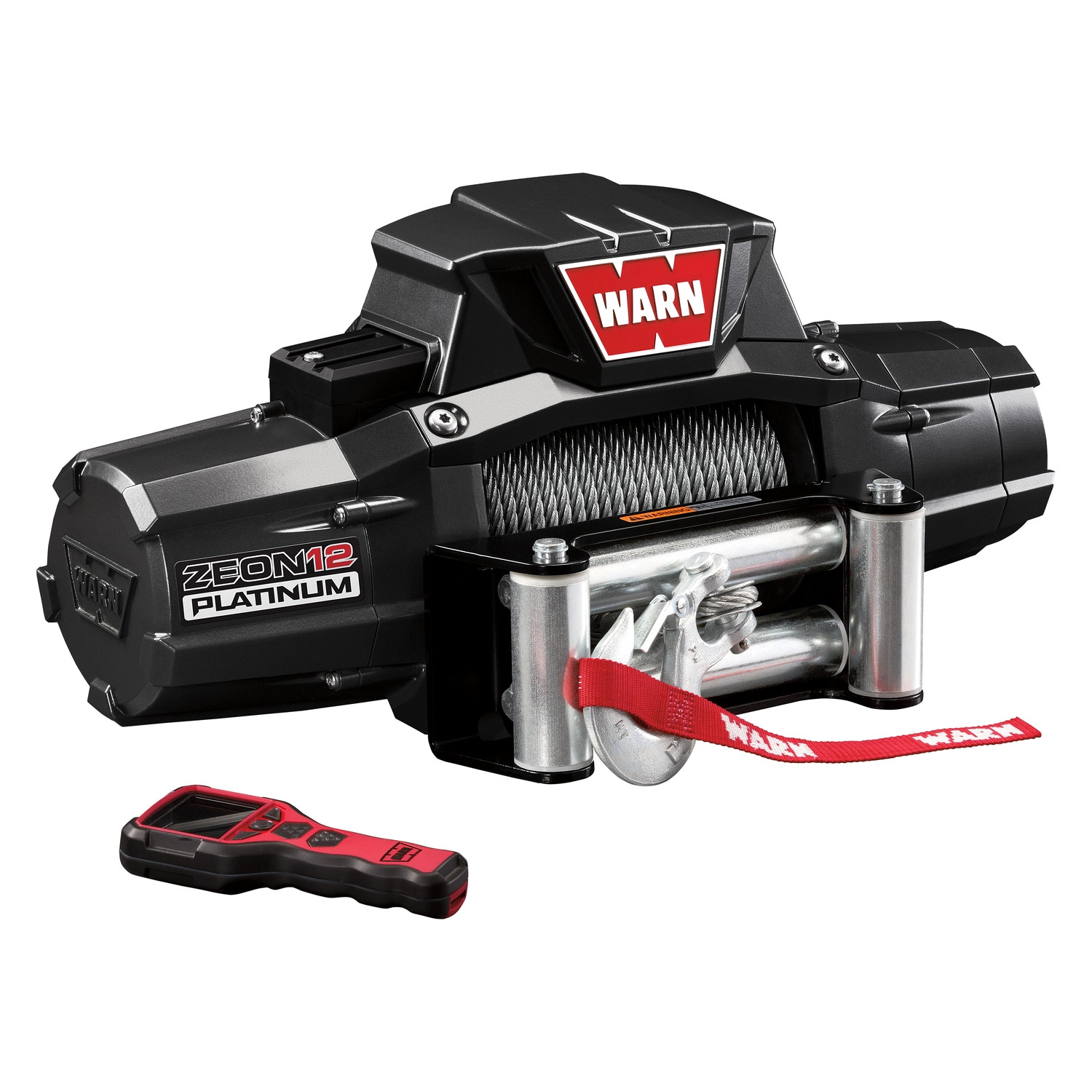

WARN® 92820 - ZEON™ Platinum™ Ultimate Performance Series 12000 lbs Electric Winch with Wire Rope

11 reviews|Item # mpn123364590
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$1,946.99
In Stock (175)
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

This part is universal

Specifications

Winch Style
Electric
Pull Rating (lbs)
12,000 lbs.
Volts
12 V
Winch Fairlead Type
Roller
Remote Included
Yes
Remote
Wireless
Free-Spooling
Yes
Brake
Yes
Power Out
Yes
Drive Gear
3-stage planetary
Winch Line Included
Yes
Winch Line Type
Cable
Winch Line Diameter (in)
3/8 in.
Winch Line Material
Steel
Winch Line Length (ft)
80 ft.

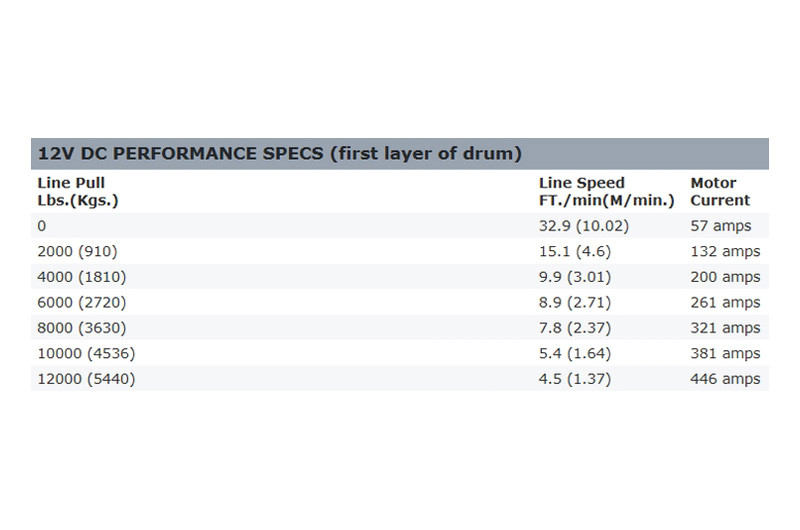

No Load Line Speed
32.90 fpm
Conforms to J706 Standards
No
Mounting Hole Quantity
4 holes

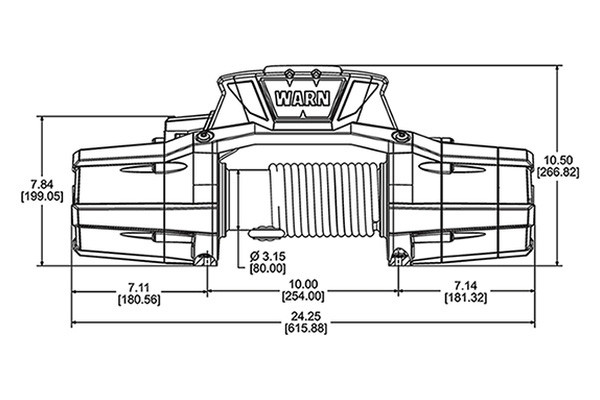

Mounting Pattern Length (in)
10.000 in.
Mounting Pattern Width (in)
4.500 in.
Weight
103.000 lbs.
Gear Reduction Ratio
216:1
Quantity
Sold individually.

Features

  • Includes 80' of 3/8" (9.52mm x 24.38m) aircraft-grade wire rope and a roller fairlead
  • The Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud
  • The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter
  • All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and their highest durability rating
  • Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing
  • Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation
  • Extreme waterproofing meets rigorous IP68 standards the highest rating in the WARN Truck/SUV winch lineup
  • Automatic mechanical cone brake offers excellent control while winching
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.

Product Details

Universal ZEON™ Platinum™ Ultimate Performance Series 12000 lbs Electric Winch with Wire Rope (92820) by WARN®. With Roller Fairlead. 12V DC. Rope Length: 80'. The WARN hook strap is essential for proper handling of the hook. Use it to hold the hook and keep fingers away from the fairlead as the rope is being spooled in.

Brand:
Part Number:
92820
UPC:
012748048046

Reviews

(11)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-10 of 11 Reviews
5 of 5
Always Awesome
Looks great on the front of my truck but the cable has a kink so will need to contact Warn about getting a replacement, but the will as always do whatever it takes to make the customer happy. Hopefully I will never have to use it.
WARN® 92820 - 12,000 lbs ZEON™ Platinum™ Ultimate Performance Series Electric Winch with Wire Rope
Posted by David (Pooler, GA) / February 06, 2019
5 of 5
Great Winch. Does Its Job Well.
This is a great all around winch. It has gotten me out of mud holes more times that I can count. No need to let it cool down for one tug unless you're in really deep. This winch performs great. Excellent for the cost.
Posted by Carter (Greenville, MS) / December 20, 2018
5 of 5
Warn ZEON 12k Winch
Fits great in the grumper, looks good and pretty easy to install. If installing on a grumper front end, I would advise installing the rope/wire before attaching the top half of the grill to the truck, otherwise there is not enough room to install properly. This is on a 2017 Ram 2500.
WARN® 95950 - ZEON™ 12000 lbs Electric Winch
Posted by Will (Ellwood City, PA) / April 13, 20182017 Ram 2500
5 of 5
For My 1971 Toyota FJ40 Land Cruiser
I bought a 1971 Toyota FJ40 at auction and it needed a winch, but the PTO ones are hard to find and operate. This one is spectacular, top of the line. I was surprised that if required a mounting plate that was never offered and had to be bought elsewhere, and that it could not be hard wired to the electrical system in the vehicle. On a dark, winter night, caught in a snow bank, I would not like to be fumbling for the extension cord with cold hands and no flashlight. I ordered the nylon cable, because the braided wite would be tough on a non-gloved hand. This looks impressive and seems well engineered. Hope I never need it, but glad it is mounted.
Posted by Harry R (Hailey, ID) / September 22, 2018
5 of 5
Warn Winch
Seems to be great so far.
WARN® 96810 - 10,000 lbs VR Series Standard Duty Electric Winch with Steel Rope
Posted by Jason (Haverhill, MA) / April 12, 2018
5 of 5
Winch
Fits great in our new bumper.
Posted by Bradley (Mesa, AZ) / October 28, 2015
5 of 5
Winch
Excellent!
Posted by Sergio (North Miami, FL) / October 06, 20152013 Jeep Wrangler
5 of 5
Learn from my mistakes
This is the best basic winch you can get. Don't be fooled into buying any of the cheaper ones. Learn from my mistakes. It does what it says it does. Pulls four tons. Has paid for itself in my case with one emergency use. Had to pull and lift 2.5 tons which it did with ease. I would recommend having a snatch block and either a chain or heavy strap to give more options when needed. It is not always possible to get the truck with the winch in exactly the right spot. The snatch block allows for more choices.
Posted by Andre (Burtonsville, MD) / July 03, 20132010 Jeep Patriot
5 of 5
Everything you need
I'll say it again, M8000 now comes with a mounting bracket so no need to order another unless you want a spare...So far I have only operated it to stretch the line. It seems everyone has one of these. One thing I should have considered- my driving habits. I know many people submerge their winches without problem and I do my fair share of water crossings.... I'm not saying don't get this if you see any water...it's just something to consider Great price for one of Warns top selling winches- lifetime warranty- Warns ultimate reliability. I'll update after more use. Aside from the winch you'll need to invest in a few things. A tree protector strap (not an ordinary tow strap), a snatch block or two (doubles your pulling capacity), shackle or two, heavy duty gloves, and a heavy blanket or jacket. You can buy a kit which includes much of what you need.
Posted by Lawrence (Loudonville, OH) / July 02, 20132009 Ford F-250
5 of 5
Fantastic
This Winch is fantastic... pulls almost anything with ease. Would defiantly recommend this for anyone who is thinking about a winch... save yourself the time and effort, and buy a quality product from the beginning. I know it is a little more expensive, but it is a quality product that I will stake my reputation on. P.S. Make sure you have a good Battery.
Posted by Petri (Laredo, TX) / June 21, 20132011 Chevy Tahoe

Questions and Answers

(0)
If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
