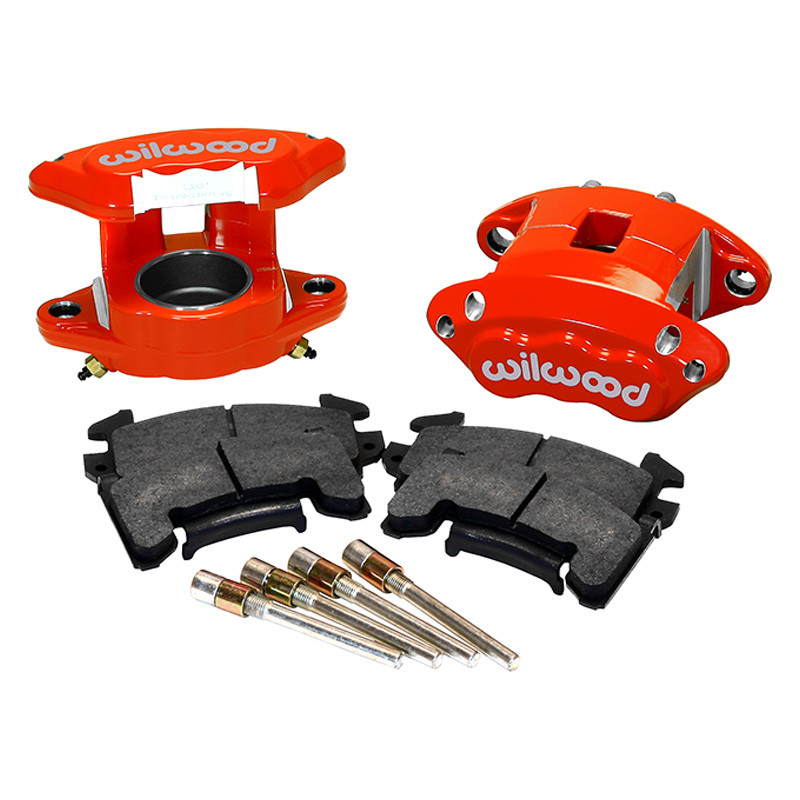

Name: Wilwood® 140-12097-R - D154 Front Caliper Kit
Brand: Wilwood
SKU: mpn1394895
Price: 484.13 USD
Availability: InStock
Rating: 5 (1 reviews)

Vehicle Fitment

Chevy

GMC

Isuzu

Oldsmobile

Specifications

Caliper Material	Aluminum
Caliper Color	Red Powder Coat
Caliper Construction	Floating
Caliper Mount Side	Universal
Caliper Type	D154
Driving Style	Performance / Racing
Mount Type	Floating
Pad Area	8.7 in²
Pad Compound	BP-10
Pad Material	Semi-Metallic
Pad Plate	D154
Parking Brake Provision	No
Caliper Total Piston Area	4.9 in²
Piston Material	Steel
Piston Quantity	1-Piston
Piston Size	63.5mm (2.5")
Brake Pad Volume	2.9 in³
Series	D154
Brake Pads Included	Yes
Fittings Included	No
Remanufactured	No

Features

Designed as an extreme duty alternative to the OE cast iron calipers

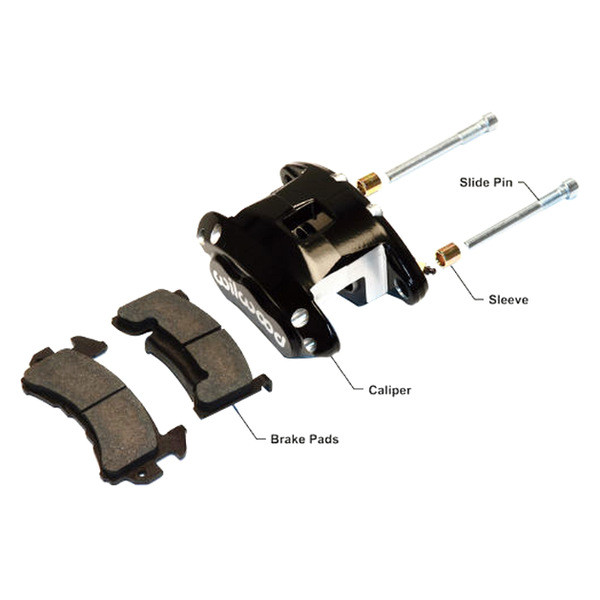

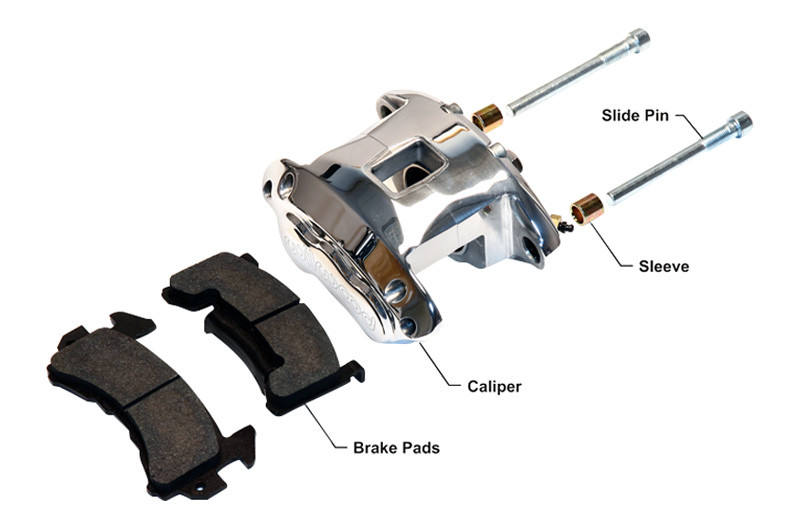

Includes D154 aluminum calipers, hardened slide pins and BP-10 high friction pads
Can be mount with stock-sized rotors in the stock location
Floating construction
Lightweight, only 4.9 pounds
Inlet fitting: M10 x 1.5 banjo
Calipers feature forged billet aluminum bodies for better rust and corrosion resistance
Computer designed reinforced bridges for excellent strength
Stainless steel pistons provide great clamping power
High-temperature “seal-in-bore” design
Proudly manufactured in the United States

Product Details

D154 Front Caliper Kit by Wilwood®. This caliper kit featuring aluminum D154 calipers, BP-10 brake pads and hardened slide pins is a great alternative to the OE cast iron calipers while being more efficient, lightweight and stronger. Forget about disappointing rust and corrosion issues with this D154 caliper kit by Wilwood.

Installation

Wilwood® - D154 Front Caliper Kit Installation Instructions

Benefits:

Aluminum allows for exceptional light weight
Smaller and lighter than fixed calipers
Pistons uniformly transfer braking force to the brake pads
Pistons are hollow to save weight
Heat-resistant coating

This caliper kit offers great stopping power along with low-maintenance operation and high-temperature reliability. D154 calipers that come in the kit are made with forged billet body that provides for huge weight savings over the OE cast iron calipers. There are no other aluminum calipers that can match D154 calipers in strength and weight characteristics. D154 brake calipers can be also used to compliment drum to disc upgrade for all types of street performance vehicles. The kit also contains hardened slide pins and BP-10 high friction pads. This combination of components make this kit a popular choice in a number of restricted class competition categories and drum to disc conversions on all types of hot rods and street vehicles. The calipers with high-temperature coating is the right way to finish your brake calipers no matter if you use your vehicle for everyday driving or for severe racing on the track. The coating is more heat-resistant than a regular paint and will not chip, crack, fade, or rust even under extreme conditions.

Wilwood® - D154 Front Caliper Kit Installation Instructions Wilwood® - Finishes Wilwood® - Catalog Wilwood® - Products Comparison Wilwood® - Tech Tips Guide Wilwood® - Warranty Information Made In USA Wilwood Authorized Dealer

Brand:

Wilwood

Part Number:

140-12097-R

UPC:

889545015089

Alternate MPN:

14012097R

Warranty

Do not drive on untested brakes. Brakes must be tested after installation or maintenance.

Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle if pedal does not stay firm or can be pushed to the floor with normal pressure.
At very low speed (2-5 mph) apply brakes hard several times while turning steering from full left to full right, repeat several times. Remove the wheels and check that components are not touching, rubbing, or leaking.
Carefully examine all brake components, brake lines, and fittings for leaks and interference.
Make sure there is no interference with wheels or suspension components.
Drive vehicle at low speed (15-20 mph) making moderate and hard stops. Brakes should feel normal and positive. Again check for leaks and interference.
Always test vehicle in a safe place where there is no danger to (or from) other people or vehicles.
Always wear seat belts and make use of all safety equipment.

General Warnings:

RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED REGULARLY FOR FATIGUE, DAMAGE, AND WEAR. DO NOT OPERATE ANY VEHICLE ON UNTESTED BRAKES! ALWAYS UTILIZE SAFETY RESTRAINT SYSTEMS AND ALL OTHER AVAILABLE SAFETY EQUIPMENT WHILE OPERATING THE VEHICLE.

Disclaimer of Warranty:

Purchasers recognize and understand that racing parts and equipment, such as disc brakes, hubs, etc. and all parts, inventory and services manufactured and/or sold by Wilwood Engineering, Inc. are exposed to many and varied conditions due to the manner in which they are installed and used. Purchasers and Wilwood Engineering, Inc. consciously desire to make their own bargain, irrespective of any court decision and purchasers agree upon good faith and in consideration for being allowed to purchase from Wilwood Engineering, Inc. said parts or services. Purchasers expressly acknowledge and understand that Wilwood Engineering, Inc. does not make any affirmation of fact or promise to purchaser, which relates to said parts, inventory, or services that becomes part of the basis of the bargain between Wilwood Engineering, Inc. and purchasers. Nor does Wilwood Engineering, Inc. make, or cause to be made to purchaser any description of the goods sold to purchaser, nor does Wilwood Engineering, Inc. make, or cause to be made, as part of the basis of the bargain with purchasers, any description or affirmation of fact concerning any sample or model of racing parts, and equipment inventory or service.

As further consideration for purchasers using Wilwood Engineering, Inc. racing parts and equipment any and all inventory and services, purchasers acknowledge that due to the differing conditions and circumstances under which all equipment and parts are installed and used, purchasers are not relying on Wilwood Engineering, Inc. skill or judgment to select or furnish the proper part or equipment. Purchasers expressly affirm they are relying upon their own skill or judgment to select and purchase suitable goods.

Wilwood Engineering, Inc. makes no warranties whatsoever, expressed or implied, oral or written, to purchasers. There is no warranty of merchantability made to purchasers. Wilwood Engineering, Inc. further excludes any implied warranty of fitness with respect to racing and equipment, any and all inventory and service.

It is expressly understood and agreed between purchasers and Wilwood Engineering, Inc. that as part of the bargain between Wilwood Engineering, Inc. and purchasers, and in consideration of doing business with each other, all purchasers take, select and purchase said racing parts, equipment, any and all inventory, or services from Wilwood Engineering, Inc. "as is" and "with all faults" and Wilwood Engineering, Inc. shall always provide purchasers with a full and complete opportunity to examine, at purchasers’ leisure and convenience, any racing parts and equipment, any and all inventory, or services when purchasing or contemplating purchasing from Wilwood Engineering, Inc.

If, and in the event that purchasers expressly or impliedly cause representations, or statements or affirmations of fact contrary to this disclaimer of all warranties, expressed or implied, then purchasers agree to indemnify and hold harmless Wilwood Engineering, Inc. in the event of any claim, demand, or legal action against Wilwood Engineering, Inc. by any purchaser.

Purchasers understand and agree that no officer, director, employee, or salesman of Wilwood Engineering, Inc. has any authority to make any statement contrary to the terms of this agreement. On the contrary, Wilwood Engineering, Inc. disavows any statement contrary to what is herein above written.

Reviews

(1)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-1 of 1 Reviews

Sort by

5 of 5

Wilwood Calipers

These calipers come packaged very nicely! Open them up and install! Everything is complete and ready to go! Great product for sure A+++++
