Wilwood® 140-12922 - Street Performance Plain Rotor Forged Dynalite Caliper Front Brake Kit

6 reviews|Item # mpn135598462
Vehicle SpecificCannot Confirm Fitment
  • We need more information
Select Vehicle
Confirm Fitment
Notes:
  • Requires change to 5 x 4.50" wheel
  • The hub offset will move the wheels inward or outward
Authorized Dealer
$918.14
In Stock (3) - Ships within 24 hrs
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

Ford

Specifications

Caliper Finish
Black Powder Coat
Caliper Construction
Fixed
Caliper Type
4-Piston
Material
Aluminum
Caliper Mount Type
Lug
Caliper Total Piston Area
4.8 in²
Caliper Type
Forged Dynalite (FDL)
Minimum Wheel Diameter Required
381mm (15")
Driving Style
Performance / Racing
Hat Bolt Circle 1
5 x 4.5"
Rotor Thickness
25.5mm (1")
Outside Diameter
286.5mm (11.28")
Spindle Type
Factory Drum Spindle
Pad Area
6.36 in²
Pad Volume
2.1 In³
Pad Compound
BP-10
Pad Plate
7112
Piston Material
Stainless Steel
Rotor Construction
1-Piece
Rotor Material
Cast Iron
Rotor Style
Plain
Rotor Type
Vented
Rotor Construction
Rotor and Hat Assembly
Rotor Finish
Plain
Rotor Series
ULHP
Dynamically Balanced
No
Front Rotor Outside Diameter (mm)
286.50mm
Front Rotor Outside Diameter (in.)
11.28 in.
Front Rotor Thickness (in.)
1.00 in.
Brake Rotor Bolt Pattern (in.)
5 x 4.50 in.
Brake Rotor Bolt Pattern (mm)
5 x 114.30mm
Friction Material Name
BP-10
Front Caliper Color
Black
Front Caliper Material
Forged billet aluminum
Front Caliper Piston Quantity
Four
Front Rotor Construction
Vented
Front Rotor Style
Solid surface
Minimum Recommended Wheel Diameter (in.)
15 in.
Quantity
Sold as a kit.
Position
Front
Front Spindles Included
No
Master Cylinder Included
No
Front Rotor Included
Yes
Rear Rotor Included
No
Remanufactured
No
Front Caliper Included
Yes
Rear Caliper Included
No
Parking Brake Provision
No
Brake Booster Included
No
Brake Hoses Included
Yes
Brake Pads Included
Yes

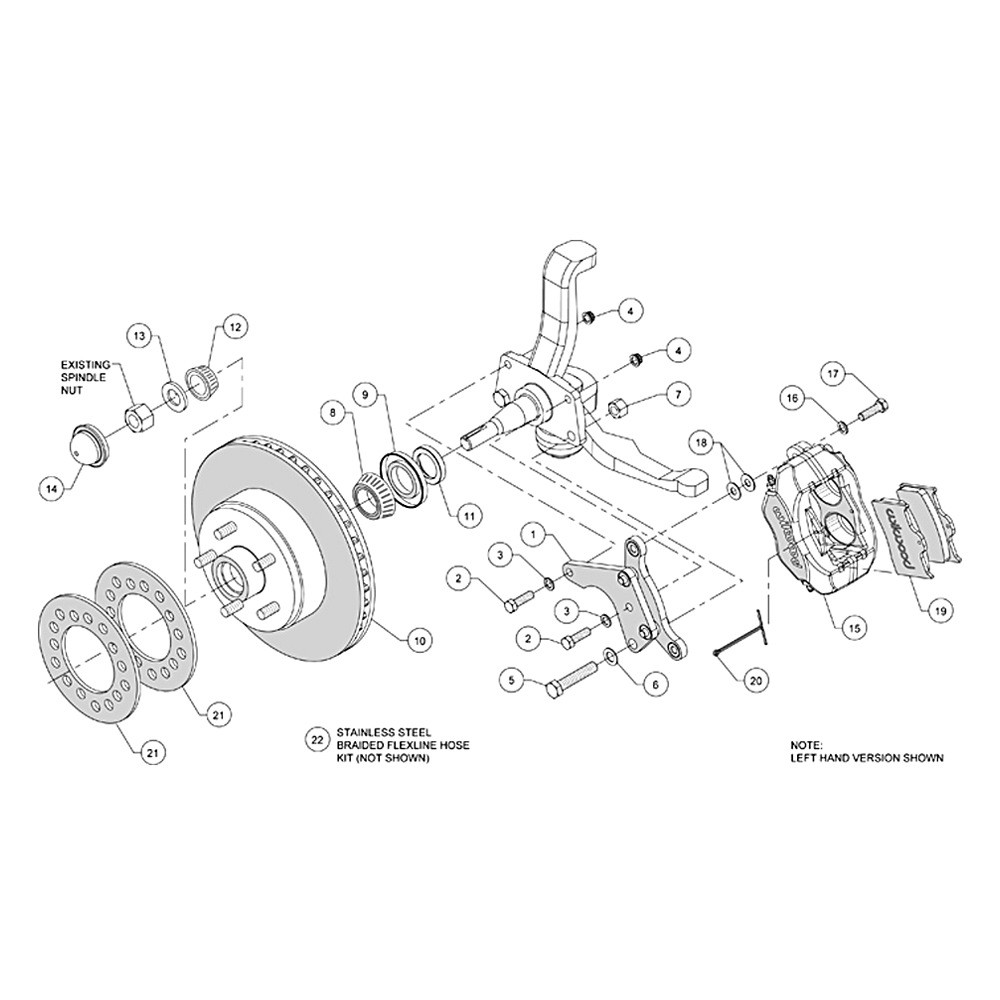

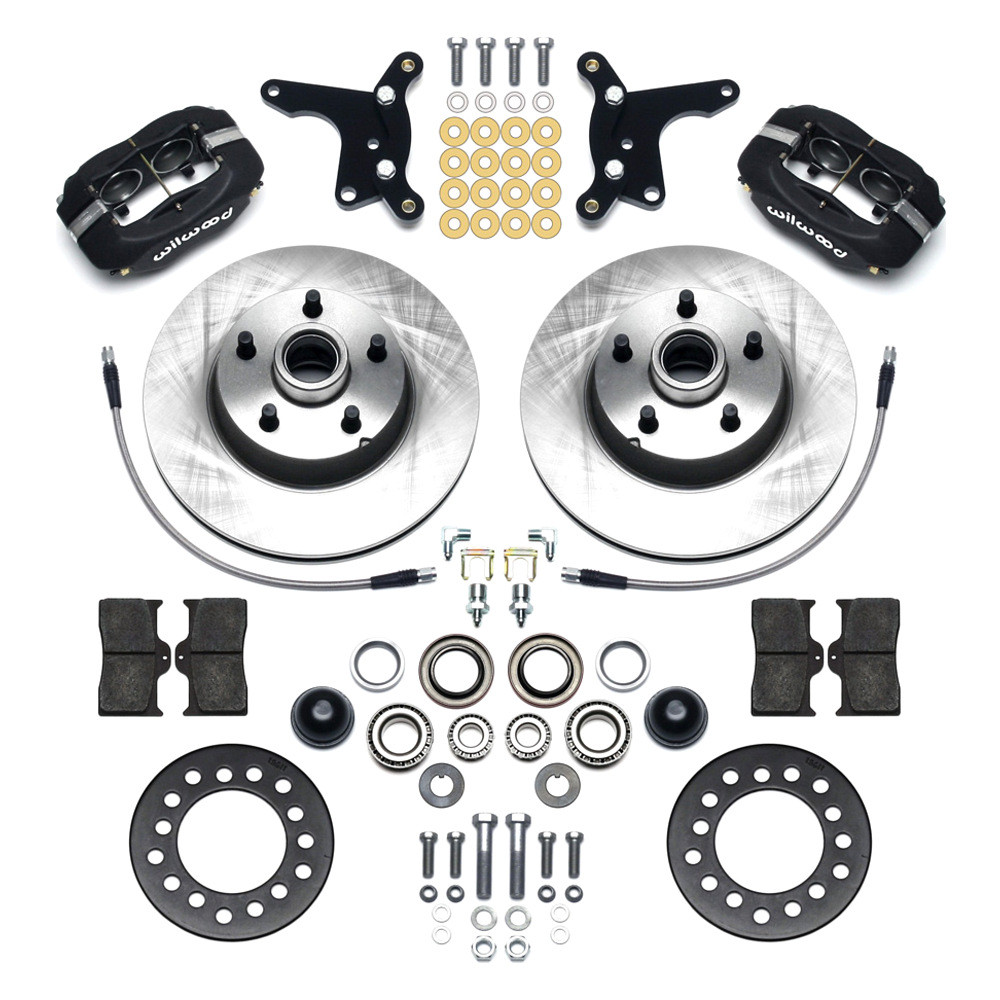

Includes

  • Calipers PN# 120-6815
  • Rotors PN# 160-13484
  • Front Line Kit: 220-7699

Features

  • Includes: Brake Rotors, Calipers, Brake Pads, Installation Hardware
  • Plain rotor pattern
  • Rotors are cast from premium grade, long grain carbon iron
  • Ensures maximum braking efficiency
  • Provides improved braking control
  • Corrosion resistance coating
  • Precision machined to less than 0.001 tolerance for overall flatness
  • Suitable for moderate temperature racing, street performance, and everyday use
  • Long wear rate for sustained high heat braking
  • Rotors provide an excellent balance of efficient cooling and lower rotating mass
  • Brake pads ensure fast response and enhanced friction
  • Proudly manufactured in the United States

Product Details

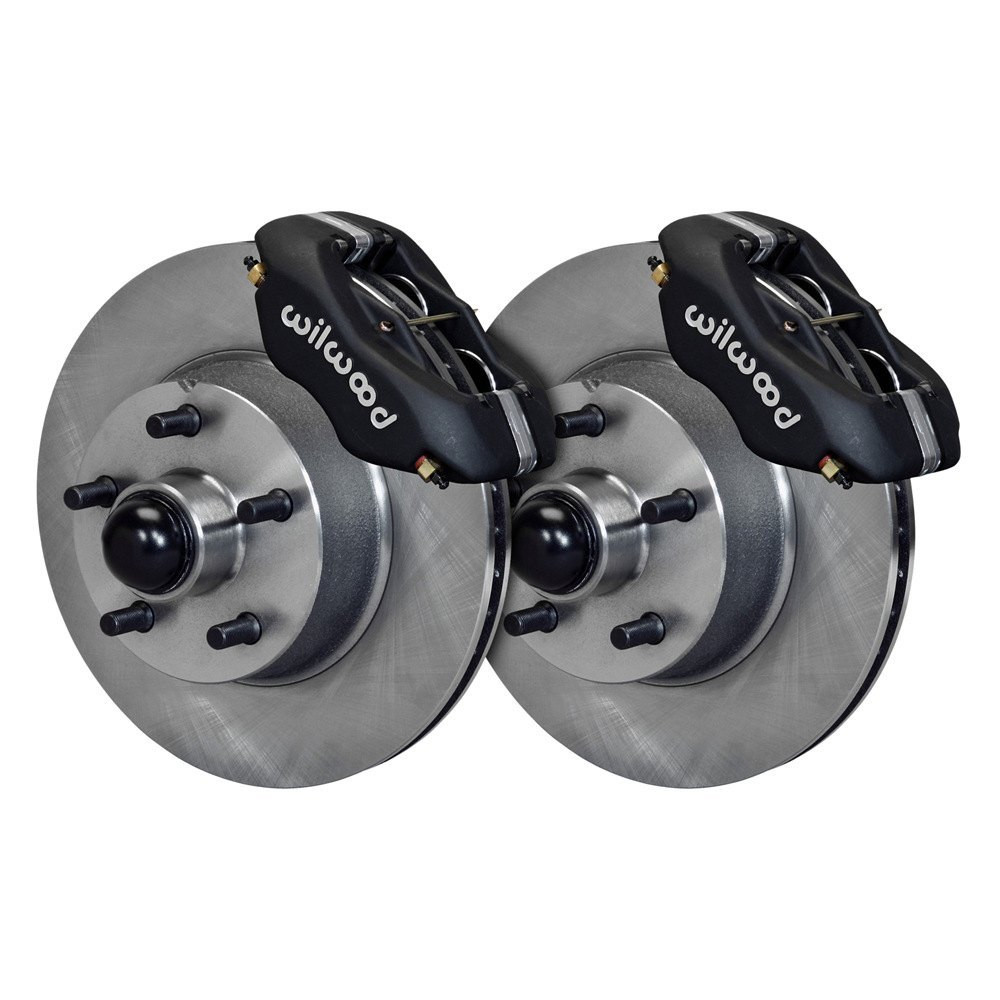

Street Performance Plain Rotor Forged Dynalite Caliper Front Brake Kit (140-12922) by Wilwood®. With this kit, your vehicle will get the braking power that is hard to match. The package includes plain face rotors, performance brake pads and calipers available in various finishes which altogether set this kit apart from off-the-shelf kits.

Installation

Benefits:

  • Plain rotors ensure quiet operation and offer low dust and long pad life
  • Vented type of rotors offer much faster heat dissipation
  • Multi-piston calipers provide clamping force on both sides of the rotor at the same time and uniformly transfer braking force to the brake pads
  • Caliper pistons are hollow to save weight
  • Aluminum caliper body allows for exceptional light weight (up to 40% of weight savings) and ensures superior corrosion resistance
  • Caliper heat-resistant coating prevent cracking and fading
  • Fixed calipers create friction from the brake pads on both sides of the rotor at minimum time interval

This Street Performance Plain Brake Kit provides you with exceptional braking power as well as an appealing custom look. With this kit you get better brake control compared to standard replacement brake kits. Rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. The brake pads ensure quieter operation and lower dust levels. Made with an eye on the racing technology, the calipers provide superior strength and durability. With a wide variety of caliper finishes, you can add a touch of style to your vehicle. This kit is perfect for both street performance and everyday use, offering an ultimate brake upgrade for maximum efficiency.

Fixed calipers by Wilwood offer unmatched stopping power. The pistons in fixed calipers are located on both sides of the disc, allowing for evenly distributed clamping force. They apply more squeezing power and apply it more evenly during braking as force is directly applied to both sides. Multi-piston calipers allow for more even braking and, as a result, less pad distortion. The more number of pistons a caliper has, the more clamping force it provides. Thanks to the evenly distributed pressure, these calipers ensure an even wear pattern along the entire length of the brake pad. Usually these calipers have smaller diameter pistons than single-piston calipers.

The internal vane design of these vented rotors by Wilwood provides excellent heat dissipation during brake cycles. As the wheel spins, the vanes around the edge of the rotor draw air in and pull it through to help cool the rotor. With the extra heat dissipated there will be less brake fade. Plain rotors by Wilwood offer the quietest operation out of all rotors as well as low dust and long pad life. They are a budget-friendly option for those drivers who can give up some performance but want to have reliable rotors.

Brand:
Part Number:
140-12922
UPC:
889545018097
Alternate MPN:
14012922

Reviews

(6)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-6 of 6 Reviews
5 of 5
Great Brakes
The calipers and rotors are high quality. No squeaks, no fade. I love how the black calipers look.
Wilwood® 140-12922 - Street Performance Plain Rotor Forged Dynalite Caliper Front Brake Kit
Posted by Dan (Miami, FL) / September 11, 2024
4 of 5
Good
it look good.
Wilwood® - Street Performance Drilled and Slotted Brake Kit
Posted by lary (Charlottessdd, MA) / July 28, 20232008 Cadillac XLR
5 of 5
08 GMC Sierra Willwood
Winfield at TRUCKiD made it as easy to purchase as the brake system was to install. Willwood has a system that is so precise and directions that are easy to follow. Wes T.
Posted by Wesley R (Escondido, CA) / January 04, 20192008 GMC Sierra 1500
5 of 5
Amazing Stopping Power!
This brake kit was all included along with purchasing the steel braided brake lines, kit was easy to install and yielded incredible results over the stop braking capability. Would highly recommend this to anyone using their srt4 for auto cross or any type of short track racing.
Wilwood® 140-6376-D - Street Performance Drilled and Slotted Rotor Forged Dynalite Caliper Front Brake Kit
Posted by Damon (Kenmore, WA) / November 11, 20172005 Dodge Neon
3 of 5
Needs Tweaking
Product looks amazing on my 2014 GMC 1500 especially after a good car wash. Down side the brake pads create excessive brake dust. Not that impressed with the stopping ability especially from a 6 piston caliper.
Posted by Dennis (Sugar Land, TX) / November 17, 20162014 GMC Sierra
5 of 5
Good service!
I bought a big brake kit for my Silverado showtruck. These brakes not only work phenomenally but also look incredibly. What I can say about TRUCKiD... Attention to detail and amazing customer service, good price and fast shipping.
Posted by Alexia (Quakertown, PA) / October 24, 20132001 Chevy Silverado

Questions and Answers

(0)
If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
