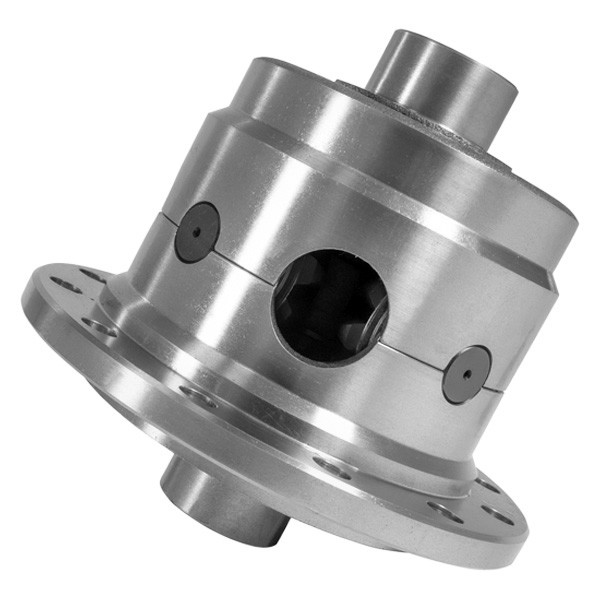

Yukon Gear & Axle® YDGD80-4-35 - Dura Grip™ Differential

Name: Yukon Gear & Axle® YDGD80-4-35 - Dura Grip™ Differential
Brand: Yukon Gear & Axle
SKU: mpn4669671774
Price: 1226.89 USD
Availability: InStock
Rating: 5 (3 reviews)

3 reviews|Item # mpn4669671774

Vehicle Specific

Notes:

Yukon recommends the use of high grade Non-Synthetic GL-5 gear oil and two bottles of Yukon LSD (Limited Slip Differential) additive for long life and smooth operation. Part number OILADD. The use of synthetic oil is not recommended and may result in aggressive or noisy operation.

Authorized Dealer

$1,226.89

In Stock (1)

See similar products

Have a Question? Ask a Specialist

888-903-4343Live Chat

Vehicle Fitment

Cadillac

Chevy

Dodge

Ford

GMC

Jeep

Land Rover

Toyota

Specifications

Differential Type	Positraction
Spline	35
Aftermarket Carrier Style	Clutch-type
Axle Shaft Spline Quantity	35
Carrier Bearings Included	No
Carrier Material	Nodular iron
Carrier Series	4
Cover Bolts	10
Quantity	Sold individually
Remanufactured	No

Features

Provides aggressive yet smooth traction to give you the confidence and performance you need
Fully rebuildable 4 spring design with composite clutches
Smooth transfer of torque to wheel with traction
Assembled in the USA
Allows for getting superior traction on just about any brutal terrain
Adds more reliability and consistency to your drivetrain
Ready to stand up to the punishing conditions of challenging landscapes
Get longer life and better traction with the heavy duty Dura Grip Positraction
Internal gears are manufactured using forged 4320 steel and cut to provide stronger teeth

Product Details

Dura Grip™ Differential (YDGD80-4-35) by Yukon Gear & Axle®. The Yukon Dura Grip an example of the popular clutch plate limited slips that appeared as OE equipment. Steel clutch plates, half of which are covered with a friction lining material, are sandwiched behind the differential side gears inside the carrier housing. These plates are alternately tabbed to the carrier or splined to the axle shaft. The tabbed pieces are called plates and the splines are called discs. The side gears are preloaded with springs placed between the side gears. This preload provides greater traction to both axles. In a turning situation, the Dura Grip allows a speed differential mostly because the torque loads will be low enough to allow the differential to operate.

Installation

Yukon Gear & Axle® - Dura Grip Positraction Installation Walkthrough

Yukon Gear & Axle® - Dura Grip Positraction Installation Instructions

Yukon Gear & Axle is here with excellent products that are available at a competitive price. The company does its utmost to provide the best possible solutions for your needs. All products by Yukon Gear & Axle are made with expert care and created by professionals to meet all your requirements. The company does not accept compromises when it is going about quality, so you can be sure that all products have only first-rate quality. With many years of manufacturing experience, Yukon Gear & Axle is the name you can trust.

Yukon Gear & Axle® - Dura Grip Positraction Installation Instructions Yukon Gear & Axle® - Traction Product Guide Yukon Gear & Axle® - Product Catalog Yukon Gear & Axle® - Features Yukon Gear & Axle® - Warranty Made In USA Yukon Gear & Axle Authorized Dealer Product lines Video About us

Brand:

Yukon Gear & Axle

Part Number:

YDGD80-4-35

UPC:

883584260479

Alternate MPN:

YDGD80435

Warranty

Yukon Gear & Axle (“Yukon”) warrants the original purchaser that all Yukon products will be free from defects in materials and workmanship for the periods shown herein. Yukon makes no other warranty of any kind, express or implied. All other warranties, including but not limited to an implied warranty of merchantability or fitness for a particular purpose, are excluded. This warranty is offered provided that the Yukon product has been installed and maintained in accordance with Yukon instructions, and that it has not been subject to modification, accident, abnormal use or misuse. At Yukon’s discretion, this warranty may be voided if installation of Yukon product(s) occurs on vehicles with tires that exceed Yukon maximum recommended tire size.

Upon notification of a warranty claim, Yukon shall investigate the claim of defect and, in the event of a verified defect, shall, at its sole choice, either repair the defective product, replace it, or refund the purchase price.

This warranty does not cover, and Yukon shall not be liable for, incidental or consequential damages, including loss of time, inconvenience, loss of vehicle use, or damage to personal property (including loss or damage to vehicle parts due to the failure of the Yukon product). This warranty does not cover damage to the axle caused by or facilitated by failure of a non-Yukon component.

This agreement offers you specific legal rights. You may also have other rights which vary from state to state.

Yukon Warranty by Products

Spool - As long as the original purchaser owns vehicle in which Spool is originally installed. It is normal for Spools to cause tire chatter, squeal, or scrubbing when vehicle is not moving in a straight line. Both rear tires must measure the same height from ground to top of wheel for Spool to function properly without premature wear.

Super Joint - As long as original purchaser owns vehicle in which Super Joint is originally installed. Warranty coverage is for breakage of cross section or caps only. Failure by wear or galling is not covered.

YP - Series Products (other than Spool and Super Joint) - One (1) Year. Covers parts for one year against manufacturing defects.

Front Axle (1541H) - Ten (10) Years. Covers parts for ten years against manufacturing defects.

Rear Axle (1541H) - Ten (10) Years. Covers parts for ten years against manufacturing defects.

Rear Axle 4340 (YA W) - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and axle breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Front Axle (Series YA W) - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and axle breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Ring & Pinion Gear Set - One (1) Year. Warrantied against manufacturing defects for one (1) year.

Positraction Differential - One (1) Year. Exclusions apply, does not cover premature clutch wear or abuse. It is normal for Positraction differentials to cause tire chatter, squeal, or scrubbing when vehicle is not moving in a straight line. Both rear tires must measure the same height from ground to top of wheel for differential to function properly without premature wear. Limited slip additive or appropriate friction modifier must be used with oil to reduce Positraction chatter.

Zip Locker (YZL) - Six (6) Years. All Zip Lockers come with a six (6) year warranty against manufacturing defects.

Grizzly Locker (YGL) - One (1) Year. Covers the replacement of the unit and any collaterally damaged parts.

Yokes - One (1) Year Covers parts for one year against manufacturing defects.

Carriers (YC) - One (1) Year. Covers parts for one year against manufacturing defects.

Tools (YT) - One (1) Year. Covers parts for one year against manufacturing defects.

Install Kits - One (1) Year. Includes BK, MK, PK, and YK. Covers parts for one year against manufacturing defects.

Spider Gear Kits (YPK) - One (1) Year. One year against manufacturing defects. Exclusions apply, does not cover clutch wear in limited slip differentials.

Drive Flanges - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Yukon Hardcore Locking Hubs - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and breakage for as long as you own the vehicle. This warranty is not transferable to another party.
