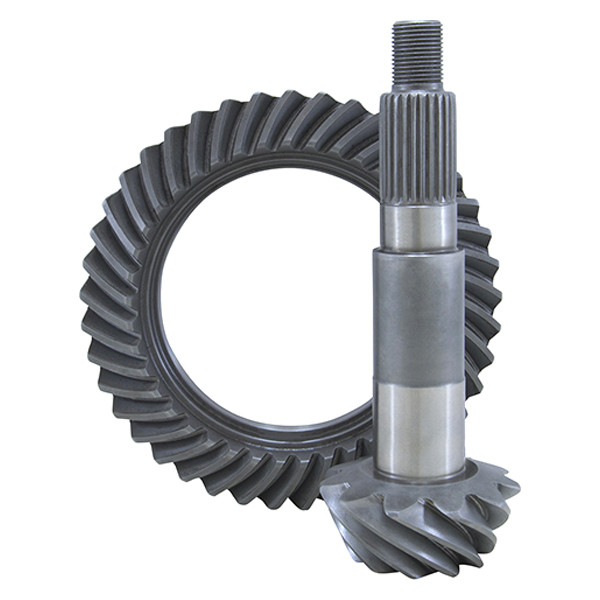

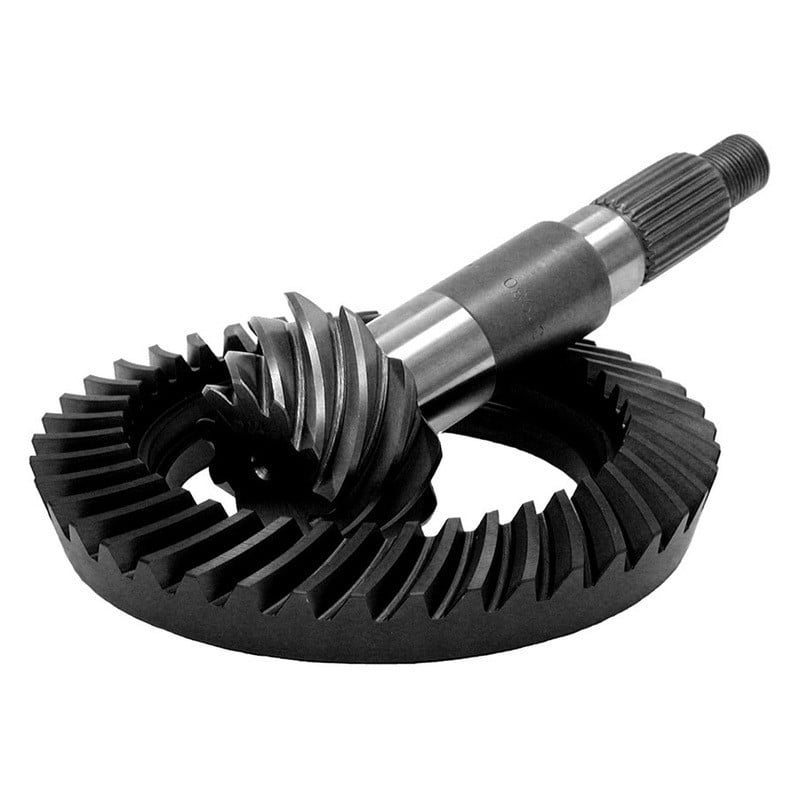

Name: Yukon Gear & Axle® YG D30-488 - High Performance Ring and Pinion Gear Set
Brand: Yukon Gear & Axle
SKU: mpn4576987732
Price: 399.89 USD
Availability: InStock
Rating: 4.8 (4 reviews)

Vehicle Fitment

Chevy

Dodge

Ford

GMC

Isuzu

Jeep

Oldsmobile

Ram

Toyota

Specifications

Ratio	4.88
Ring Gear Diameter	7.2"
Axle Bearings Included	No
Axle Seals Included	No
Carrier Bearings Included	No
Carrier Series	4
Carrier Shims Included	No
Cover Bolts	10
Cover Gasket Included	No
Crush Sleeve Included	No
Differential Cover Included	No
Differential Oil Included	No
Friction Modifier Included	No
Head Bearing Included	No
Installation DVD Included	No
Installation Kit Included	No
Pinion Gear Teeth	8
Pinion Nut Included	No
Pinion Seal Included	No
Pinion Shaft Diameter	1.375"
Pinion Shims Included	No
Pinion Spline Count	26
Quantity	Sold as a set
Ring and Pinion Ratio	4:88
Ring Gear Bolts	10
Ring Gear Bolts Included	No
Ring Gear Diameter	7.330"
Ring Gear Rotation	Standard
Ring Gear Teeth	39
Tail Bearing Included	No

Features

Smooth finish
Easy Set-Up
Run cooler and quieter than other aftermarket gears

Product Details

High Performance Ring and Pinion Gear Set (YG D30-488) by Yukon Gear & Axle®. Yukon Ring and Pinion sets give you the confidence of knowing you’re running gears designed for the harshest of conditions. Whether it’s on the street, off-road, or at the track. Yukon ring & pinion sets deliver unrivaled performance and quality. Yukon uses the latest designs and manufacturing technologies to provide a quiet running gear that is strong and easy to set up.

Installation

Yukon Gear & Axle® - 2 Step VS 5 Step Gears Instruction Sheet

Yukon Gear & Axle is here with excellent products that are available at a competitive price. The company does its utmost to provide the best possible solutions for your needs. All products by Yukon Gear & Axle are made with expert care and created by professionals to meet all your requirements. The company does not accept compromises when it is going about quality, so you can be sure that all products have only first-rate quality. With many years of manufacturing experience, Yukon Gear & Axle is the name you can trust.

Yukon Gear & Axle® - Ring and Pinion Set Information Yukon Gear & Axle® - 2 Step VS 5 Step Gears Instruction Sheet Yukon Gear & Axle® - Product Catalog Yukon Gear & Axle® - Features Yukon Gear & Axle® - Warranty Made In USA Yukon Gear & Axle Authorized Dealer Product lines Video About us

Brand:

Yukon Gear & Axle

Part Number:

YG D30-488

UPC:

883584240228

Alternate MPN:

YGD30488, YG D30-488

Warranty

Yukon Gear & Axle (“Yukon”) warrants the original purchaser that all Yukon products will be free from defects in materials and workmanship for the periods shown herein. Yukon makes no other warranty of any kind, express or implied. All other warranties, including but not limited to an implied warranty of merchantability or fitness for a particular purpose, are excluded. This warranty is offered provided that the Yukon product has been installed and maintained in accordance with Yukon instructions, and that it has not been subject to modification, accident, abnormal use or misuse. At Yukon’s discretion, this warranty may be voided if installation of Yukon product(s) occurs on vehicles with tires that exceed Yukon maximum recommended tire size.

Upon notification of a warranty claim, Yukon shall investigate the claim of defect and, in the event of a verified defect, shall, at its sole choice, either repair the defective product, replace it, or refund the purchase price.

This warranty does not cover, and Yukon shall not be liable for, incidental or consequential damages, including loss of time, inconvenience, loss of vehicle use, or damage to personal property (including loss or damage to vehicle parts due to the failure of the Yukon product). This warranty does not cover damage to the axle caused by or facilitated by failure of a non-Yukon component.

This agreement offers you specific legal rights. You may also have other rights which vary from state to state.

Yukon Warranty by Products

Spool - As long as the original purchaser owns vehicle in which Spool is originally installed. It is normal for Spools to cause tire chatter, squeal, or scrubbing when vehicle is not moving in a straight line. Both rear tires must measure the same height from ground to top of wheel for Spool to function properly without premature wear.

Super Joint - As long as original purchaser owns vehicle in which Super Joint is originally installed. Warranty coverage is for breakage of cross section or caps only. Failure by wear or galling is not covered.

YP - Series Products (other than Spool and Super Joint) - One (1) Year. Covers parts for one year against manufacturing defects.

Front Axle (1541H) - Ten (10) Years. Covers parts for ten years against manufacturing defects.

Rear Axle (1541H) - Ten (10) Years. Covers parts for ten years against manufacturing defects.

Rear Axle 4340 (YA W) - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and axle breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Front Axle (Series YA W) - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and axle breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Ring & Pinion Gear Set - One (1) Year. Warrantied against manufacturing defects for one (1) year.

Positraction Differential - One (1) Year. Exclusions apply, does not cover premature clutch wear or abuse. It is normal for Positraction differentials to cause tire chatter, squeal, or scrubbing when vehicle is not moving in a straight line. Both rear tires must measure the same height from ground to top of wheel for differential to function properly without premature wear. Limited slip additive or appropriate friction modifier must be used with oil to reduce Positraction chatter.

Zip Locker (YZL) - Six (6) Years. All Zip Lockers come with a six (6) year warranty against manufacturing defects.

Grizzly Locker (YGL) - One (1) Year. Covers the replacement of the unit and any collaterally damaged parts.

Yokes - One (1) Year Covers parts for one year against manufacturing defects.

Carriers (YC) - One (1) Year. Covers parts for one year against manufacturing defects.

Tools (YT) - One (1) Year. Covers parts for one year against manufacturing defects.

Install Kits - One (1) Year. Includes BK, MK, PK, and YK. Covers parts for one year against manufacturing defects.

Spider Gear Kits (YPK) - One (1) Year. One year against manufacturing defects. Exclusions apply, does not cover clutch wear in limited slip differentials.

Drive Flanges - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Yukon Hardcore Locking Hubs - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Reviews

(4)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-4 of 4 Reviews

Sort by

5 of 5

Yukon Gear & Axle

Had to leave out all shims on pinion shaft bearings to achieve correct gear lash, works great and sounds great driving on highway,no abnormal noise from rear end. Love it!

Yukon Gear & Axle® YG D80-488 - Rear High Performance Ring and Pinion Gear Set

Posted by Danny (Selmer, TN) / November 15, 20181999 Ford F-450

4 of 5

Yukon Gears

Gears were a little difficult to do in a Toyota FJ. The overall completed project ran great but still are a little noisy but getting quitter every day they are run. I am very happy with the product and recommend them to anyone.

Posted by Scott (Center Barnstead, NH) / January 17, 20172007 Toyota FJ Cruiser

5 of 5

Pin.

Right part. Works great.

Yukon Gear & Axle® YP MINSXGM8.5 - Front Differential Cross Pin Shaft

Posted by Stanley (Florence, AL) / June 15, 20191981 Chevy CK Pickup

5 of 5

Overhaul Kit

Good Product.

Yukon Gear & Axle® YK F10.5-D - Rear Differential Master Overhaul Kit

Posted by Kevin (Winchester, TN) / July 28, 20172012 Ford F-250
