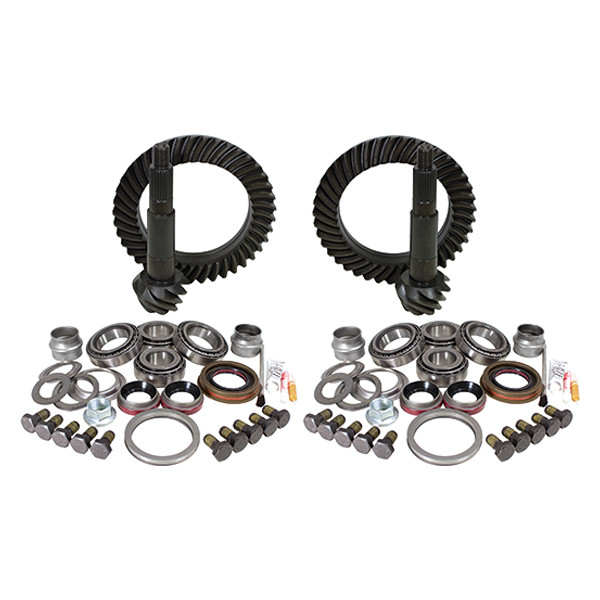

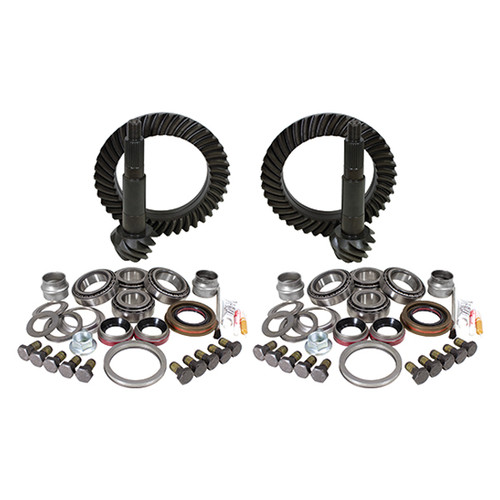

Name: Yukon Gear & Axle® YGK056 - Ring and Pinion Gear Complete Package
Brand: Yukon Gear & Axle
SKU: mpn4917660990
Price: 847.89 USD
Availability: InStock
Rating: 5 (3 reviews)

Vehicle Fitment

Cadillac

Chevy

Dodge

Ford

GMC

Jeep

Nissan

Specifications

Ratio	4.11
Axle Bearings Included	No
Axle Seals Included	No
Carrier Bearings Included	Yes
Carrier Shims Included	Yes
Cover Bolts	10
Cover Gasket Included	Yes
Crush Sleeve Included	Yes
Differential Cover Included	No
Differential Oil Included	No
Friction Modifier Included	No
Head Bearing Included	Yes
Installation DVD Included	No
Installation Kit Included	Yes
Pinion Gear Teeth	10
Pinion Nut Included	Yes
Pinion Seal Included	Yes
Pinion Shims Included	Yes
Pinion Spline Count	24
Quantity	Sold as a kit
Ring and Pinion Ratio	4:10
Ring Gear Bolts	10
Ring Gear Bolts Included	Yes
Ring Gear Diameter	8.890"
Ring Gear Rotation	Standard
Ring Gear Teeth	41
Tail Bearing Included	Yes

Includes

Front and Rear Ring and Pinion Sets
Master Overhaul Kit

Features

Enables you to keep your engine in the powerband for more giddy-up and high speed
Allows for getting superior traction on just about any brutal terrain
Adds more reliability and consistency to your drivetrain
Ready to stand up to the punishing conditions of challenging landscapes

Product Details

Ring and Pinion Gear Complete Package (YGK056) by Yukon Gear & Axle®. Dominate the track or hit the trails with confidence by fine tuning your vehicle for neck-breaking speed and performance with this premium differential component that delivers the ultimate in high strength and toughness. This part is designed to provide the gearing that helps ensure your engine stays in the powerband for faster acceleration while providing maximum safety during tough driving conditions.

Installation

Yukon Gear & Axle® - 2 Step VS 5 Step Gears Instruction Sheet

Yukon Gear & Axle is here with excellent products that are available at a competitive price. The company does its utmost to provide the best possible solutions for your needs. All products by Yukon Gear & Axle are made with expert care and created by professionals to meet all your requirements. The company does not accept compromises when it is going about quality, so you can be sure that all products have only first-rate quality. With many years of manufacturing experience, Yukon Gear & Axle is the name you can trust.

Yukon Gear & Axle® - 2 Step VS 5 Step Gears Instruction Sheet Yukon Gear & Axle® - Ring and Pinion Set Information Yukon Gear & Axle® - Product Catalog Yukon Gear & Axle® - Features Yukon Gear & Axle® - Warranty Made In USA Yukon Gear & Axle Authorized Dealer Product lines Video About us

Brand:

Yukon Gear & Axle

Part Number:

YGK056

UPC:

883584310563

Warranty

Yukon Gear & Axle (“Yukon”) warrants the original purchaser that all Yukon products will be free from defects in materials and workmanship for the periods shown herein. Yukon makes no other warranty of any kind, express or implied. All other warranties, including but not limited to an implied warranty of merchantability or fitness for a particular purpose, are excluded. This warranty is offered provided that the Yukon product has been installed and maintained in accordance with Yukon instructions, and that it has not been subject to modification, accident, abnormal use or misuse. At Yukon’s discretion, this warranty may be voided if installation of Yukon product(s) occurs on vehicles with tires that exceed Yukon maximum recommended tire size.

Upon notification of a warranty claim, Yukon shall investigate the claim of defect and, in the event of a verified defect, shall, at its sole choice, either repair the defective product, replace it, or refund the purchase price.

This warranty does not cover, and Yukon shall not be liable for, incidental or consequential damages, including loss of time, inconvenience, loss of vehicle use, or damage to personal property (including loss or damage to vehicle parts due to the failure of the Yukon product). This warranty does not cover damage to the axle caused by or facilitated by failure of a non-Yukon component.

This agreement offers you specific legal rights. You may also have other rights which vary from state to state.

Yukon Warranty by Products

Spool - As long as the original purchaser owns vehicle in which Spool is originally installed. It is normal for Spools to cause tire chatter, squeal, or scrubbing when vehicle is not moving in a straight line. Both rear tires must measure the same height from ground to top of wheel for Spool to function properly without premature wear.

Super Joint - As long as original purchaser owns vehicle in which Super Joint is originally installed. Warranty coverage is for breakage of cross section or caps only. Failure by wear or galling is not covered.

YP - Series Products (other than Spool and Super Joint) - One (1) Year. Covers parts for one year against manufacturing defects.

Front Axle (1541H) - Ten (10) Years. Covers parts for ten years against manufacturing defects.

Rear Axle (1541H) - Ten (10) Years. Covers parts for ten years against manufacturing defects.

Rear Axle 4340 (YA W) - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and axle breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Front Axle (Series YA W) - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and axle breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Ring & Pinion Gear Set - One (1) Year. Warrantied against manufacturing defects for one (1) year.

Positraction Differential - One (1) Year. Exclusions apply, does not cover premature clutch wear or abuse. It is normal for Positraction differentials to cause tire chatter, squeal, or scrubbing when vehicle is not moving in a straight line. Both rear tires must measure the same height from ground to top of wheel for differential to function properly without premature wear. Limited slip additive or appropriate friction modifier must be used with oil to reduce Positraction chatter.

Zip Locker (YZL) - Six (6) Years. All Zip Lockers come with a six (6) year warranty against manufacturing defects.

Grizzly Locker (YGL) - One (1) Year. Covers the replacement of the unit and any collaterally damaged parts.

Yokes - One (1) Year Covers parts for one year against manufacturing defects.

Carriers (YC) - One (1) Year. Covers parts for one year against manufacturing defects.

Tools (YT) - One (1) Year. Covers parts for one year against manufacturing defects.

Install Kits - One (1) Year. Includes BK, MK, PK, and YK. Covers parts for one year against manufacturing defects.

Spider Gear Kits (YPK) - One (1) Year. One year against manufacturing defects. Exclusions apply, does not cover clutch wear in limited slip differentials.

Drive Flanges - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and breakage for as long as you own the vehicle. This warranty is not transferable to another party.

Yukon Hardcore Locking Hubs - Limited Lifetime. Limited Lifetime warranty covering manufacturing defects and breakage for as long as you own the vehicle. This warranty is not transferable to another party.
